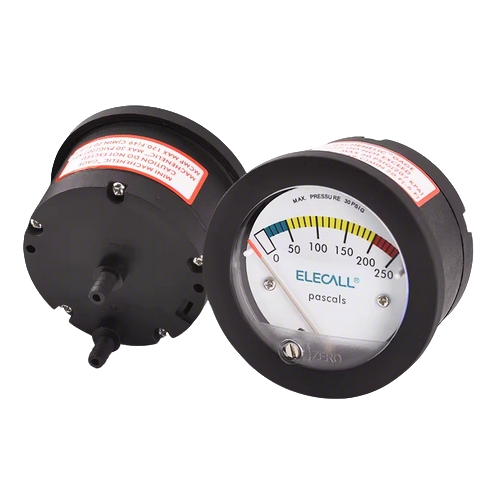

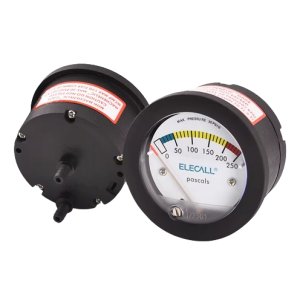

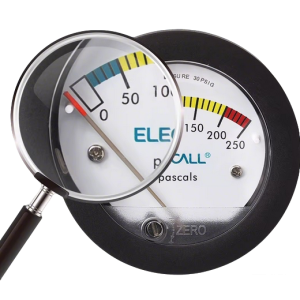

EM5000 Mechanical Differential Pressure Gauge
Mechanical differential pressure gauge for low pressure measurement
High precision measurement for positive and negative pressure
PTFE pointer for strong overload resistance and fast response
Color-coded dial scale for easy range identification
Durable nylon and polycarbonate housing
Suitable for clean rooms, ventilation systems, and airflow monitoring
Application
The EM5000 Mechanical Differential Pressure Gauge is widely used for monitoring low pressure and airflow in various industries, including:
-
Medical equipment systems
-
Microelectronics manufacturing
-
Pharmaceutical factories
-
Livestock and agricultural ventilation systems
-
Clean rooms and purification workshops
-
Air filtration and HVAC systems
Description
The EM5000 Mechanical Differential Pressure Gauge is designed for accurate monitoring of low differential pressure and vacuum pressure in industrial and environmental applications. The gauge features a clear mechanical dial with color-coded scales, making it easy to identify pressure ranges and read measurements quickly.
Equipped with a PTFE pointer, the instrument provides excellent overload resistance, short damping time, and high measurement accuracy. The robust nylon and polycarbonate housing ensures strong durability and long service life while maintaining lightweight construction.
The device offers standard pressure connections for easy installation, making it suitable for airflow monitoring in clean rooms, ventilation systems, and industrial equipment. Its stable mechanical design ensures reliable operation with minimal drift over time.
Features
-
High accuracy measurement for positive and negative pressure
-

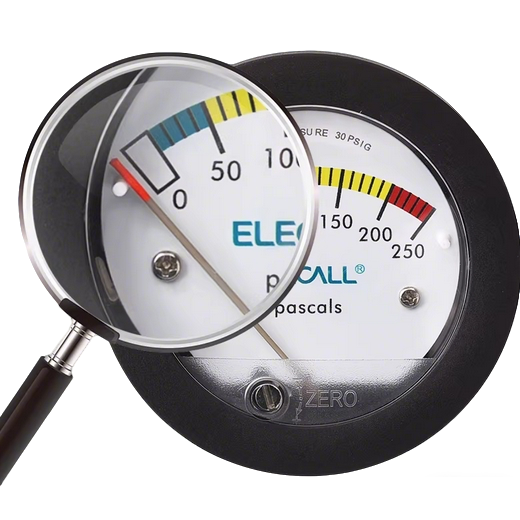

PTFE pointer design for strong overload resistance and fast response
-

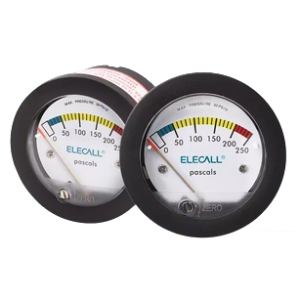

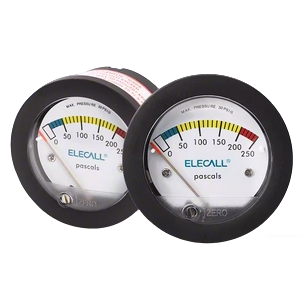

Color-coded dial scale for clear range identification
-
High-strength transparent cover for better protection and visibility
-
Durable nylon and polycarbonate housing
-
Stable performance with long service life
-

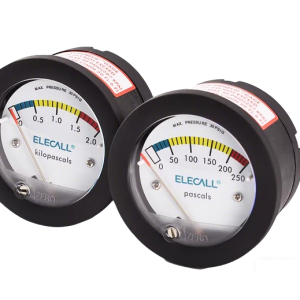

Wide measurement range options available
-

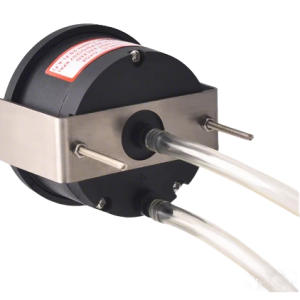

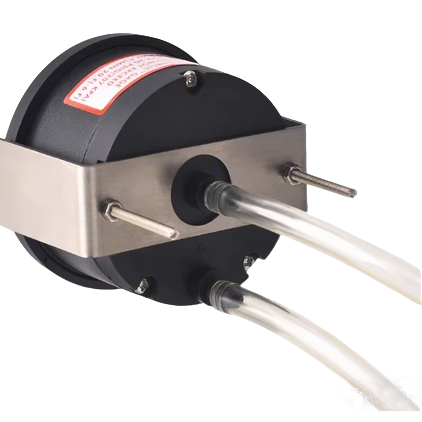

Easy installation with standard pressure connections
-
Suitable for airflow, filtration, and clean room monitoring
Technical Details
Model:
EM5000
Product Type:
Mechanical Differential Pressure Gauge
Temperature Range:
-7°C to 60°C
Rated Pressure:
-68 to 103 kPa
Accuracy:
±5% Full Scale at 70°F (21.1°C)
Housing Material:
Reinforced nylon and polycarbonate
Pointer Material:
PTFE (Polytetrafluoroethylene)
Process Connection:
Standard 3/16
Standard 3/16
Available Measurement Ranges:
Accessories
