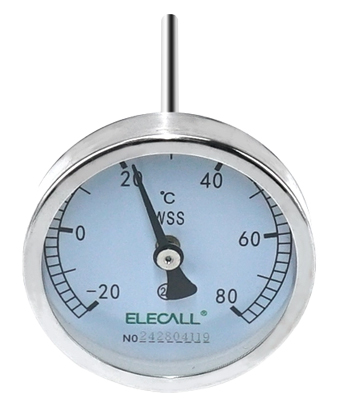

Bimetallic Thermo Gauge
High-Sensitivity Temperature Sensor
-40~600℃ (Customizable Range)
Application
A bimetallic thermometer is an on-site detection instrument for measuring medium and low temperatures. Based on the thermal bending property of two metal strips with different expansion coefficients (the active layer and the passive layer), it drives the pointer to indicate the temperature. It can directly measure the temperature of liquid, vapor and gas media within the range of -40℃ to 600℃ in various production processes.
Description

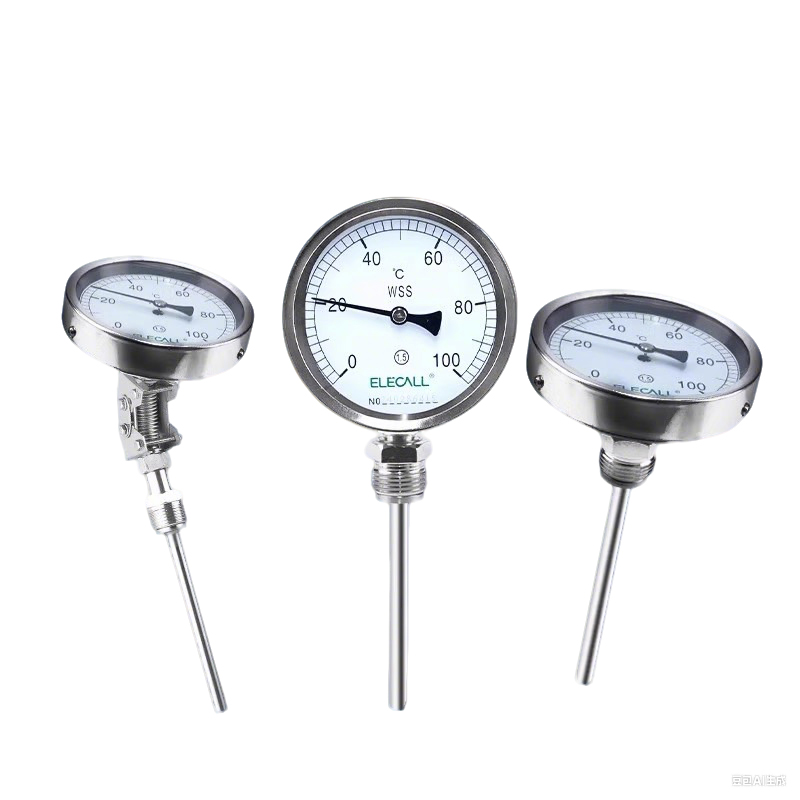

The protective tube is made of 304 stainless steel, featuring excellent pressure resistance and corrosion resistance. It comes in a complete range of mounting types including axial type, radial type, 135° type and universal type, which can meet the requirements of various on-site installation scenarios.
Technical Details
Dial Diameter
60mm/100mm/150mm
Protective Tube Diameter
6mm/10mm
Measurement Temperature Range (℃)
-40~600 (Optional Range)
Stem Length
100mm (Customizable Stem Length)
Mounting Type
Radial/Axial/Universal
Protection Class
IP55
Accuracy Class
1.5/2.5
Case Material
Iron with Nickel Plating
Protective Tube Material
304 Stainless Steel
Pressure Resistance
≤6MPa
Thermal Response Time
≤40S
Connection Method
Movable External Thread, No Fixing Device, Movable Internal Thread, Fixed Thread, Fixed Flange are all optional
Accessories
