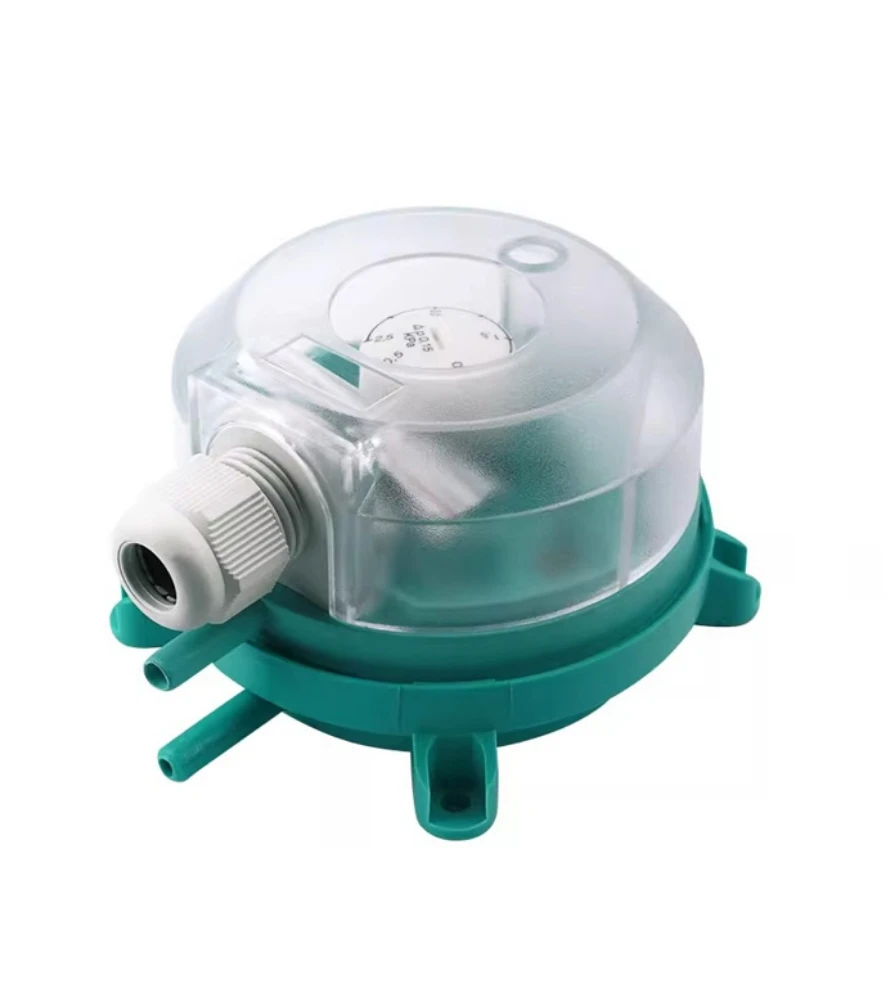

Differential Pressure Switch
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Application
Widely trusted in clean rooms, air handling systems, filter monitoring, and industrial process control, the Series 2000 balances rugged construction with ease of use. With no need for electrical power or complex setup, it remains a go-to pressure monitoring solution for dependable, maintenance-free performance.
Description
Precautions
1 All connecting wires are recommended to pass through conduits before connecting to the differential pressure controller.
2 All connecting air pipes are recommended to be PVC pipes or metal pipes, and their positions should be fixed properly.
3 At all bending positions of the air pipes, a certain curvature should be reserved to avoid pipe bending and blockage of the middle air vent.
4 The wire through-holes on the left, right and bottom of the differential pressure controller can be opened by gently tapping with a hammer.
Features
Encased in a durable die-cast aluminum housing and sealed to an IP67 rating, the Magnehelic® gage stands up to dusty or wet environments, making it suitable for both indoor and outdoor installations. Its clear, full-scale analog display allows for fast pressure assessment at a glance, with overpressure protection built in for added safety.
Technical Details
Accuracy Detail
± 2% (-HA model ± 1) of FS (± 3% (-HA ± 1.5%) on -0, -100PA, -125PA, -10MM and ± 4% (-HA ± 2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Process Connection Note
1/8˝ female NPT duplicate high and low pressure taps - one pair side and one pair back.
Dial Dia
4 in
Enclosure Ratings
IP67
Materials
Aluminum, Acrylic
Pressure Limits
-20 inHg to 15 psig
Measurement Pressure Type
Differential
Accessories
Similar Products
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.
Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
Meetyour choices
Small and exquisite
stable performance
Simple installation
REED
High-precision digital micro differential pressure controller
LCD real-time display with digital filtering technology
Standard 4–20mA output with optional RS485 communication
24V DC powered industrial pressure monitoring device
Multiple pressure unit switching supported
Suitable for HVAC, cleanroom, and negative pressure systems
Easy to install with high safety and reliability. It adopts a plastic base paired with brass threads, available in multiple piping sizes such as 1/2 inch, […]
It is suitable for measuring the pressure of liquids, vapors, gases and other media that are non-explosive, non-crystallizing, non-coagulating and non-corrosive to copper and copper-aluminum alloys.
High-precision digital differential pressure measurement with clear real-time LCD display
Multiple pressure unit switching
Suitable for HVAC and cleanroom applications
Fast response with strong anti-interference capability
Equipped with a stainless steel protection tube, it features high accuracy and excellent stability. It is used to convert temperature signals into usable output signals and is suitable for industrial temperature measurement scenarios.
Its functions can almost completely replace those of mechanical contact pressure gauges, with customizable connectors and measurement ranges
It adopts a 304 stainless steel housing and is equipped with a high-quality wafer core. Multiple types of connectors are available. After precise calibration and aging testing, it features accurate measurement, high stability and strong durability
