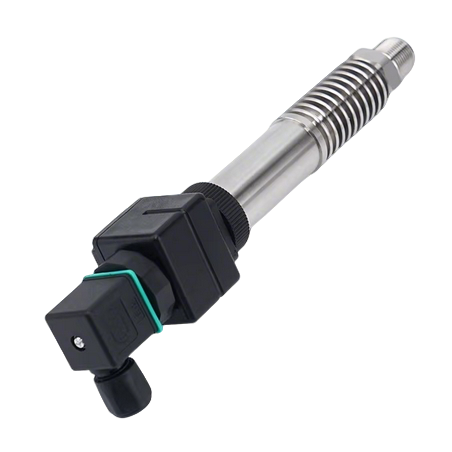

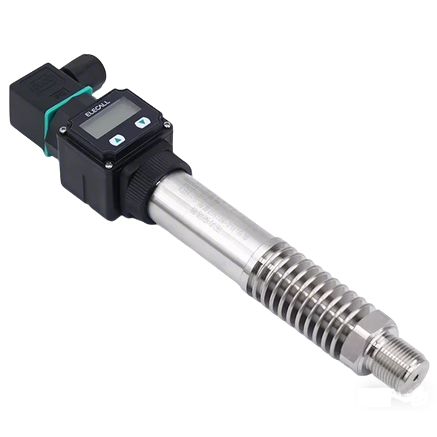

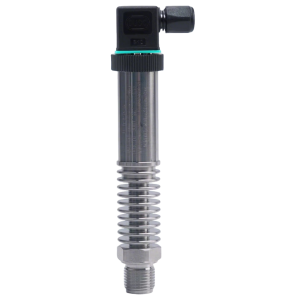

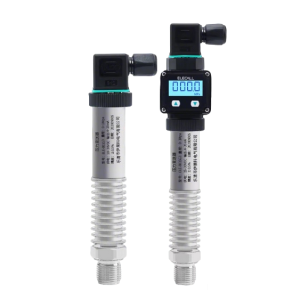

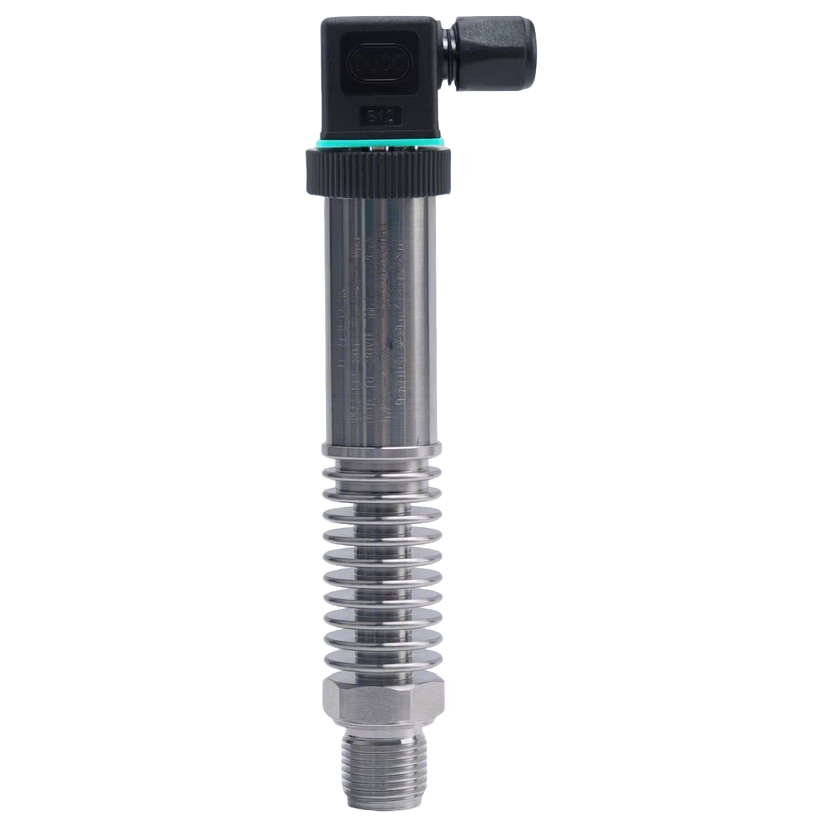

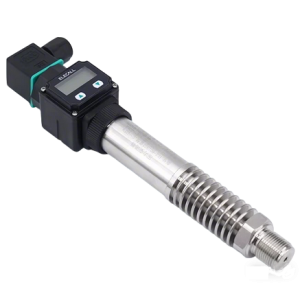

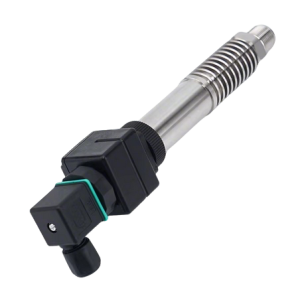

801G3 high temperature pressure transmitter
High temperature industrial pressure monitoring
Water pressure systems
Gas and pneumatic systems
Oil and hydraulic pressure measurement
Chemical and industrial processing equipment
-
High temperature pipeline pressure monitoring
Application
-
High temperature industrial pressure monitoring
-
Water pressure systems
-
Gas and pneumatic systems
-
Oil and hydraulic pressure measurement
-
Chemical and industrial processing equipment
-
High temperature pipeline pressure monitoring
Description
The 801G3 high temperature pressure transmitter is designed for accurate pressure measurement in high-temperature industrial environments. Equipped with a high-precision diffused silicon sensor, it provides stable and reliable performance for measuring water, gas, oil, and hydraulic pressure.
The transmitter features a specially designed heat dissipation structure with multiple high-temperature heat sink options, allowing it to operate safely in environments up to 200°C. The intelligent circuit board performs automatic temperature compensation and linear calibration to ensure stable signal output and improved accuracy.
Each transmitter undergoes strict aging tests and precise calibration including zero, midpoint, and full-scale detection, ensuring long-term durability and reliable operation in demanding applications.
Features
-
High temperature resistant design, operating up to 200°C
-
Diffused silicon sensor for high accuracy and stability
-
Multiple heat sink options for efficient heat dissipation
-
Intelligent circuit board with automatic compensation and linear calibration
-
High stability signal output with reduced failure rate
-
Advanced gas calibration technology for more accurate calibration
-
Three-point precision calibration (zero, midpoint, full scale)
-
Aging test process ensures long service life
-
Curved heat sink design for improved safety and aesthetics
-
Suitable for harsh industrial environments
Technical Details
Type
High Temperature Pressure Transmitter
Sensor Type
Diffused Silicon Sensor
Maximum Temperature Resistance
Up to 200°C
Cooling Structure
High-temperature heat dissipation heat sink
Calibration
Zero, midpoint, and full-scale calibration
Signal Processing
Intelligent circuit with automatic compensation and linear correction
Measurement Media
Water, gas, oil, and hydraulic fluids
Application Environment
High temperature industrial environments
Design Feature
Curved heat sink for improved heat dissipation and safety
Accessories
