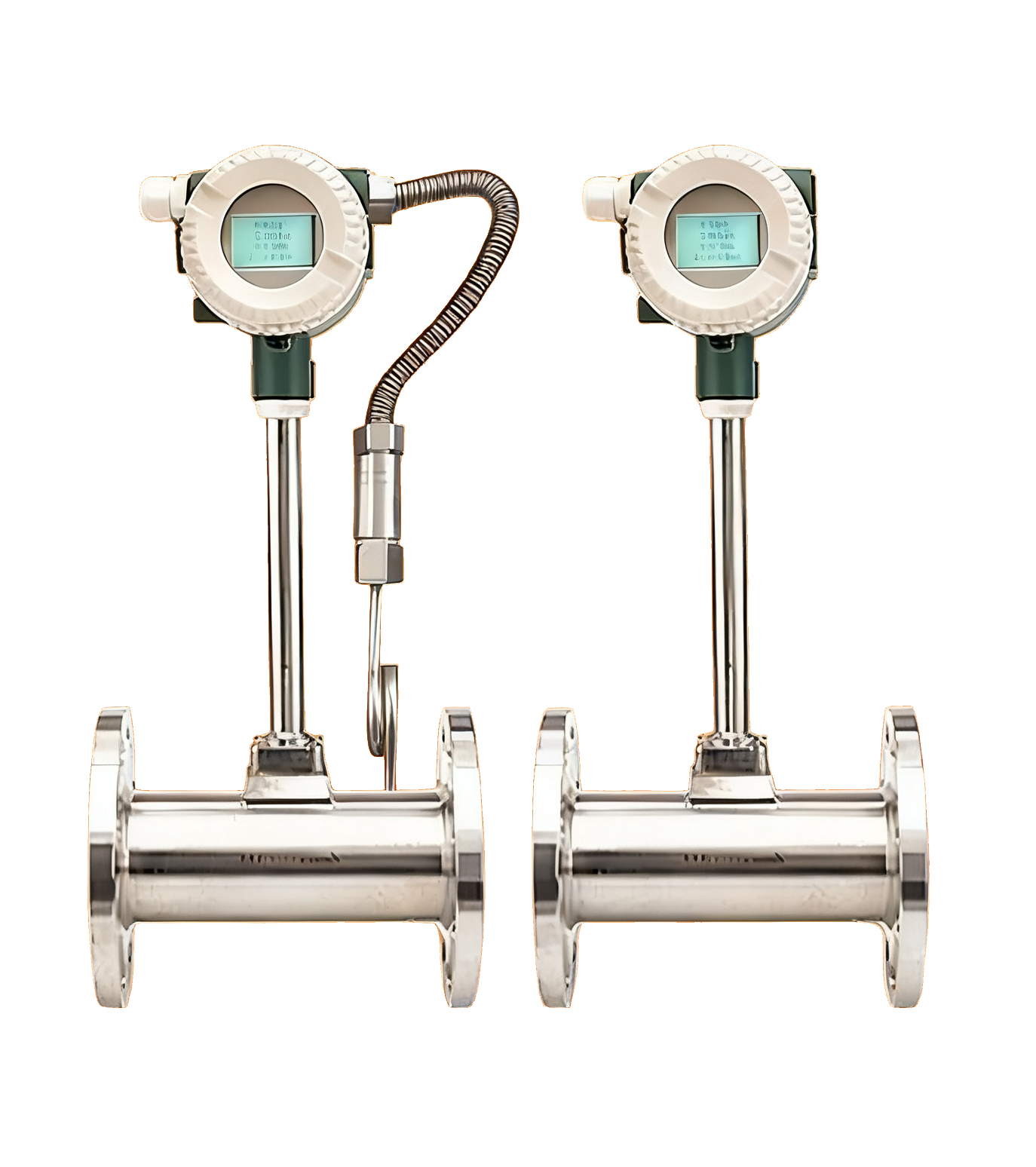

ZEF-LUGB Vortex FlowGauge
It is suitable for flow measurement of media such as compressed air, steam and liquids. Equipped with an intelligent digital display gauge, it can show instantaneous flow rate, cumulative flow rate and other parameters. Adopting an anti-vibration shielded rod, it ensures accurate and reliable measurement.
Application
It is widely used in the measurement and metering of gases, liquids and steam in various industries such as industrial production processes, energy metering, environmental protection, transportation, and food production.
Description
This vortex FlowGauger is made of SS304 material, with a nominal pressure of 1.6MPa, a protection rating of IP65, an accuracy of ±1.5% R, and a 4-20mA output signal. Equipped with an intelligent digital display gauge, it can show information such as instantaneous flow rate, cumulative flow rate and pulses. Adopting an anti-vibration shielded rod, it ensures stable values and reliable flow metering. Additionally, it can be equipped with a water tank and a sealing groove for excellent sealing performance, and is fastened with positioning fixing screws for high stability. During installation, there are requirements for the upstream and downstream straight pipe sections (10D upstream, 5D downstream). Different numbers of upstream elbows correspond to different lengths of straight pipe sections, and there are corresponding requirements for expanded-diameter installation. Two power supply options are available: DC24V power supply and 3.6V lithium battery power supply. The lithium battery has a service life of more than 1 year, featuring low power consumption and strong energy supply capacity.
Features
Wide Medium Adaptability: Capable of measuring gases, liquids and steam. Comprehensive Display Functions: Equipped with an intelligent digital display gauge, showing instantaneous flow rate, cumulative flow rate and pulses. Excellent Anti-vibration Performance: Adopts an anti-vibration shielded rod, ensuring stable values without fluctuation. Clear Installation Requirements: Specific requirements for the length of upstream and downstream straight pipe sections to guarantee measurement accuracy. Flexible Power Supply Modes: Optional DC24V power supply or 3.6V lithium battery power supply.
Technical Details
Nominal Diameter
20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300 (unit: mm, default)
Nominal Pressure
1.6MPa
Material
SS304
Accuracy
±1.5% R (R = Reading)
Supply
Voltage 24V (DC24V power supply); 3.6V (lithium battery power supply)
Protection Rating
IP65
Operating Conditions
Below 250℃
Allowable Vibration Acceleration
Piezoelectric type: 0.2g
Turndown Ratio
1:6 ～ 1:25
Output Signal
4-20mA output
Electrical Interface
M20×1.5
Applicable Media
Gas, liquid, steam
Pressure Loss Value
Complies with JB/T9249 standard, Cd≤2.4
Power Supply Service Life
3.6V lithium battery: service life over 1 year
