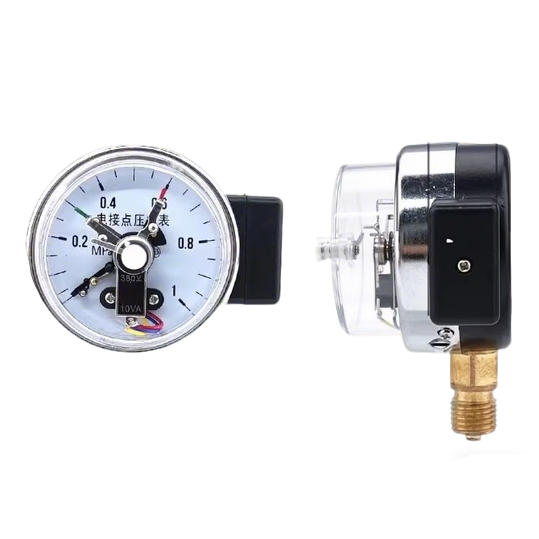

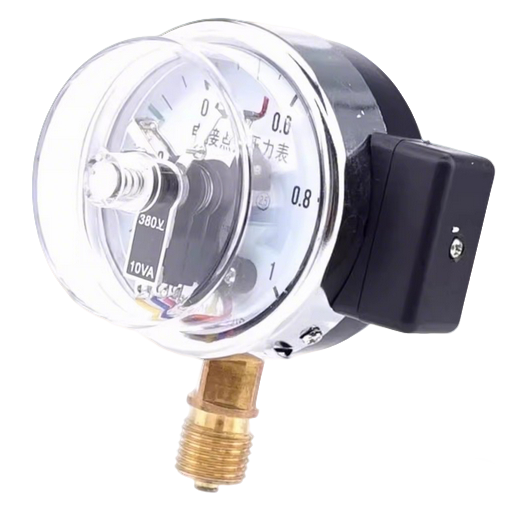

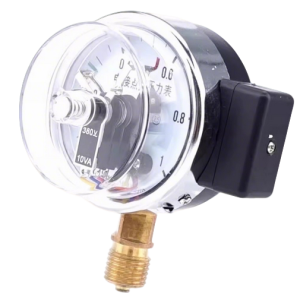

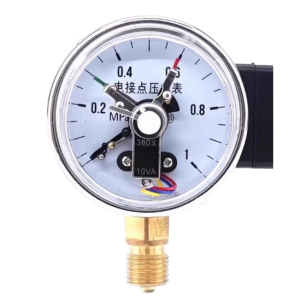

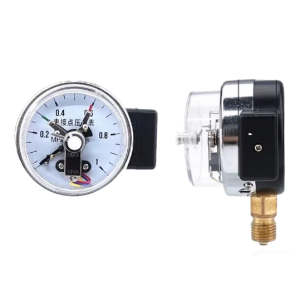

YX-60 radial electrical contact pressure gauge
YX-60 radial electrical contact pressure gauge with reliable on-off control
±2.5% high accuracy for precise pressure measurement
Built-in upper and lower limit electrical contacts for automatic control
Ideal for gas, liquid, and hydraulic system applications
Radial (back connection) mounting design for flexible installation
Robust construction suitable for industrial monitoring and automation
Combines accurate indication with switching functionality in one compact unit
Application
-
Water supply systems
-
Hydraulic systems
-
Oil pressure systems
-
Gas and air pressure monitoring
-
Industrial equipment and automation
-
Maintenance and repair applications
Description
The YX-60 electrical contact pressure gauge combines pressure measurement with electrical control functionality. It is capable of triggering signals when the pressure reaches preset upper or lower limits, enabling automated control and protection of systems.
With a durable steel case and brass movement/connection, this gauge ensures stable performance and long service life. The radial mounting design allows for easy installation in various industrial setups.
It is suitable for measuring pressure in non-corrosive liquids, gases, steam, and media that do not affect copper or copper alloys, and is widely used in industrial and mechanical applications.
Features
-

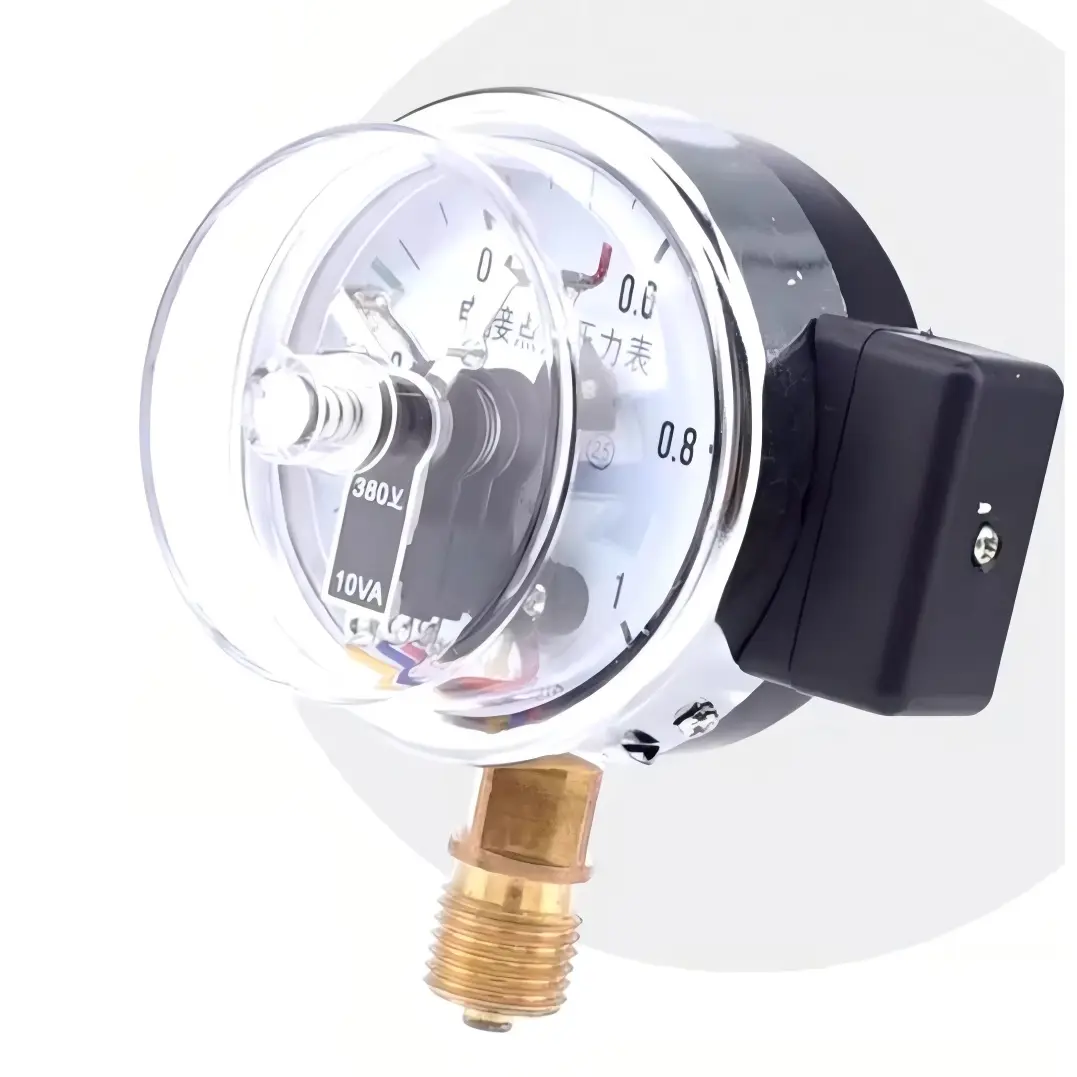

Electrical Contact Control
Supports upper and lower limit switching -

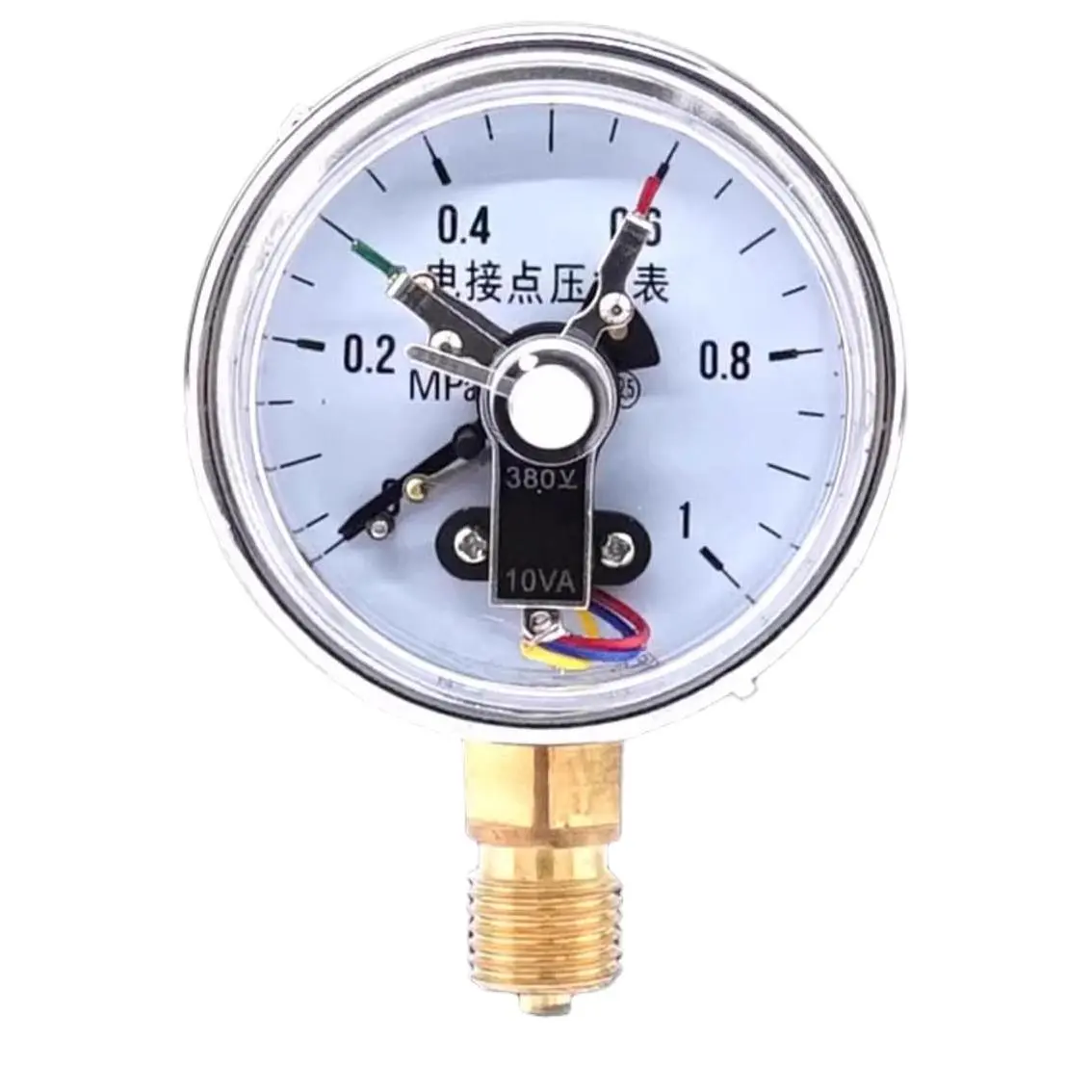

Reliable & Stable Performance
Ensures consistent pressure monitoring -
Wide Measurement Compatibility
Suitable for water, oil, gas, and hydraulic systems -

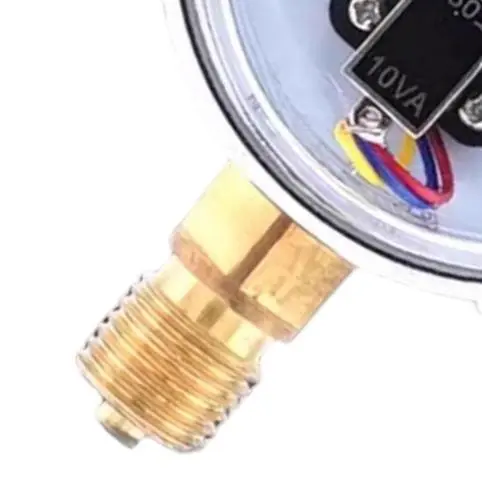

Durable Construction
Steel case with brass movement and connector -

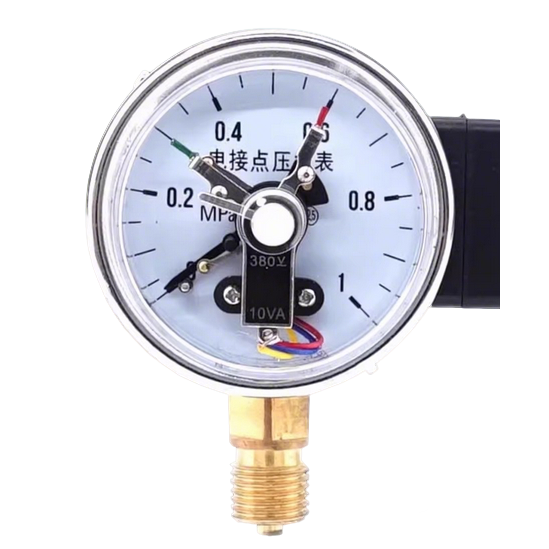

Clear Dial Display
Precise scale for easy and accurate reading -
Radial Mounting Design
Convenient installation for various equipment -
Safe & Long-lasting
Built for industrial use with stable pressure performance
Technical Details
Accuracy
±2.5%
Dial Diameter
60 mm
Weight
168.6 g
Connection Thread
M14 × 1.5
Mounting Type
Radial
Material
Steel case + brass movement & connector
Electrical Parameters
Max Current: 1 A Max Voltage: DC 220V / AC 380V Contact Power: 10 VA (resistive load) Control Mode: Upper & lower limit control
Operating Conditions
Ambient Temperature: -5°C to 55°C Relative Humidity: ≤85% Temperature Effect: ≤0.4% / 10°C (deviation from 20±5°C)
Applicable Media
Non-explosive, non-crystallizing, non-solidifying media Liquids, gases, and steam that do not corrode copper or copper alloys
