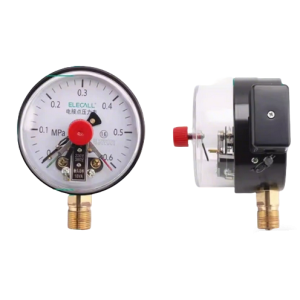

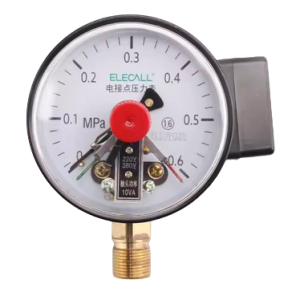

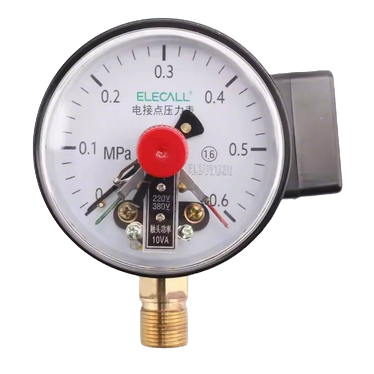

YX-100 / YXC-100 magnetic assist electrical contact pressure gauge
YX-100 / YXC-100 magnetic-assisted electrical contact pressure gauge for enhanced reliability
High accuracy of ±1.6% for precise pressure monitoring and control
Magnetic assist technology ensures stable, dependable upper and lower limit switching
Ideal for automatic control in gas, liquid, and hydraulic systems
Combines clear pressure indication with electrical contact functionality in one unit
100mm dial size with robust construction for industrial environments
Supports reliable on/off control at preset high/low pressure thresholds
Widely used in petroleum, chemical, metallurgy, power, and automation applications
Application
-
Natural gas pipelines
-
Ventilation and air duct systems
-
Water supply systems
-
Gas distribution systems
-
Mining industry
-
Metallurgical industry
-
Medical equipment
-
Maintenance and industrial equipment
Description
The YX-100 and YXC-100 (magnetic assist type) electrical contact pressure gauges are designed for precise pressure measurement combined with automatic control functions.
These gauges can trigger electrical signals when the pressure reaches preset upper or lower limits, enabling automation in various industrial systems.
The magnetic assist mechanism (YXC-100) enhances contact reliability, improves switching stability, and reduces electrical arcing, making it suitable for demanding environments.
Constructed with a nickel-plated steel case and brass connection, the product ensures durability, corrosion resistance, and long-term stable performance.
Features
-
High Accuracy (±1.6%)
Provides precise and stable pressure readings -

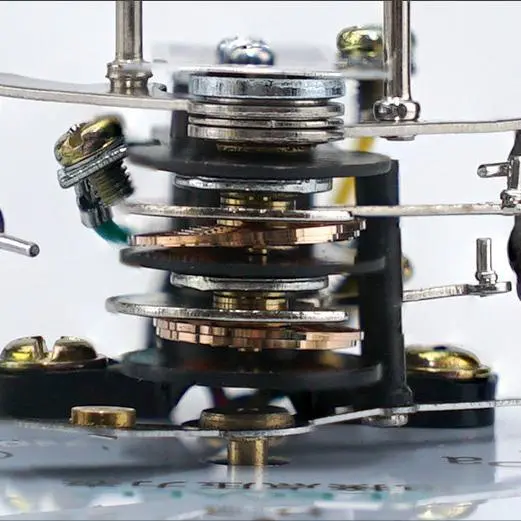

Magnetic Assist Technology (YXC-100)
Improves contact reliability and reduces interference -

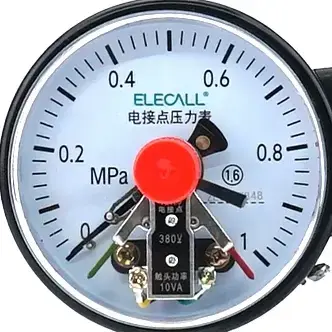

Upper & Lower Limit Control
Enables automatic switching and system control -
Wide Range Options
Multiple pressure ranges available for different applications -
Durable Construction
Nickel-plated steel case with brass connection -
Anti-Interference Design
Ensures stable performance in complex environments -
Clear Dial Display
Easy-to-read scale for quick monitoring
Technical Details
Model Options
YX-100 YXC-100 (Magnetic Assist Type)
Specifications

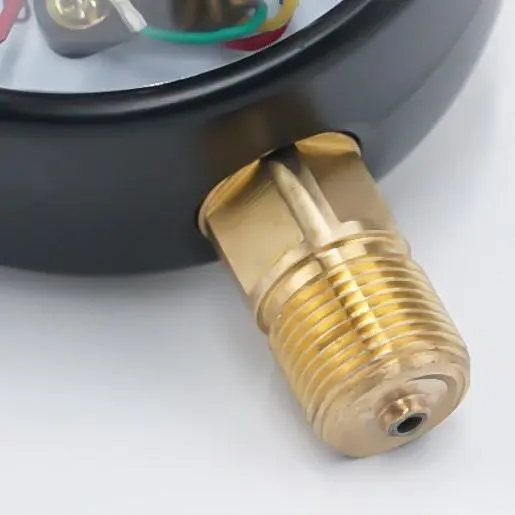

Accuracy: ±1.6% Dial Diameter: 100 mm Connection Thread: M20 × 1.5 Material: Nickel-plated steel case + brass connector
Contact Power
YX-100: 10 VA YXC-100: 30 VA
Function
Pressure measurement with electrical contact switching Upper and lower limit control
Applicable Media
Gas, liquid, oil, hydraulic pressure systems
