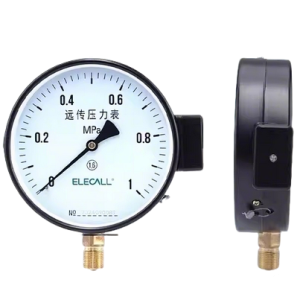

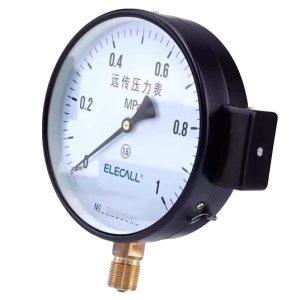

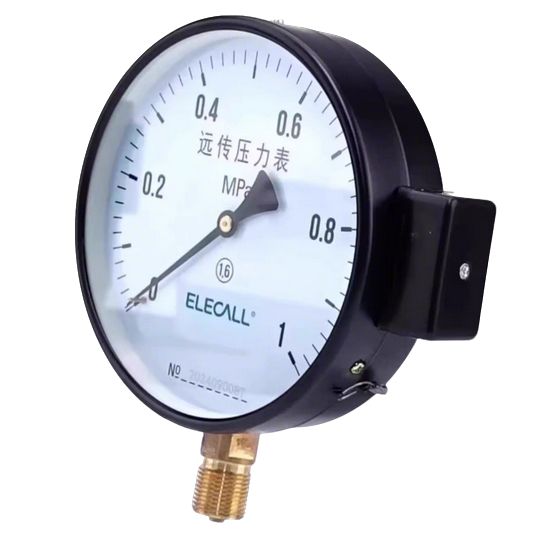

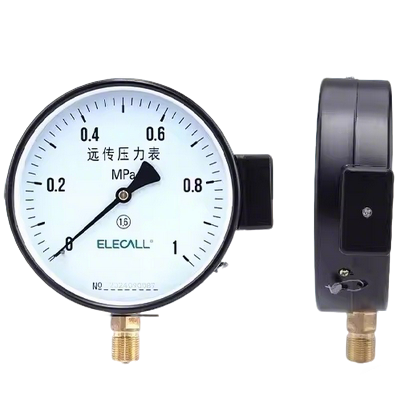

YTZ-150 Remote Resistance Pressure Gauge
Resistance-type remote transmission pressure gauge for reliable pressure monitoring
Designed for stable and accurate measurement of liquids, vapors, and gases
Ideal for constant pressure water supply systems and industrial applications
Built-in slide-wire resistive transmitter enables remote signal output to secondary instruments
Supports centralized monitoring and remote control over long distances
Measures media non-corrosive to steel and copper alloys
Large 150mm dial for clear, on-site pressure reading
Wide range of pressure options available (e.g., 0-0.6 MPa, 0-1.6 MPa, up to higher scales)
Accuracy class typically 1.6% or 2.5%, ensuring dependable performance
Rugged construction suitable for industrial environments
Commonly used with frequency converters (VFDs) in water supply and pump control systems
No external power required for basic operation – simple and cost-effective remote solution
Excellent for process automation, constant pressure systems, and on-site + remote dual display needs
Application
Widely used in:
-
Petrochemical equipment
-
Metallurgical industry
-
Mining industry
-
Medical equipment
-
Power and energy systems
-
Industrial machinery
-
Maintenance and repair services
Suitable for measuring pressure of:
-
Liquids
-
Steam
-
Gases
(Non-explosive, non-crystallizing, non-solidifying, and non-corrosive to steel and copper alloys)
Description
The YTZ-150 remote resistance pressure gauge is a reliable and durable instrument designed for precise pressure monitoring and signal transmission.
It features a high air-tight structure that effectively protects internal components from environmental contamination, ensuring long-term stability and performance.
With a clear dial and accurate scale, it provides consistent and dependable readings across a wide measurement range.
Features
-
Stable pressure performance
-
High accuracy measurement
-
Durable and long service life
-
Clear and precise scale display
-
Wide measurement range
-
Strong air-tight structure
-
Resistant to environmental interference
-
Reliable signal transmission
Technical Details
Model
YTZ-150 Remote Resistance
Dial Diameter
150 mm
Accuracy Class
1.6
Thread Connection
M20 × 1.5
Installation Type
Radial
Material
Iron case / Brass connection
Weight
585.4 g
Working Voltage
< 6V
Full Scale Resistance
310–400 Ω
Operating Temperature
-5°C to 55°C
Relative Humidity
≤ 80%
Temperature Influence
Deviation not greater than 0.4% per 10°C (based on 20±5°C)
Accessories
