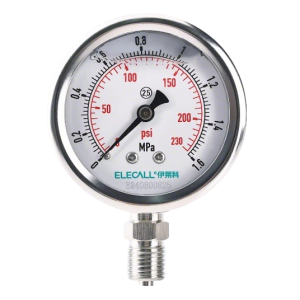

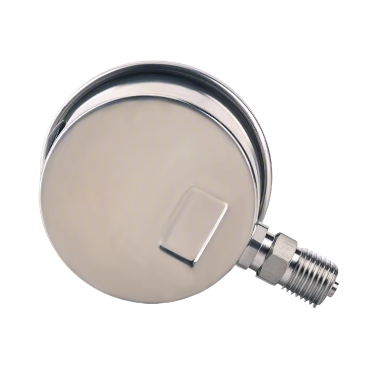

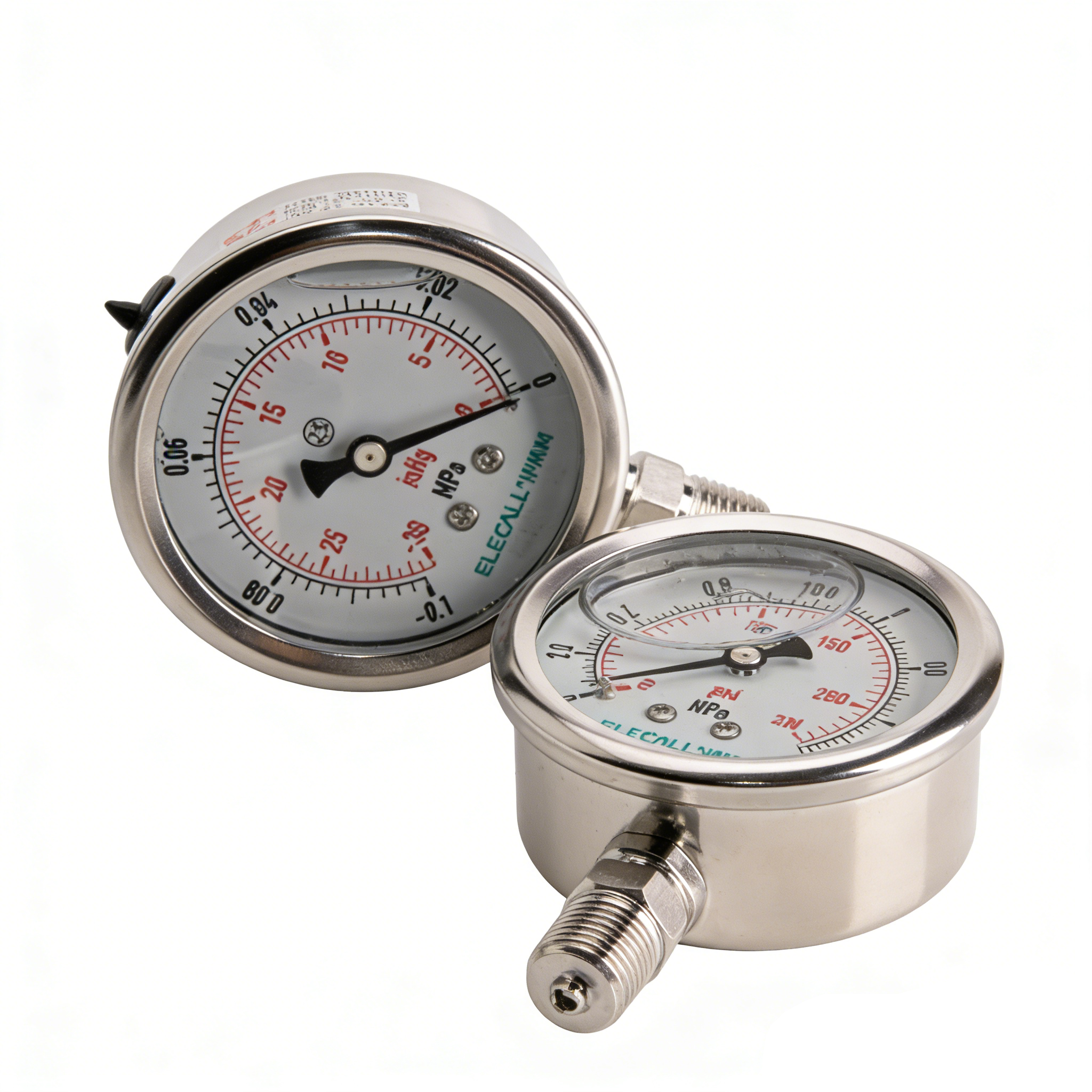

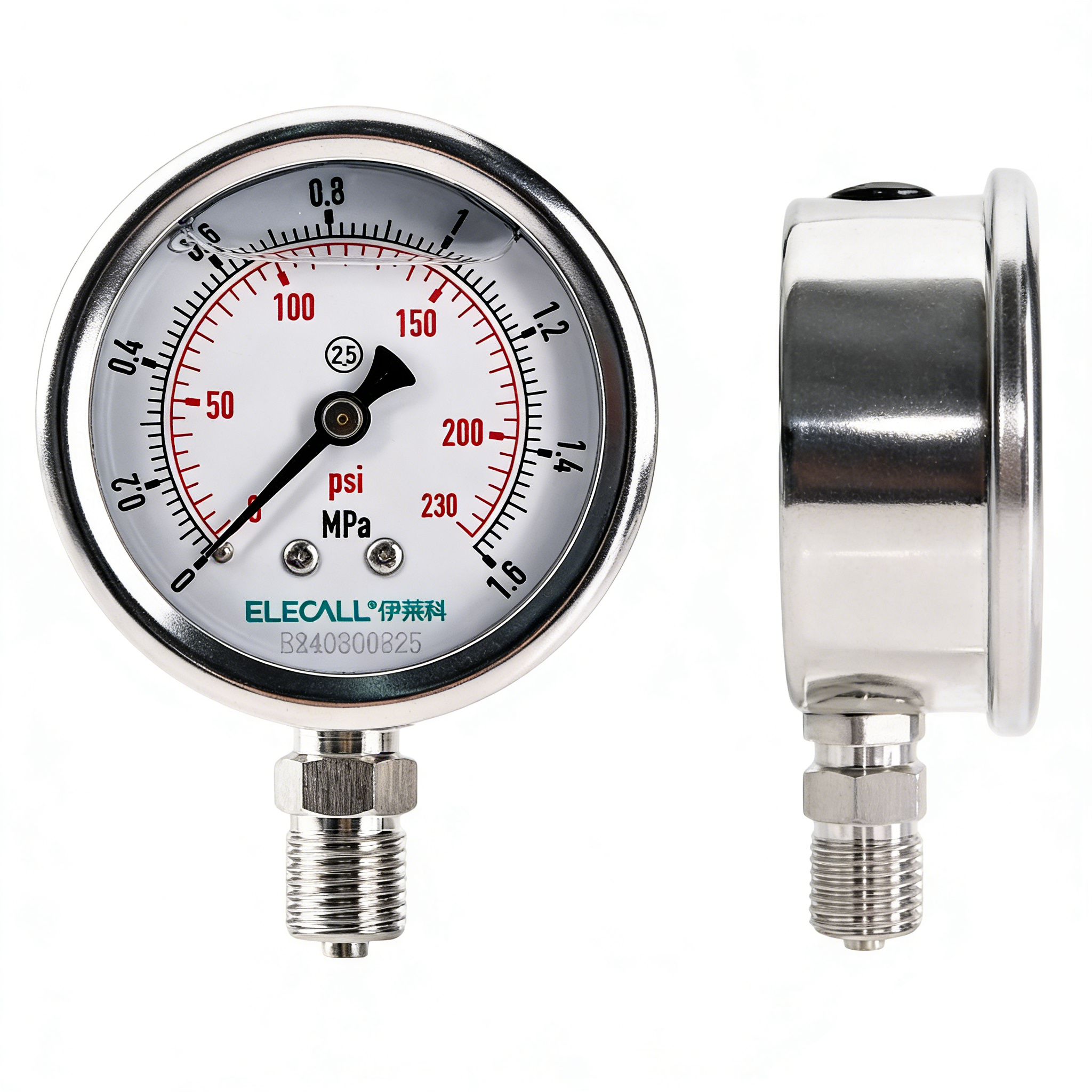

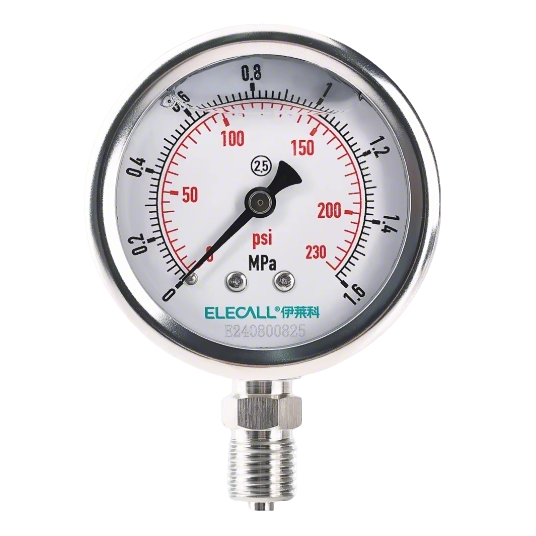

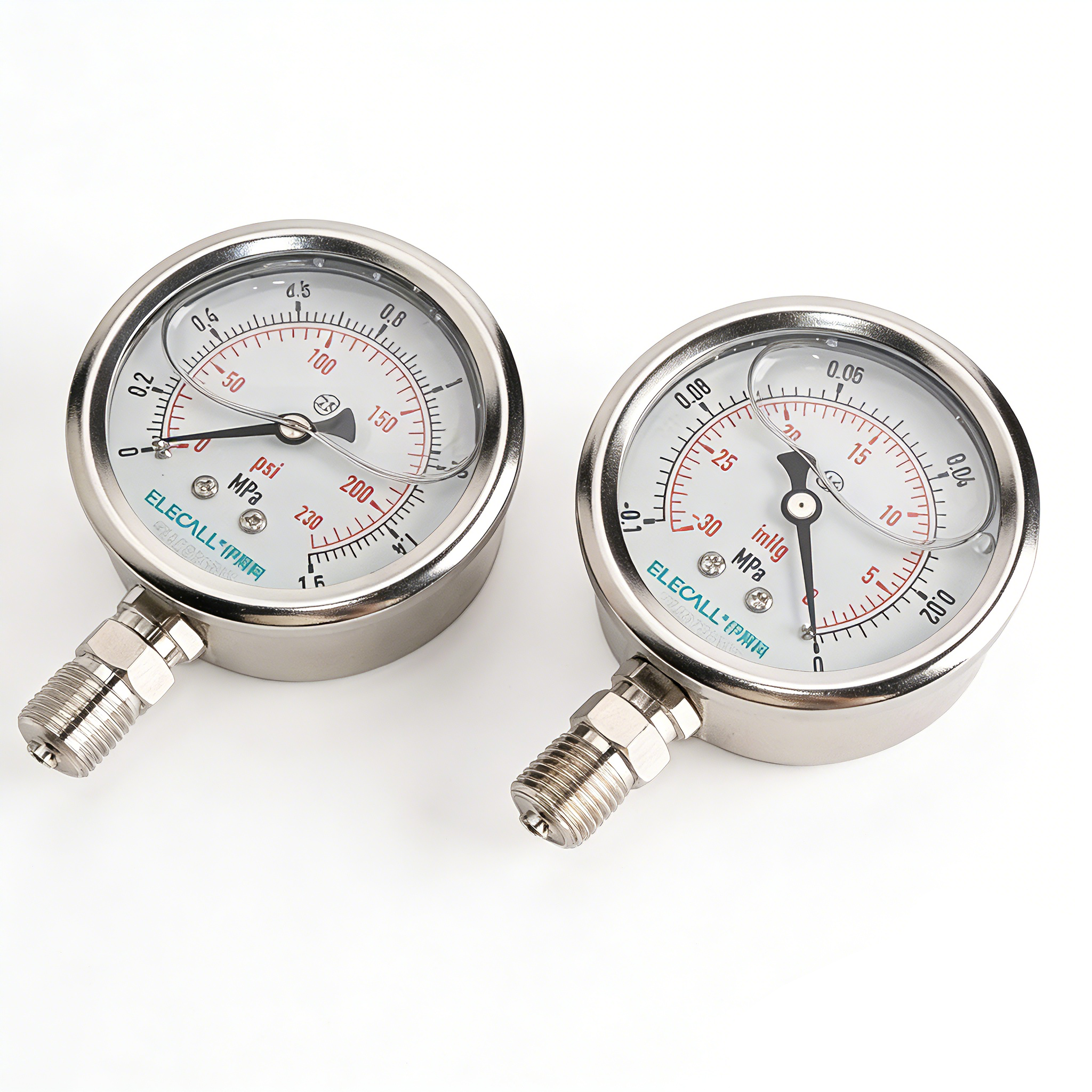

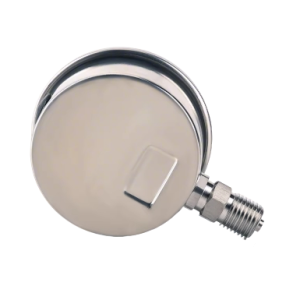

YTN-60BF Full Stainless Steel Vibration-Resistant Pressure Gauge
YTN-60BF full stainless steel vibration-resistant pressure gauge for precise measurement
Made from 304 stainless steel for excellent corrosion resistance
Durable construction suitable for demanding environments
High-temperature tolerance for stable performance
Reliable operation in industrial and scientific applications
Application
The YTN-60BF is suitable for use in a wide range of industries, including:
-
Medical fields
-
Wastewater treatment
-
Chemical industries
-
Electric power monitoring
-
General industrial applications
Description
The YTN-60BF is a highly durable, corrosion-resistant, and vibration-resistant pressure gauge built for long-term, accurate measurements. Its full stainless steel construction ensures enhanced resistance to corrosion, rust, and high temperatures. The integrated damping liquid (glycerin) helps stabilize the pointer for smoother operation in fluctuating pressure environments. Its robust design and high accuracy make it ideal for use in harsh industrial settings.

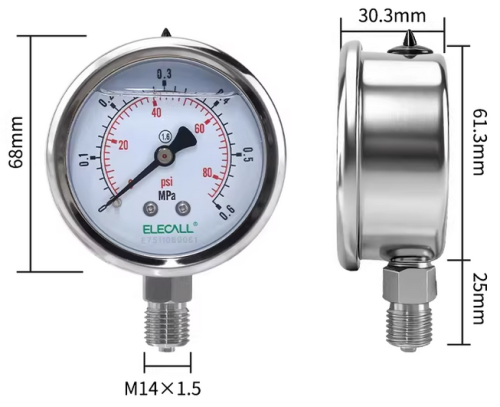

Dimensions
Features
-
Full stainless steel construction for enhanced durability and corrosion resistance
-
High accuracy with a precision rating of 2.5
-
Dual-scale dial for easy and quick readings
-
Vibration-resistant design with glycerin damping for stability
-
316 stainless steel threaded interface for added corrosion resistance and secure installation
-
Versatile application with customizable thread sizes, dial designs, and pressure ranges
-
Long service life even in corrosive or high-humidity environments
-
Clear, easy-to-read dial with high-precision markings for accurate readings
Technical Details
Model
YTN-60BF Full Stainless Steel Vibration-Resistant Pressure Gauge Accuracy: 2.5
Dial Diameter
60 mm
Accuracy Class
2.5
Measuring Range
-0.1 ~ 0.60 MPa (customizable)
Mounting Type
Radial (Bottom Connection)
Operating Temperature
-5 ~ 55 °C (customizable for higher or lower temperatures)
Relative Humidity
≤98%
Material
Case: 304 stainless steel Movement: 304 stainless steel Connection: 316 stainless steel
Damping Liquid
Glycerin (Silicone oil optional)
Application
Ideal for pressure measurements in corrosive, humid, or high-temperature environments
Accuracy Class
2.5
Installation
Radial mounting
Connection Type
Threaded (M14 × 1.5, customizable)
Accessories
Is it suitable for vibrating environments?
Yes. The gauge is filled with damping liquid (glycerin or silicone oil), which effectively reduces vibration and pulsation.
What pressure ranges are available?
Various pressure ranges are available, typically from vacuum to high pressure. Custom ranges are supported.
What is the connection thread?
Common thread types include M20×1.5, G1/4, G1/2, BSP, and NPT. Custom threads are available upon request.
Can this product be customized?
Yes. Dial size, pressure range, thread type, and logo can all be customized.
Is this gauge suitable for corrosive media?
Yes. All wetted parts are made of stainless steel, making it suitable for corrosive environments.
What materials are used in this pressure gauge?
The case, movement, and wetted parts are all made of stainless steel, providing excellent corrosion resistance and durability.
What industries is this model suitable for?
It is widely used in chemical processing, food industry, pharmaceuticals, and marine environments.
What is the accuracy class?
Typically Class 1.6, depending on the specific configuration.
