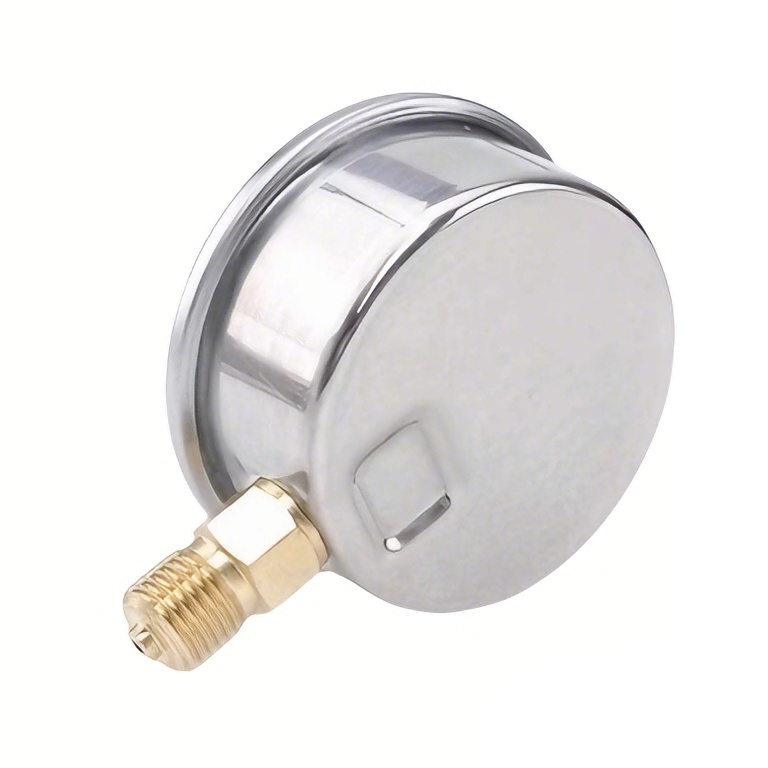

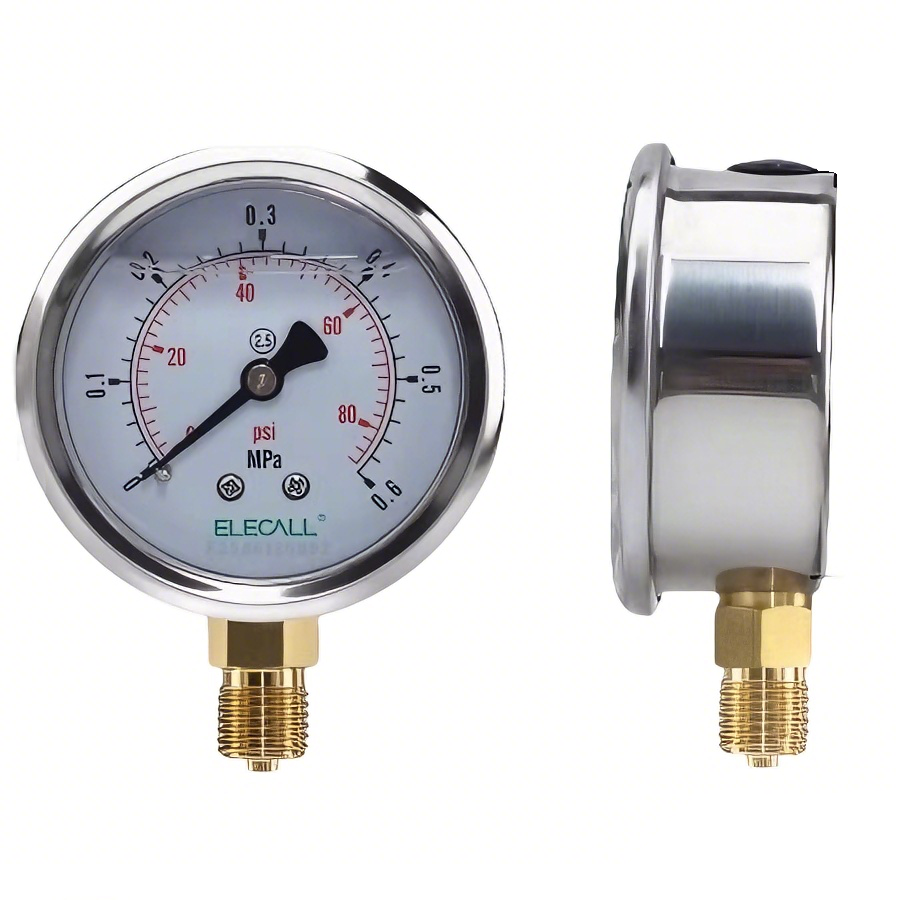

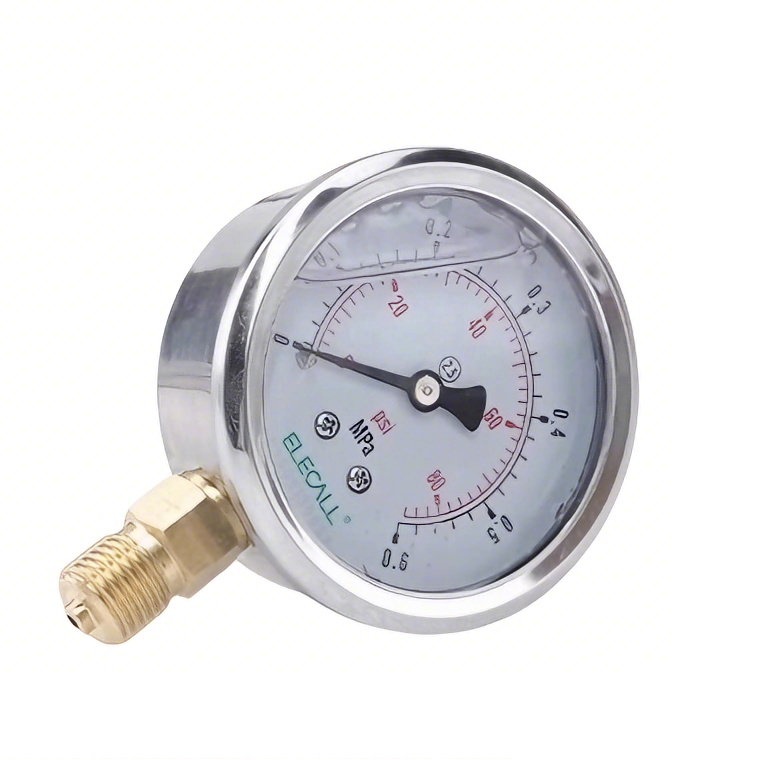

YTN-60 / YTN-60Z Vibration-Resistant Pressure Gauge
YTN-60 vibration-resistant pressure gauge with high-precision measurement performance
60 mm dial for compact and clear reading
Suitable for oil, gas, and hydraulic pressure applications
304 stainless steel case for durability and corrosion resistance
Glycerin-filled damping system reduces vibration impact
Ensures stable and accurate pressure readings in demanding conditions
Application
Ideal for:
-
Oil pressure measurement
-
Gas pressure measurement
-
Hydraulic systems
-
Industrial equipment
-
Engineering and maintenance applications
-
Petrochemical and power industries
The YTN-60 is suitable for environments where pressure fluctuations or shocks might occur, such as machinery, valves, and pipelines.
Description
The YTN-60 Vibration-Resistant Pressure Gauge is built with a 304 stainless steel case for excellent corrosion resistance and long-term durability. This model is filled with damping liquid (glycerin by default, with silicone oil available as an option) to ensure stable pressure readings, even under vibration or shock.
Its double-scale dial provides both MPa and Psi readings for increased versatility. The gauge is customizable with various thread sizes, materials, and pressure ranges, offering tailored solutions to meet specific industry requirements.

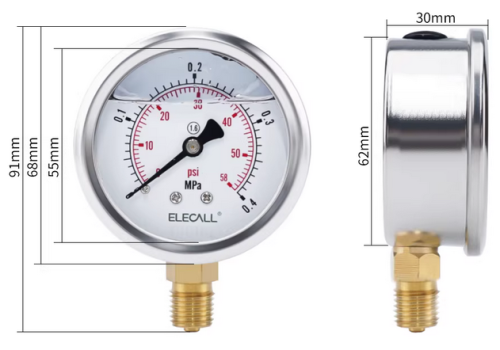

Dimensions YTN-60

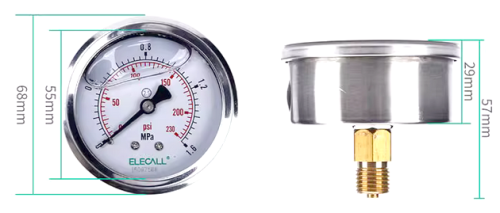

Dimensions YTN-60z
Features
-
304 Stainless Steel Case: Corrosion-resistant and durable, suitable for harsh environments.
-
High Precision: 2.5-grade accuracy for reliable measurements.
-
Glycerin-Filled Damping: Reduces the impact of vibration and shock for stable readings.
-
Double-Scale Dial: Provides clear, dual-unit readings in MPa and Psi.
-
Customizable: Options available for thread size, material, range, and accuracy.
-
Copper Fittings: Long-lasting, rust-resistant brass connectors.
-
Wide Application: Ideal for oil, gas, hydraulic, and other pressure measurement in industrial settings.
-
Extended Service Life: Durable construction ensures longevity and minimal wear.
Technical Details
Model
YTN-60 (or YTN-60Z for axial type)
Dial Diameter
60 mm
Thread Connection
M14*1.5 (customizable)
Accuracy
2.5 Grade
Weight
YTN-60: 176g YTN-60Z: 182.5g
Case Material
304 Stainless Steel
Connection Material
Copper
Mounting Type
Radial (or axial for YTN-60Z)
Operating Environment
Default glycerin filling: -5 ~ 55°C Custom silicone oil filling: -25 ~ 55°C
Relative Humidity
≤ 85%
Temperature Influence
Temperature deviations from 20 ± 5°C result in less than 0.4% error per 10°C deviation.
Measuring Range
Customizable based on application requirements.
Application Medium
Liquids, gases, and steam that do not cause corrosion to copper or stainless steel.
Accessories
Is it suitable for vibrating environments?
Yes. The gauge is filled with damping liquid (glycerin or silicone oil), which effectively reduces vibration and pulsation.
What pressure ranges are available?
Various pressure ranges are available, typically from vacuum to high pressure. Custom ranges are supported.
What is the connection thread?
Common thread types include M20×1.5, G1/4, G1/2, BSP, and NPT. Custom threads are available upon request.
Can this product be customized?
Yes. Dial size, pressure range, thread type, and logo can all be customized.
What is the difference between YTN-60 and YTN-60Z?
YTN-60 is a bottom (radial) mounted gauge, while YTN-60Z is a back (axial) mounted gauge, suitable for panel installation.
Is this gauge suitable for corrosive media?
No. This standard version uses copper alloy wetted parts and is recommended only for non-corrosive media.
What is the accuracy class?
The typical accuracy is Class 1.6 or 2.5, depending on the pressure range.
