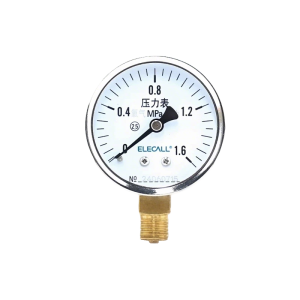

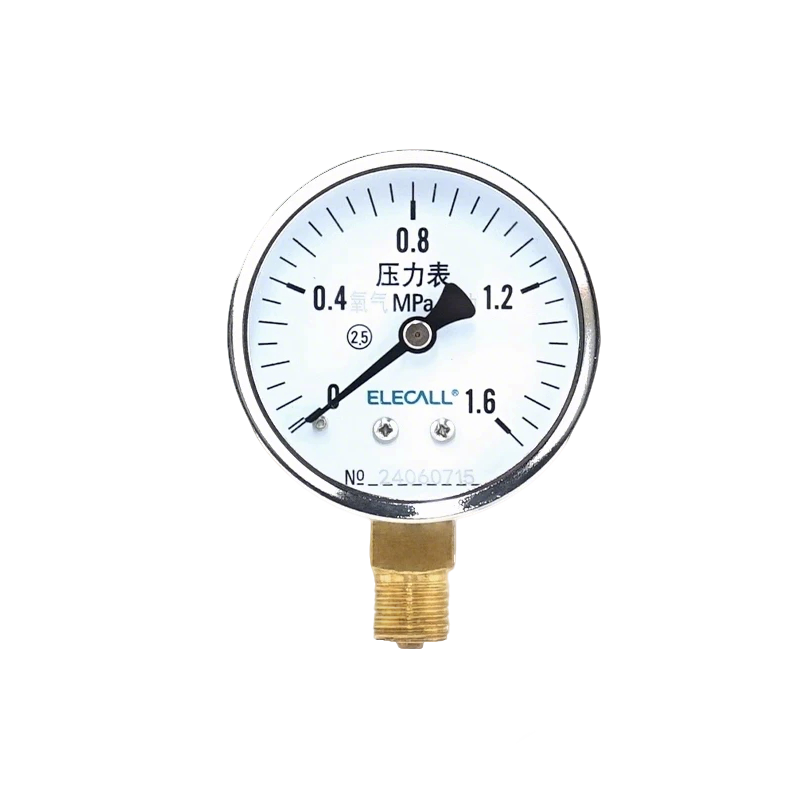

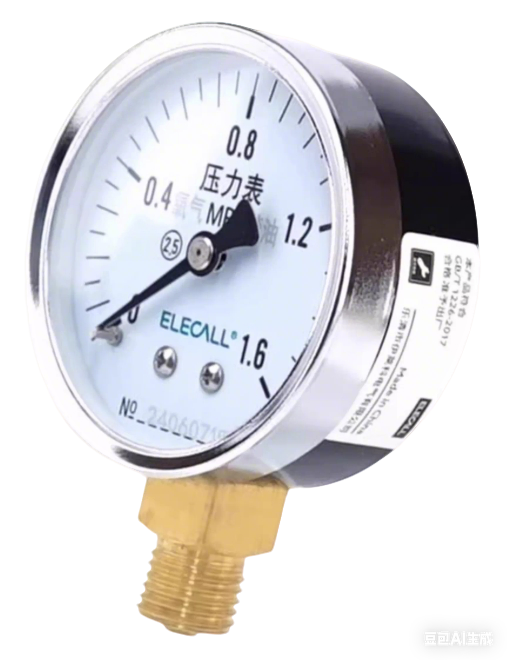

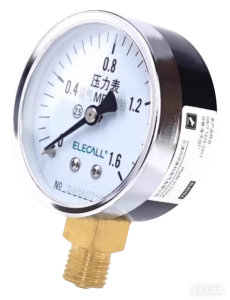

YO-60 Oxygen Pressure Gauge
YO-60 oxygen pressure gauge with radial mounting for oxygen service applications
Oil-free construction ensures safe operation in oxygen systems
Class 2.5 accuracy for reliable pressure measurement
60 mm dial for clear and easy reading
Suitable for medical oxygen cylinders, oxygen regulators, argon gas systems, and humidifier bottles
Designed for safe and stable performance in critical environments
Application
-
Medical oxygen cylinders and oxygen regulators
-
Oxygen humidifier bottles
-
Argon gas and industrial gas systems
-
Petrochemical equipment
-
Metallurgy and mining industries
-
Power generation and energy systems
-
Industrial equipment maintenance
Description
The YO-60 Oxygen Pressure Gauge is manufactured with strict oil-free processing to ensure safe oxygen measurement. Its internal components and copper alloy connection are designed to prevent ignition risks commonly associated with oxygen service.
With a compact 60 mm dial and radial connection, the gauge provides clear and stable pressure readings. A sealed structure protects internal mechanisms from dust and contamination, ensuring long-term stability even in demanding environments.

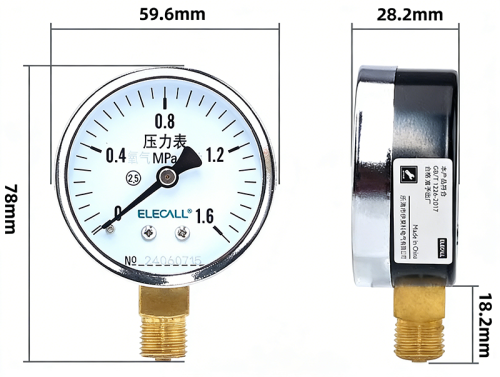

Dimensions
Features
-
Oxygen-Safe, Oil-Free Design
Specially cleaned and processed for oxygen measurement, eliminating oil and grease contamination risks. -
Class 2.5 Accuracy
Reliable and stable readings suitable for medical and industrial oxygen applications. -
Clear 60 mm Dial
High-definition printed scale with clear pointer indication. -
Radial (Bottom) Connection
Standard radial installation for oxygen cylinders and pressure regulators. -
Durable Construction
-
Steel housing for mechanical strength
-
Brass connection for corrosion resistance and safe gas compatibility
-
-
Excellent Sealing Structure
Prevents dust, moisture, and contaminants from entering the gauge. -
Customizable Options
Thread size, pressure range, materials, dial design, and accuracy grade available upon request.
Technical Details
Product Type
Oxygen Pressure Gauge
Dial Diameter
60 mm
Accuracy Class
Class 2.5
Connection Type
Radial (Bottom Mount)
Standard Thread
M14 × 1.5
Housing Material
Steel
Wetted Parts / Connection Material
Brass
Weight
104.6 g
Operating Temperature
−5 °C to +55 °C
Relative Humidity
≤85%
Temperature Influence
≤0.4% of full scale per 10 °C deviation from 20 °C
Measuring Media
Non-corrosive gases and fluids compatible with copper and copper alloys
Customization
Pressure range, thread specification, materials, dial scale, and accuracy class
Accessories
What is a pressure gauge used for?
A pressure gauge is used to measure the pressure of gases, liquids, or steam in industrial systems.
How does a pressure gauge work?
Most pressure gauges use a Bourdon tube mechanism. Pressure causes the tube to deform and move the pointer.
What media can these pressure gauges measure?
They can measure gas, liquid, and steam that are non-corrosive, non-crystallizing, and non-explosive.
What is the working temperature range?
Typically from -20°C to +70°C.
What pressure ranges are available?
From vacuum (-0.1 MPa) to high pressure (up to 60 MPa depending on model).
What installation types are available?
Radial (bottom), axial (back), and panel mounting are available.
How to choose the right pressure gauge?
Consider medium, pressure range, dial size, accuracy, and installation type.
When should a pressure gauge be replaced?
When readings are inaccurate, pointer does not return to zero, or damage occurs.
What is special about YO-60?
It is designed for oxygen measurement only.
Why must it be oil-free?
Oil can cause combustion or explosion in oxygen environments.
What is the accuracy?
Typically Class 2.5.
What is the connection size?
Usually M14×1.5.
Where is it used?
Medical oxygen, gas cylinders, welding equipment.
