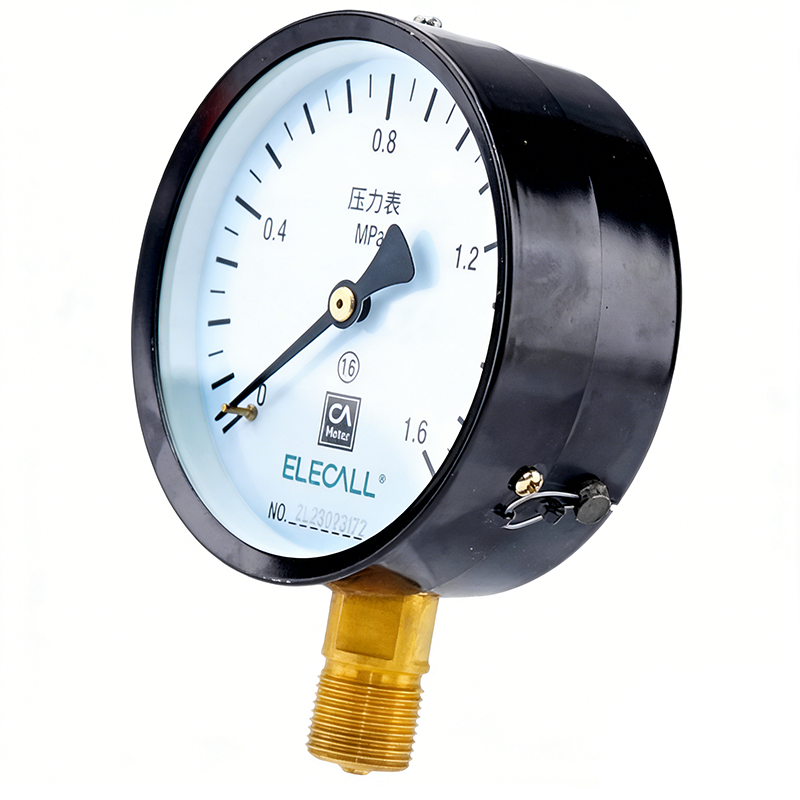

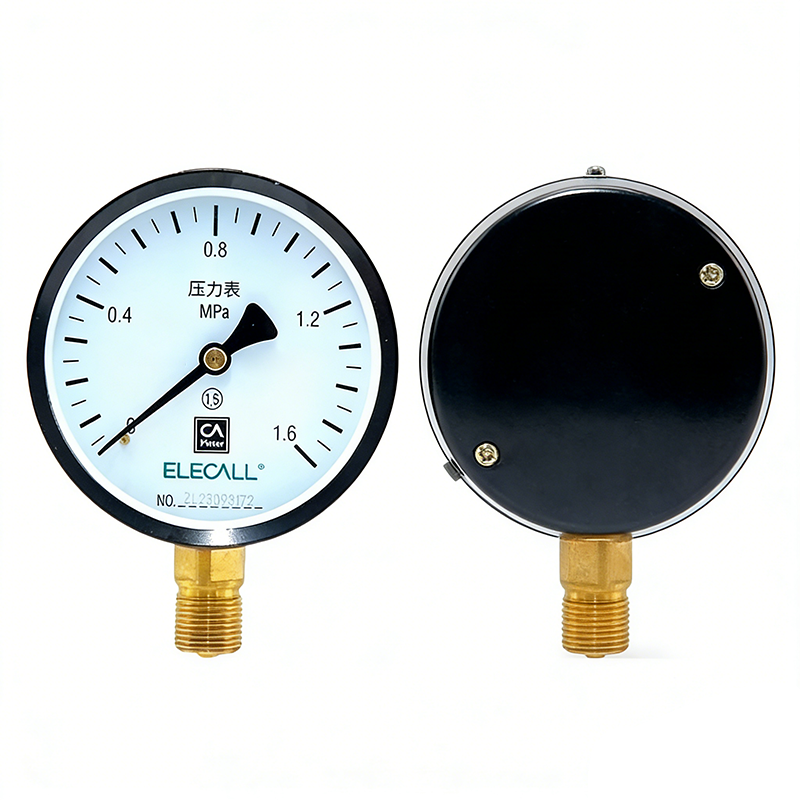

YO-100 Radial Oxygen Pressure Gauge
YO-60 oxygen pressure gauge with radial mounting for oxygen service applications
Oil-free construction ensures safe use with oxygen systems
Class 1.6 accuracy for reliable pressure measurement
60 mm dial for clear and easy reading
Suitable for medical oxygen cylinders, oxygen regulators, argon systems, and humidifier bottles
Designed for safe and dependable performance in critical environments
Application
The YO-100 Oxygen Pressure Gauge is widely used in:
- Medical oxygen systems
- Oxygen cylinders & pressure reducers
- Argon gas humidifiers
- Petrochemical equipment
- Metallurgical industry
- Mining industry
- Power & energy systems
- Industrial equipment
- Maintenance and repair services
Description
The YO-100 is a radial-mounted oxygen pressure gauge designed for accurate and stable measurement of gases and fluids that are non-explosive, non-crystallizing, and non-corrosive to copper or copper alloys.
It features a high-definition printed dial, high-transparency lens, and a sealed airtight structure that effectively protects internal components from dust, moisture, and environmental contamination.
The gauge complies with oxygen service requirements and adopts an oil-free design, making it safe for medical and industrial oxygen applications.
Customization options are available for thread size, materials, measuring range, and accuracy level.

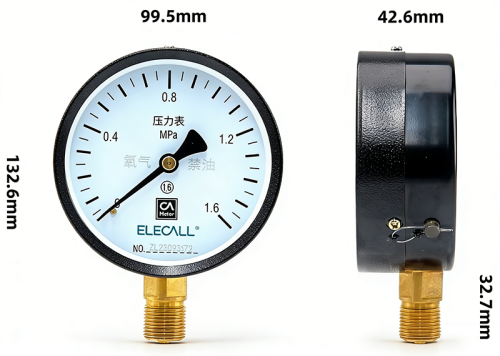

Dimensions
Features
-
Class 1.6 high accuracy for precise pressure measurement
-
HD printed dial with clear, easy-to-read scale
-
High-transparency cover for enhanced visibility
-
Oil-free design, suitable for oxygen measurement
-
Durable iron housing with corrosion-resistant brass connector
-
Stable pressure indication with wide measuring range
-
Airtight sealing structure for long service life
-
Reliable, safe, and durable performance
-
Customizable specifications available
Technical Details
Product Type
Oxygen Pressure Gauge
Dial Diameter
60 mm
Accuracy Class
Class 1.6
Connection Type
Radial (Bottom Mount)
Standard Thread
M14 × 1.5
Housing Material
Steel
Wetted Parts / Connection Material
Brass
Weight
104.6 g
Operating Temperature
−5 °C to +55 °C
Relative Humidity
≤85%
Temperature Influence
≤0.4% of full scale per 10 °C deviation from 20 °C
Measuring Media
Non-corrosive gases and fluids compatible with copper and copper alloys
Customization
Pressure range, thread specification, materials, dial scale, and accuracy class
Accessories
What is a pressure gauge used for?
A pressure gauge is used to measure the pressure of gases, liquids, or steam in industrial systems.
How does a pressure gauge work?
Most pressure gauges use a Bourdon tube mechanism. Pressure causes the tube to deform and move the pointer.
What media can these pressure gauges measure?
They can measure gas, liquid, and steam that are non-corrosive, non-crystallizing, and non-explosive.
What is the working temperature range?
Typically from -20°C to +70°C.
What installation types are available?
Radial (bottom), axial (back), and panel mounting are available.
How to choose the right pressure gauge?
Consider medium, pressure range, dial size, accuracy, and installation type.
When should a pressure gauge be replaced?
When readings are inaccurate, pointer does not return to zero, or damage occurs.
What is special about YO-100?
It is designed for oxygen measurement only.
Why must it be oil-free?
Oil can cause combustion or explosion in oxygen environments.
What is the accuracy?
Typically Class 1.6.
What is the connection size?
Usually M14×1.5.
Where is it used?
Medical oxygen, gas cylinders, welding equipment.
What are its advantages?
The YO-100 pressure gauge offers high visibility and higher accuracy, making it ideal for industrial monitoring.
What pressure range does it support?
Up to 60 MPa depending on model.
