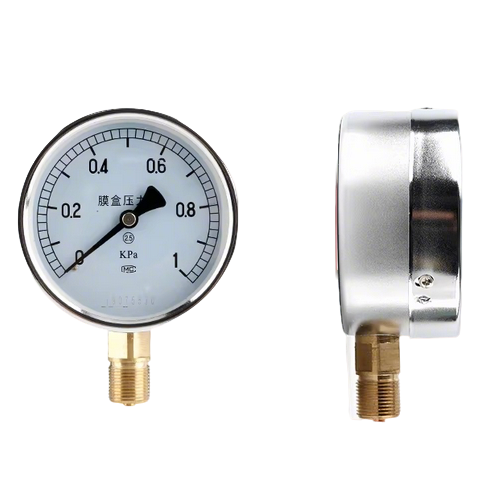

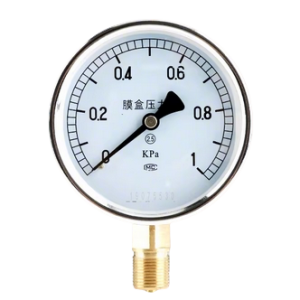

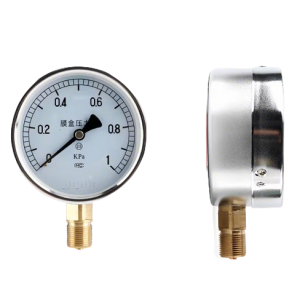

YE-60/100 diaphragm capsule pressure gauge
YE-60/100 diaphragm pressure gauge specifically designed for low-pressure measurement (kPa range)
Sensitive diaphragm element ensures fast response and excellent low-pressure sensitivity
Highly stable performance with minimal drift, even under continuous operation
Built-in overpressure protection safeguards the instrument against accidental overloads
Ideal for accurate monitoring of gas, air, non-corrosive gases, and low-pressure pneumatic systems

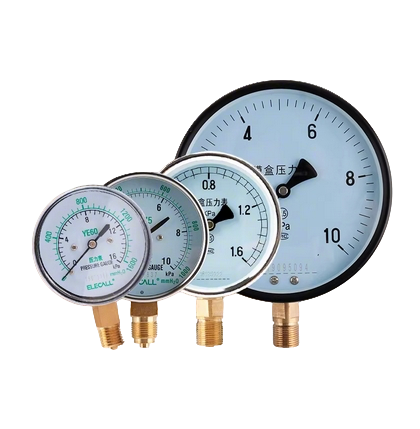

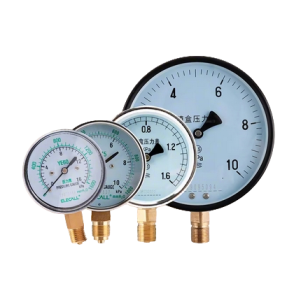

Available in 60mm and 100mm dial sizes for different visibility and mounting needs
Robust construction with reliable zero stability and repeatability
Suitable for HVAC, ventilation, laboratory, draft measurement, and process control applications
Combines high sensitivity, durability, and safety in one compact low-pressure solution
Application
-
Natural gas pipelines
-
Ventilation and air duct systems
-
Water supply systems
-
Gas distribution pipelines
-
HVAC systems
-
Industrial low-pressure monitoring
Description
The YE series diaphragm pressure gauge (YE-60 / YE-100) is specifically designed for accurate measurement of low pressure and micro pressure in gas and air systems. It is widely used in applications where stable and sensitive pressure detection is required.
This gauge operates using a corrugated diaphragm element, which deforms under pressure and drives the pointer for precise indication. The structure ensures quick response and reliable performance, even under small pressure changes.
The unit features a nickel-plated steel case, providing excellent resistance to corrosion and wear. It does not require any filling liquid, making it clean, maintenance-friendly, and suitable for environments where liquid-filled gauges are not preferred.
With a built-in overpressure protection mechanism, the gauge effectively prevents damage caused by excessive pressure, ensuring long service life and consistent accuracy.
Features
-
Designed for Low Pressure Measurement (kPa Range)
Ideal for micro pressure and gas pressure monitoring -
Corrugated Diaphragm Sensing Element
High sensitivity with fast and accurate response -
Overpressure Protection
Prevents damage and improves durability -
No Filling Liquid Required
Clean operation and low maintenance -
Nickel-Plated Steel Case
Corrosion-resistant and wear-resistant -
Stable and Reliable Performance
Ensures consistent readings over time -
Wide Range Options Available
Multiple pressure ranges to meet different needs
Technical Details
Type
Diaphragm Pressure Gauge (Low Pressure / kPa Gauge)
Accuracy Class
2.5
Dial Diameter
YE-60: 60 mm YE-100: 100 mm
Measuring Range
0 ~ 1.6 / 2.5 / 4 / 6 / 10 / 16 / 25 / 40 / 60 kPa (Custom ranges available)
Thread Size
M20 × 1.5 (standard)
Case Material
Nickel-plated steel
Operating Temperature
-25°C to +55°C
Filling Liquid
None required
Protection Feature
Overpressure protection
Accessories
