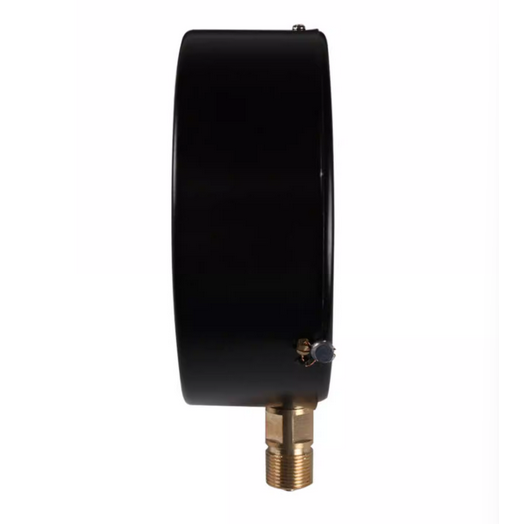

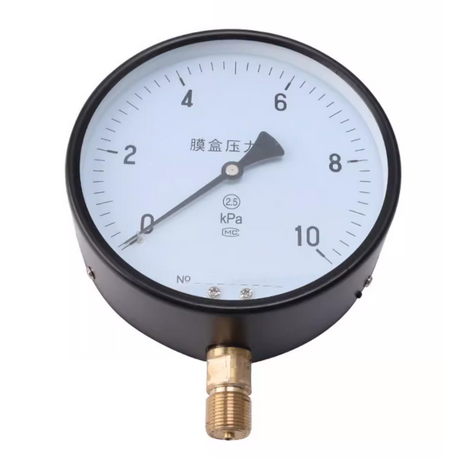

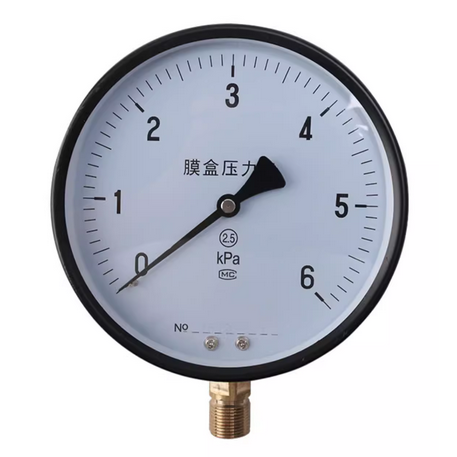

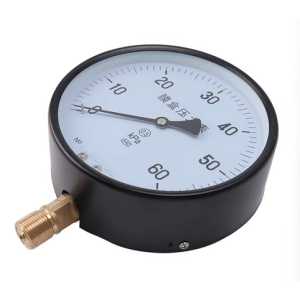

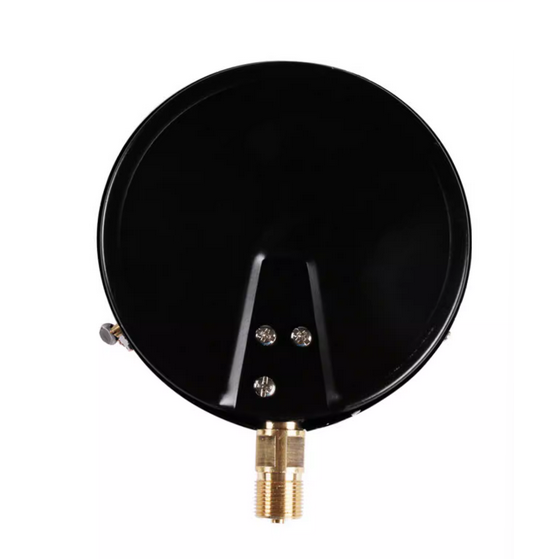

YE-150 diaphragm pressure gauge designed for high-precision micro pressure measurement
Suitable for low pressure and negative pressure applications
Built-in overpressure protection for enhanced safety
Stable performance with strong resistance to interference
Wide range of selectable measurement scales
Also known as a micro pressure gauge, the YE-150 is suitable for measuring low and micro pressure of liquids and gases that are:
Non-explosive
Non-crystallizing and non-solidifying
Non-corrosive to copper and copper alloys
It is widely used in:
Boiler ventilation systems
Gas pipelines
Combustion equipment
Other similar industrial applications
The YE-150 diaphragm pressure gauge uses a corrugated diaphragm capsule as its sensitive element to detect micro pressure changes. When pressure is applied, the diaphragm undergoes elastic deformation at its free end. This movement is transmitted and amplified through a gear mechanism, which drives the pointer to display the measured value on the dial.
The instrument consists of a measuring system, transmission mechanism, indicating components, and a durable outer casing. It is designed for reliable and precise pressure monitoring in various industrial environments.
High accuracy and stable performance
Strong anti-interference capability
Built-in overpressure protection

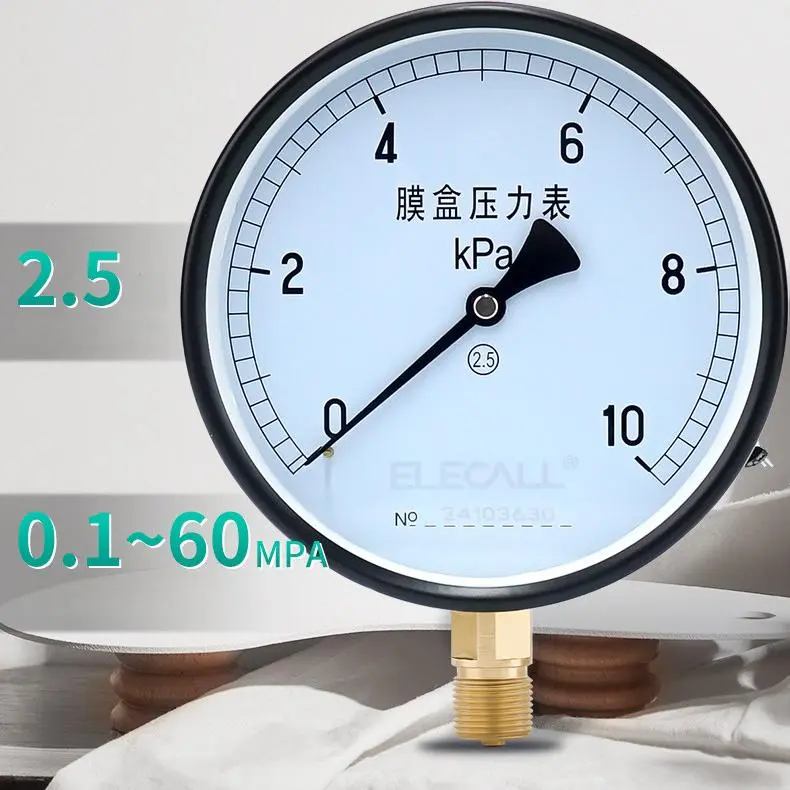

Wide range of selectable pressure ranges
No liquid filling required

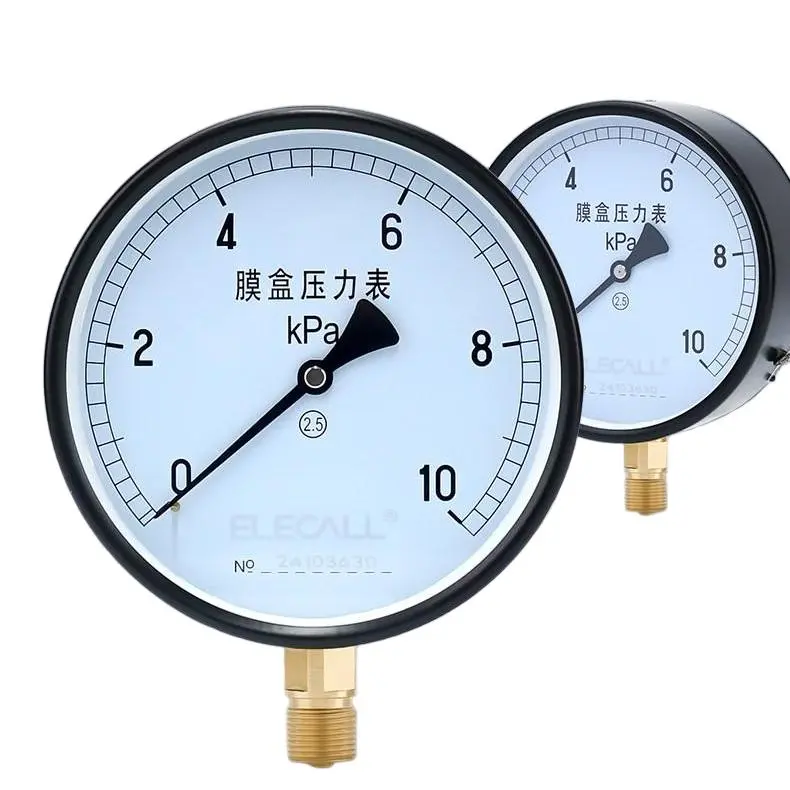

Durable and corrosion-resistant housing (nickel-plated steel)
Standard threaded connection (M14×1.5)

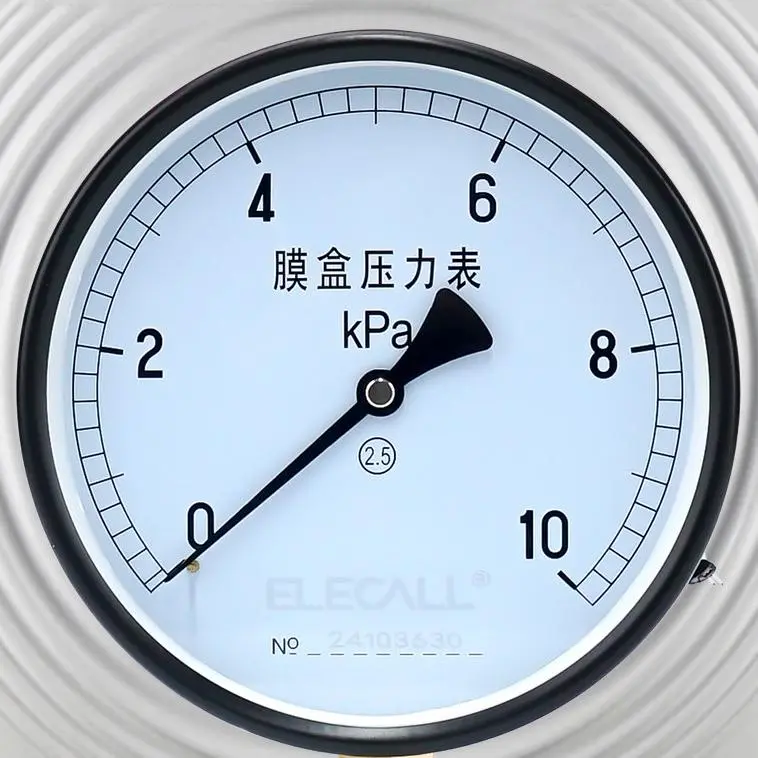

Clear and responsive pointer indication
Aesthetic and robust design
YE-150
2.5
Tin-phosphor bronze (QSn6.5-0.1)

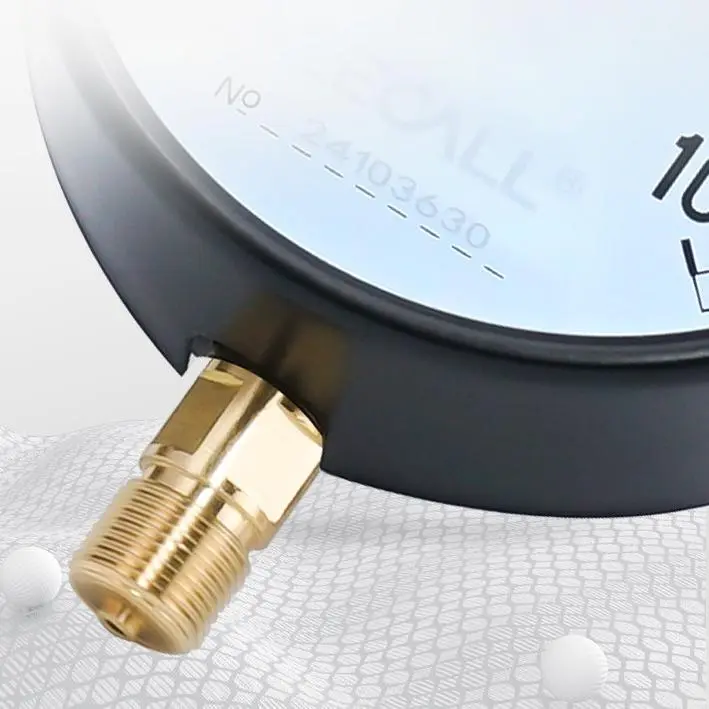

Brass (HPb59-1)
M14 × 1.5
Vertical mounting
Multiple ranges available (customizable full-scale options)
Yes
Corrugated diaphragm deformation drives gear transmission to indicate pressure
