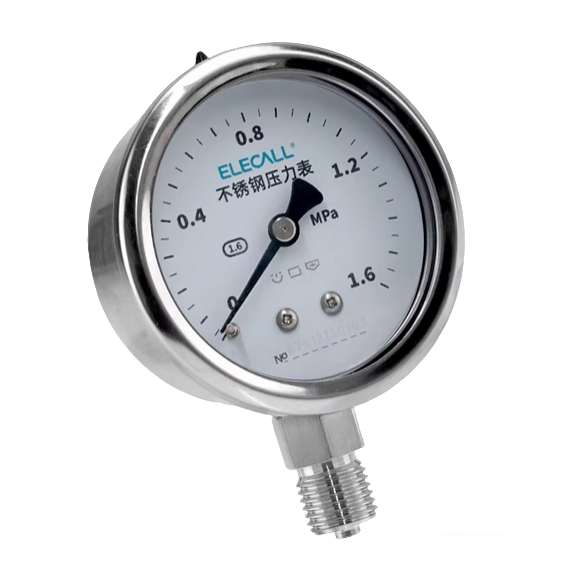

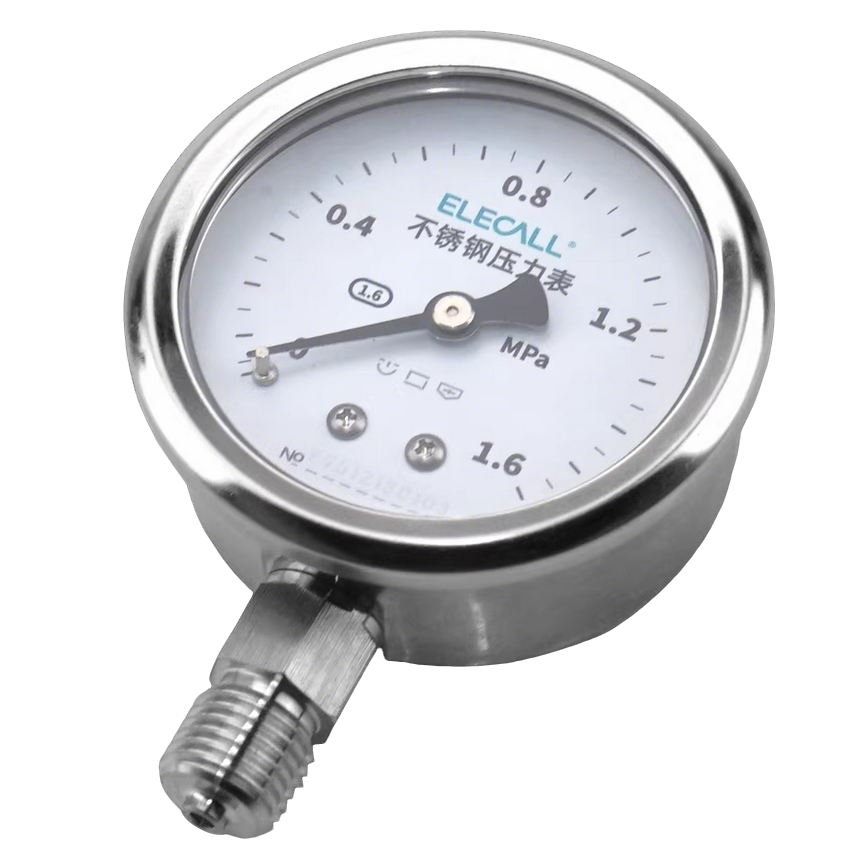

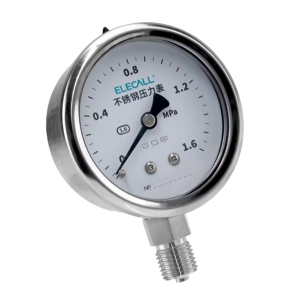

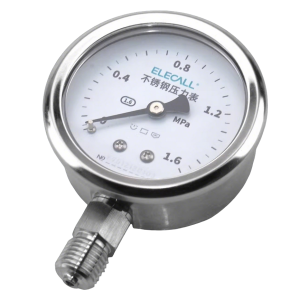

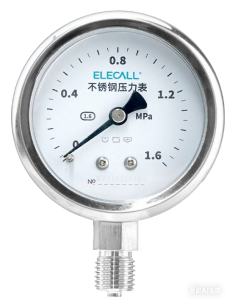

Y-60BF Radial Stainless Steel Pressure Gauge
High precision (Class 1.6)
Easy operation
All stainless steel construction
Corrosion and rust resistant
Stable and reliable
Wide measuring range
Integrated threaded connection
Color customizable
Application
- Petrochemical equipment
- Metallurgy industry
- Mining industry
- Medical industry
- Power and energy systems
- Industrial equipment
- Maintenance and repair applications
Description
The Y-60BF pressure gauge is a high-precision instrument designed for measuring pressure in industrial applications, including vacuum, hydraulic, water, and gas systems. Made entirely of 304 stainless steel, including the case and internal movement, it offers excellent corrosion resistance, durability, and long service life.
Its integrated threaded connection enhances sealing performance and structural strength, reducing the risk of leakage or damage during installation. The unique airtight structure effectively protects internal components from environmental contamination, ensuring stable and reliable readings over time.
The gauge is suitable for measuring non-explosive, non-crystallizing, and non-corrosive media such as liquids, gases, and steam that do not attack copper or copper alloy materials.

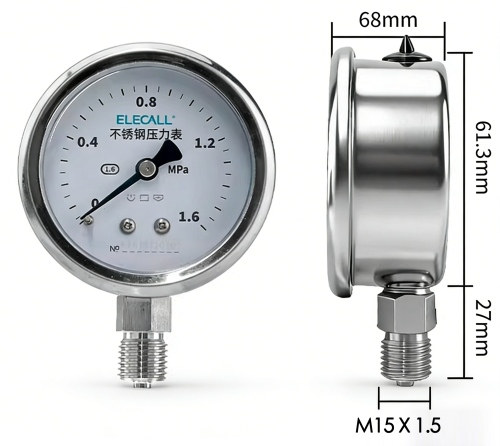

Dimensions
Features
- Full 304 stainless steel construction for superior durability
- Integrated threaded connection for better sealing and strength
- Stainless steel movement for improved corrosion resistance
- Airtight structure protects internal components from dust and moisture
- Accurate and stable pressure measurement
- Clear dial for easy reading
- Suitable for vacuum, hydraulic, water, and gas pressure measurement
- Customizable dial, thread type, and measuring range
Technical Details
Model:
Y-60BF
Dial Diameter:
60mm
Connection Type:
Threaded (Radial / Axial optional)
Thread Connection:
NPT 1/4
Material:
304 Stainless Steel (case & movement)
Accuracy Class:
1.6
Measuring Range:
-0.1 to 60 MPa (customizable)
Operating Temperature:
-5°C to 55°C
Application Media:
Liquid, gas, steam (non-corrosive)
Customization:
Dial design, thread specification, pressure range available
Accessories
What is a pressure gauge used for?
A pressure gauge is used to measure the pressure of gases, liquids, or steam in industrial systems.
How does a pressure gauge work?
Most pressure gauges use a Bourdon tube mechanism. Pressure causes the tube to deform and move the pointer.
What media can these pressure gauges measure?
They can measure gas, liquid, and steam that are non-corrosive, non-crystallizing, and non-explosive.
What is the accuracy of the pressure gauge?
The standard accuracy is Class 1.6 or Class 2.5.
What is the working temperature range?
Typically from -20°C to +70°C.
What pressure ranges are available?
From vacuum (-0.1 MPa) to high pressure (up to 60 MPa depending on model).
What are the connection thread types?
Common threads include M14×1.5 and M20×1.5.
What installation types are available?
Radial (bottom), axial (back), and panel mounting are available.
How to choose the right pressure gauge?
Consider medium, pressure range, dial size, accuracy, and installation type.
When should a pressure gauge be replaced?
When readings are inaccurate, pointer does not return to zero, or damage occurs.
What does “BF” mean in these models?
“BF” indicates a stainless steel pressure gauge structure with radial (bottom) connection design.
What makes stainless steel pressure gauges different from standard ones?
Stainless steel gauges offer higher corrosion resistance and durability, making them suitable for harsh industrial environments.
What environments are these stainless steel gauges suitable for?
They are suitable for chemical, petroleum, marine, power, and industrial hydraulic systems.
Can stainless steel pressure gauges be used with corrosive media?
Yes, they are designed for many corrosive gases and liquids, depending on material compatibility.
What industries use the Y-60BF stainless steel pressure gauge?
The Y-60BF is widely used in general industrial systems such as compressors, pumps, and standard process equipment.
Can these gauges be used outdoors?
Yes, stainless steel housing provides better protection against weather and corrosion.
Why choose stainless steel over brass case gauges?
Stainless steel is stronger, more corrosion-resistant, and suitable for aggressive media and harsh environments.
What should be considered when selecting between these models?
Choose based on installation space, readability requirement, and application environment severity.
