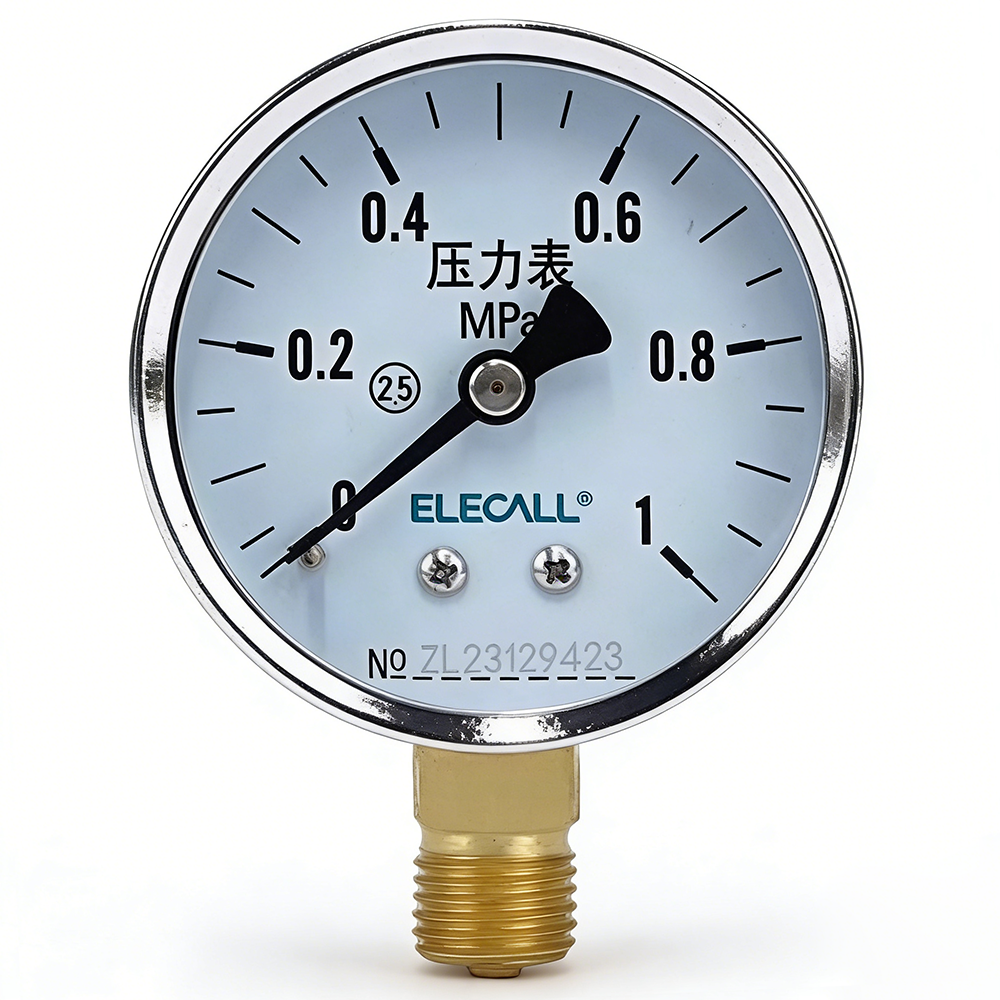

Y-60 pressure gauge with compact and reliable mechanical design
Suitable for measuring air, water, oil, hydraulic pressure, and vacuum
60 mm dial diameter for clear and convenient reading
Class 2.5 accuracy for dependable performance
Widely used in industrial, commercial, and laboratory applications
Custom ranges, thread types, and materials available
Building water supply pressure monitoring
Air compressor and pneumatic systems
Hydraulic and oil pressure systems
Vacuum pump pressure measurement
Fire pump pressure testing
Laboratory and testing equipment
The Y-60 Pressure Gauge features a robust mechanical structure based on a Bourdon tube sensing principle. Pressure changes cause the Bourdon tube to deform, driving a gear transmission mechanism that moves the pointer to display real-time pressure values.
Manufactured with modern production equipment and strict quality control, each gauge undergoes accuracy calibration and multi-stage inspection before shipment. The product complies with national inspection standards and has passed third-party testing, ensuring stable performance and long service life.

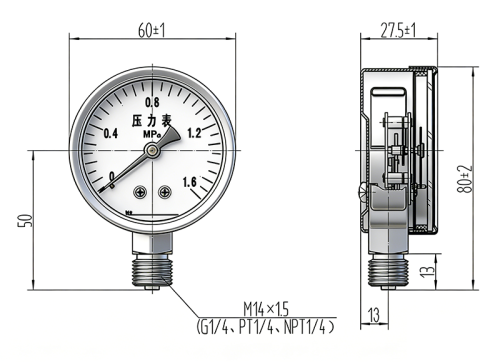

Dimensions
Class 2.5 Accuracy
Provides stable and reliable pressure readings for general industrial use.
Compact 60 mm Dial
Clear scale and easy-to-read pointer design.
Bourdon Tube Structure
Mechanical pressure sensing with proven durability and reliability.
Quality Materials
Steel housing for strength and corrosion resistance
Brass movement and threaded connection for secure installation
Wide Media Compatibility
Suitable for air, water, oil, hydraulic fluids, and vacuum applications.
Customizable Options
Pressure range, thread size, dial markings, materials, and accuracy class can be customized.
Factory Direct Supply
Integrated design, R&D, and manufacturing with stable quality and fast delivery.
60 mm
Class 2.5
0–1.6 MPa (custom ranges available)
Gauge Pressure / Vacuum
Steel
Brass
M14 × 1.5
G1/2, ZG1/2, and other custom threads
−5 °C to +55 °C
20 °C ±5 °C
≤0.4% per 10 °C deviation
<85%
Approx. 149 g
Dial scale, pressure range, thread size, materials, accuracy
A pressure gauge is used to measure the pressure of gases, liquids, or steam in industrial systems.
Most pressure gauges use a Bourdon tube mechanism. Pressure causes the tube to deform and move the pointer.
They can measure gas, liquid, and steam that are non-corrosive, non-crystallizing, and non-explosive.
The standard accuracy is Class 1.6 or Class 2.5.
Typically from -20°C to +70°C.
From vacuum (-0.1 MPa) to high pressure (up to 60 MPa depending on model).
Common threads include M14×1.5 and M20×1.5.
Radial (bottom), axial (back), and panel mounting are available.
Consider medium, pressure range, dial size, accuracy, and installation type.
When readings are inaccurate, pointer does not return to zero, or damage occurs.
The dial size is 60 mm.
Used in small equipment, compressors, and HVAC systems.
Compact, lightweight, and cost-effective.
Lower readability and accuracy compared to larger gauges.
