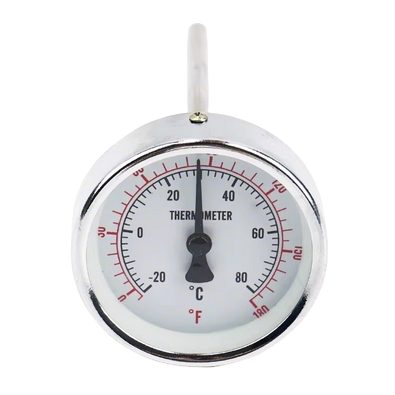

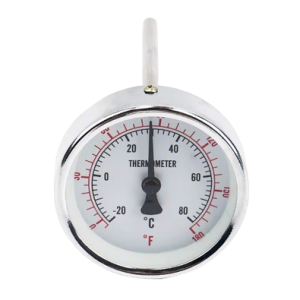

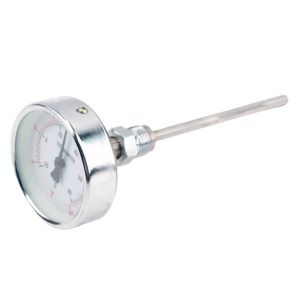

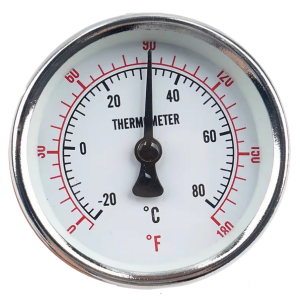

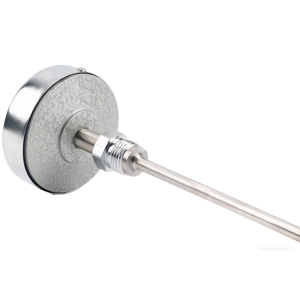

WSS-301/401/501 Series Bimetal Thermometer
Industrial bimetal thermometer for pipeline and boiler temperature measurement
Axial and radial mounting types available
Wide temperature range up to 600°C
Shock-resistant and corrosion-resistant design
Fast response with accurate and stable readings
Stainless steel probe suitable for harsh environments
Application
The WSS Series Bimetal Thermometer is widely used for temperature measurement in industrial systems and pipelines. Typical applications include:
-
Power generation industry
-
Chemical processing plants
-
Coal and energy industries
-
Water treatment and drainage systems
-
Petroleum and oil pipelines
-
Metallurgy industry
-
Medical equipment systems
-
Paper manufacturing industry
Description
The WSS Series Industrial Bimetal Thermometer is designed for accurate temperature measurement in boilers, pipelines, and industrial equipment. The thermometer uses a bimetal sensing element that responds quickly to temperature changes, providing reliable and stable readings.
The instrument features a durable nickel-plated cast iron housing and a stainless steel probe, offering excellent resistance to corrosion and high temperatures. Its shock-resistant structure ensures stable performance even in vibration environments, making it suitable for industrial applications.
The thermometer supports axial and radial mounting configurations, allowing flexible installation in different pipeline and equipment layouts. With clear dial markings and high-precision sensing elements, it ensures easy reading and dependable temperature monitoring.
Features
-
Bimetal sensing element for quick temperature response
-
Wide measurement range up to 600°C
-
Shock-resistant and vibration-resistant structure
-
Corrosion-resistant stainless steel probe
-
Clear dial for easy and accurate reading
-
Multiple dial sizes and installation types available
-
Suitable for boilers, pipelines, and industrial equipment
-
Multiple connection options including threaded and flange connections
Technical Details
Product Series:
WSS Bimetal Thermometer
Measurement Principle:
Bimetal temperature sensing
Accuracy Class:
1.5
Protection Rating:
IP55
Thermal Response Time:
< 40 seconds
Maximum Pressure Resistance:
6 MPa
Housing Material:
Nickel-plated cast iron
Thermowell Material:
304 stainless steel
Standard Stem Length:
100 mm (customizable; additional length available)
Available Dial Sizes
60 mm 100 mm 150 mm
Protection Tube Diameter
6 mm 10 mm
Thread Size Options
M16 × 1.5 M27 × 2
Available Temperature Ranges
-40°C to 80°C 0–50°C 0–100°C 0–150°C 0–200°C 0–300°C 0–400°C 0–500°C 0–600°C
Available Models
WSS-301 – Axial type, 60 mm dial, 6 mm probe, M16×1.5 thread WSS-401 – Axial type, 100 mm dial, 10 mm probe, M27×2 thread WSS-501 – Axial type, 150 mm dial, 10 mm probe, M27×2 thread WSS-311 – Radial type, 60 mm dial, 6 mm probe, M16×1.5 thread WSS-411 – Radial type, 100 mm dial, 10 mm probe, M27×2 thread WSS-511 – Radial type, 150 mm dial, 10 mm probe, M27×2 thread
Connection Types
Without fixing device Adjustable external thread Adjustable internal thread Fixed thread connection Fixed flange connection Compression thread connection Compression flange connection
