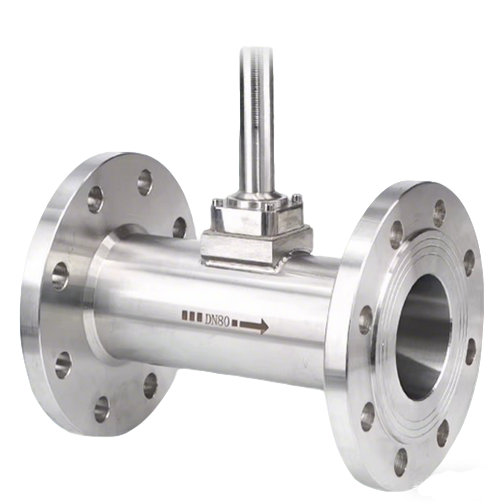

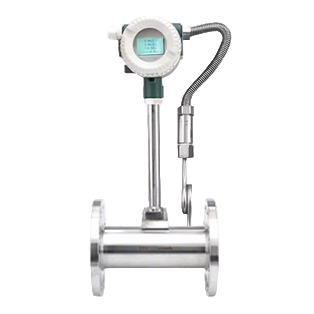

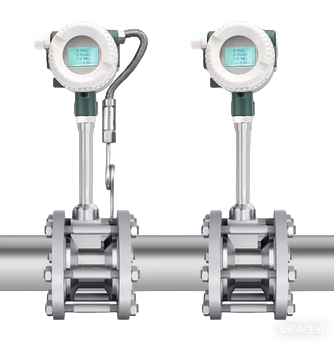

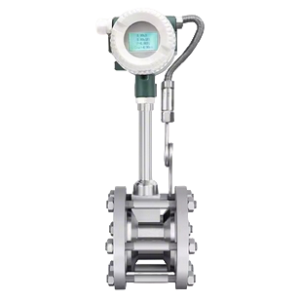

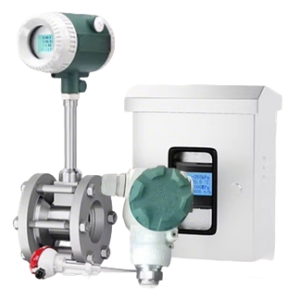

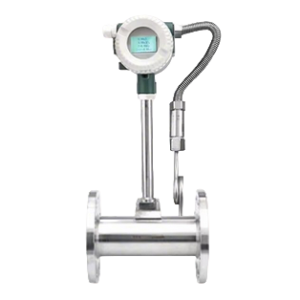

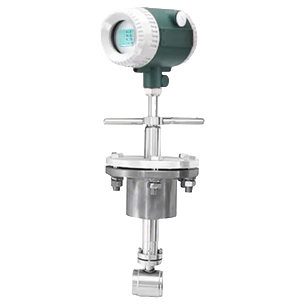

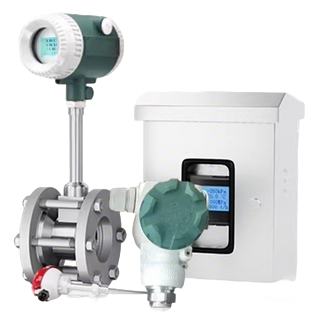

LUGB DN5080Vortex Flow Meter
Vortex flow meter for gas, steam, and liquid measurement
High accuracy up to ±1.5% with stable performance
Digital display for instant and total flow monitoring
Supports 4–20mA and pulse output signals
Durable stainless steel body with IP65 protection
Optional DC24V or lithium battery power supply
Application
Steam flow measurement in industrial systems
Compressed air monitoring in factories
Natural gas and nitrogen flow measurement
Liquid flow monitoring in industrial pipelines
Energy management and metering systems
Food processing and environmental monitoring industries
Description

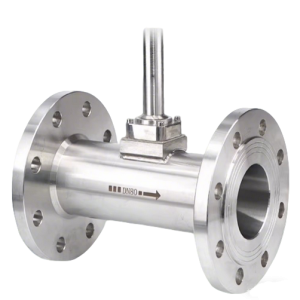

The LUGB vortex flow meter is designed for accurate measurement of gas, steam, and liquid flow in industrial pipelines. Using vortex shedding technology, the meter provides reliable and stable flow measurement with strong resistance to vibration and interference. It is widely used for monitoring compressed air, steam, oxygen, nitrogen, natural gas, and various liquid media.

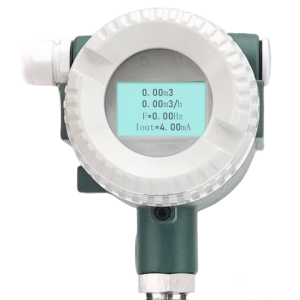

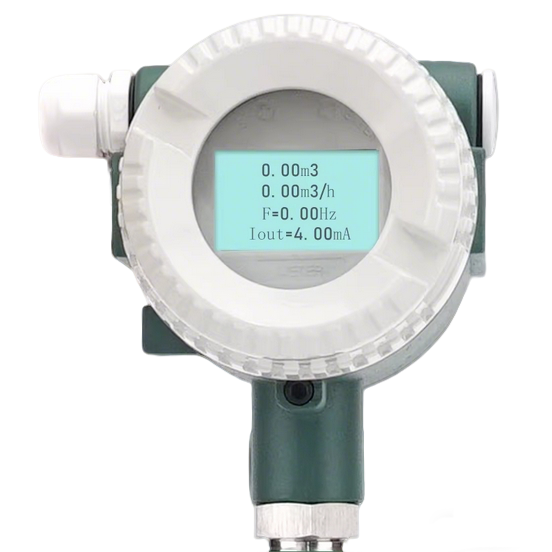

The flow meter features an intelligent digital display head that shows instantaneous flow, cumulative flow, and pulse signals for easy monitoring and system integration. A vibration-resistant shielded sensor rod ensures stable readings without fluctuations, improving measurement reliability. With durable stainless steel construction and IP65 protection, the device is suitable for demanding industrial environments including energy management, process control, and environmental monitoring.
Features
Advanced vortex shedding flow measurement technology
Suitable for gas, liquid, and steam applications
Intelligent digital display with multiple flow parameters
Strong anti-vibration design for stable measurement
Low pressure loss during operation
Durable stainless steel sensor structure
Optional battery or DC power supply for flexible installation
Reliable performance with long service life
Technical Details
Product Type:
Vortex Flow Meter
Product Model:
LUGB
Nominal Diameter (DN):
20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300
Nominal Pressure:
1.6 MPa
Operating Temperature:
≤250°C
Material:
Stainless Steel SS304
Accuracy:
±1.5% R
Range Ratio:
1:6 – 1:25
Power Supply:
DC 24 V 3.6 V Lithium Battery (optional)
Output Signal:
4–20 mA current output Pulse output
Protection Rating:
IP65
Electrical Interface:
M20 × 1.5
Transmission Distance:
Current output type supported
Suitable Media:
Gas, liquid, and steam
Allowable Vibration Acceleration:
Piezoelectric type ≤0.2 g
Pressure Loss:
In accordance with JB/T9249 standard (Cd ≤ 2.4)
