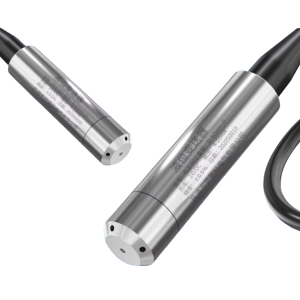

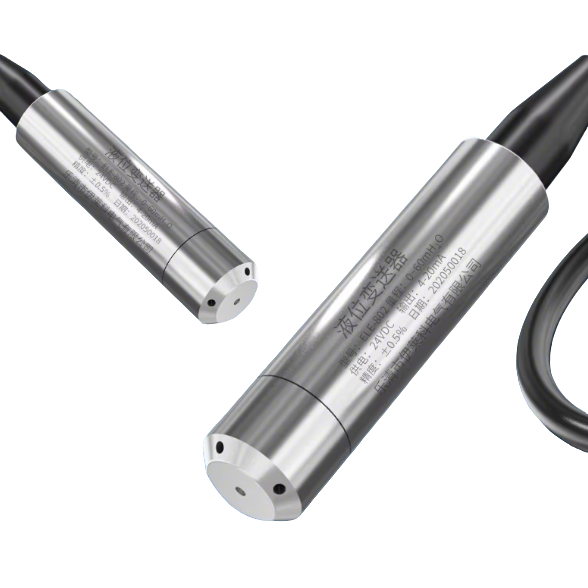

Submersible Level Transmitter Sensor Probe
Application
-
Water tanks (Fire protection)
-
Sewage water treatment
-
Industrial liquid level measurement
-
Wastewater and sewage systems
-
Environmental monitoring
-
Hydraulic systems
-
Water supply and drainage control
-
Municipal and agricultural systems
Description
The ELE-802 submersible level transmitter offers precise liquid level measurement in harsh environments, ideal for wastewater, sewage, and water tank monitoring. Featuring a durable 304 stainless steel housing and a 316 anti-corrosion diaphragm, the transmitter ensures stable and reliable measurements. It supports a variety of output signals, including 4-20mA, RS485, and 0-5V/0-10V, making it suitable for various industrial control systems. The product is IP68 rated, offering robust protection against dust and water, ensuring long-lasting operation in submerged and outdoor environments.
Features
-
304 Stainless Steel Housing: Durable, corrosion-resistant, and long-lasting.
-
316L Anti-corrosion Diaphragm: Protects against chemical erosion, ensuring high reliability.
-

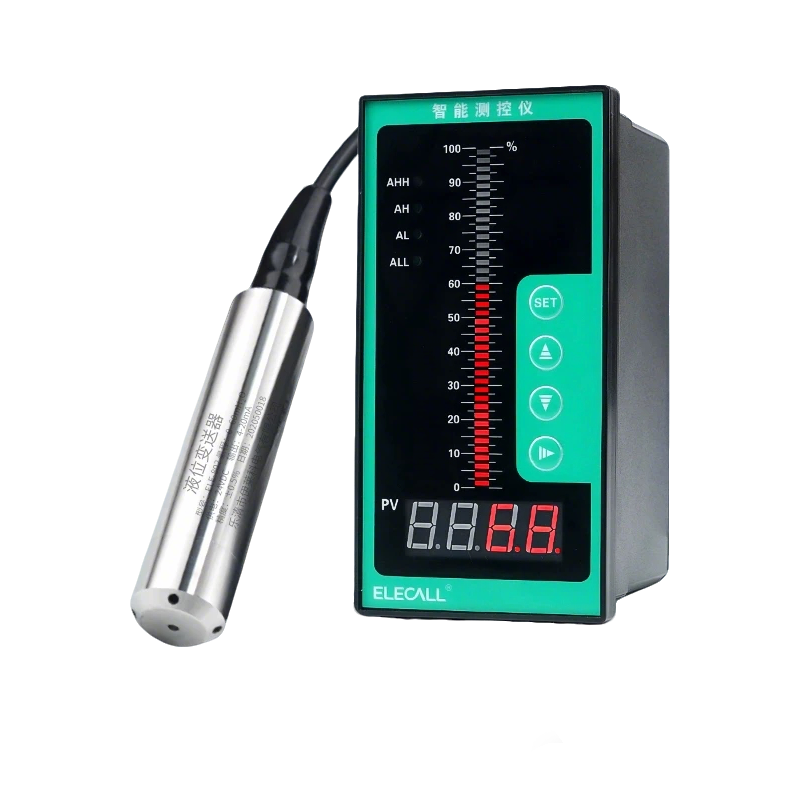

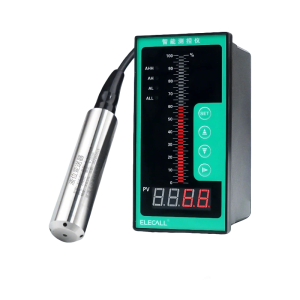

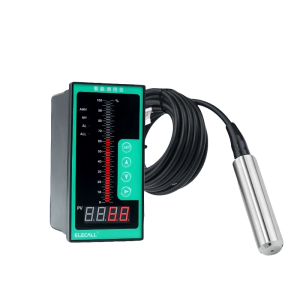

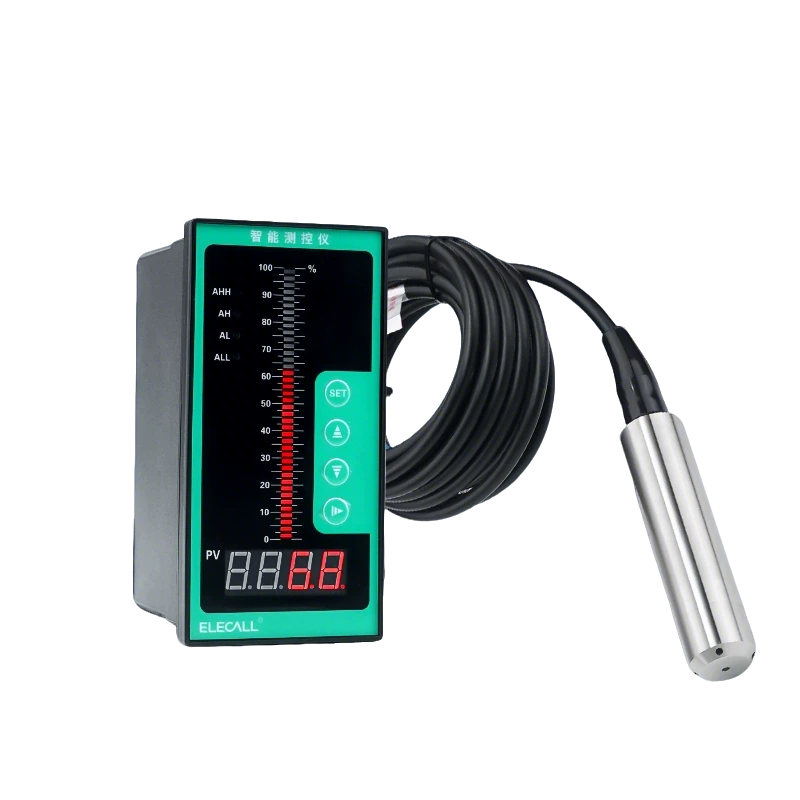

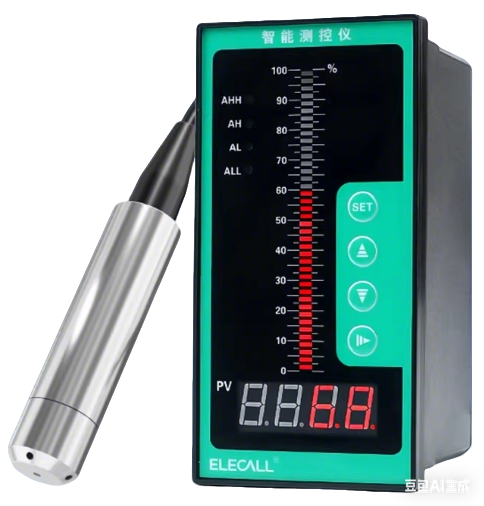

Digital Display: Real-time monitoring with clear readouts.
-
High Precision: Measurement accuracy of ±0.5%, with options for 0.2% and 0.1% for high precision.
-
IP68 Waterproof Rating: Ideal for submerged applications, preventing water ingress.
-
Anti-Interference: Dual-layer copper shielding and high-quality materials reduce signal interference.
-
Temperature Range: Operates from -10°C to 70°C, with wide-ranging temperature compensation.
-

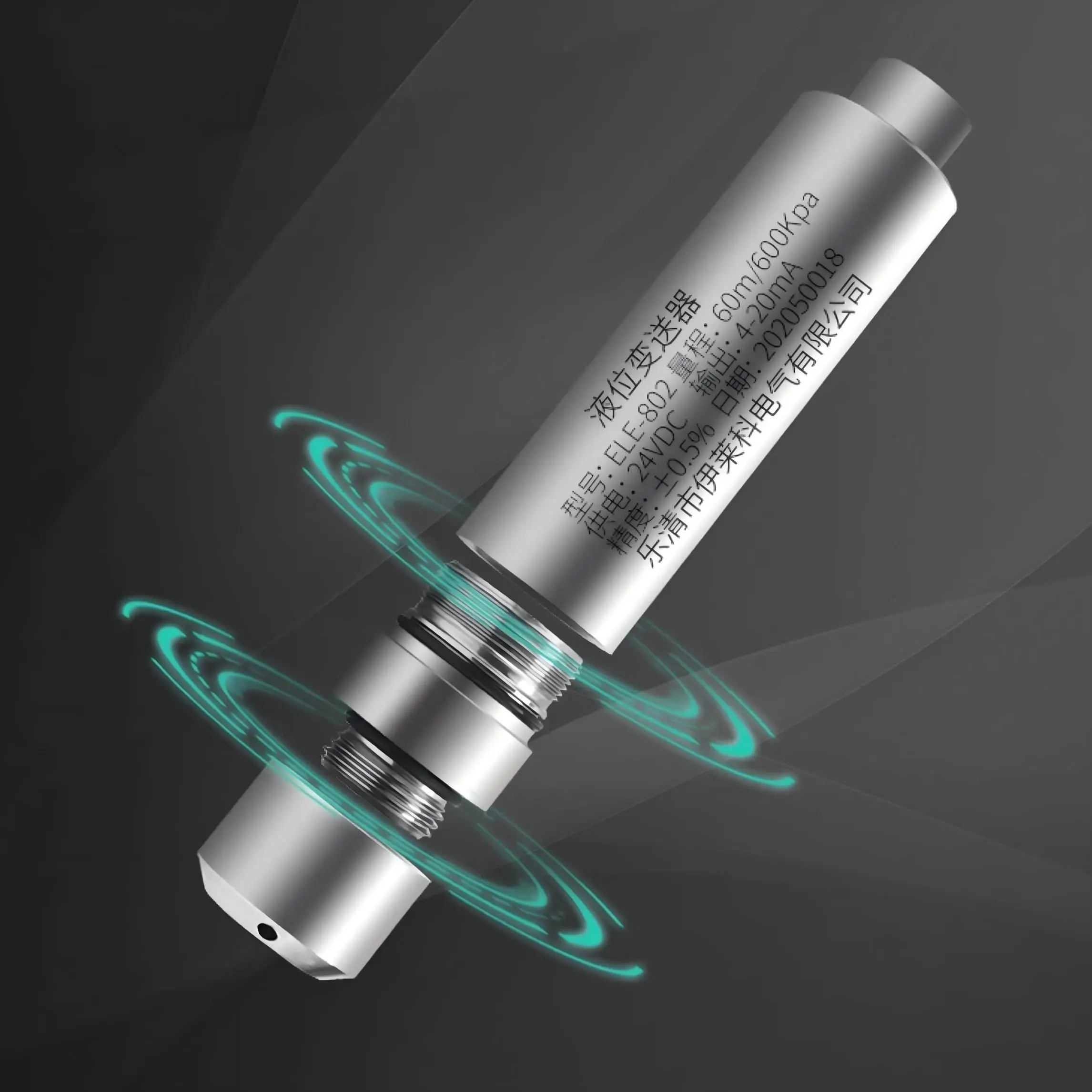

Triple Waterproof Seals: Enhanced sealing for reliable performance in wet conditions.
-
45° Angled Design: Prevents blockage and ensures easy installation.
-
Customizable: Supports various range, signal outputs, and precision grades.
-
Long Lifespan: Robust construction and protective features for extended operational life.
-
Overload Capacity: Can withstand up to 2 times the rated range.
Technical Details
Measurement Range
0.4m – 60m (customizable)
Housing Material
304 Stainless Steel
Diaphragm Material
316L Anti-corrosion
Accuracy
±0.5% (default), ±0.2%, ±0.1% (optional)
Overload Capacity
2x rated capacity
Output Signal
4-20mA (two-wire) RS485 (four-wire) 0-5V, 0-10V (three-wire)
Power Supply
DC 24V (10-30VDC)
Protection Rating
IP68 (Three-layer waterproof design)
Working Temperature
-10°C to 70°C
Cable Material

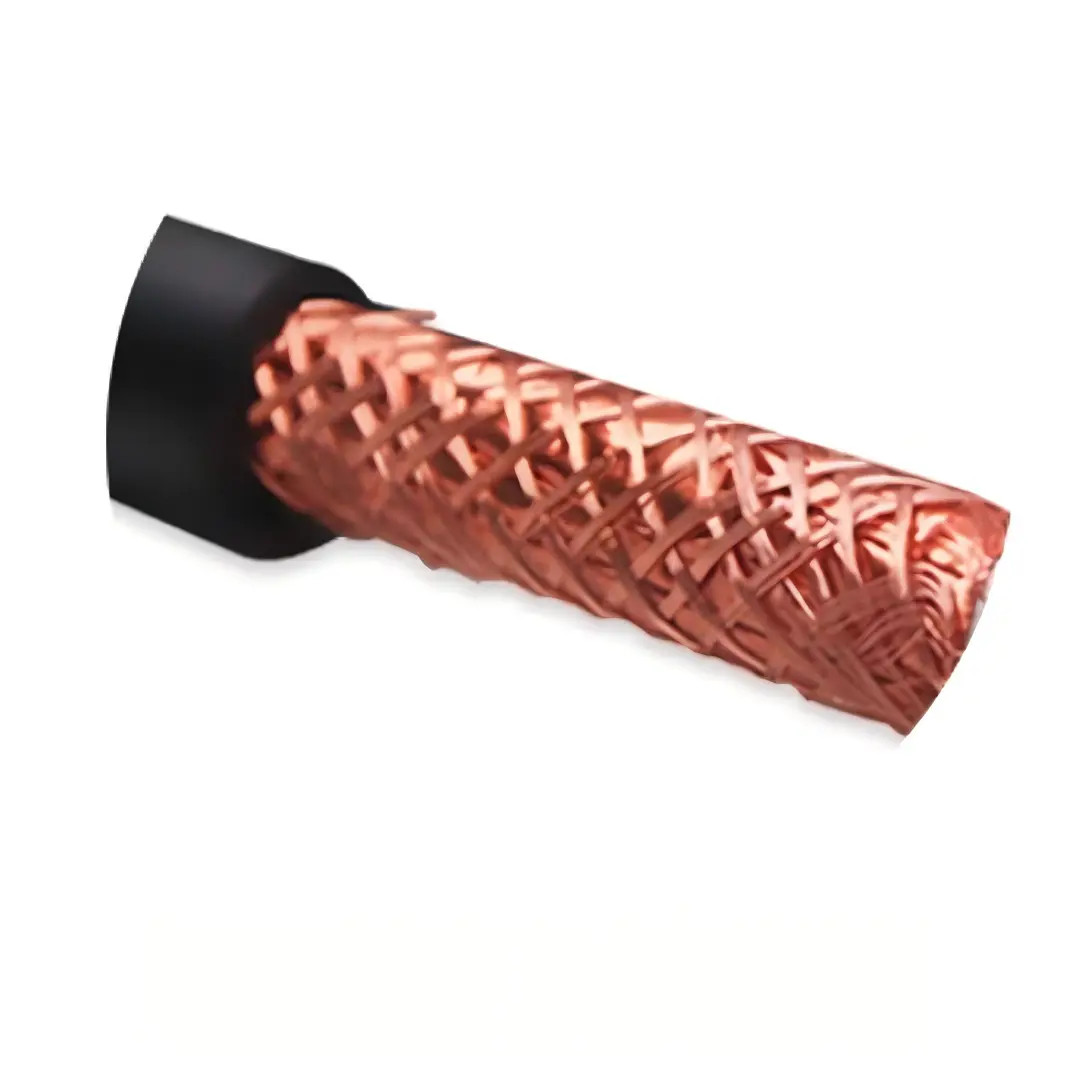

Copper double shielding (anti-interference)
Measurement Medium
Non-corrosive liquids
Connection Type
Threaded (customizable)
Pressure Measurement Type
Gauge pressure
Calibration
Factory-calibrated for high precision, with aging and recalibration for stability.
Pipe Connection Type
Threaded or flange options (customizable)
Humidity Tolerance
0-95%
