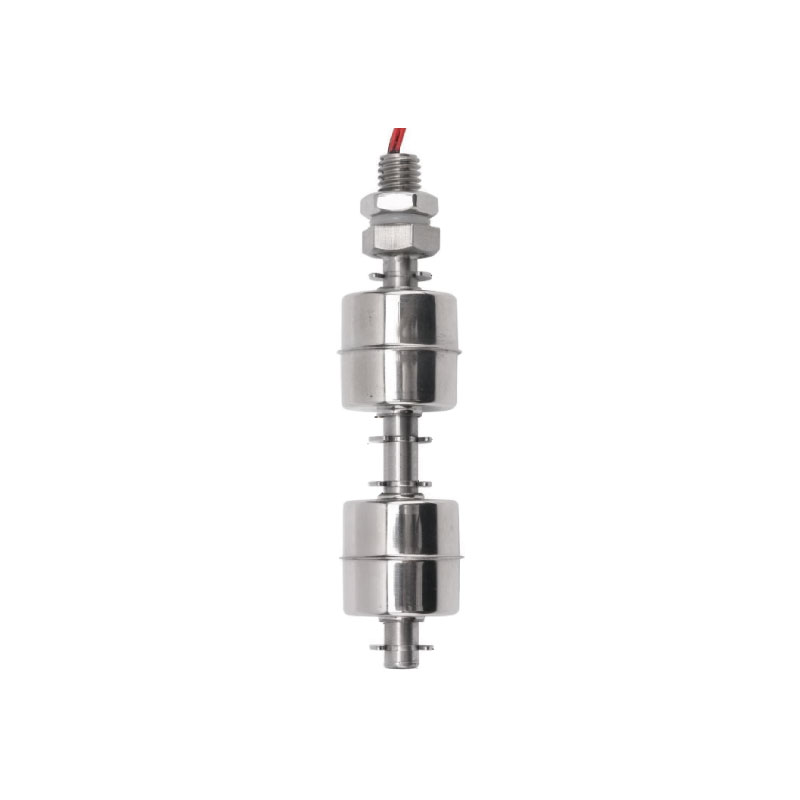

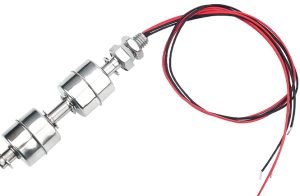

Straight Rod Stainless Steel Float Level Switch(Double Ball)
304/316 stainless steel double float level switch
High-temperature and corrosion-resistant
Compact, lightweight, and durable
Magnetic reed switch with ring magnet

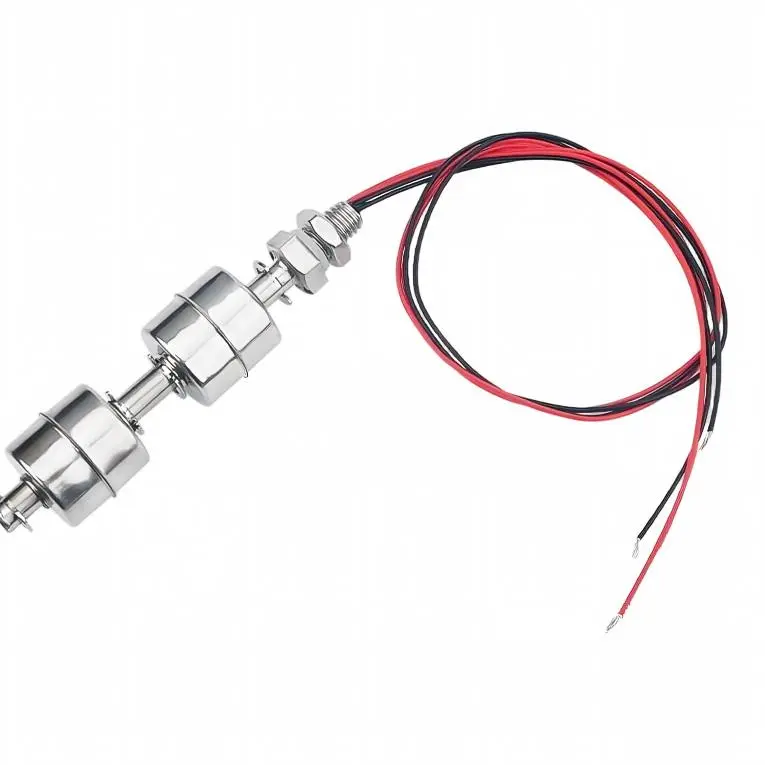

Four 30CMPVC wires, flexible and wear-resistant (80°C)
Thickened rubber sealing for waterproofing
Application
- Water purifiers and drinking machines
- Water heaters and solar water systems
- Air conditioners and humidifiers
- Coffee machines and small refrigerators
- Anti-dry protection systems for heating equipment
- Automotive liquid systems
- Industrial liquid level control
- Agricultural water equipment
- Household appliances requiring water level monitoring
Description
The 316 stainless steel double float level switch is a high-temperature, corrosion-resistant water level controller designed for precise monitoring with dual floats. Featuring a magnetic reed switch and ring magnet, it provides accurate switching without an external power source. Its compact, lightweight design and simple working principle ensure reliable performance. The double float model uses four 30CMPVC wires (rated for 80°C) that are flexible, wear-resistant, and long-lasting. Thickened sealing gaskets and laser-welded seamless construction ensure strong waterproof performance and long service life.
Features
- 304/316 stainless steel construction for high durability and corrosion resistance
- Thickened sealing structure with rubber gasket for strong waterproofing
- Magnetic reed switch ensures precise on/off operation without external power
- Ring magnet enhances control accuracy
- Four 30CMPVC wires, flexible, wear-resistant, and long-lasting (rated 80°C)
- Compact, lightweight, and reliable for various environments
- OKI reed switch provides longer service life
Technical Details
Product Type:
Float Level Switch
Product Model:
ES10010-2 ES12010-2 ES15010-2 ES20010-2 ES25010-2 ES30010-2 ES35010-2 ES40010-2 ES45010-2 ES55010-2 ES60010-2 ES65010-2 ES70010-2 ES75010-2 ES80010-2 ES85010-2 ES90010-2 ES95010-2 ES100010-2 ES120010-2
Type:
Straight Rod Stainless Steel Float Level Switch(Double Ball)
Size:

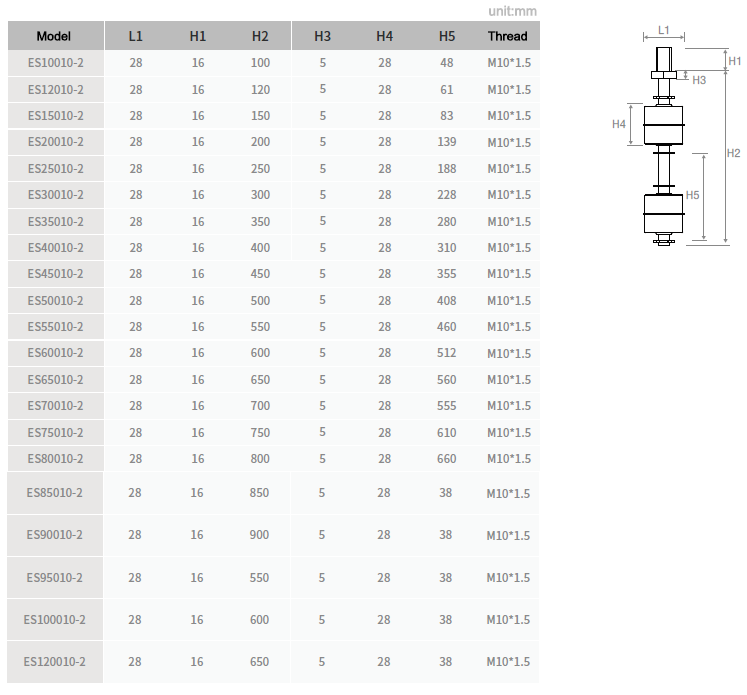

See attached drawing
Operating Temperature:
-30°C to +120°C
Max Contact Rating:
10VA (1A1) / 50VA (2A1)
Max Switching Voltage:
100V AC/DC (1A1) / 220V AC/DC (2A1)
Max Switching Current:
0.5A (1A1) / 1.5A (2A1)
Max Breakdown Voltage:
110V AC/DC (1A1) / 300V AC/DC (2A1)
Max Contact Resistance:
100mΩ (1A1 / 2A1)
Float Ball Material:
SU304/316 Stainless Steel
Float Body Material:
SU304/316 Stainless Steel
Cable:
Four 30CMPVC wires (80°C)
Accessories
What is the difference between single ball and double ball models?
Single Ball: Uses one float for basic water level control, suitable for simpler systems and smaller tanks. Double Ball: Uses two floats for more precise water level monitoring, often in systems requiring dual-level detection. It also uses four 30CMPVC wires for added durability and flexibility.
What materials are used in these float switches?
Both models are made of 316 stainless steel (SU304 for standard series) for the float and body, ensuring corrosion resistance and long service life. Single Ball: uses two high-temperature braided wires for durability and heat resistance. Double Ball: uses four PVC wires for flexibility, wear resistance, and long-term use.
Can they be used in high-temperature applications?
Yes, single ball switches have two high-temperature braided wires rated for 120°C, while double ball switches use four 30CMPVC wires rated for 80°C. The switches themselves operate safely in environments from -30°C to +120°C.
Are these switches suitable for corrosive liquids or oils?
Yes, the stainless steel construction, PVC or silicone-insulated wires, and thickened sealing gaskets make both models resistant to acids, alkalis, oils, and various chemical media.
How does the magnetic reed switch work?
The magnetic reed switch is controlled by a ring magnet inside the float. It provides accurate on/off control without requiring an external power source. OKI reed switches are used for higher reliability and longer operational life.
How easy is installation?
Both single and double ball models are straight-rod designs, allowing vertical or top mounting inside tanks or containers. The compact design makes them suitable for narrow or space-limited tanks and devices.
What types of applications are suitable?
Water purifiers, drinking machines, and small household appliances Water heaters, solar water systems, and coffee machines Air conditioners, humidifiers, and small refrigerators Automotive liquid systems, industrial liquid control, and agricultural irrigation equipment Anti-dry protection systems for heating equipment
How long is the service life?
The stainless steel construction, reinforced wires, thickened sealing gaskets, and magnetic reed switch provide long-lasting, stable performance.
Similar Products
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.

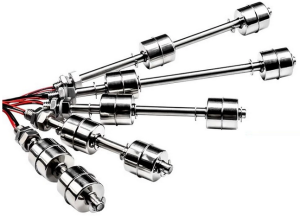

Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.
Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
