Stainless Steel Low Density Float Level Switch for Oil and Alcohol(Single Ball )
304 stainless steel low-density float switch
Specially designed for oil and alcohol liquids
NBR float ball with strong buoyancy
High-temperature and corrosion-resistant
Threaded connection for easy installation
Suitable for various low-density solutions
Application
- Gasoline and diesel storage systems
- Alcohol and ethanol liquid level control
- Petroleum and kerosene tanks
- Turpentine and chemical liquid containers
- Automotive fuel systems
- Industrial liquid level monitoring
- Agricultural equipment
- Water heaters and household appliances
- Various low-density liquid control systems
Description
The stainless steel low-density float level switch is specially designed for oil, alcohol, gasoline, ethanol, kerosene, and other low-density liquids. Made of 304 stainless steel with an NBR float ball, it provides strong buoyancy, excellent sealing, and reliable liquid level control. Its high-temperature resistance, corrosion resistance, and durable threaded connection design make installation easy and ensure long service life. This float switch is widely used in industrial equipment, automotive systems, and household appliances requiring low-density liquid monitoring.
Features
- 304 stainless steel body, rust-proof and durable
- NBR float ball with strong buoyancy for low-density liquids
- Specially designed for oil, alcohol, gasoline, ethanol, and kerosene
- High-temperature resistance and stable performance
- Excellent sealing structure with strong waterproof performance
- Threaded connector design for easy and secure installation
- High impact resistance and long service life
- Corrosion-resistant and pollution-free material
- Suitable for multiple industrial and household applications
- Ideal for low-density liquid level detection and control
Technical Details
Product Type:
Float Level Switch
Product Model:
ES4510 ES6010 ES10010 ES12010 ES15010 ES20010 ES30010 ES40010 ES50010 ES60010 ES65010 ES70010 ES80010 ES90010 ES100010 ES120010
Material:
304 Stainless Steel + NBR Rubber

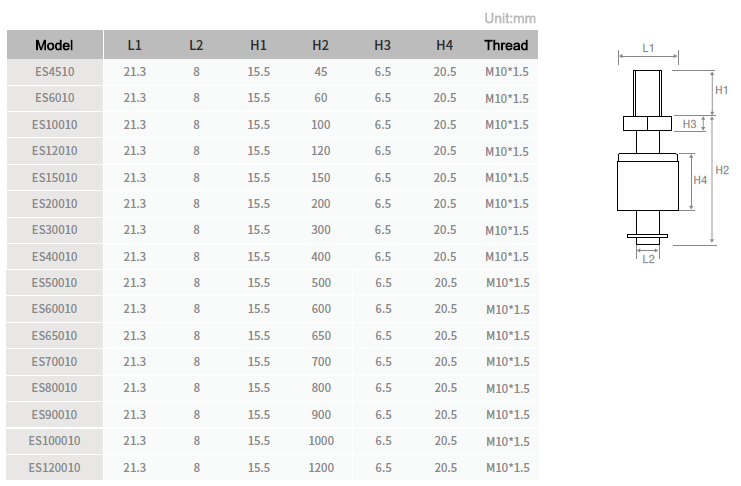

Size:
See attached drawing
Type:
Low Density Float Level Switch(single ball)
Operating Temperature:
-30°C to +120°C
Max Contact Rating:
10VA (1A1) / 50VA (2A1)
Max Switching Voltage:
100V AC/DC (1A1) / 220V AC/DC (2A1)
Max Switching Current:
0.5A (1A1) / 1.5A (2A1)
Max Breakdown Voltage:
110V AC/DC (1A1) / 300V AC/DC (2A1)
Max Contact Resistance:
100mΩ

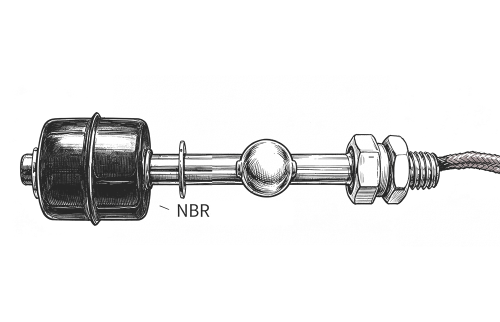

Float Ball Material:
NBR
Float Body Material:
SU304 Stainless Steel
Accessories
What is a low-density float level switch used for?
This float switch is specially designed for low-specific-gravity liquids such as oil, alcohol, diesel, kerosene, solvents, and light chemical liquids. It is used for liquid level detection, pump control, overflow protection, dry-run protection, and automatic alarm systems. Compared with standard float switches for water, low-density models provide more reliable buoyancy performance in lighter liquids.
What material is the float switch made of?
The standard model uses 304 stainless steel, including both the float ball and the float rod body, offering: Excellent corrosion resistance High temperature resistance Strong mechanical strength Long service life Suitable for oil, alcohol, and many industrial liquids For stronger corrosion resistance, 316 stainless steel customization is also available for special chemical environments.
Is this switch normally open (NO) or normally closed (NC)?
It supports both. The float ball can be manually reversed by 180° rotation, allowing users to switch between: Normally Open (NO) Normally Closed (NC) The factory default is usually the lower-open setting. This provides flexibility for different control systems.
Can the float switch directly control pumps or solenoid valves?
No. Because the internal reed switch carries only a small current, it should not directly control high-power loads such as: Water pumps Solenoid valves AC contactors Large alarms Recommended solution: For alarms or solenoid valves → use a small relay (such as HH52P / HH54P) For water pumps → use relay + AC contactor Direct connection may burn the reed contacts.
Is it suitable for alcohol, oil, and chemical liquids?
Yes. This model is specially designed for liquids with lower density than water, including: Alcohol Diesel Lubricating oil Transformer oil Kerosene Light chemical liquids Using standard water float switches in these liquids may cause poor buoyancy or unstable switching.
What is the control stroke of the single-ball float switch?
The control stroke is usually around 10mm, which means it is highly sensitive and suitable for precise point-level detection. It is ideal for: Compact tanks Precise liquid level alarms Sensitive automatic control systems
Why choose a single-ball model?
Choose single-ball if: Installation space is limited Only one control point is needed High sensitivity is required Compact equipment design is preferred
