This float switch is specially designed for low-specific-gravity liquids such as oil, alcohol, diesel, kerosene, solvents, and light chemical liquids. It is used for liquid level detection, pump control, overflow protection, dry-run protection, and automatic alarm systems. Compared with standard float switches for water, low-density models provide more reliable buoyancy performance in lighter liquids.

The standard model uses 304 stainless steel, including both the float ball and the float rod body, offering: Excellent corrosion resistance High temperature resistance Strong mechanical strength Long service life Suitable for oil, alcohol, and many industrial liquids For stronger corrosion resistance, 316 stainless steel customization is also available for special chemical environments.

It supports both. The float ball can be manually reversed by 180° rotation, allowing users to switch between: Normally Open (NO) Normally Closed (NC) The factory default is usually the lower-open setting. This provides flexibility for different control systems.

No. Because the internal reed switch carries only a small current, it should not directly control high-power loads such as: Water pumps Solenoid valves AC contactors Large alarms Recommended solution: For alarms or solenoid valves → use a small relay (such as HH52P / HH54P) For water pumps → use relay + AC contactor Direct connection may burn the reed contacts.

Yes. This model is specially designed for liquids with lower density than water, including: Alcohol Diesel Lubricating oil Transformer oil Kerosene Light chemical liquids Using standard water float switches in these liquids may cause poor buoyancy or unstable switching.

The control stroke of the double-ball float switch is much larger, commonly ranging from 30mm to 50mm or more, depending on rod length and float spacing. This helps: Preventing frequent pump start/stop Protecting motors and relays Improving system lifespan Stable automatic control

A larger liquid level differential is required Pump start/stop protection is important Stable automation is needed The tank has enough installation space

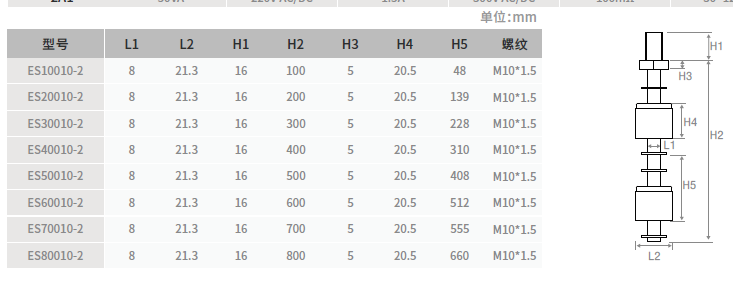

Yes. ELECALL supports: Rod length customization Float spacing customization Thread size customization OEM / ODM production This is especially useful for distributors and industrial project buyers.

Before placing an order, buyers should confirm: Liquid type (oil / alcohol / chemical liquid) Working temperature Working pressure Installation direction Mounting thread size Rod length Cable length NO or NC logic Required level differential distance Quantity and customization requirements Clear specifications help avoid installation problems later.
