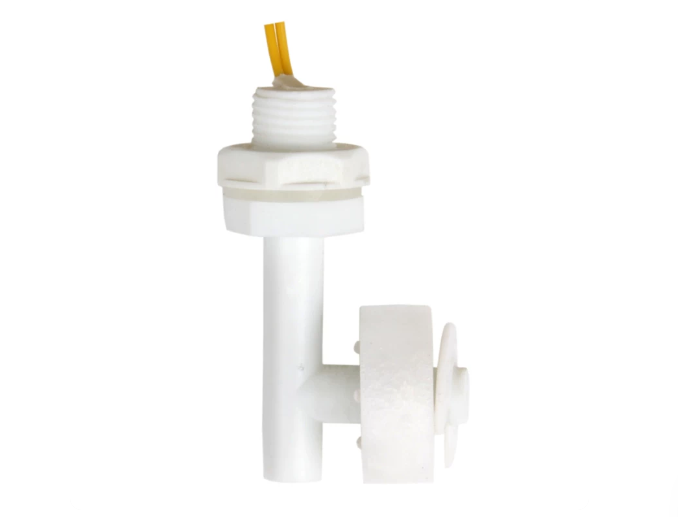

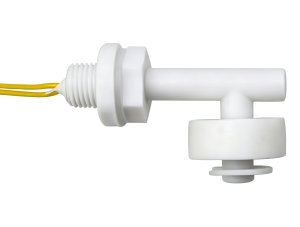

Side-Mounted Plastic Float Switch(EPC1)
Side mount installation
Durable PP material
Corrosion resistant
Reliable performance
Easy to install
Application
- Water tanks and reservoirs
- Industrial equipment
- Water treatment systems
- Pumps and drainage systems
- Household appliances
- Agricultural irrigation systems
Description
This side mount plastic float level switch is designed for horizontal installation on tank walls, providing reliable liquid level detection and control. Made of high-quality PP plastic, it offers good corrosion resistance, lightweight construction, and long service life. The built-in magnetic float works together with a reed switch to ensure accurate switching as the liquid level rises or falls.It is widely used in water tanks, industrial equipment, and household appliances for automatic level control and dry-run protection.

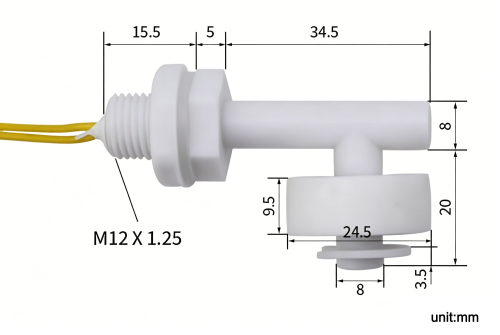

Dimension Diagram
EPC1
Features
- Standard side mount design for horizontal installation
- Suitable for general liquid level control applications
- Made of PP plastic with good corrosion resistance
- Built-in magnetic float for accurate reed switch actuation
- Lightweight structure for easy installation and handling
- Stable performance with reliable switching
- Compatible with various tank structures
Technical Details
Product Type:
Float Switch
Product Model:
EPC1
Type:
Side-Mounted Plastic Float Switch
Material:
PP (Float & Body)
Size:
See attached drawing
Operating Temperature:
-10°C to +85°C
Max Contact Rating:
10W (1A1) / 30W (2A1)
Max Switching Voltage:
100VDC (1A1) / 220VDC (2A1)
Max Switching Current:
0.5A (1A1, resistive load) / 1.5A (2A1, resistive load)
Max Breakdown Voltage:
220VDC (1A1) / 300VDC (2A1)
Max Contact Resistance:
≤100mΩ
Applicable Density
0.65x10³kg/m³
Accessories
What is the difference from duckbill float switch?
This model uses a standard float structure, suitable for general-purpose applications. Duckbill types are more compact and designed for narrow spaces, while this model is more versatile.
What installation method is used?
It is installed on the side of the tank (horizontal installation), allowing level detection without top access.
What media can it be used for?
Suitable for water and non-corrosive liquids compatible with PP material.
How does the switch work?
The float moves with the liquid level and activates the internal reed switch through a magnetic field.
Can it be used for pump control?
Yes, it can be used to control pumps, alarms, or valves for automatic liquid level management.
Is installation complicated?
No. It is easy to install and requires only simple mounting on the tank wall.
Similar Products
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.
Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
