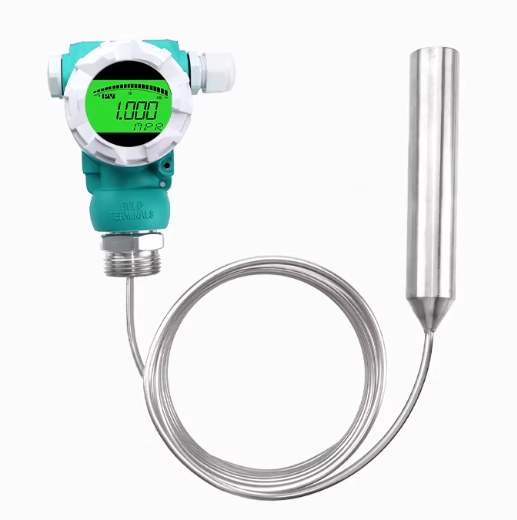

Pressure-guided level transmitter
Pressure-guided level transmitter designed for accurate liquid level measurement
High temperature resistance up to 120°C for demanding environments
Automatic compensation and linear calibration for precise output
Stainless steel gas-collecting tube for durability and reliability

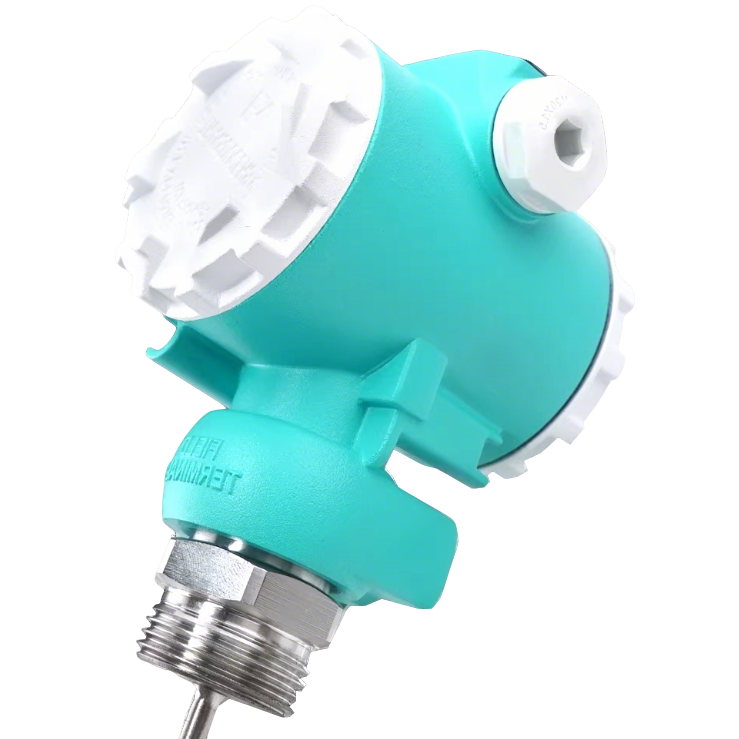

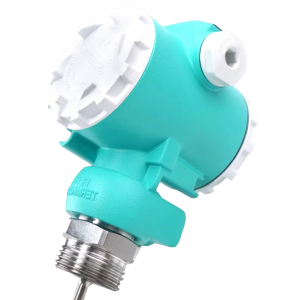

Armored junction box for enhanced protection
Stable signal transmission with strong resistance to contamination and blockage
Application
-
Industrial liquid storage tanks
-
Oil and gas reservoirs
-
Chemical and petrochemical industries
-
Water and wastewater treatment systems
-
Food and beverage processing
-
Power plants and generator systems
-
Pump control and monitoring systems
-
Marine and offshore platforms
-
Hydraulic and pneumatic systems
-
Agricultural irrigation and liquid monitoring
Description

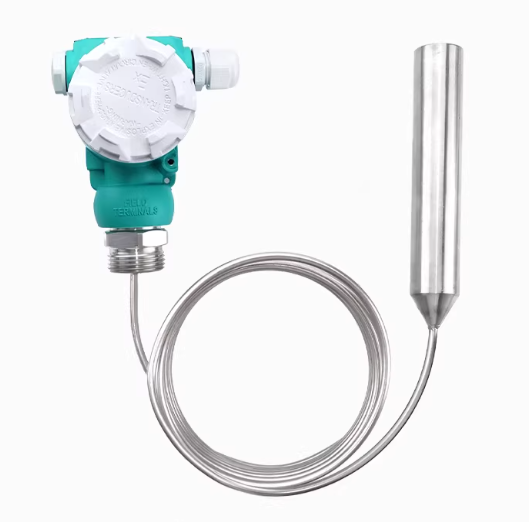

The Pressure-Guided Level Transmitter features a 304 stainless steel gas-collecting tube, designed to guide gas pressure and prevent the sensor from direct contact with the measured medium. This design enhances the device’s ability to withstand contamination and ensures long-term reliability. The 304 stainless steel capillary tube is resistant to high temperatures, corrosion, and wear, making it suitable for demanding industrial applications.

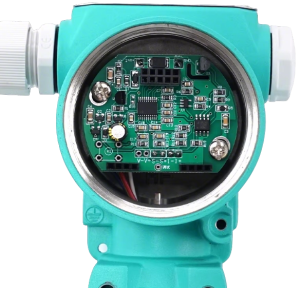

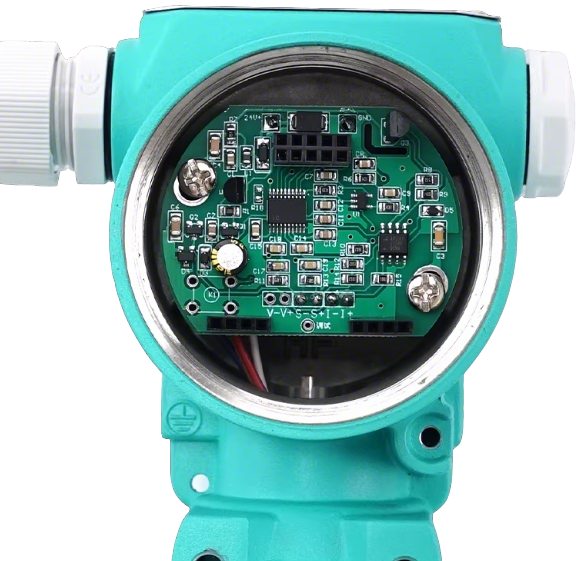

The transmitter is equipped with an intelligent circuit board, providing automatic temperature compensation and linear calibration for consistent, stable signal output. It has a metal armored junction box, protecting the internal circuitry from external damage and ensuring robust performance in tough environments.
Features
-
Temperature Resistance – Operates at temperatures up to 120°C
-
Automatic Compensation & Linear Calibration – Ensures stable, accurate measurement in fluctuating conditions
-
Gas-Collecting Tube Design – Prevents sensor contact with the medium, minimizing wear and contamination
-
304 Stainless Steel Construction – High resistance to corrosion, high temperatures, and mechanical stress
-
Metal Armored Junction Box – Provides excellent protection for the circuit board with high sealing performance
-
Stable Signal Output – Reduced interference with high noise immunity
-
Easy Wiring – Simple and clear wiring for user convenience
-
Versatile Application – Ideal for water, oil, and other compatible liquids
-
Customizable Connections – Optional PTFE connection fittings for different environments
Technical Details
Range
0~100m, customizable
Overload Capability
150% of rated range
Operating Temperature
0~120°C
Temperature Compensation
0~50°C
Storage Temperature
-10~80°C
Temperature Drift
±0.01% F.S/°C
Response Time
10Hz
Installation Thread
G1 (default)
Connection Material
304 Stainless Steel (custom PTFE fittings available)
Accuracy
±0.1% / ±0.25% / default ±0.5%
Measured Medium
Water, oil, and other liquids compatible with 304 stainless steel
Power Supply
15-30VDC (Standard 24VDC)
Output Signal
4~20mA (default), 0~5V / 0~10V / RS485
Communication Protocol
RS485 Modbus RTU (optional)
