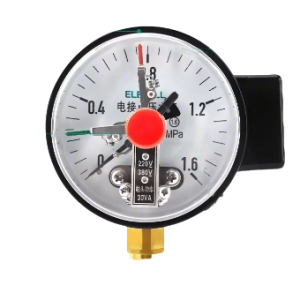

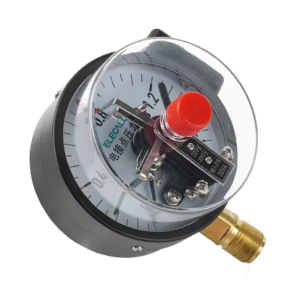

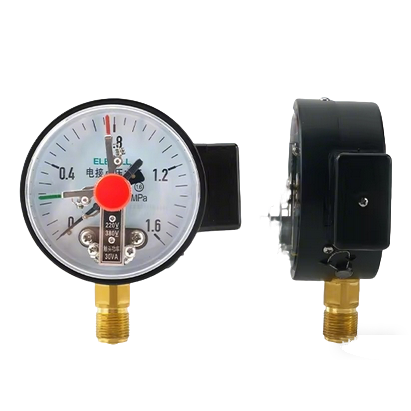

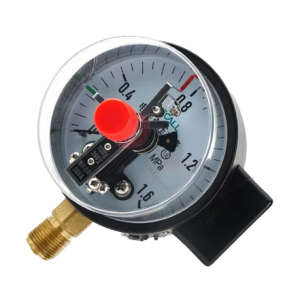

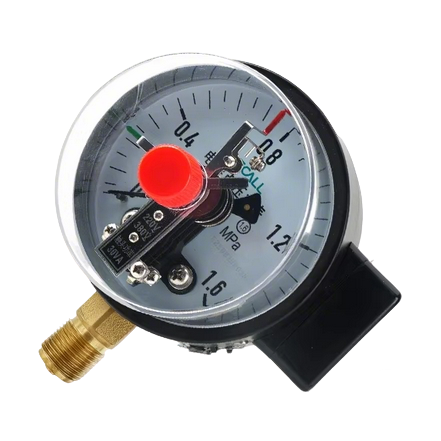

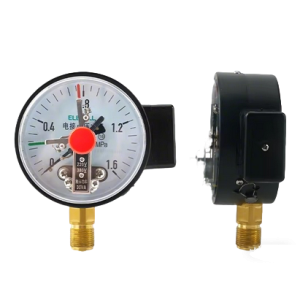

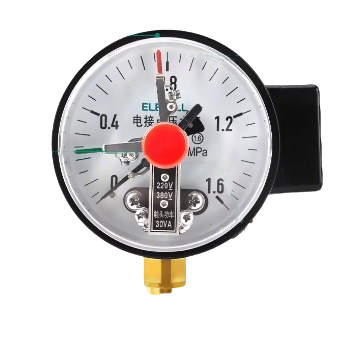

Magnetic-assisted electrical contact pressure gauge EYXC-100
Magnetic-assisted electrical contact pressure gauge (220V) for reliable switching performance
High accuracy Class 1.6 (±1.6%) ensures precise pressure monitoring
Durable brass movement for long-term stability and resistance to wear
Adjustable upper and lower limit electrical contacts for flexible automatic control
Magnetic assist technology provides smooth, bounce-free contact operation
Suitable for water, oil, air, compressed gas, and hydraulic system applications
220V AC electrical rating supports direct integration into industrial control circuits
Combines accurate analog indication with on/off switching in a single robust instrument
- Ideal for pump protection, compressor control, level alarming, and process automation
Application
-
Water supply systems
-
Air compressor systems
-
Boiler pressure control
-
Refrigeration and lubrication systems
-
Industrial automation and pressure control systems
Description
The EYXC-100 magnetic-assisted electrical contact pressure gauge is engineered for accurate pressure measurement and automatic control. It integrates pressure indication with electrical contact output, enabling upper and lower limit switching for system protection and automation.
Equipped with a high-quality brass movement and solid brass connection, the gauge ensures excellent durability, corrosion resistance, and long service life. The widened Bourdon tube enhances elasticity and fatigue resistance, delivering more stable and precise readings.
The magnetic-assisted contact system improves switching reliability, reduces contact wear, and ensures stable performance over extended operation cycles.
Its powder-coated steel case provides protection against corrosion, heat, and harsh industrial environments, while the clear ink-printed dial ensures long-lasting readability without fading.
Each unit undergoes strict quality control, including overpressure (1.3× full scale) and leakage testing (1000+ cycles), ensuring safety and reliability in demanding applications.
Features
-
Magnetic-Assisted Electrical Contact System
Improves switching stability and extends service life -
High Accuracy (Class 1.6)
Precise measurement with minimal error -
Solid Brass Connection
Strong sealing, leak-resistant, and highly durable -
All-Brass Movement
Anti-oxidation, stable performance, long lifespan -
Widened Bourdon Tube Design
Enhanced elasticity and fatigue resistance -
Adjustable Setpoints
Easy adjustment of upper and lower pressure limits via control knob -
Clear Ink-Printed Dial
High-definition scale, fade-resistant, easy to read -
Robust Powder-Coated Steel Case
resistant to corrosion, temperature, and harsh environments -
Multi-Media Compatibility
Suitable for water, oil, air, and hydraulic pressure measurement -
Strict Quality Testing
1.3× overpressure and leakage tests (1000+ cycles)
Technical Details
Model
EYXC-100
Type
Magnetic-Assisted Electrical Contact Pressure Gauge
Accuracy Class
1.6
Dial Diameter
100 mm
Case Material
Powder-coated steel
Movement Material
Brass
Connection Material
Solid brass
Connection Size
Standard: M20 × 1.5 Custom: G1/4, PT1/4, etc.
Measuring Range
0.1 / 0.16 / 0.25 / 0.4 / 0.6 / 1 / 1.6 / 2.5 / 4 / 6 / 10 / 16 / 25 / 40 / 60 MPa
Operating Voltage
220V
Ambient Temperature
-40°C to +55°C
Media Compatibility
Suitable for non-corrosive liquids, gases, oil, water, and hydraulic media
Adjustment Method
Manual adjustment via control knob (upper/lower limits)
Customization Options
Dial design, thread type, material, pressure range, accuracy
