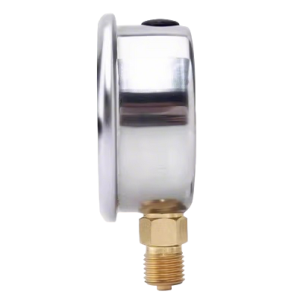

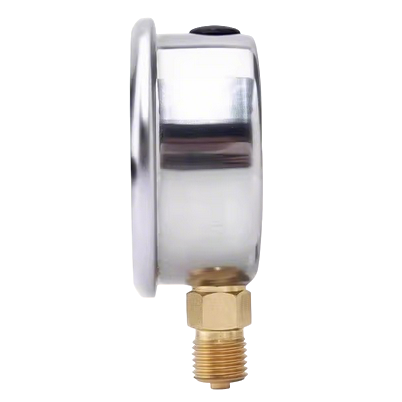

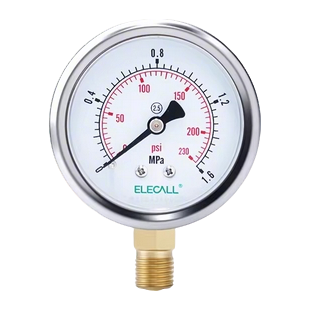

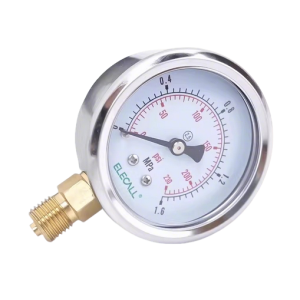

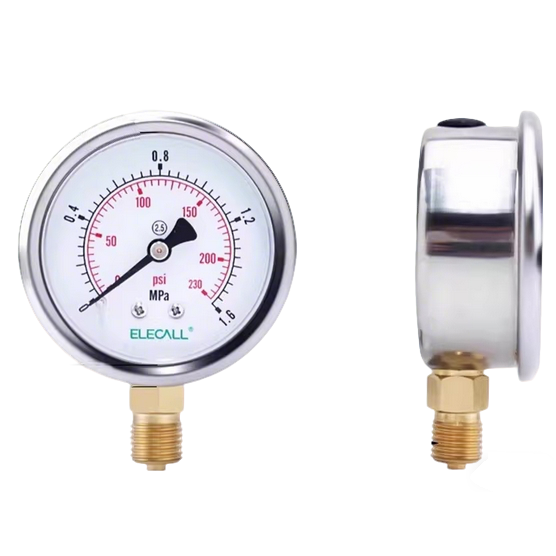

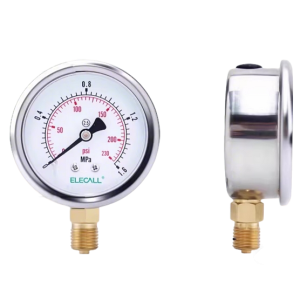

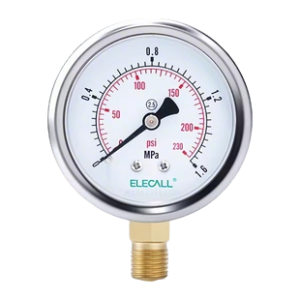

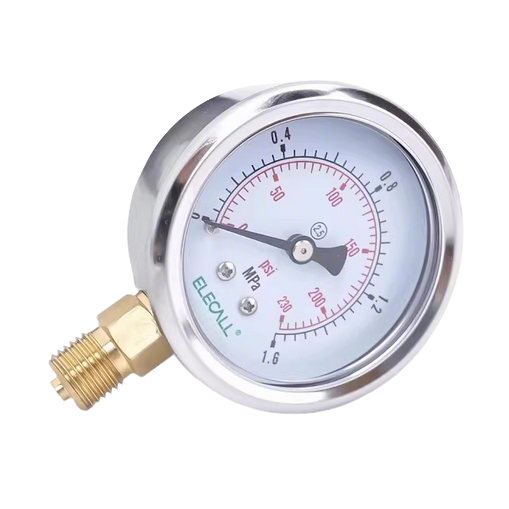

EYT-60 stainless steel pressure gauge
EYT-60 stainless steel pressure gauge with durable 304 stainless steel housing
Superior corrosion resistance for reliable use with aggressive media and harsh environments
Accurate measurement of water, oil, air, compressed gas, and vacuum pressure
Stable, long-term performance with excellent zero stability and repeatability
Wide pressure range options available to suit various industrial requirements
All-stainless steel construction ensures hygiene, durability, and suitability for demanding applications
Ideal for food & beverage, pharmaceutical, chemical, water treatment, and general industrial use
Compact 60mm dial size with clear, easy-to-read scale for quick pressure checks
Robust design withstands vibration, pulsation, and typical industrial conditions
Application
-
Hydraulic and pneumatic systems
-
Constant pressure water supply systems
-
Airtightness and leakage testing
-
High-temperature oil pressure monitoring
-
Chemical and corrosive environments
-
Medical and pharmaceutical industries
-
Industrial equipment and machinery
Description
The EYT-60 stainless steel pressure gauge is a versatile and durable instrument designed for measuring positive, negative (vacuum), and compound pressure across a wide range of media including water, oil, and gas.
Constructed with a 304 stainless steel case, the gauge offers excellent resistance to corrosion, rust, and harsh industrial environments. The polished surface enhances durability while maintaining a clean, professional appearance.
It adopts a high-quality widened Bourdon tube with strong elastic recovery, effectively reducing fatigue damage and ensuring long-term measurement stability. The internal mechanical transmission system delivers precise and responsive pressure readings.
An optimized venting design helps release residual air inside the case, improving long-term reliability and reducing maintenance frequency, especially in high-frequency or continuous operation scenarios.
Each unit undergoes strict quality control processes, including leak testing, to ensure dependable performance and safety.
Features
-
304 Stainless Steel Housing
Corrosion-resistant, anti-rust, and suitable for harsh environments -
Wide Media Compatibility
Suitable for water, oil, gas, and vacuum pressure measurement -
High-Quality Bourdon Tube
Strong elasticity, fatigue resistance, and long service life -
High Accuracy Measurement
Stable mechanical transmission ensures precise readings -
Dual Scale Dial (MPa / psi)
Clear and easy-to-read display for quick monitoring -
Optimized Venting Design
Reduces internal pressure buildup and extends lifespan -
Durable Brass Thread Connection
Long-lasting and supports custom thread specifications -
Strict Quality Control
Leak-tested and inspected before shipment
Technical Details
Type
Stainless Steel Pressure Gauge (Vacuum / Positive / Compound)
Dial Diameter
60 mm
Accuracy Class
2.5
Measuring Range
Vacuum: -0.1 MPa Pressure: 0 ~ 0.1 / 0.16 / 0.25 / 0.4 / 0.6 / 1.0 / 1.6 / 2.5 / 4.0 / 6.0 / 10 / 16 / 25 / 40 / 60 MPa
Thread Size
M14 × 1.5 (customizable)
Case Material
304 Stainless Steel
Connection Material
Brass
Dial Units
MPa / psi (dual scale)
Operating Temperature (Ambient)
-20°C to +60°C
Medium Temperature
-20°C to +80°C
Relative Humidity
< 80% RH
Accessories
