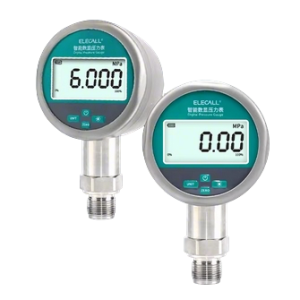

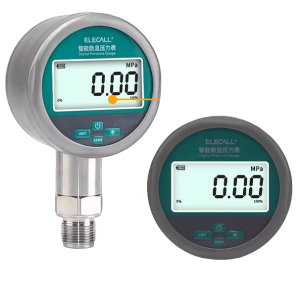

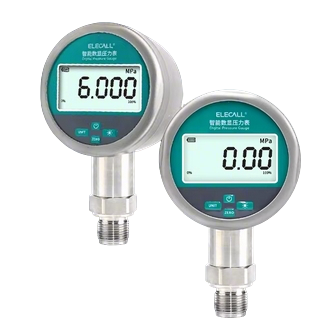

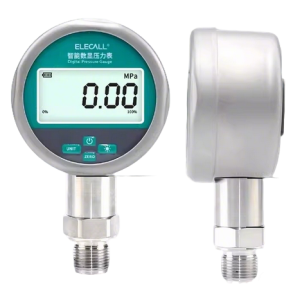

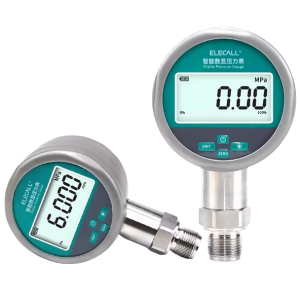

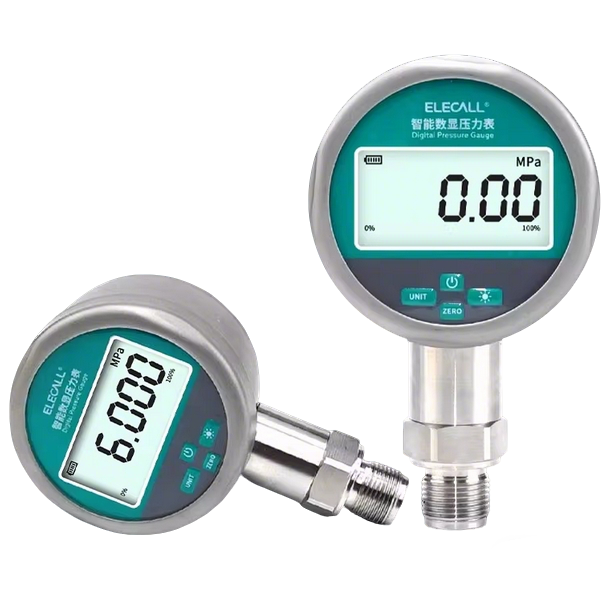

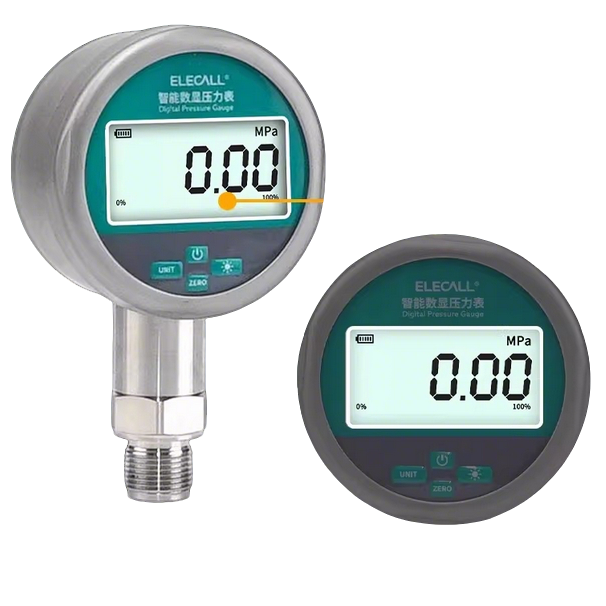

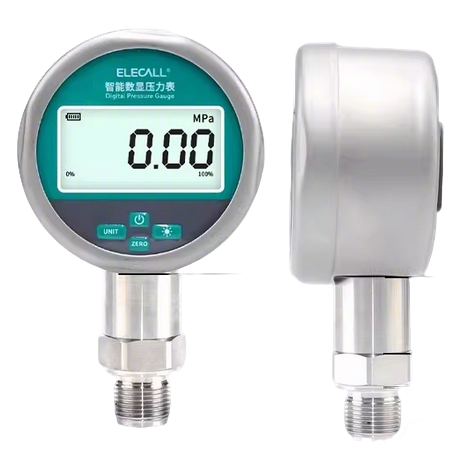

EYS-80 High-Precision Digital Pressure Gauge
High-precision digital pressure gauge designed for accurate measurement and calibration
Accuracy up to ±0.1% FS, ideal for demanding industrial applications
Large, clear LCD display for easy and intuitive reading
Battery-powered operation – no external power supply needed
Portable and compact design, perfect for field calibration and on-site testing
Rugged industrial-grade construction, suitable for harsh environments
Simple and user-friendly interface – quick to learn and operate
Widely used for pressure verification, equipment commissioning, and process monitoring
Excellent cost-performance ratio, suitable for both lab and field use
Application
Ideal for pressure measurement and calibration in:
-
Industrial equipment
-
Hydraulic systems
-
Petrochemical industry
-
Power and energy systems
-
Mechanical maintenance
-
Laboratory and calibration applications
Suitable for measuring:
-
Water
-
Oil
-
Gas
-
Hydraulic media
(Compatible with non-corrosive media to stainless steel)
Description
The EYS-80 digital pressure gauge is a high-precision instrument specifically developed for calibration purposes. With accuracy up to 0.1%, it can be used to verify and test other pressure gauges.

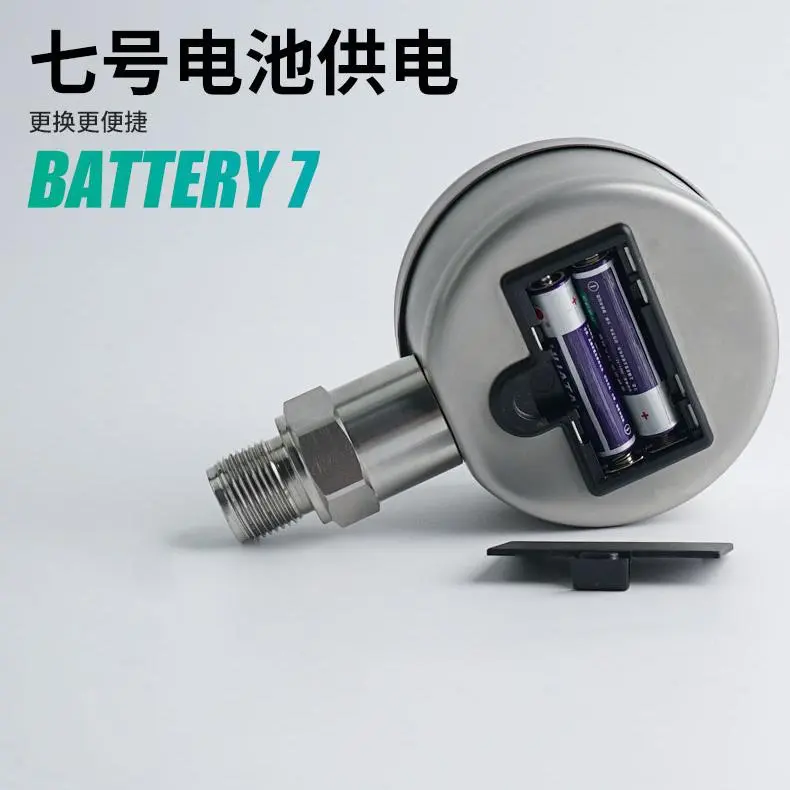

It features a clear LCD display with backlight, ensuring easy reading even in low-light environments. Powered by AAA batteries, it requires no external wiring, making installation simple and flexible.

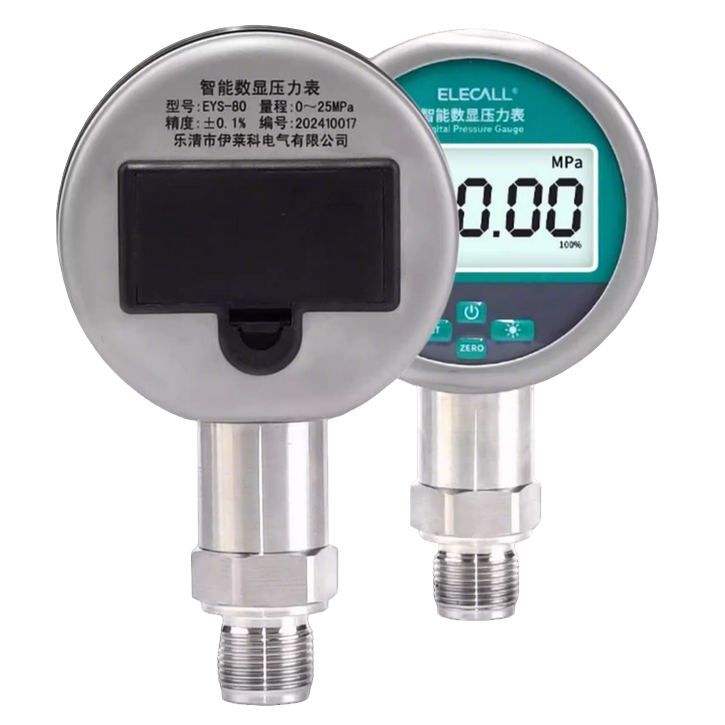

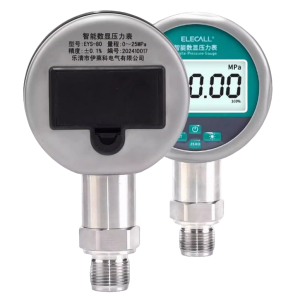

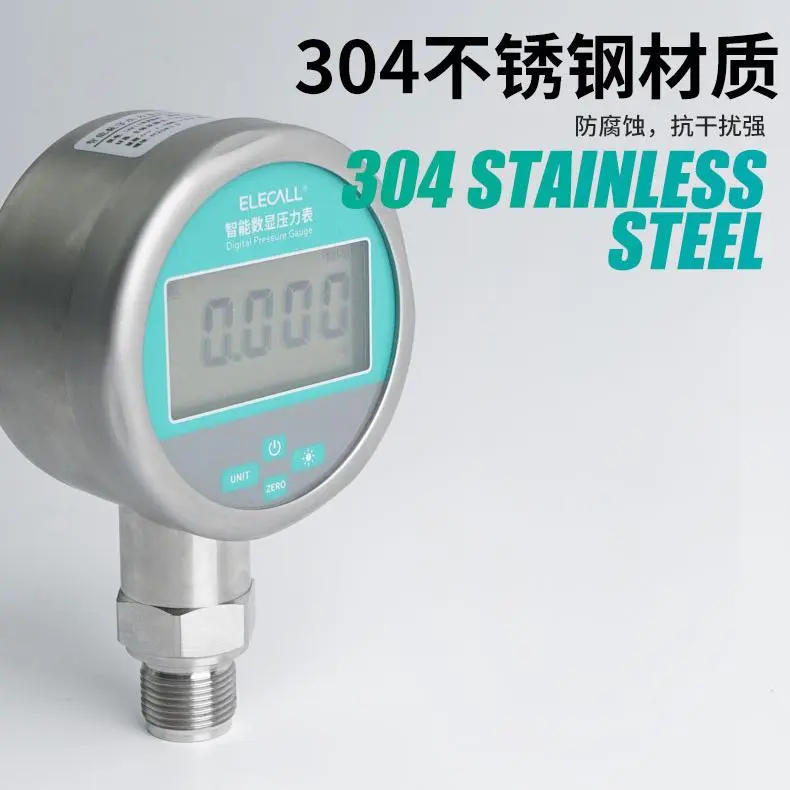

Built with a durable 304 stainless steel housing and connection, the gauge offers excellent resistance to harsh environments while maintaining stable and reliable performance.
Features
-
High accuracy up to ±0.1% (optional 0.2% / 0.4%)
-
Designed for calibration and testing
-
LCD display with backlight for clear readings
-
Powered by 2 × AAA batteries (no external power required)
-
One-button zero reset function
-
Peak value recording (max/min)
-
Multiple pressure unit switching (MPa, kPa, bar, psi, kgf/cm²)
-
Battery level indicator
-
Temperature compensation for improved stability
-
Overpressure protection
-
Suitable for water, oil, gas, and hydraulic systems
-
Customizable specifications available
Technical Details
Model
EYS-80
Accuracy
±0.1% (optional ±0.2% / ±0.4%)
Pressure Type
Gauge pressure (absolute pressure customizable)
Overload Capacity
≤ 40 MPa: 150% 40 MPa: 120%
Power Supply
2 × AAA batteries
Display
LCD with backlight
Weight
Approx. 468.2 g
Material (Case)
304 Stainless Steel
Material (Connection)
304 Stainless Steel
Thread Connection
M20 × 1.5 (customizable)
Measuring Medium
Water, oil, gas, and other non-corrosive media
Operating Temperature
-20°C to 70°C
Humidity
0–95% RH
Temperature Drift
±0.01% FS/°C
Stability
±0.1% FS/year
Peak Value Record
Yes (Max/Min)
Range
Multiple ranges available, customizable
Accessories
