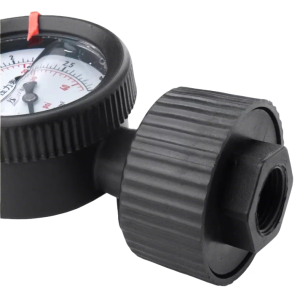

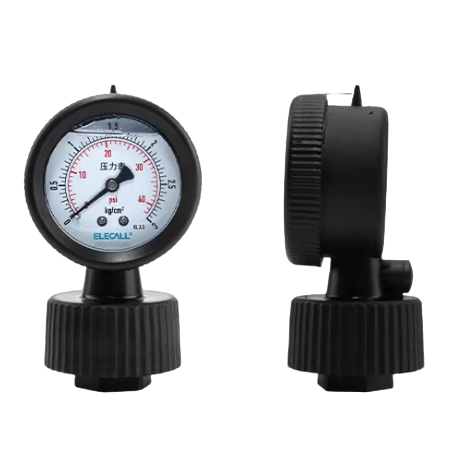

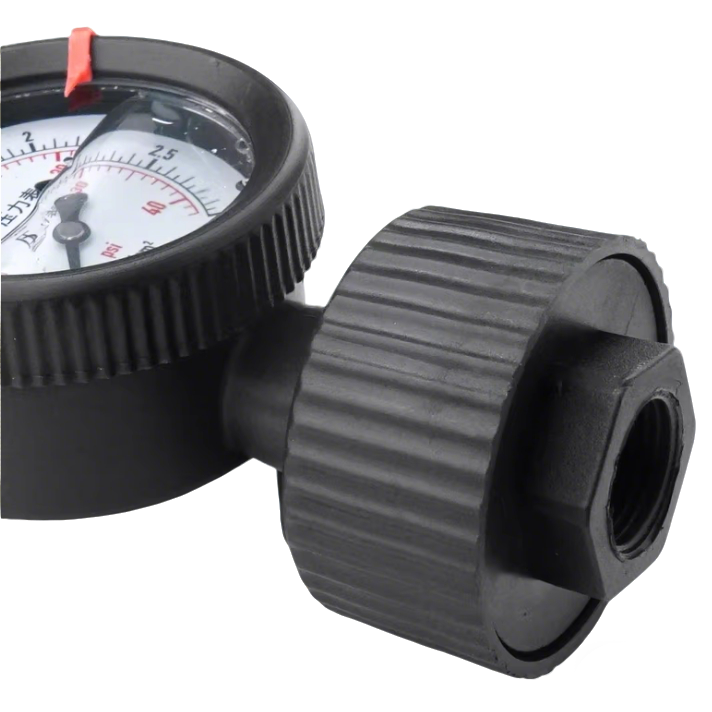

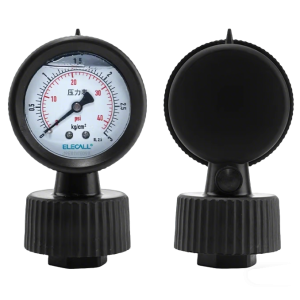

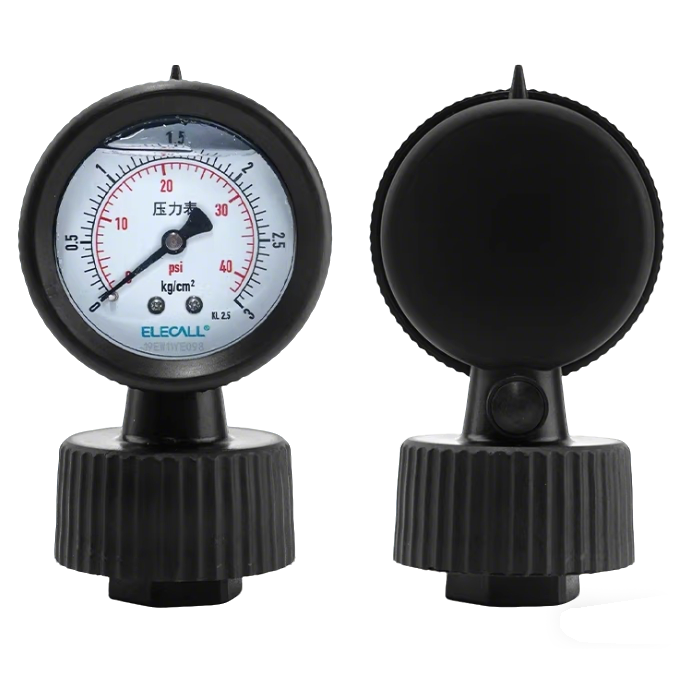

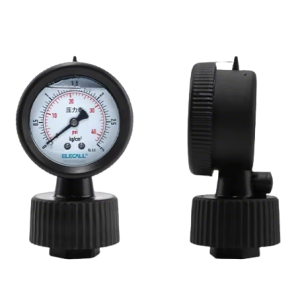

EYP-60 Plastic Diaphragm Shock-Proof Pressure Gauge
EYP-60 plastic diaphragm shock-proof pressure gauge for accurate pressure measurement
PP plastic body with fluororubber (FKM) diaphragm for corrosion resistance
Oil-filled shock-proof structure reduces vibration impact
Effectively isolates corrosive media and prevents clogging
Ensures long service life in harsh environments
Ideal for PCB etching machines and chemical processing equipment
Application
The EYP-60 Diaphragm Pressure Gauge is widely used in environments with corrosive or contaminated media, including:
-
PCB Etching Machines
-
Electroplating Equipment
-
Chemical Processing Plants
-
Mechanical Manufacturing Facilities
-
Chemical Machinery
-
Acid & Alkali Media Measurement
It is ideal for applications requiring media isolation, corrosion resistance, hygiene, and stable measurement under vibration.
Description
The EYP-60 Pressure Gauge adopts a diaphragm isolation structure using a high-quality fluororubber diaphragm, effectively separating the measuring medium from internal components to prevent corrosion, contamination, and blockage. The PP plastic housing provides excellent resistance to acids and alkalis, making it suitable for harsh chemical environments.
A CNC-integrated threaded connection ensures high sealing performance and leak prevention, while the oil-filled shock-proof design (glycerin-filled) stabilizes pointer movement under mechanical vibration. The gauge features a dual-scale high-definition dial for clear and accurate readings.
Features
-
Diaphragm Isolation Design: Effectively isolates corrosive media and prevents clogging
-
Fluororubber (FKM) Diaphragm: Excellent resistance to acids, alkalis, and corrosion
-
PP Plastic Housing: Strong chemical resistance, durable in harsh environments
-
Shock-Proof Oil-Filled Structure: Glycerin filling reduces vibration and pointer fluctuation
-
CNC One-Piece Thread Machining: High sealing performance, leak-free connection
-
Stable & Accurate Measurement: Suitable for vibration-intensive applications
-
Dual-Scale HD Dial: Clear, easy-to-read pressure display
-
PCB-Compatible Design: Specifically suited for PCB etching and chemical processes
Technical Details
Dial Diameter
150mm
Accuracy
1.6% (Class 1.6)
Pressure Range
Customizable; can measure various pressures based on application needs
Thread Connection
M20 x 1.5 (customizable for other threads)
Material
Iron housing, brass core and connectors
Environment Temperature
-5°C to 55°C
Airtight Structure
Protects against contaminants and environmental damage
Weight
Approx. 1310.6g
Damping Liquid
Default glycerin; customizable with silicone oil
Installation
Radial installation
Use Case
Measuring the pressure of non-explosive, non-crystallizing, non-corrosive fluids, steam, and gases
Accessories
