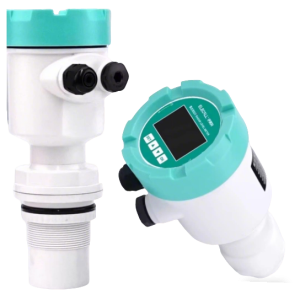

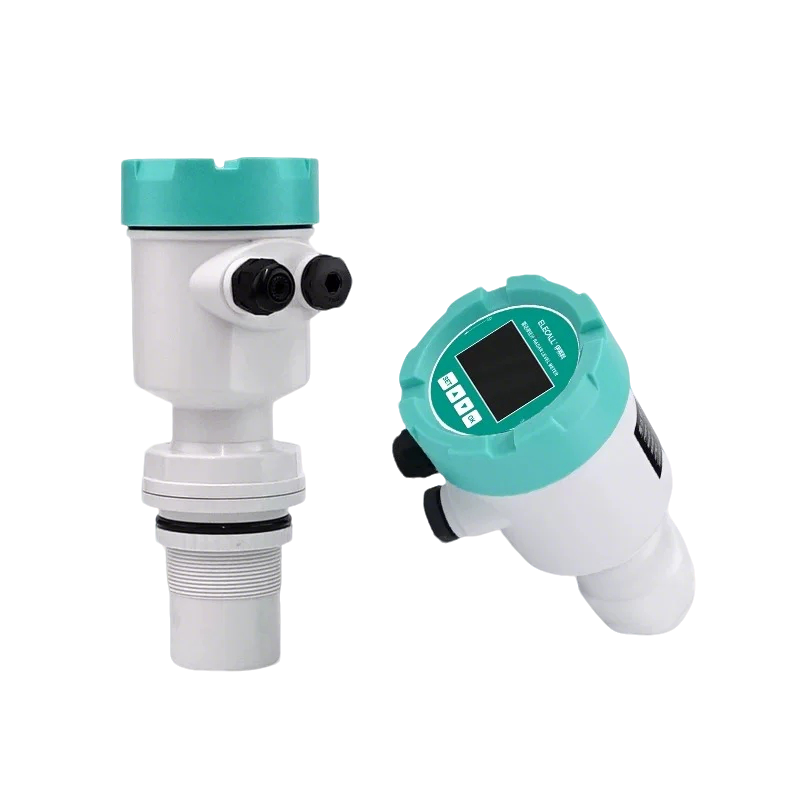

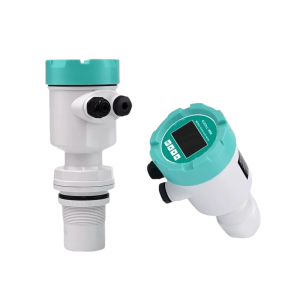

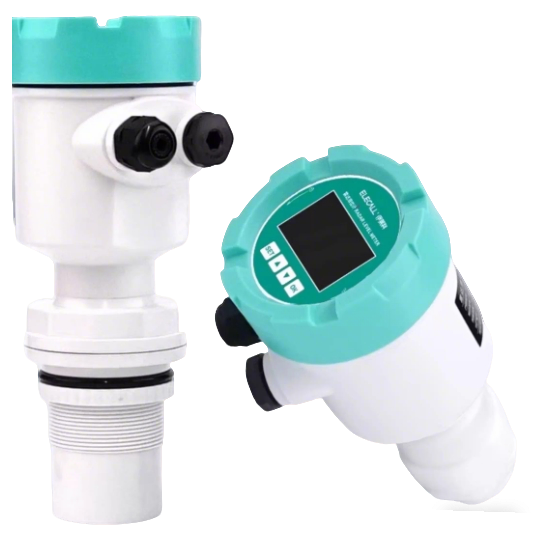

ERT-A2120 high-frequency radar level transmitter for non-contact liquid level measurement and control
Integrated design for high-precision level monitoring
±2 mm accuracy for precise measurement
60 GHz high-frequency radar technology for fast and reliable response
Suitable for wastewater, rivers, reservoirs, and tank level applications
Ideal for demanding industrial and municipal environments
Wastewater level monitoring
River and reservoir water level measurement
Municipal water and drainage projects
Hydrology and water conservancy systems
Rainfall and flood monitoring systems
Mixing tanks and process vessels
Sewage treatment plants
Industrial and municipal automation projects

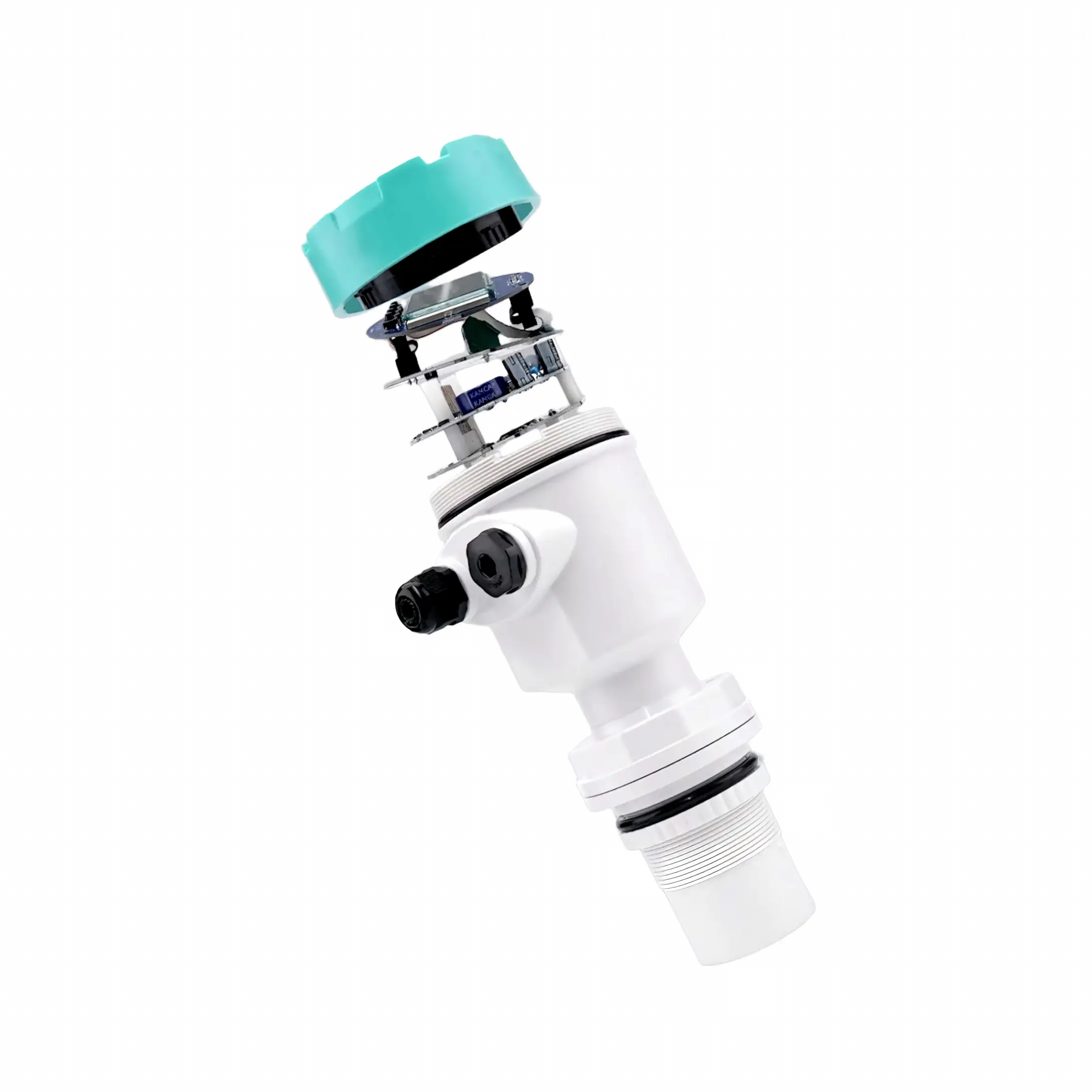

The ERT-A2120 is a one-piece high-frequency radar level transmitter based on 60 GHz FMCW radar technology, providing stable and accurate non-contact liquid level measurement. With a narrow 9° beam angle, the sensor effectively suppresses false echoes caused by tank structures, turbulence, or environmental interference, ensuring reliable level readings.
The device supports level display, control, and alarm functions in a single unit, making it an ideal solution for automated liquid level control systems. Optional relay outputs enable high-level and low-level alarm control, allowing direct linkage with pumps and valves.

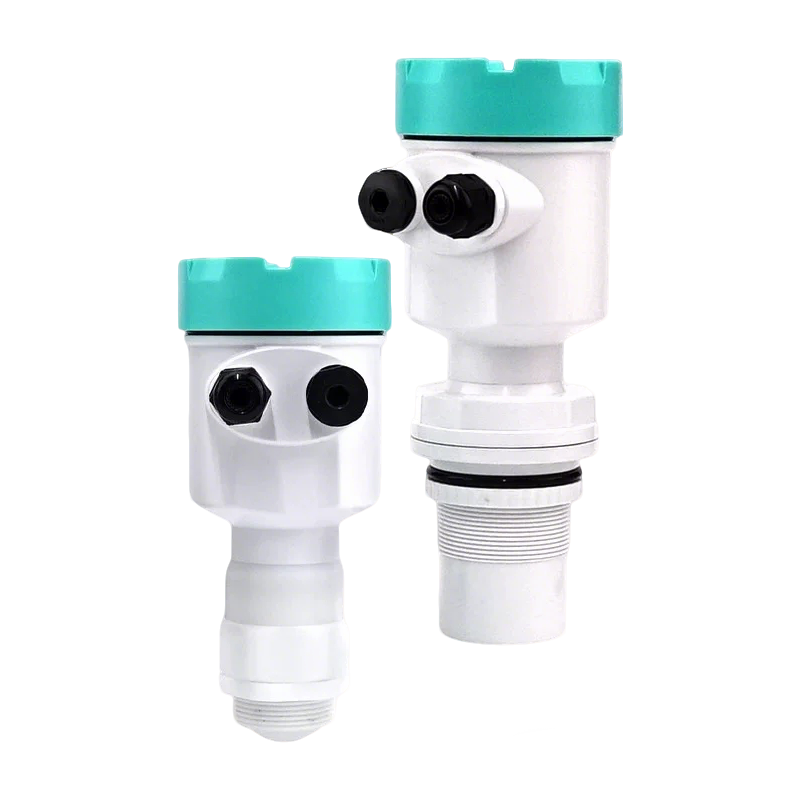

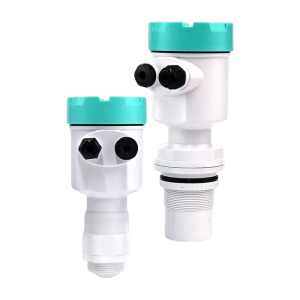

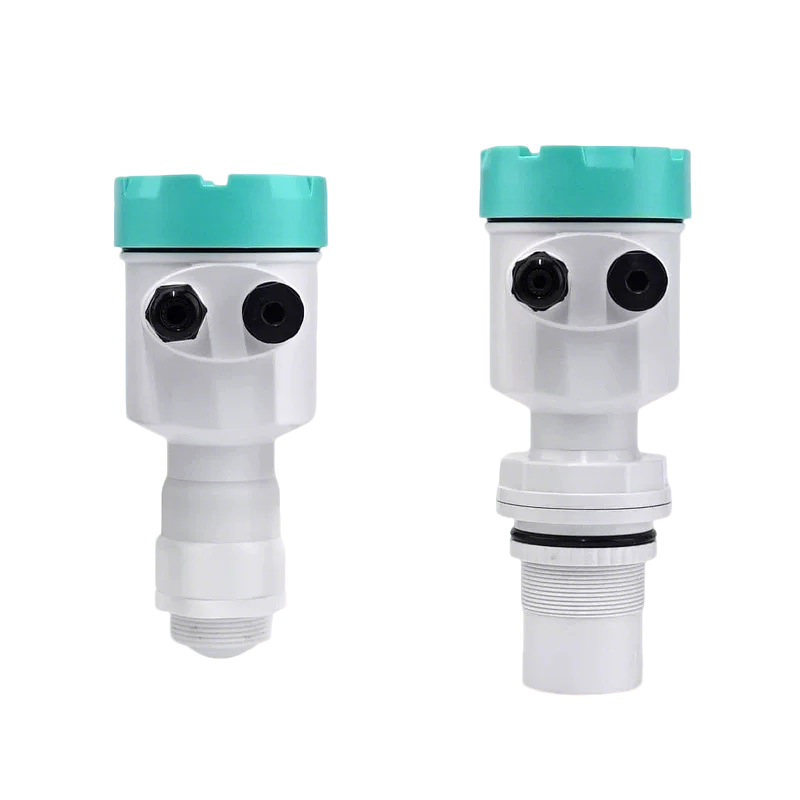

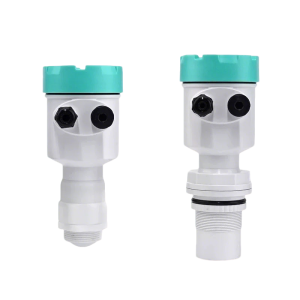

Two antenna configurations are available:
Lens Antenna Version – Suitable for various media, including liquids with impurities or turbulence
Basic Antenna Version – Recommended for clean, non-corrosive, impurity-free liquids
With robust materials, IP65 protection, and wide power supply options, the ERT-A2120 delivers long-term stability and low maintenance in complex field conditions.
High-frequency 60 GHz radar level measurement
Non-contact liquid level detection
High accuracy: ±2 mm

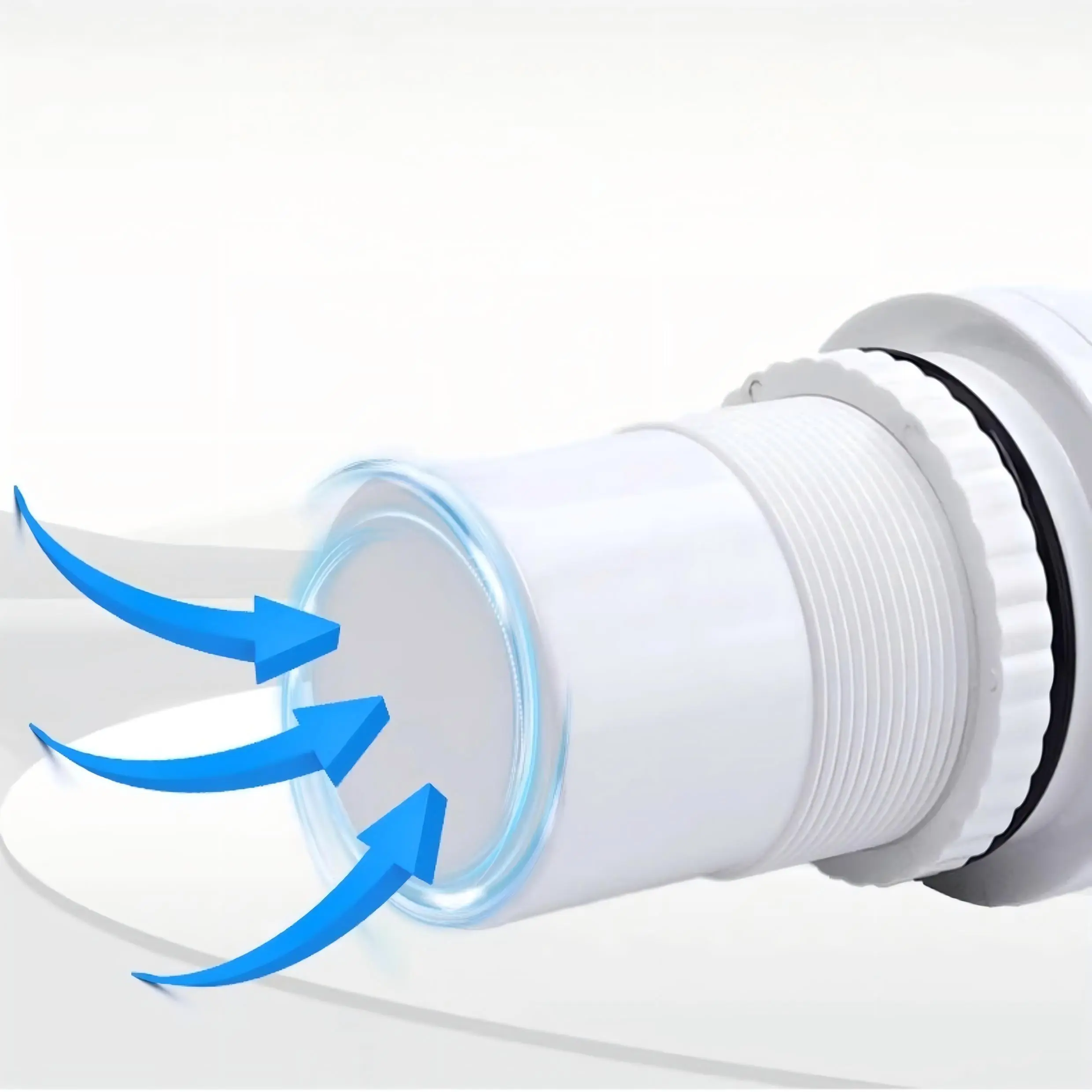

Narrow 9° beam angle to suppress false echoes

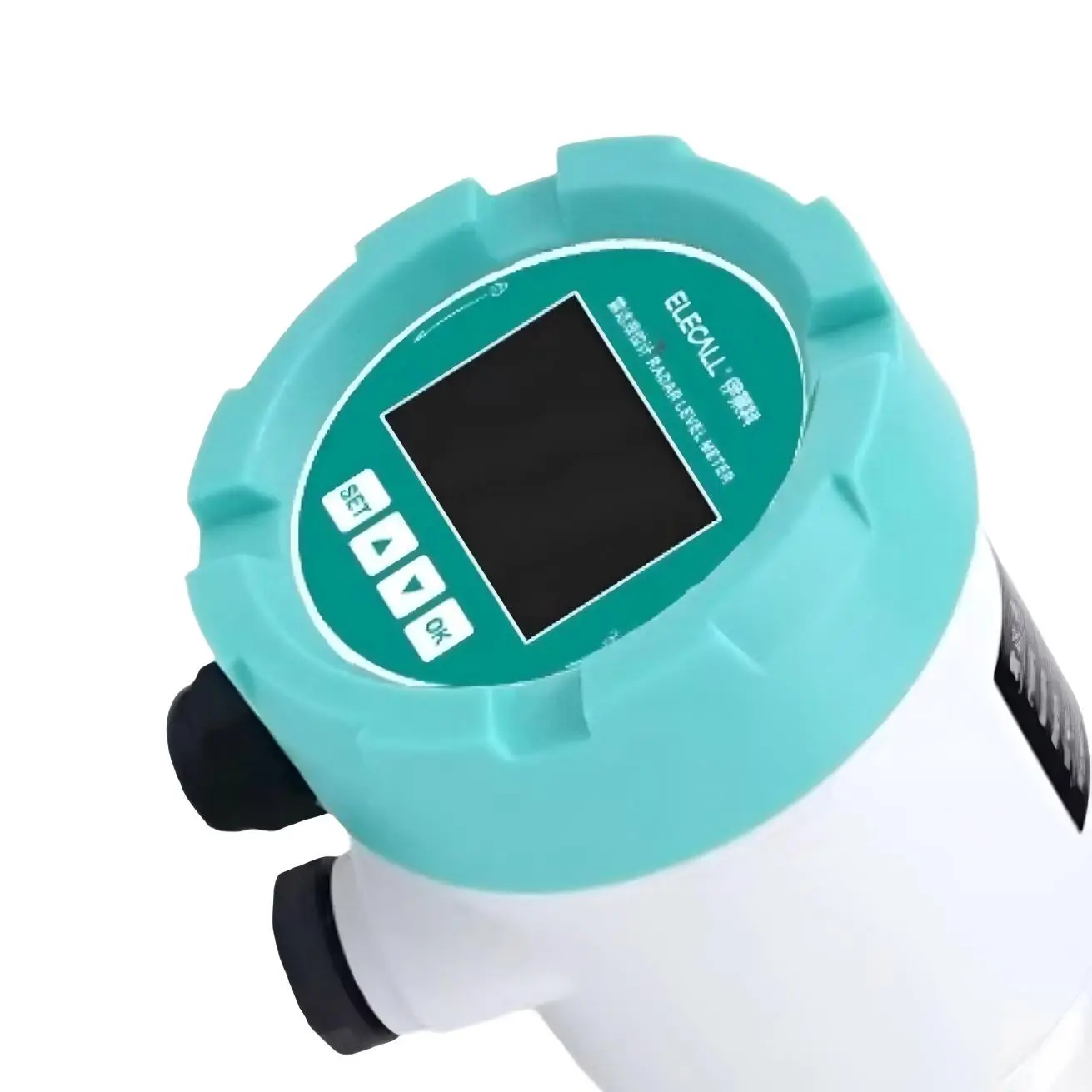

Integrated level measurement, control, and alarm functions
Fast response time for dynamic level changes
Suitable for wastewater, rivers, reservoirs, and tanks
Optional lens antenna for complex or impurity-containing media
Optional relay outputs for high/low level alarms
Optional RS485 communication (Modbus RTU)
One-year warranty with lifetime technical support
High-frequency radar (FMCW)
Liquid level
0–20 m
≤ 20 cm
±2 mm
0.005% of range
4–20 mA (default)
Dual relay outputs (optional)
RS485 (optional)
DC 24 V or AC 220 V
M59 × 2 thread
-10 to 60 °C
0–95% RH
IP65
9°
60 GHz
