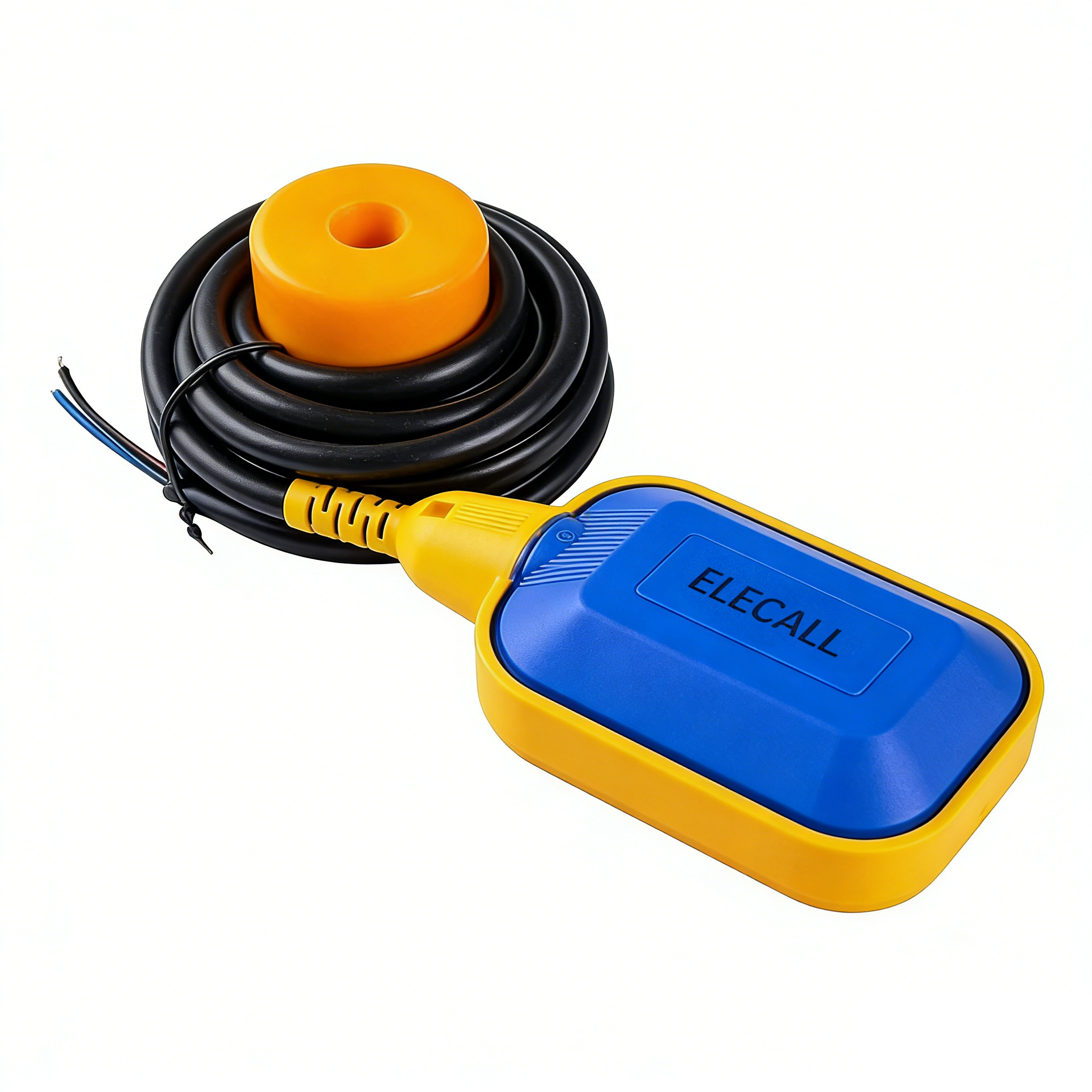

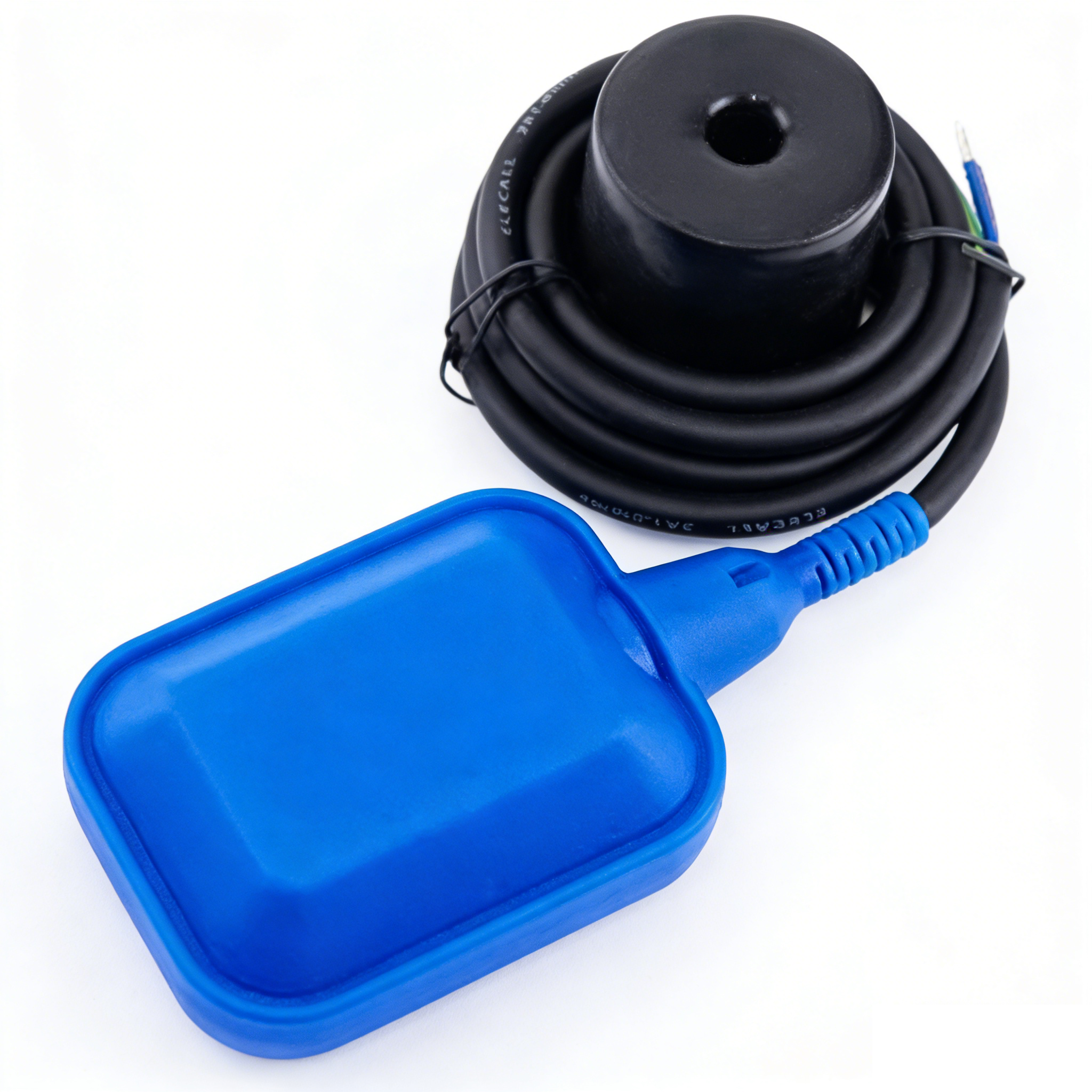

EM15-2A Cable float switch Silicone 1mm²
High-temperature cable float switch with silicone wire
Suitable for high-temperature liquid level control applications

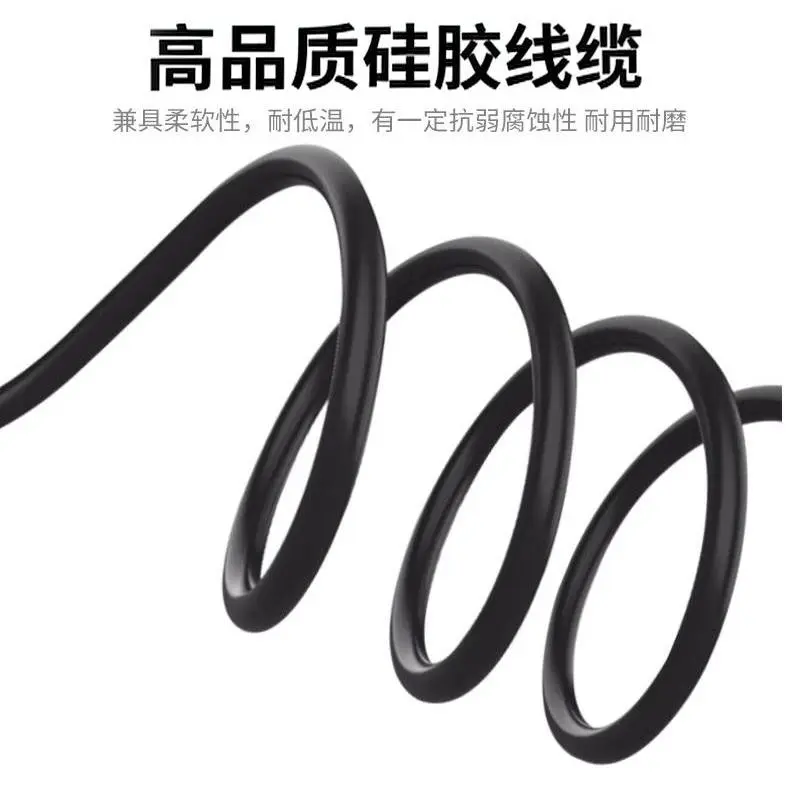

Silicone cable provides excellent heat resistance and flexibility
Stable micro switch structure for reliable operation
Corrosion-resistant PP float body for long service life
Multiple cable lengths available for customized installation
Application
- High-temperature liquid systems
- Industrial tanks and boilers
- Chemical liquid storage
- Hot water systems
- Special environment installations
Description
The EM15-2A float switch with silicone cable is specially designed for high-temperature and demanding environments. The silicone cable offers excellent heat resistance, flexibility, and aging resistance, making it ideal for applications requiring long-term stability under extreme conditions.

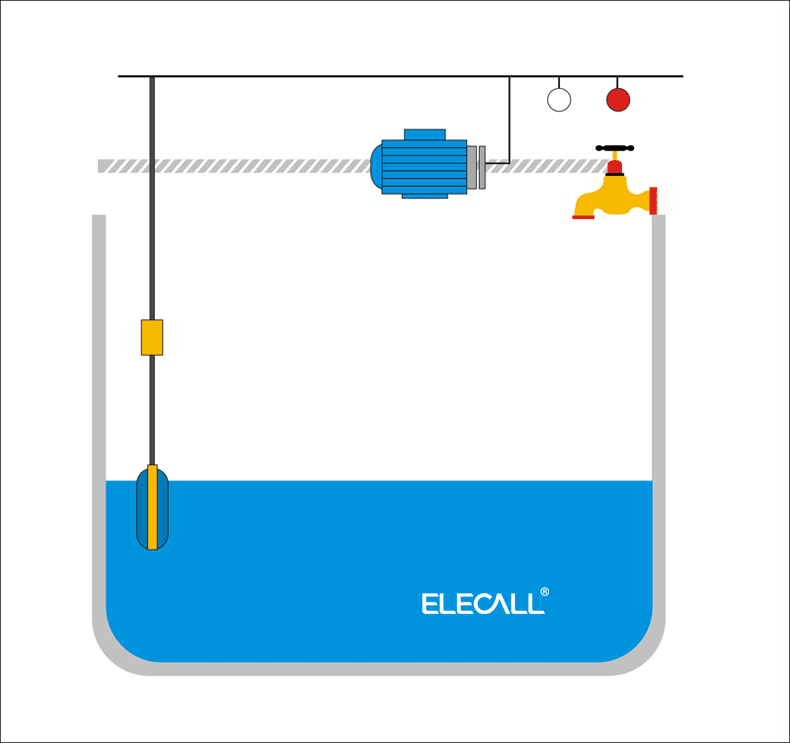

Schematic Diagram
Features

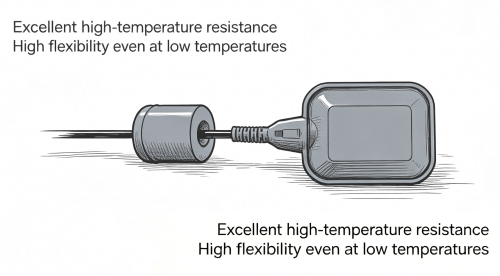

- Excellent high-temperature resistance
- High flexibility even at low temperatures
- Stable electrical performance
- Reliable liquid level control
- Suitable for demanding environments
- Long service life and high reliability
Technical Details
Product Type:
Silicone Cable Float Level Switch
Product Model:
EM15-2A Silicone Version
Material:
PP
Size:
Standard industrial float size
Type:
Micro Switch Type Float Level Switch
Operating Temperature:
0°C to +80°C
Working Voltage:
0~220V
Power Range:
<1500W
Control Range:
Liquid level difference >30cm
Contact Switch:
Micro Switch
Float Ball Density:
0.69g/cm³
Lead Length:
2m / 3m / 4m / 5m / 10m (customizable)
Cable Type:
Silicone Cable
Wire Diameter Specification:
1mm²
Product Color:
Black / Blue (depending on model)
Installation Type:
Cable Suspended Type
Accessories
What is this float switch mainly used for?
This float switch is designed for automatic water level control in tanks, water towers, and reservoirs.
How does the float switch control the water level?
The float moves with the water level and triggers an internal switch to turn the pump ON or OFF automatically.
Can this float switch automatically fill a water tank?
Yes. It starts the pump when the water level is low and stops it when the tank is full.
Can it prevent the pump from running dry?
Yes. It shuts off the pump when the water level is too low, preventing dry running.
What voltage and current does it support?
It typically supports 220V with a current rating of 4A.
Can it directly control a water pump?
It can control small pumps (≤500W) directly. For larger pumps, a contactor is recommended.
Is it suitable for drinking water systems?
Yes, it is suitable for clean water systems if installed according to safety standards.
What liquids can this float switch be used in?
Suitable for water, oil, and weak acid/alkaline liquids. Not suitable for strong corrosive liquids.
Is it waterproof and suitable for outdoor use?
Yes, it is water-resistant and suitable for outdoor use, but avoid long-term extreme exposure.
What is the operating temperature range?
The typical operating temperature is 0°C to 80°C.
Is installation complicated?
No. Installation is simple—just fix the cable at the desired level.
Can the cable length be customized?
Yes. Common lengths include 2m, 3m, and 5m, and customization is available.
Is this product explosion-proof?
No, it is not explosion-proof and should not be used in hazardous environments.
What applications is this product best for?
Ideal for water tanks, rooftop tanks, water towers, household water systems, and irrigation systems.
Similar Products
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.
Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
Meetyour choices
Small and exquisite
stable performance
Simple installation
REED

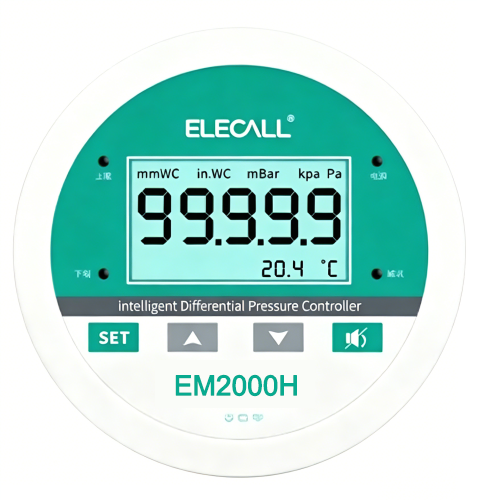

High-precision digital micro differential pressure controller
LCD real-time display with digital filtering technology
Standard 4–20mA output with optional RS485 communication
24V DC powered industrial pressure monitoring device
Multiple pressure unit switching supported
Suitable for HVAC, cleanroom, and negative pressure systems
Easy to install with high safety and reliability. It adopts a plastic base paired with brass threads, available in multiple piping sizes such as 1/2 inch, […]
It is suitable for measuring the pressure of liquids, vapors, gases and other media that are non-explosive, non-crystallizing, non-coagulating and non-corrosive to copper and copper-aluminum alloys.

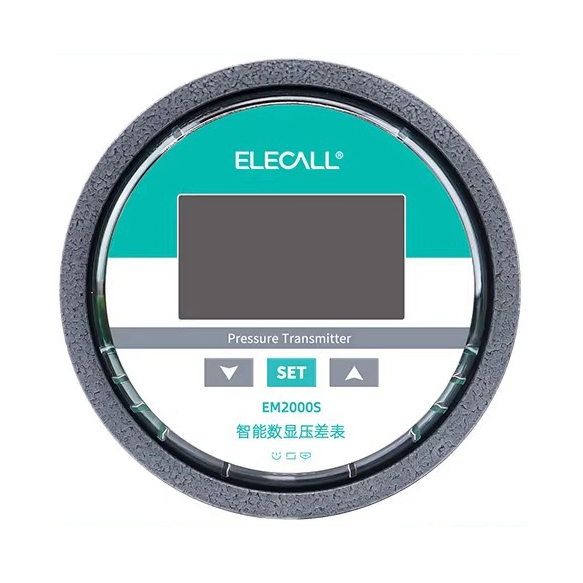

High-precision digital differential pressure measurement with clear real-time LCD display
Multiple pressure unit switching
Suitable for HVAC and cleanroom applications
Fast response with strong anti-interference capability

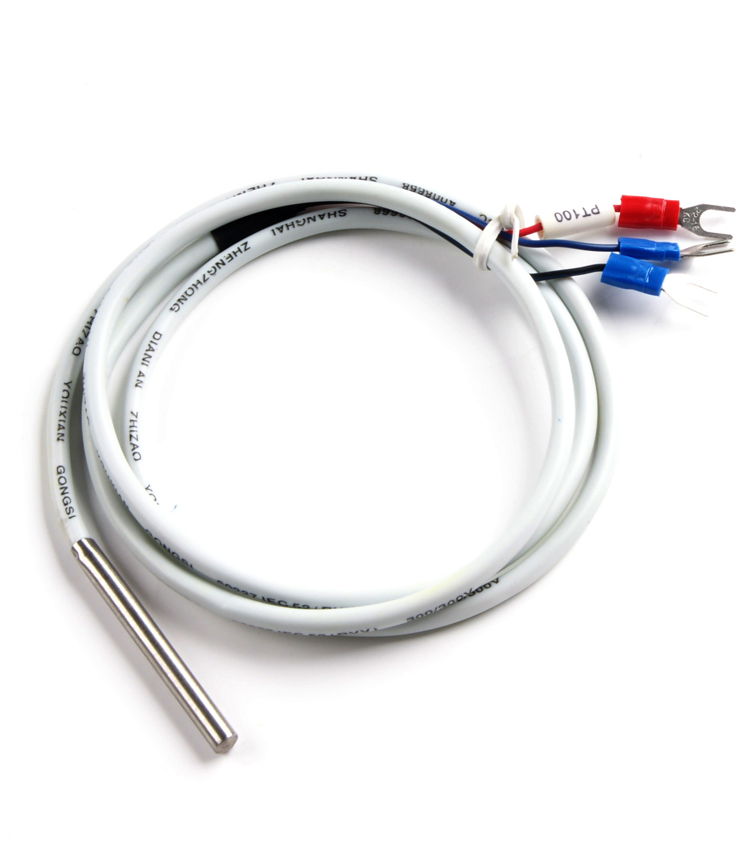

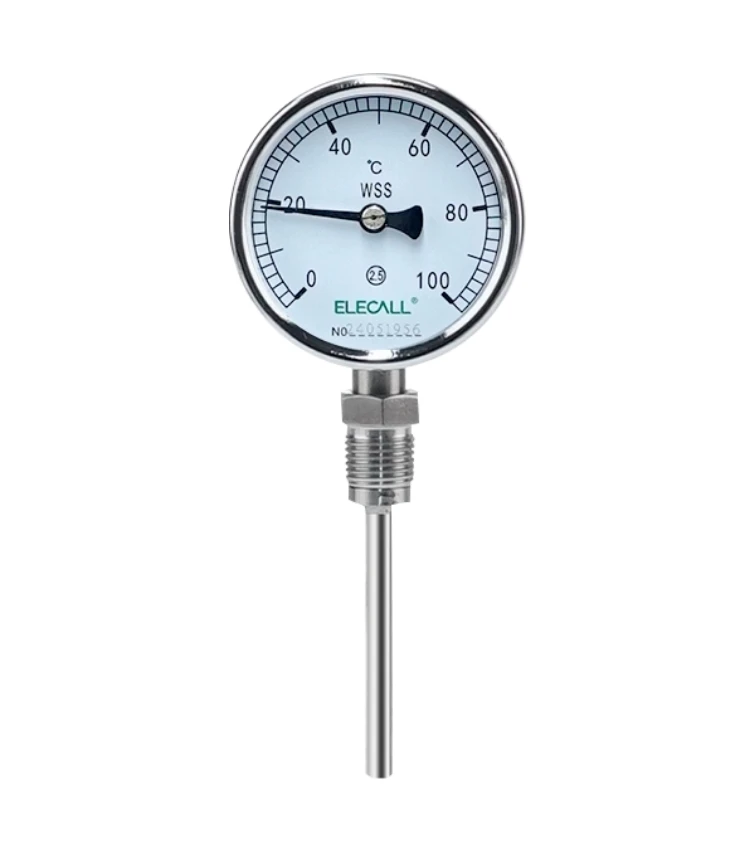

Equipped with a stainless steel protection tube, it features high accuracy and excellent stability. It is used to convert temperature signals into usable output signals and is suitable for industrial temperature measurement scenarios.

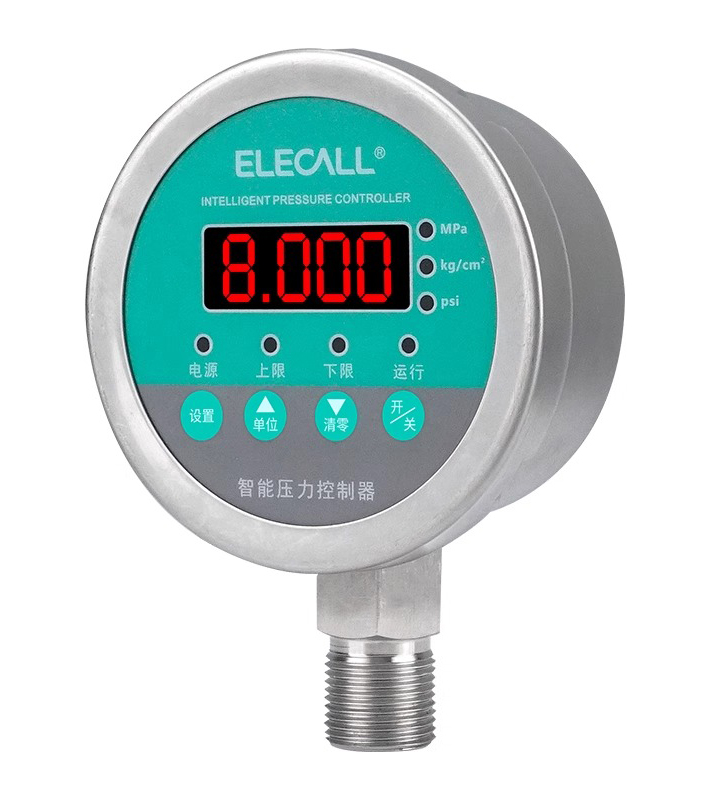

Its functions can almost completely replace those of mechanical contact pressure gauges, with customizable connectors and measurement ranges

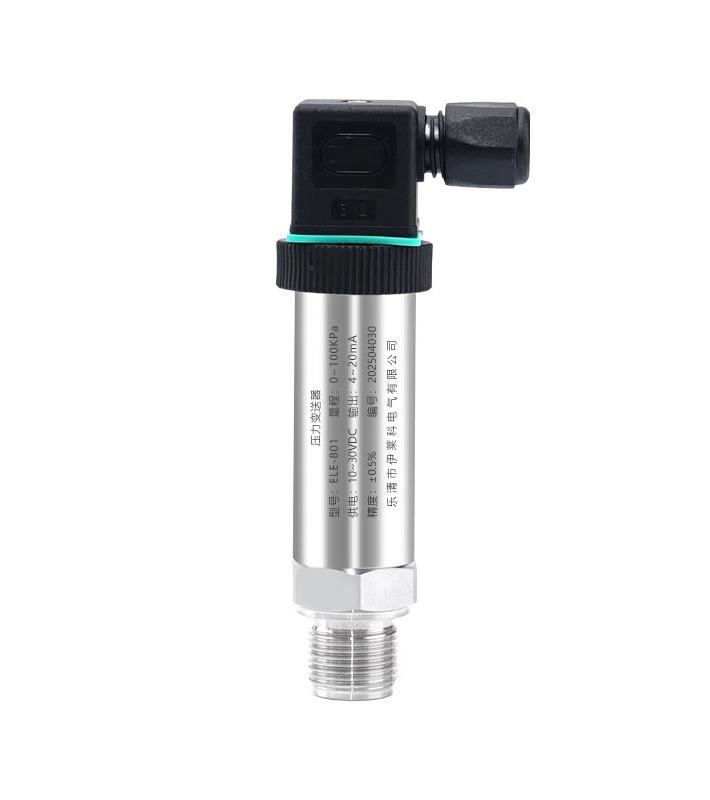

It adopts a 304 stainless steel housing and is equipped with a high-quality wafer core. Multiple types of connectors are available. After precise calibration and aging testing, it features accurate measurement, high stability and strong durability
