EM15-2A Cable float switch Rubber 1mm²
Heavy-duty cable float switch with acid and alkali resistant rubber cable
Suitable for sewage, wastewater, and chemical liquid environments
Stable micro switch structure for reliable liquid level control
Corrosion-resistant PP float body with long service life
Flexible rubber cable with strong durability
Available in multiple cable lengths for customized installation
Application
- Outdoor water tanks
- Construction sites
- Industrial water systems
- Sewage treatment plants
- Harsh environment installations
Description
The EM15-2A float switch with rubber cable is designed for more demanding environments. The rubber cable provides better flexibility, wear resistance, and durability, making it ideal for outdoor or industrial use. It ensures reliable liquid level control even under harsh conditions.
Schematic Diagram
Features

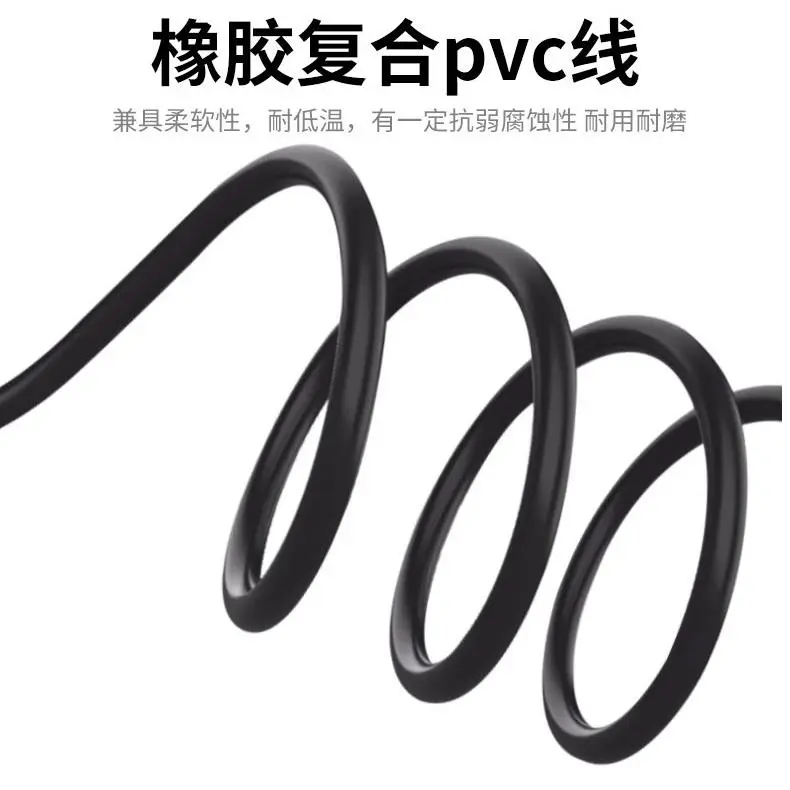

- High flexibility rubber cable
- Strong abrasion and oil resistance
- Reliable switching performance
- Suitable for harsh environments
- Resistant to acid and alkali corrosion
- Long service life and high reliability
- Stable operation under frequent movement
Technical Details
Product Type:
PP Cable Float Level Switch
Product Model:
EM15-2A Rubber Version
Material:
PP
Size:
Standard industrial float size
Type:
Micro Switch Type Float Level Switch
Operating Temperature:
0°C to +80°C
Working Voltage:
0~220V
Power Range:
<1500W
Control Range:
Liquid level difference >30cm
Contact Switch:
Micro Switch
Float Ball Density:
0.69g/cm³
Lead Length:
2m / 3m / 4m / 5m / 10m (customizable)
Cable Type:
Rubber Cable
Wire Diameter Specification:
1mm²
Product Color:
Black / Blue (depending on model)
Installation Type:
Cable Suspended Type
Accessories
What is this float switch mainly used for?
This float switch is designed for automatic water level control in tanks, water towers, and reservoirs.
How does the float switch control the water level?
The float moves with the water level and triggers an internal switch to turn the pump ON or OFF automatically.
Can this float switch automatically fill a water tank?
Yes. It starts the pump when the water level is low and stops it when the tank is full.
Can it prevent the pump from running dry?
Yes. It shuts off the pump when the water level is too low, preventing dry running.
What voltage and current does it support?
It typically supports 220V with a current rating of 4A.
Can it directly control a water pump?
It can control small pumps (≤500W) directly. For larger pumps, a contactor is recommended.
Is it suitable for drinking water systems?
Yes, it is suitable for clean water systems if installed according to safety standards.
What liquids can this float switch be used in?
Suitable for water, oil, and weak acid/alkaline liquids. Not suitable for strong corrosive liquids.
Is it waterproof and suitable for outdoor use?
Yes, it is water-resistant and suitable for outdoor use, but avoid long-term extreme exposure.
What is the operating temperature range?
The typical operating temperature is 0°C to 80°C.
Is installation complicated?
No. Installation is simple—just fix the cable at the desired level.
Can the cable length be customized?
Yes. Common lengths include 2m, 3m, and 5m, and customization is available.
Is this product explosion-proof?
No, it is not explosion-proof and should not be used in hazardous environments.
What applications is this product best for?
Ideal for water tanks, rooftop tanks, water towers, household water systems, and irrigation systems.
