EM15-2 cable float switch PVC 0.5mm²
Cable float level switch for water tank and pump control
Durable PVC cable with flexible installation design
Micro switch structure with stable and reliable operation
Suitable for clean water and light wastewater applications
Corrosion-resistant PP float body for long service life
Available in multiple cable lengths (2m–10m customizable)
Application
- Water tanks & water towers
- Underground reservoirs
- Pump automation systems
- Drainage control systems
- Domestic & light industrial water systems
Description
The EM15-2 float switch is a reliable liquid level controller designed for automatic water level management in tanks, wells, and reservoirs. It uses a built-in micro switch with silver contacts to ensure sensitive response and long service life. The PVC cable version with 0.5mm² conductor is suitable for standard low-power applications, enabling automatic start and stop of pumps to prevent overflow or dry running.

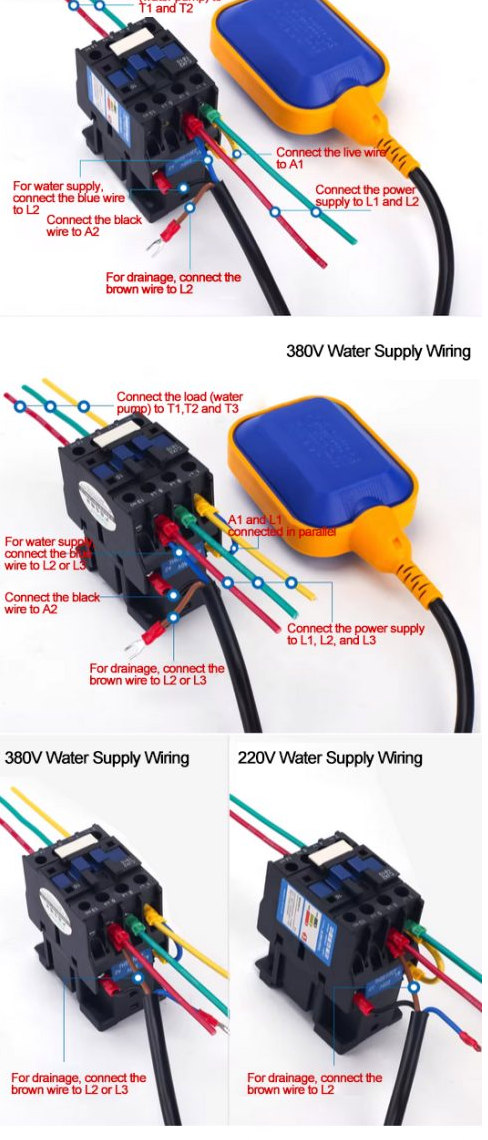

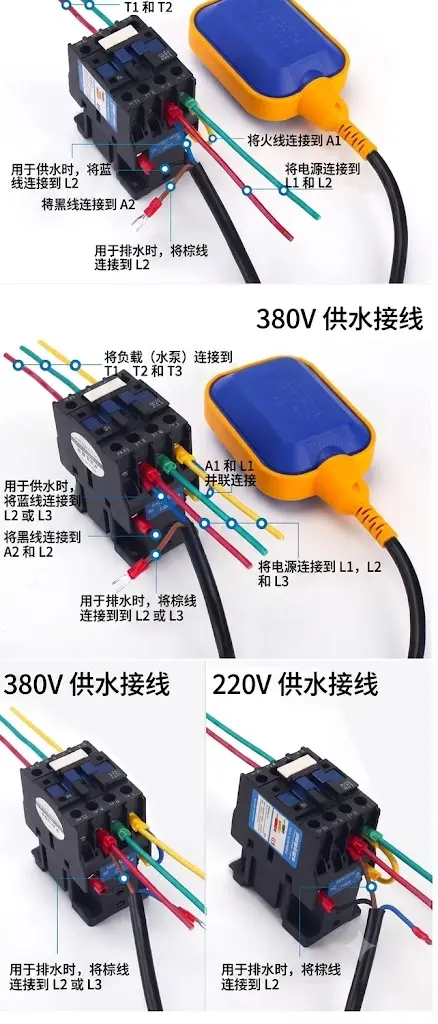

Schematic Diagram
Features
- Built-in high-quality micro switch with silver contacts
- Automatic pump ON/OFF control
- Supports water supply and drainage control
- Prevents dry running and overflow
- Durable PP housing with waterproof design
- Flexible installation (top or bottom mounting)
- Long service life and high reliability
Technical Details
Product Type:
PP Cable Float Level Switch
Product Model:
EM15-2 BP Regular Version
Material:
PP
Size:
Standard industrial float size
Type:
Micro Switch Type Float Level Switch
Operating Temperature:
0°C to +70°C
Working Voltage:
250V
Power Range:
750W
Control Range:
Liquid level difference >30cm
Contact Switch:
Micro Switch
Float Ball Density:
0.69g/cm³
Lead Length:
2m / 3m / 4m / 5m / 10m (customizable)

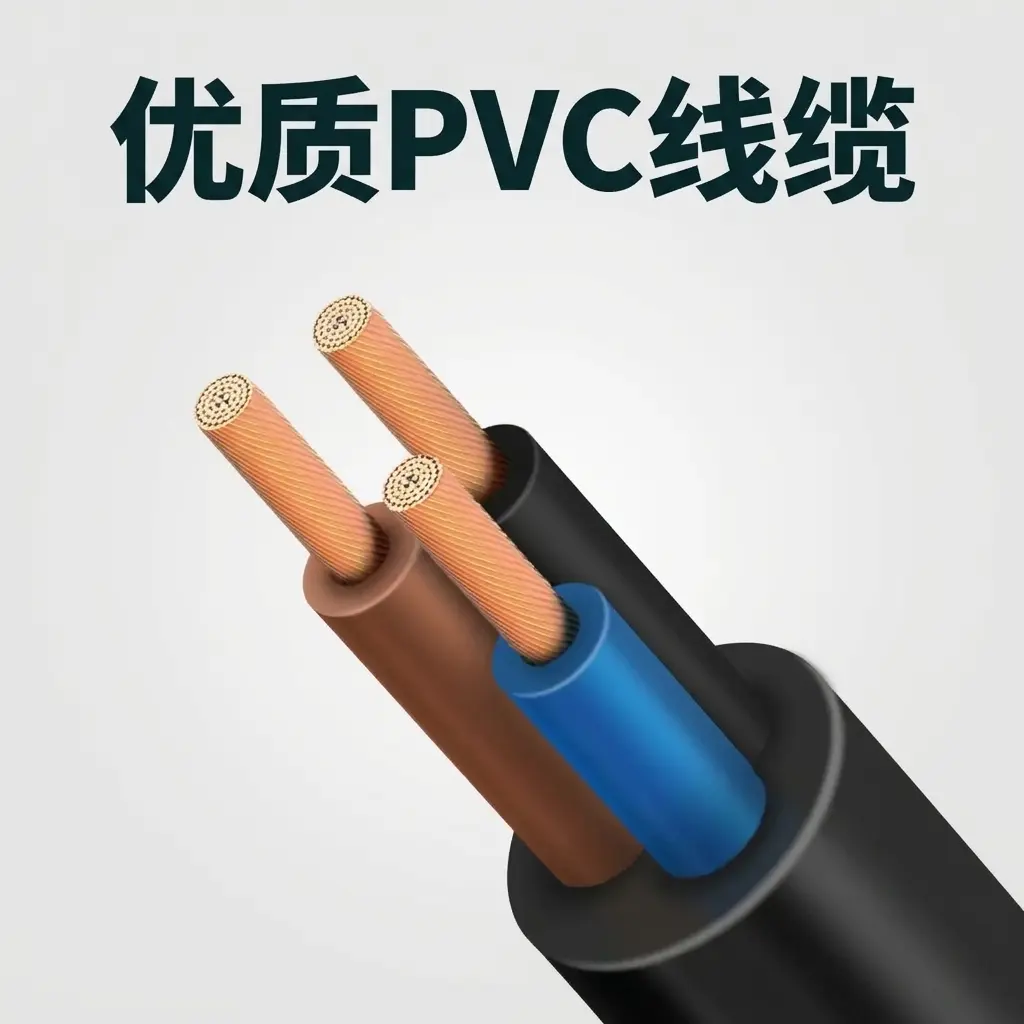

Cable Type:
Upgraded PVC + Rubber Composite Cable
Wire Diameter Specification:
0.5mm²
Product Color:
Black / Blue (depending on model)
Installation Type:
Cable Suspended Type
Accessories
What is this float switch mainly used for?
This float switch is designed for automatic water level control in tanks, water towers, and reservoirs.
How does the float switch control the water level?
The float moves with the water level and triggers an internal switch to turn the pump ON or OFF automatically.
Can this float switch automatically fill a water tank?
Yes. It starts the pump when the water level is low and stops it when the tank is full.
Can it prevent the pump from running dry?
Yes. It shuts off the pump when the water level is too low, preventing dry running.
What voltage and current does it support?
It typically supports 250V with a current rating of 4A.
Can it directly control a water pump?
It can control small pumps (≤500W) directly. For larger pumps, a contactor is recommended.
Is it suitable for drinking water systems?
Yes, it is suitable for clean water systems if installed according to safety standards.
What liquids can this float switch be used in?
Suitable for water, oil, and weak acid/alkaline liquids. Not suitable for strong corrosive liquids.
Is it waterproof and suitable for outdoor use?
Yes, it is water-resistant and suitable for outdoor use, but avoid long-term extreme exposure.
What is the operating temperature range?
The typical operating temperature is 0°C to 70°C.
Is installation complicated?
No. Installation is simple—just fix the cable at the desired level.
Can the cable length be customized?
Yes. Common lengths include 2m, 3m, and 5m, and customization is available.
Is this product explosion-proof?
No, it is not explosion-proof and should not be used in hazardous environments.
What applications is this product best for?
Ideal for water tanks, rooftop tanks, water towers, household water systems, and irrigation systems.
Similar Products
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.
Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
