ELH-101 Temperature and Humidity Transmitter
Wall – mounted temperature and humidity transmitter, which is used for the measurement and control of air temperature and humidity
Application
Fields such as meteorology, national defense, scientific research, posts and telecommunications, chemical industry, environmental protection, medical and pharmaceutical industry, hotel supplies warehousing, and heating, ventilation and air conditioning (HVAC)
Description

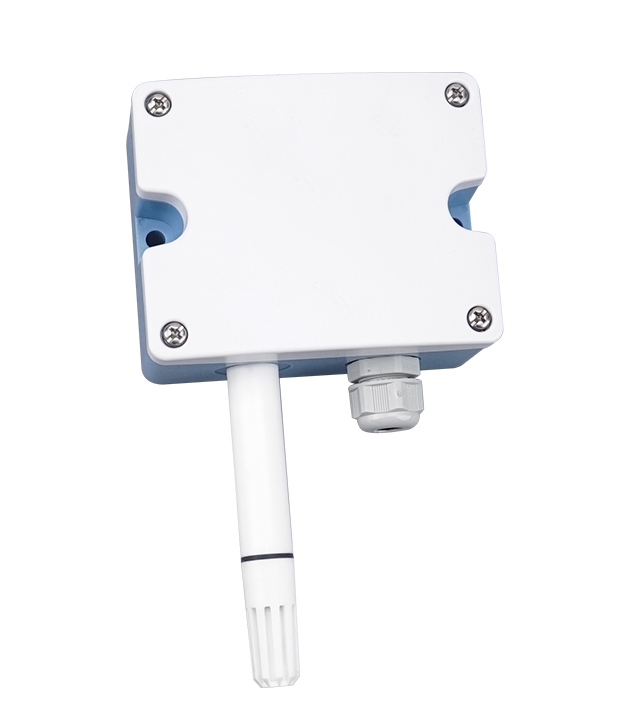

Temperature and humidity sensor products adopt a wall – mounted installation method and can measure and control the temperature and humidity in the air
Features

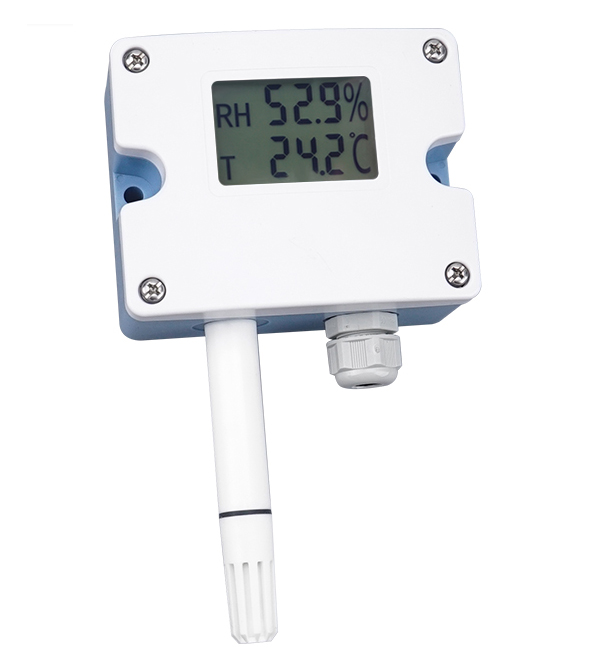

It is equipped with temperature and humidity measurement functions, supports corresponding output and display (LCD display is optional), and has an protection class of IP65
Technical Details
Humidity Accuracy
±3% RH (at 0.3℃)
Humidity Output
Optional RS485, 0 - 10VDC (3 - wire), 4 - 20mA (2 - wire)
Temperature Output
Optional RS485, 0 - 10VDC (3 - wire), 4 - 20mA (2 - wire), and various thermal resistance/thermocouple types (e.g., PT1000, etc.)
Temperature Measuring Range:
Optional ranges such as 0 - 50℃, -20 - 60℃
Housing Material
PC housing, PC probe and polymer filter (stainless steel probe and stainless steel sintered filter optional)
Operating Environment
-20 - 60℃, 5% - 95% RH (non - condensing)
Operating Environment
-20 - 60℃, 5% - 95% RH (non - condensing)
Power Supply
Voltage type/485 type: 15 - 32VDC, 24VAC±20%; Current type: 18.5 - 35VDC (RL=500Ω), 8.5 - 35VDC (RL=0Ω)
type
18.5 - 35VDC (RL=500Ω), 8.5 - 35VDC (RL=0Ω)
Output Load
≤500Ω (for current type), ≥2KΩ (for voltage type)
Protection Class
IP65
