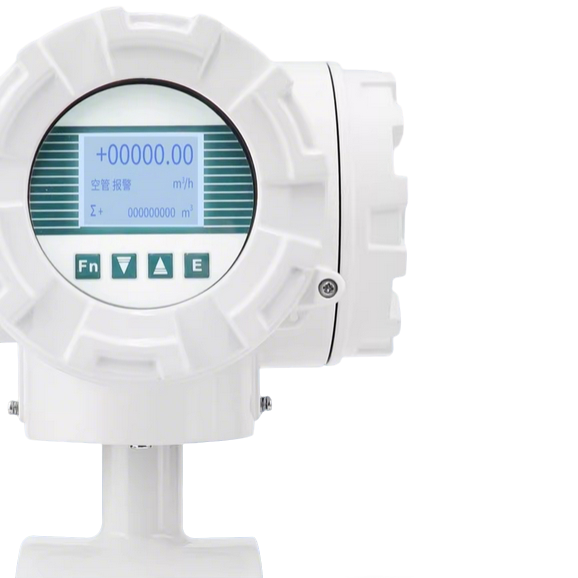

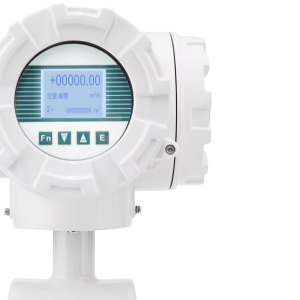

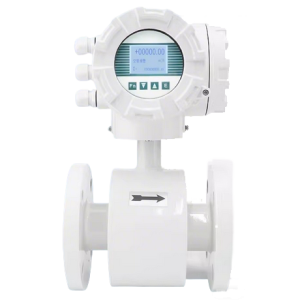

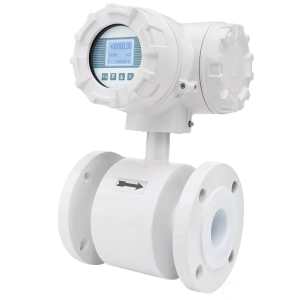

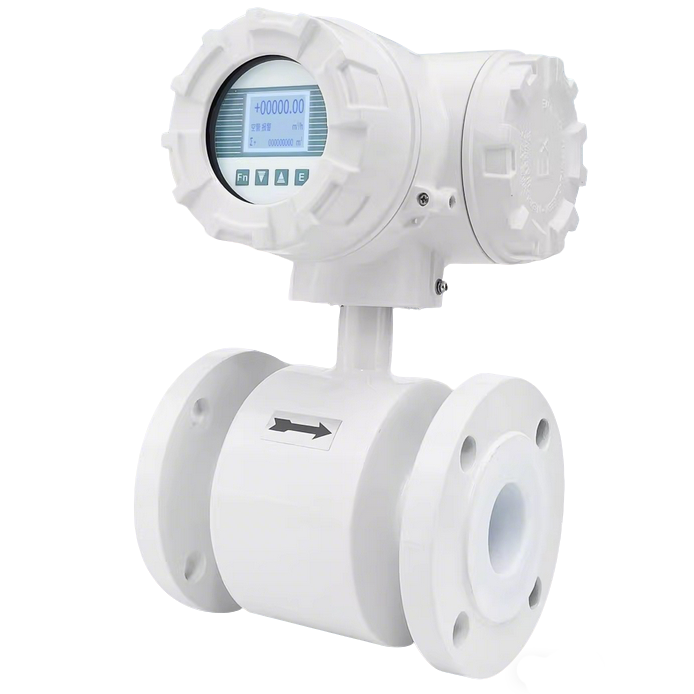

Electromagnetic Flow Meter (Integrated / Split Type)
Electromagnetic flow meter for conductive liquid flow measurement
Available in integrated and split-type installation designs
High accuracy measurement up to ±0.5% FS

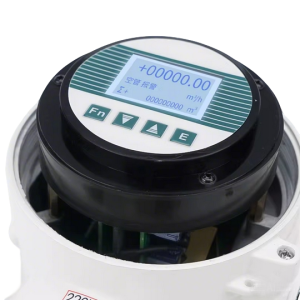

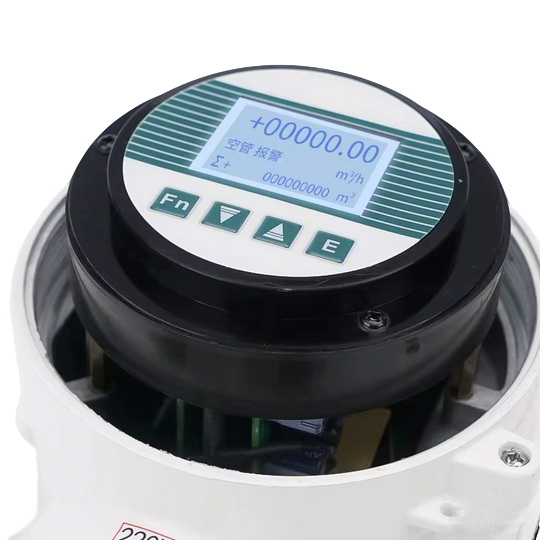

Dot-matrix LCD backlit display with clear interface
No moving parts inside pipeline for low pressure loss
Strong anti-interference and stable performance
Corrosion-resistant lining for harsh liquid environments
Suitable for sewage, slurry, chemical liquids, and wastewater
Application
Wastewater and sewage treatment systems
Chemical industry liquid measurement
Slurry and pulp flow monitoring
Electroplating wastewater treatment
Textile dyeing and printing processes
Industrial water flow measurement and control
Description
The electromagnetic flow meter is designed for accurate measurement of conductive liquids in industrial pipelines. It uses advanced electromagnetic sensing technology to provide precise and stable flow measurement without moving parts inside the pipe, ensuring minimal pressure loss and long service life. The meter supports both integrated and split-type structures, allowing flexible installation based on different industrial environments.
Equipped with a dot-matrix LCD backlit display, the device provides a clear and user-friendly interface for easy monitoring and configuration. The reinforced lining prevents leakage and cracking, while the copper coil ensures a stable magnetic field for accurate measurement. High-quality electronic components with protective coating improve durability, vibration resistance, and anti-interference performance. The flow meter is widely used in wastewater treatment, chemical processing, slurry measurement, and other demanding applications.
Features
High-precision electromagnetic flow measurement technology
No moving or obstruction components inside the pipeline
Minimal pressure loss during measurement
Strong anti-interference capability for stable operation
Reinforced lining prevents leakage and cracking
Copper coil ensures stable magnetic field and accurate measurement
Durable electronic components with protective coating
Waterproof and dustproof protective meter head
Clear dot-matrix LCD display with backlight
Technical Details
Product Name:
Electromagnetic Flow Meter (Integrated / Split Type)
Accuracy:
±0.5% FS
Measurement Range:
0 – 9999.99 m³/h
Working Pressure:
1.6 MPa, 4 MPa, 16 MPa
Engineering Pressure Options:
0.6 / 1.0 / 1.6 / 4.0 MPa (customizable for higher pressure)
Working Temperature:
Rubber Lining: <60°C PTFE Lining: <120°C
Power Supply:
AC 220 V DC 24 V DC 12 V Optional lithium battery power supply
Communication Output:
RS485 RS232 4–20 mA 0–10 mA Pulse output (0.001 L – 1 m³)
Electrode Materials:
316L stainless steel HB HC Tantalum Platinum-iridium alloy Tungsten carbide
Lining Materials:
Neoprene rubber PTFE F46 PFA Polyurethane
Installation Method:
Flange connection (standard) Optional threaded connection or clamp quick-installation
Suitable Liquids:
Conductive liquids Strong acids and alkalis Chemical wastewater Slurry and pulp Circulating water systems
