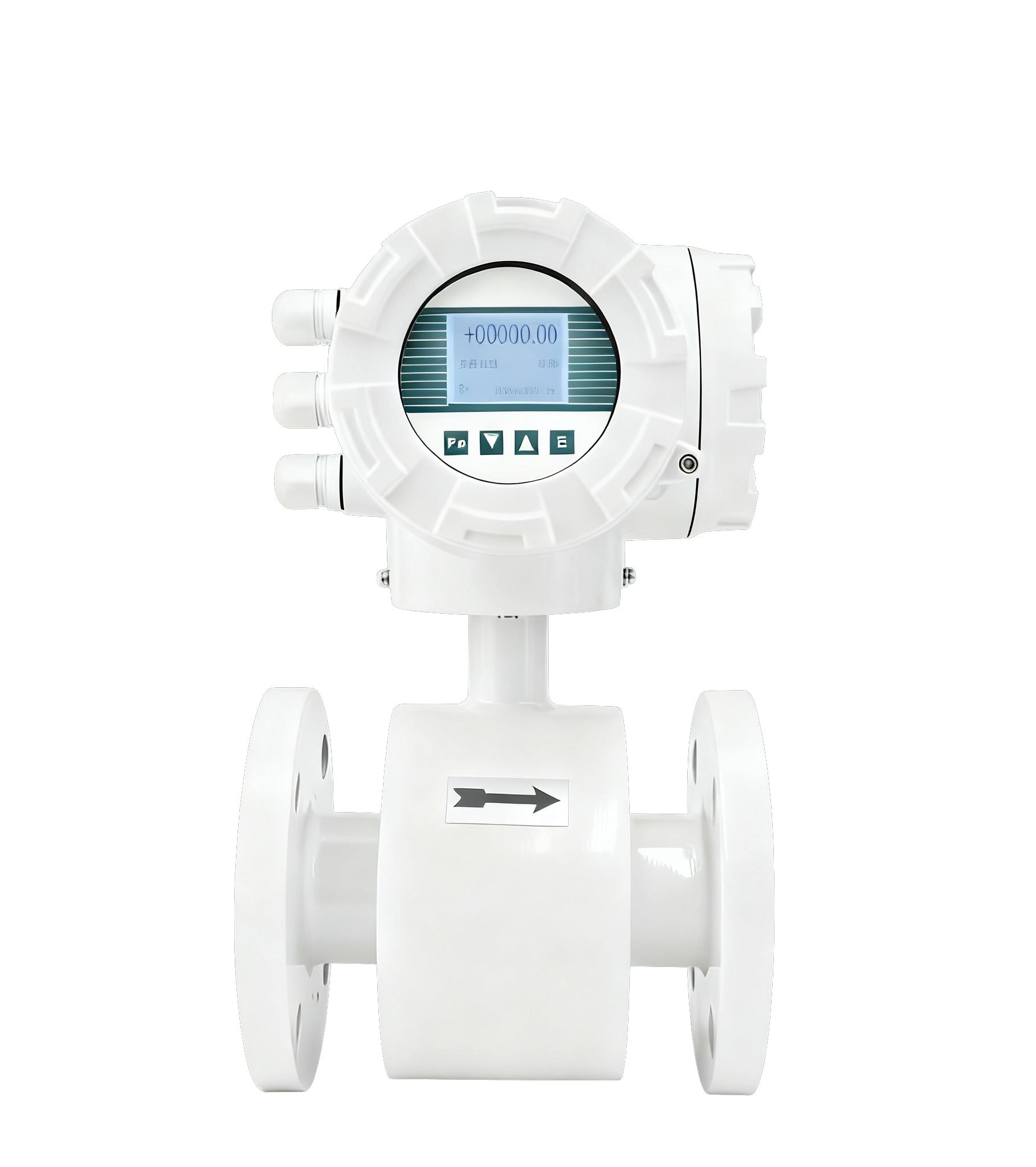

Electromagnetic Flow Gauge
This is a full – series upgraded ultra – intelligent electromagnetic flowmeter, available in three types: split type, insertion type and integral type. It is sold directly by the manufacturer and supports customization, and is suitable for the flow measurement of various conductive liquids.
Application
It is suitable for scenarios such as sewage treatment, slurry measurement, quantitative water flow control, electroplating wastewater treatment, textile dyeing and printing, and water flow measurement. It can measure media including conductive liquids, strong acids and alkalis, chemical sewage, pulp slurry and circulating water.
Description
This electromagnetic flowmeter adopts an automatic calibration line to ensure quality. It is equipped with a protected gauge head, which enables stronger anti-interference performance and higher stability. Its thickened lining prevents water seepage and cracking; and it is fitted with copper coils, ensuring stable magnetic field and accurate measurement. The flowmeter is available in three structural types, namely split type, insertion type and integral type, which can meet various installation and application requirements.
Features
Precise measurement with minimized errors Rapid response and stable performance Durable, shock-resistant and highly adaptable Intelligent gauge head with LCD display Professional grade, dustproof and waterproof Overvoltage protection for reliable safety Multiple electrode and lining materials available to adapt to different corrosive media Various power supply and communication output modes provided to match different systems
Technical Details
Accuracy Class
±0.5% FS
Measurement Range
0~9999.99m³/h
Working Pressure
1.6Mpa, 4Mpa, 16Mpa
Operating Temperature
Rubber lining ≤60℃; PTFE lining ≤120℃
Engineering Pressure
0.6, 1.0, 1.6, 4.0Mpa (high pressure customizable)
Power Supply Voltage
AC220V/DC24V, DC12V; lithium battery power supply optional
Communication Output
RS485, RS232, 4-20mA, 0-10mA, pulse 0.001L-1m³
Electrode Material
316L, HB, HC, Tantalum (Ta), Platinum-Iridium Alloy (Pt-Ir), Tungsten Carbide (WC)
Lining Material
Neoprene, Polytetrafluoroethylene (PTFE), F46, Perfluoroalkoxy Alkane (PFA), Polyurethane (PU), etc.
Installation Method
Flange connection (default); threaded, clamp and quick-install connections customizable
Flow Range
Turndown ratio 150:1; different flow ranges for different calibers (e.g., caliber 15mm corresponds to flow 0.0064 - 9.5426m³/h)
Caliber and Dimensions
Caliber 15 - 250mm; corresponding reference dimensions, pressure classes and mounting holes vary (e.g., caliber 15mm: A=95mm, L=200mm, pressure class 1.6Mpa, mounting holes 4-14)
