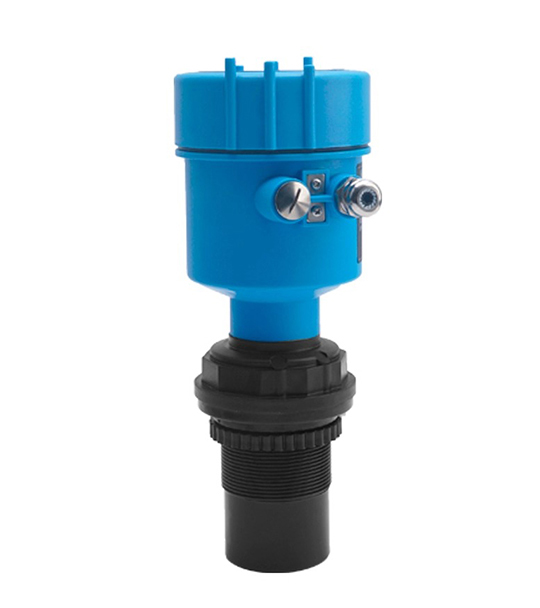

ELE-808B ELE-809 Ultrasonic Level Transmitter
It has an IP65 waterproof rating and 0.5% accuracy. Available in models such as ELE-808B and ELE-809 (split type), it is suitable for various liquid level measurement scenarios
Application
It is widely used in scenarios such as sewage treatment plants, rivers, and material plants. It can measure the liquid level under working conditions including calm water surfaces, rapidly changing water surfaces, disturbed water surfaces, mixing tanks, and solid materials, meeting the liquid level measurement needs of multiple occasions
Description
his ultrasonic level meter is available in two models: ELE-808B (integrated type) and ELE-809 (split type). Adopting the ultrasonic measurement principle, it is equipped with a built-in temperature compensation function, and functions can be customized according to customer requirements. The ELE-808B (integrated type) features an ABS plastic housing (explosion-proof housing customizable), while the ELE-809 (split type) consists of a host and a probe. With an aesthetic and practical design and a high protection rating, the product can work stably under various complex working conditions
Features
Good Protection Performance: IP65 waterproof rating, IP66 rating customizable, adaptable to various environments. High Precision: Accuracy class ±0.5%, resolution precision 1mm. Diversified Models: Optional integrated type (ELE-808B) and split type (ELE-809), with customizable functions. Wide Applicability: Suitable for various scenarios such as sewage treatment plants, rivers, and material plants; capable of measuring liquid levels under multiple working conditions.
Technical Details
Parameter
ELE-808B ELE-809 (Split Type)
Measurement Range
Optional 0-4m, 7m, 10m, 15m, 20m
Accuracy Class
±0.5%
Resolution Precision
1mm
Measurement Blind Zone
0.3~0.55m
Temperature Compensation
Built-in temperature compensation
Protection Rating
Default IP65, IP66 customizable
Operating Environment
-25~65℃
Power Supply
Optional: DC24V 150mA or AC220V 100mA
Housing Material
ABS plastic housing
Output Signal
Optional: 4~20mA, 485 communication
