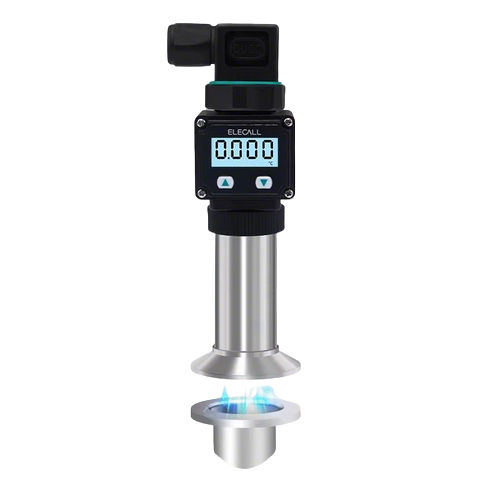

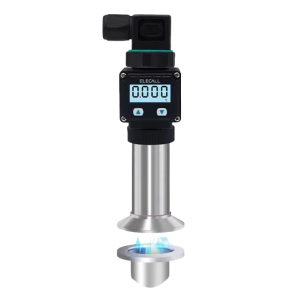

ELE-806 Sanitary Clamp Pressure Transmitter
Sanitary flush diaphragm design, anti-clogging structure
Quick clamp installation for easy mounting and removal
High-precision diffusion silicon sensor core
0.5% accuracy for stable and reliable measurement
Supports 120% over-range instantaneous pressure impact
Durable 304 stainless steel housing

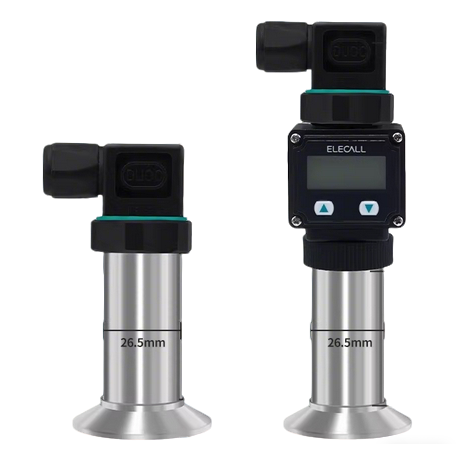

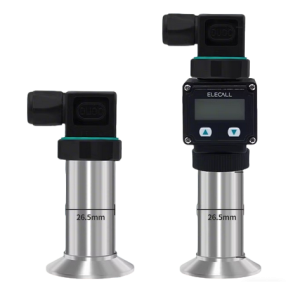

Optional digital display, explosion-proof, armored, and high-temperature versions
Application
This sanitary clamp pressure transmitter is widely used in industries requiring hygienic and reliable pressure measurement, including:
-
Food processing industry
-
Wastewater treatment systems
-
Petrochemical industry
-
Vacuum equipment
-
Industrial automation control systems
Description
The ELE-806 Sanitary Clamp Pressure Transmitter is designed for accurate and reliable pressure measurement in hygienic or clog-prone environments.
Featuring a flush diaphragm structure, it effectively prevents medium blockage and ensures stable performance when measuring viscous liquids or fluids containing particles.
The transmitter adopts a diffusion silicon sensing core, providing high measurement accuracy of ±0.5% FS and excellent long-term stability.
With a quick sanitary clamp connection (50.5 mm), installation and maintenance become fast and convenient, making it ideal for applications in food processing, wastewater systems, and industrial automation equipment.
Features
-
Flush diaphragm design prevents clogging and improves measurement reliability
-
Sanitary clamp connection enables quick installation and disassembly
-
Diffusion silicon sensing core ensures stable and precise pressure detection
-
High accuracy (±0.5% FS) for reliable data monitoring
-
Strong overload resistance, tolerates up to 120% pressure impact
-
304 stainless steel housing for durability and corrosion resistance
-

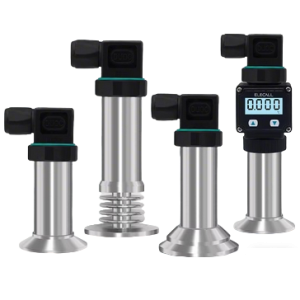

Multiple configuration options available:
-
Digital display version
-
Explosion-proof version
-
Armored version
-
High-temperature version
-
Glass micro-melt version
-
Technical Details
Power Supply
10–30 VDC
Housing Material
304 Stainless Steel
Accuracy
±0.5% FS
Process Connection
Clamp 50.5 mm
Overload Capacity
1.2 × Full Scale
Operating Temperature
0 – 50°C
Output Signal
4–20 mA / 0–10 V / RS485
Measuring Medium
Gases or liquids compatible with 304 stainless steel
