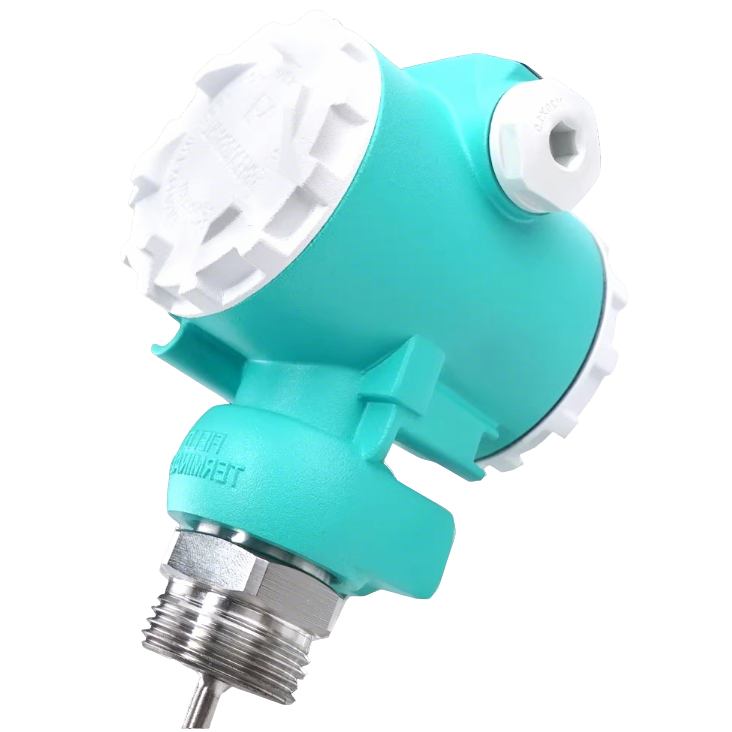

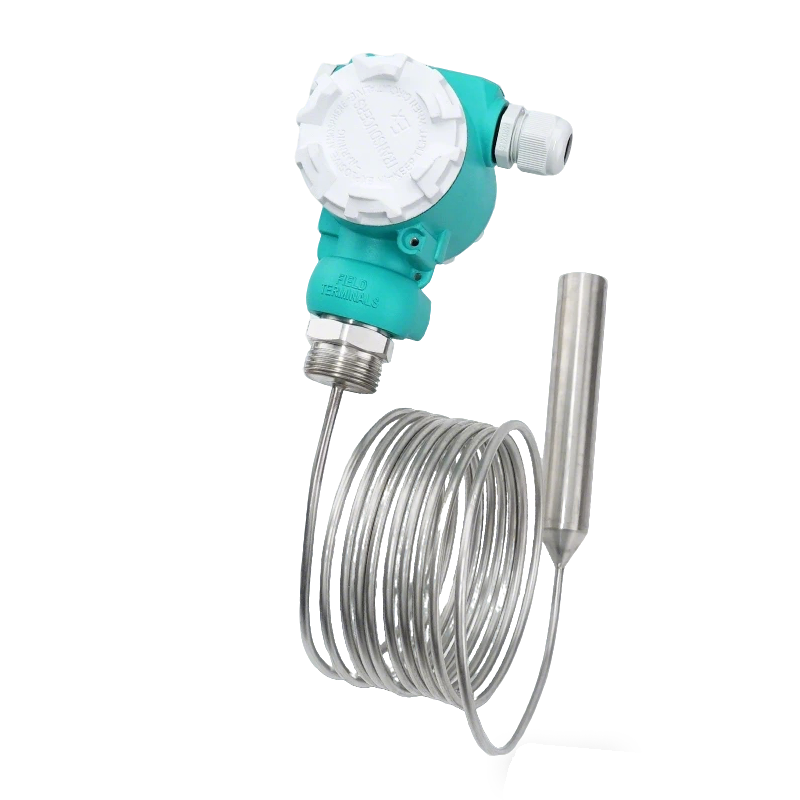

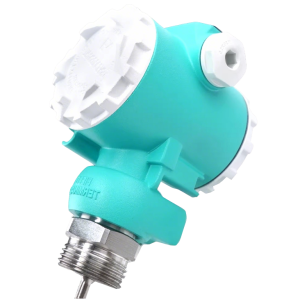

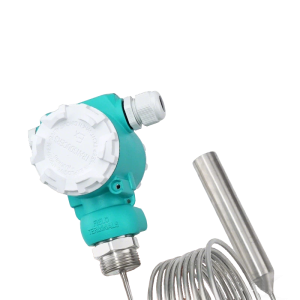

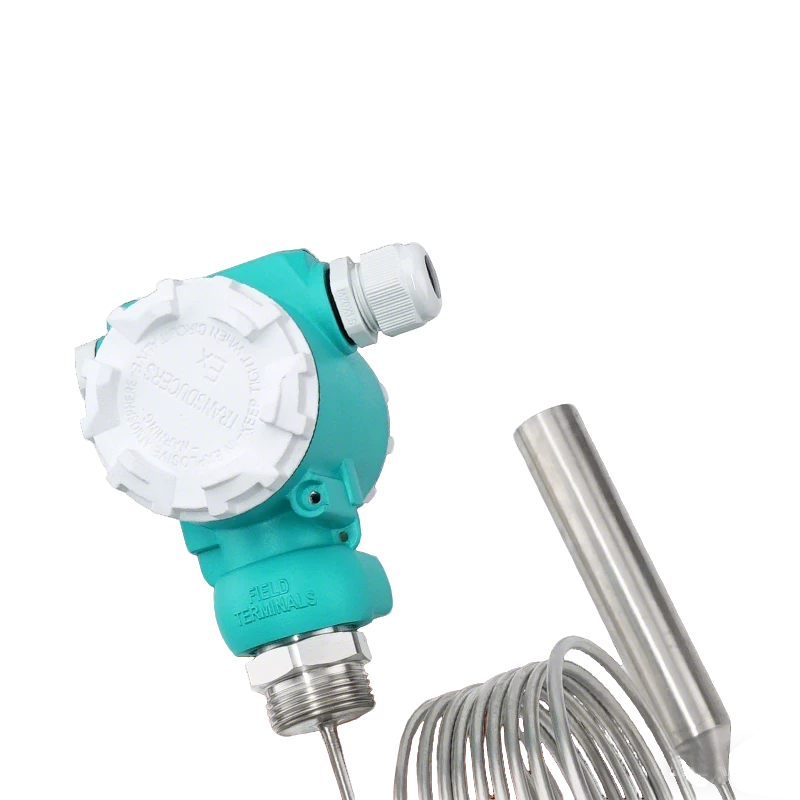

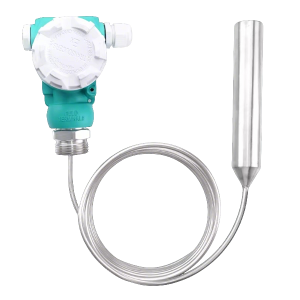

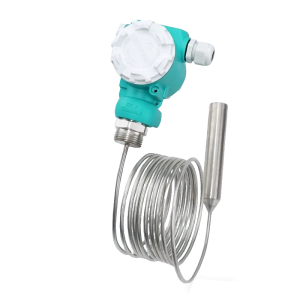

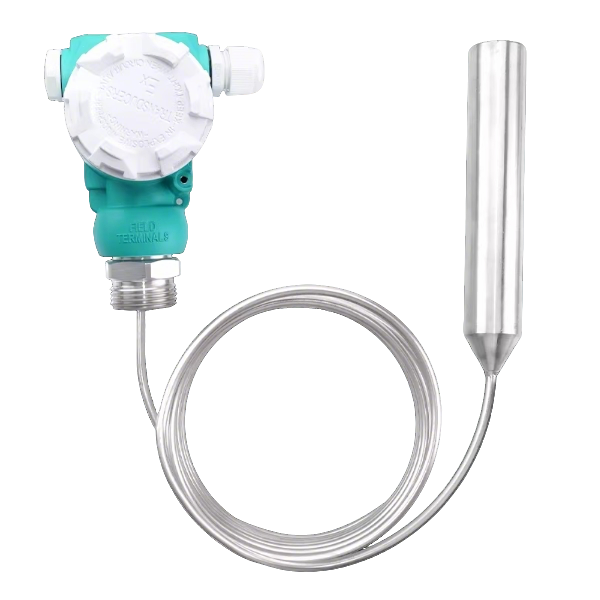

ELE-804 High-Temperature Submersible Level Transmitter
ELE-804 high-temperature submersible level transmitter designed for accurate liquid level measurement
Gas-collection-tube type sensor suitable for high-temperature and contaminated media
Stainless steel gas chamber for durability and corrosion resistance
Armored structure for enhanced protection in harsh environments
Intelligent temperature compensation for improved accuracy
Stable and reliable signal output up to 120°C
Application
-
High-temperature liquid tanks
-
Water and oil level measurement
-
Industrial process vessels
-
Boilers and hot liquid storage tanks
-
Chemical and industrial liquid systems
-
Applications with contaminated or fouling media
Description
The ELE-804 is a gas-collection-tube (air chamber) type submersible level transmitter specifically developed for high-temperature environments. By using a stainless steel gas chamber, the sensor measures liquid level through gas pressure transmission, effectively preventing direct contact between the sensing element and the medium. This design greatly improves resistance to fouling, blockage, and corrosion.

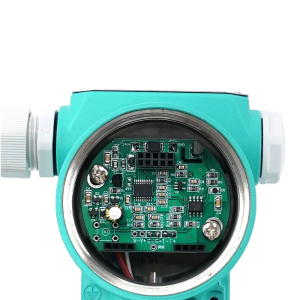

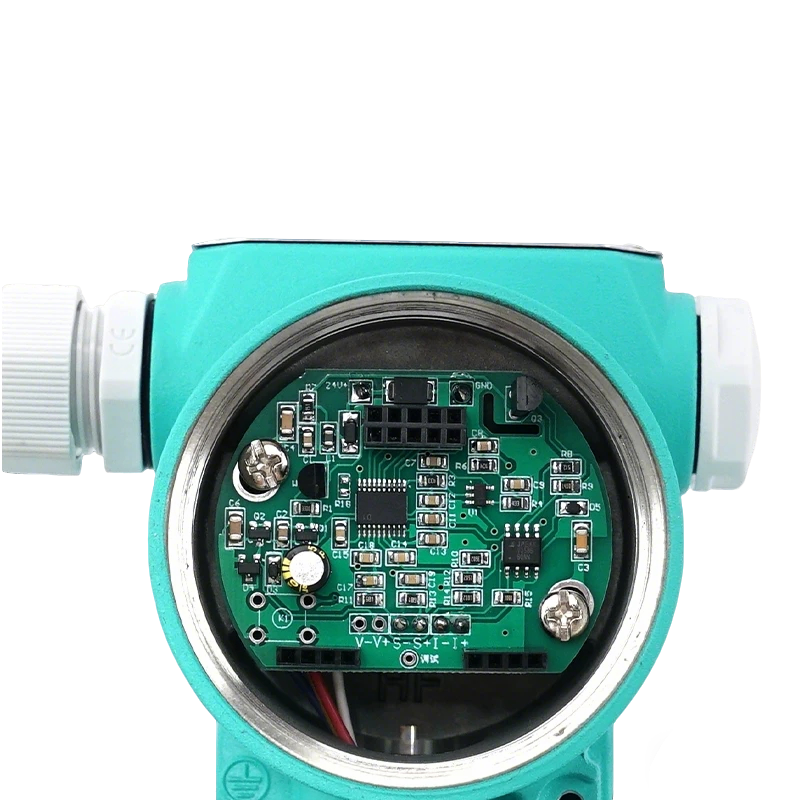

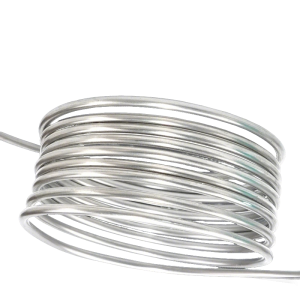

The transmitter is equipped with an intelligent circuit board that performs automatic temperature compensation and linear signal calibration, ensuring stable output and reduced temperature drift. A 304 stainless steel capillary tube provides excellent resistance to high temperature, corrosion, and mechanical wear.

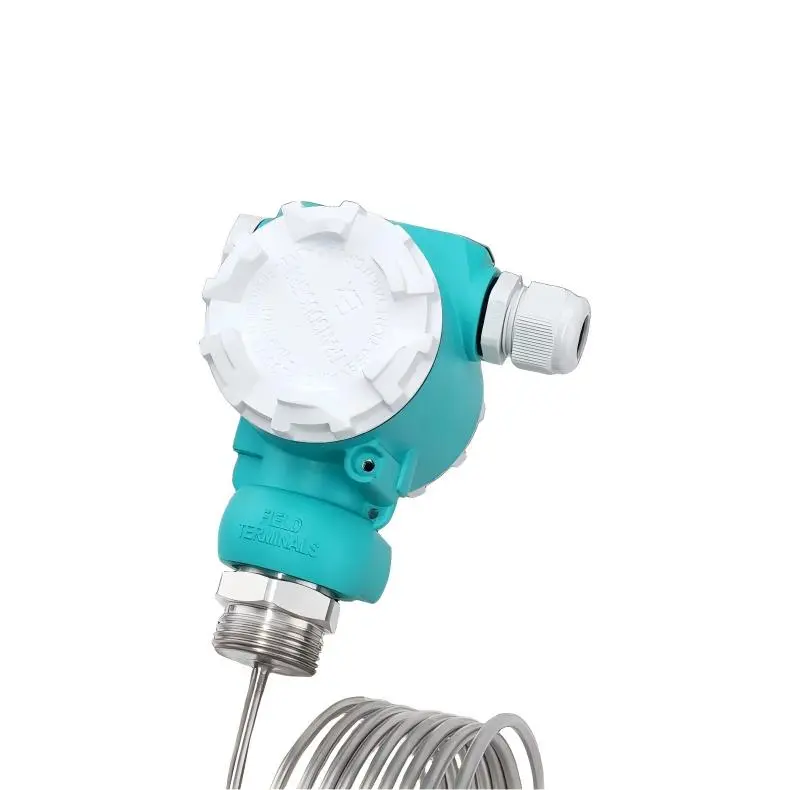

With a metal armored structure and sealed junction box, the ELE-804 offers high mechanical strength, superior sealing performance, and long-term reliability under harsh industrial conditions.
Features
-
Gas-collection-tube type level measurement design
-
Maximum operating temperature up to 120 °C
-

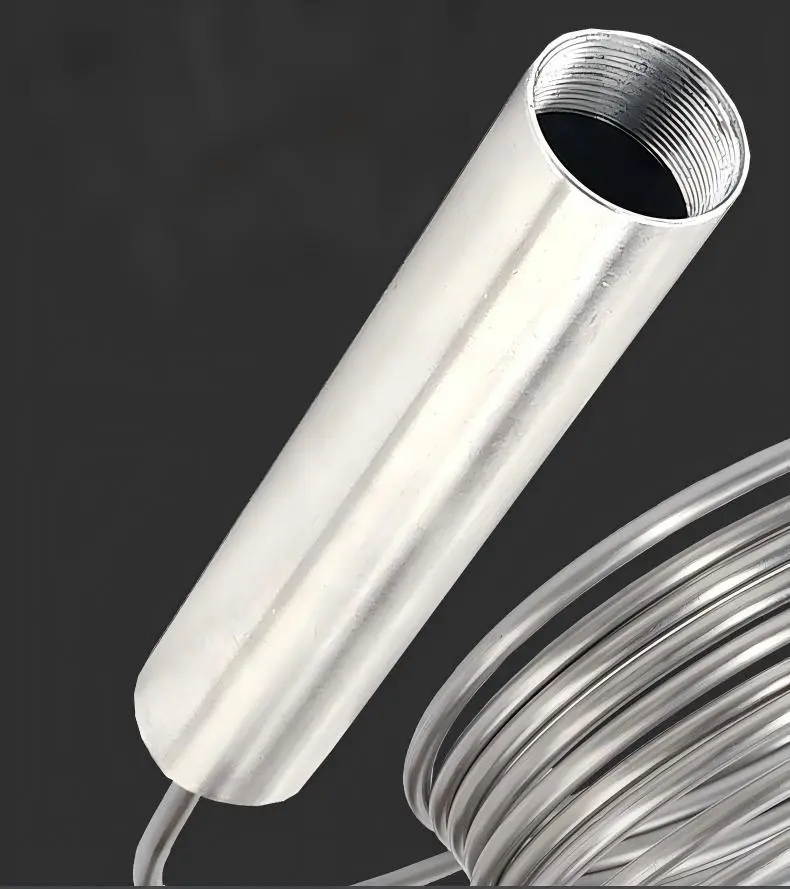

Stainless steel gas chamber isolates sensor from liquid
-
Anti-fouling and anti-blockage structure
-
Intelligent circuit board with automatic compensation and linear calibration
-
Stable signal output with strong anti-interference capability
-

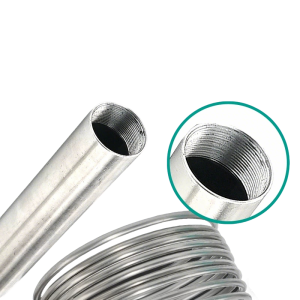

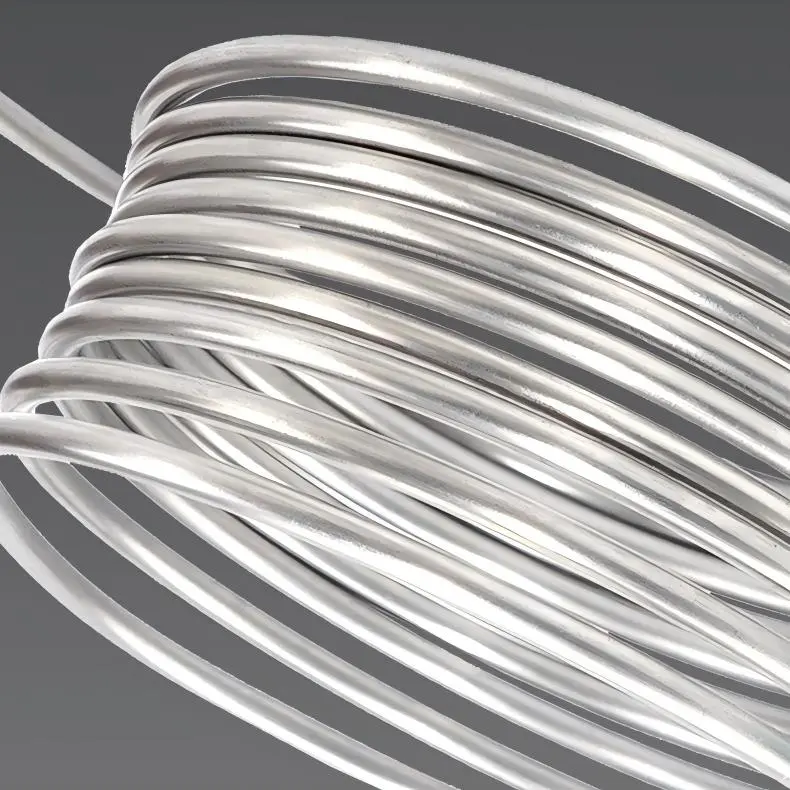

304 stainless steel capillary tube, corrosion and wear resistant
-
Metal armored structure for high mechanical strength
-

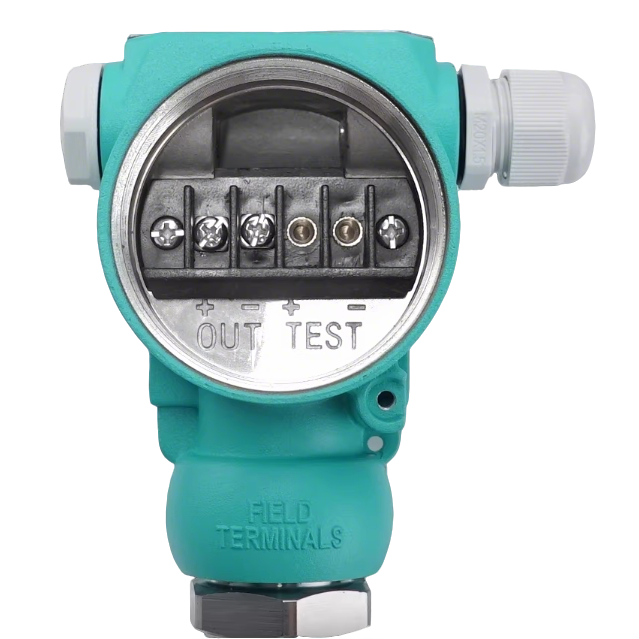

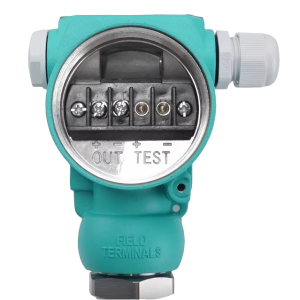

Sealed armored junction box protects internal electronics
-
Tight interface design for improved sealing and signal stability
-
Easy wiring and convenient installation
Technical Details
Measuring Principle
Gas-collection-tube (air chamber) type
Measuring Range
0–100 m (customizable)
Overload Capacity
150% of full scale
Operating Temperature
0–120 °C
Temperature Compensation
0–50 °C
Storage Temperature
–10 to 80 °C
Temperature Drift
±0.01% F.S / °C
Response Frequency
10 Hz
Accuracy
±0.5% F.S (default), ±0.25%, ±0.1% optional
Power Supply
15–30 VDC (standard 24 VDC)
Output Signal
4–20 mA (default), 0–5 V, 0–10 V, RS485
Communication Protocol
RS485, Modbus-RTU (optional)
Process Connection
G1 thread (default)
Connector Material
304 stainless steel (PTFE optional)
Wetted Media
Water, oil, and liquids compatible with 304 stainless steel
Housing Structure
Metal armored
Capillary Tube Material
304 stainless steel
