High-precision submersible level transmitter for water tank and liquid level monitoring
RS485 communication for reliable data transmission
IP68 protection rating for long-term submersible operation
Stainless steel probe for durability and corrosion resistance
Strong anti-interference performance for stable signal output
Customizable range, accuracy, and material options available
Water tanks and reservoirs
Fire water tanks
Sewage and wastewater systems
Industrial liquid storage tanks
Wells, pools, and underground tanks
Liquid level monitoring and control systems
Suitable for continuous liquid level measurement in clean or mildly corrosive media.

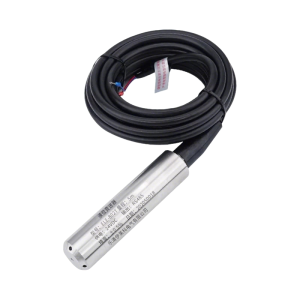

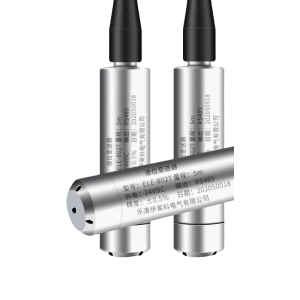

The ELE-802T Submersible Level Transmitter is a high-performance liquid level measurement instrument designed for long-term underwater operation. It adopts a high-sensitivity diffused silicon pressure sensor combined with a 316L stainless steel diaphragm, ensuring accurate and stable level measurement.
The probe housing is made of 304 stainless steel (316 optional), offering excellent resistance to pressure, corrosion, and oxidation. A polyethylene vented cable with copper shielding provides strong anti-interference capability and reliable signal transmission.
With IP68 waterproof protection and RS485 communication, the ELE-802T is ideal for harsh industrial environments and remote monitoring systems.
Submersible Design: Designed for direct immersion in liquid
High Accuracy: Accuracy levels of 0.5%, 0.2%, and 0.1% available
Strong Anti-Interference: Shielded vented cable with pure copper braided mesh

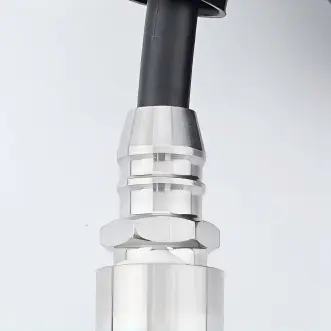

IP68 Protection Rating: Fully waterproof and dustproof for long-term underwater use
Durable Probe:
Standard 304 stainless steel
Optional 316 stainless steel for corrosive media
High-Sensitivity Diaphragm: 316L stainless steel diaphragm for fast response and stable performance

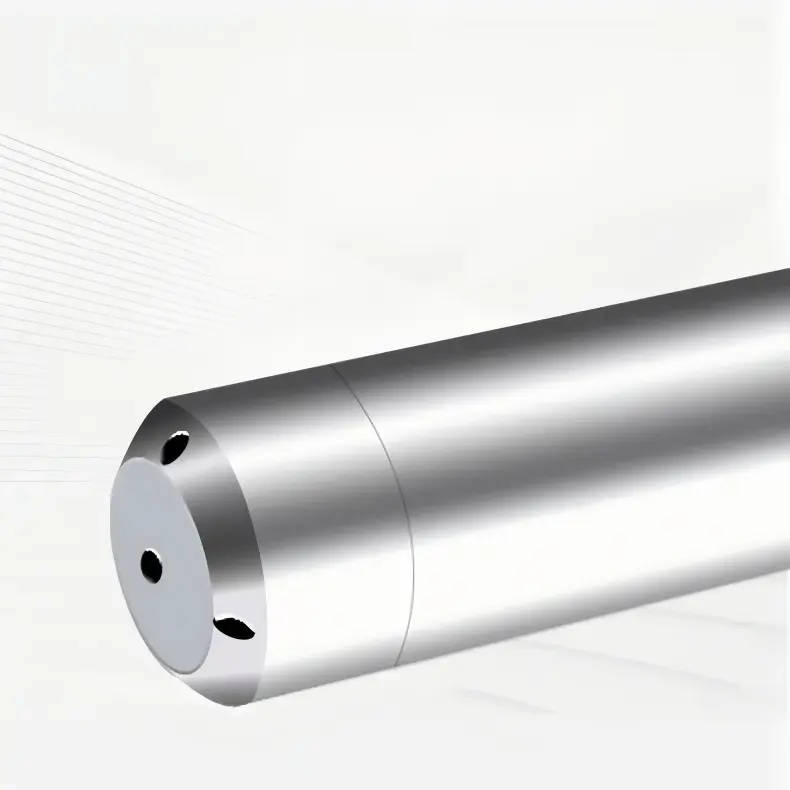

Anti-Clog Design: Symmetrical pressure inlet holes for accurate sampling and clog prevention
Laser Marking: Clear, permanent infrared laser engraving without affecting accuracy
Customizable: Measuring range, material, accuracy, and output options available
Liquid level (hydrostatic pressure principle)
RS485
±0.5% FS (standard) ±0.2% FS / ±0.1% FS (optional)
IP68
304 Stainless Steel (standard) 316 Stainless Steel (optional)
316L Stainless Steel
Polyethylene vented cable Built-in pure copper shielding for strong anti-interference
Symmetrical pressure inlet holes, anti-blocking design
Calibrated using imported high-precision calibration equipment Aging test performed before shipment to ensure stability
Submersible (direct immersion)
Measuring range, cable length, material, accuracy, and output available
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.
Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
Meetyour choices
Small and exquisite
stable performance
Simple installation
REED
High-precision digital micro differential pressure controller
LCD real-time display with digital filtering technology
Standard 4–20mA output with optional RS485 communication
24V DC powered industrial pressure monitoring device
Multiple pressure unit switching supported
Suitable for HVAC, cleanroom, and negative pressure systems
Easy to install with high safety and reliability. It adopts a plastic base paired with brass threads, available in multiple piping sizes such as 1/2 inch, […]
It is suitable for measuring the pressure of liquids, vapors, gases and other media that are non-explosive, non-crystallizing, non-coagulating and non-corrosive to copper and copper-aluminum alloys.
High-precision digital differential pressure measurement with clear real-time LCD display
Multiple pressure unit switching
Suitable for HVAC and cleanroom applications
Fast response with strong anti-interference capability
Equipped with a stainless steel protection tube, it features high accuracy and excellent stability. It is used to convert temperature signals into usable output signals and is suitable for industrial temperature measurement scenarios.
Its functions can almost completely replace those of mechanical contact pressure gauges, with customizable connectors and measurement ranges
It adopts a 304 stainless steel housing and is equipped with a high-quality wafer core. Multiple types of connectors are available. After precise calibration and aging testing, it features accurate measurement, high stability and strong durability
