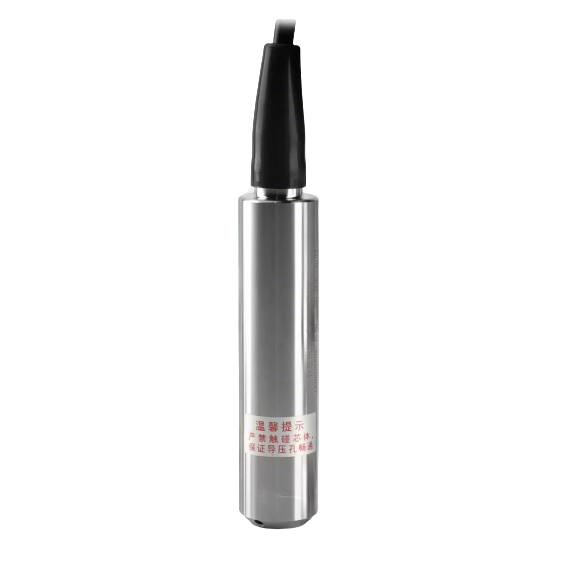

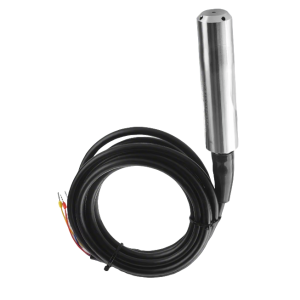

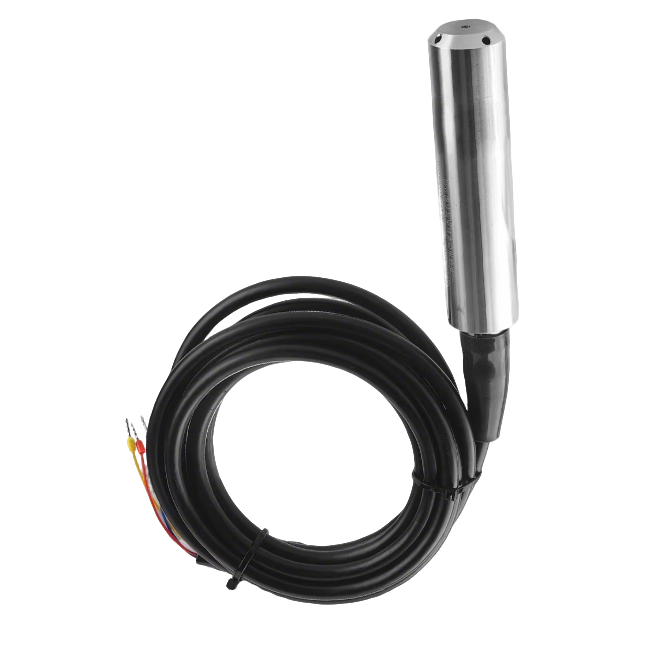

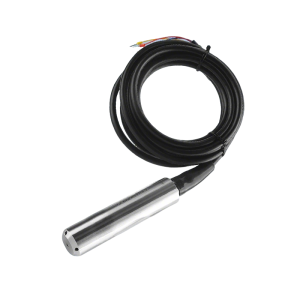

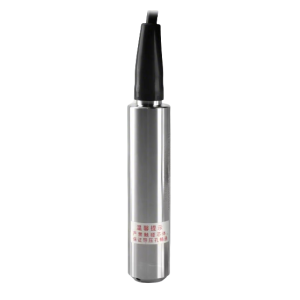

ELE-802L Lightning Protection Submersible Level Transmitter
ELE-802L lightning protection submersible level transmitter for high-accuracy liquid level measurement
Diffused silicon pressure sensor designed for harsh outdoor environments
Integrated lightning protection circuit for enhanced safety
IP68 waterproof rating for long-term submersible use
Stainless steel construction for durability and corrosion resistance
Stable and reliable performance under lightning, surge, and electromagnetic interference conditions
Application
-
Water tanks & reservoirs
-
Rivers, lakes & water conservancy projects
-
Fire-fighting water tanks
-
Underground wells & deep pits
-
Industrial water pools
-
Outdoor liquid level monitoring in lightning-prone areas
-
Compatible with level indicator panels and control cabinets
Description

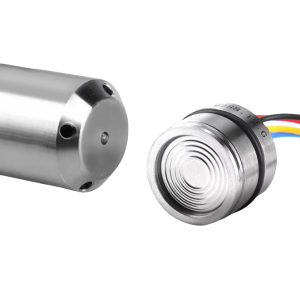

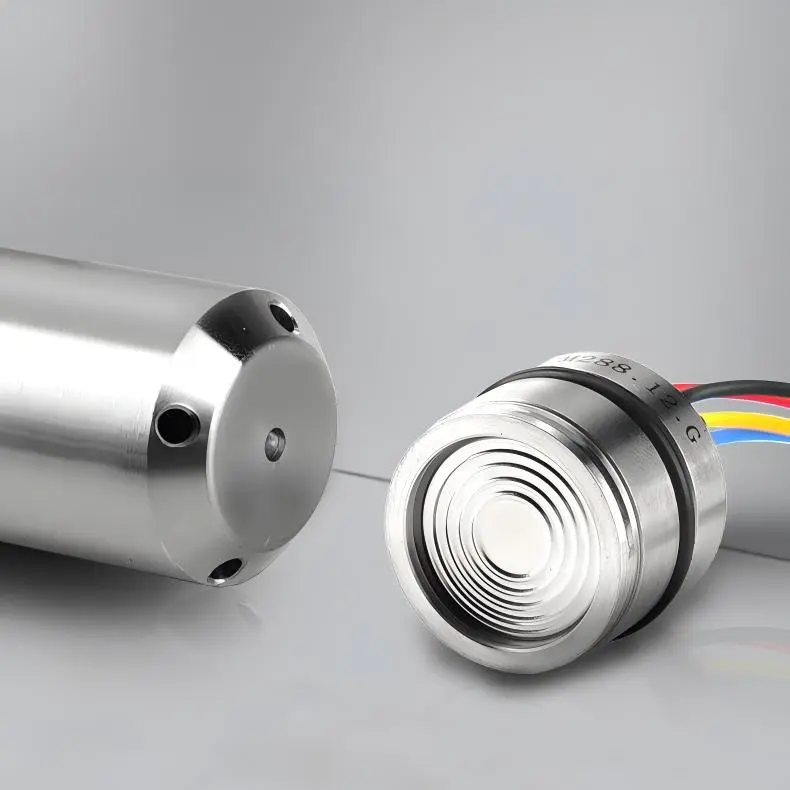

The ELE-802L is a lightning-protected submersible level transmitter developed for long-term immersion and outdoor use. It adopts a high-precision diffused silicon sensor with a 316L stainless steel isolated diaphragm filled with silicone oil, ensuring accurate and stable pressure-to-level conversion.
An integrated lightning protection circuit effectively resists:
Electrostatic discharge (ESD)
Surge impact
Electrical fast transient/burst (EFT)
The transmitter features a 45° inclined pressure port design and 3 mm pressure inlet, reducing blockage risks and minimizing sudden pressure impact on the sensor. Combined with a 304 stainless steel housing and double-shielded purple copper cable, the ELE-802L delivers excellent durability, anti-interference performance, and long service life.
Features
-
Integrated lightning protection circuit
-
Resistant to surge, ESD, and fast transient pulses
-
High-accuracy diffused silicon sensing element
-

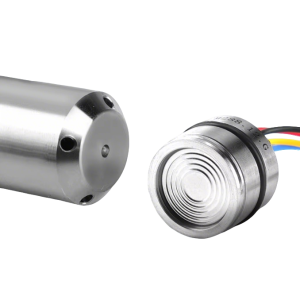

316L stainless steel isolated diaphragm, silicone oil filled
-
45° inclined pressure port to prevent blockage
-
3 mm pressure inlet for impact resistance
-
304 stainless steel housing, corrosion-resistant
-

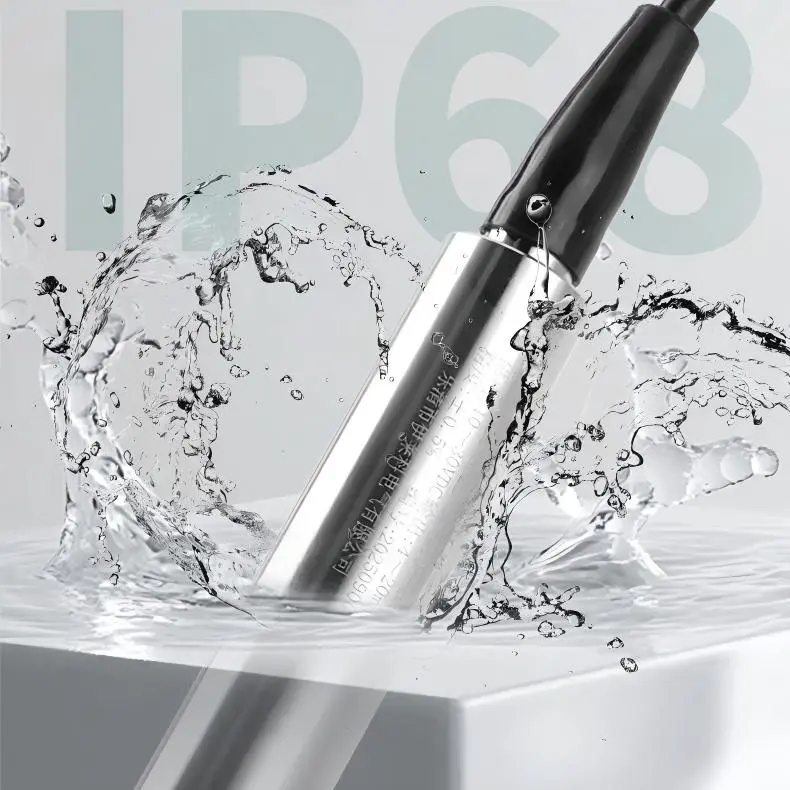

IP68 waterproof protection for long-term submersion
-
Double-shielded purple copper cable for strong anti-interference
-

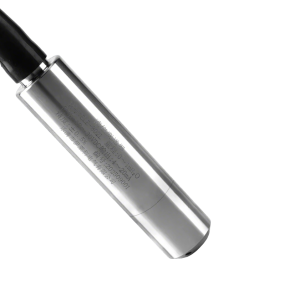

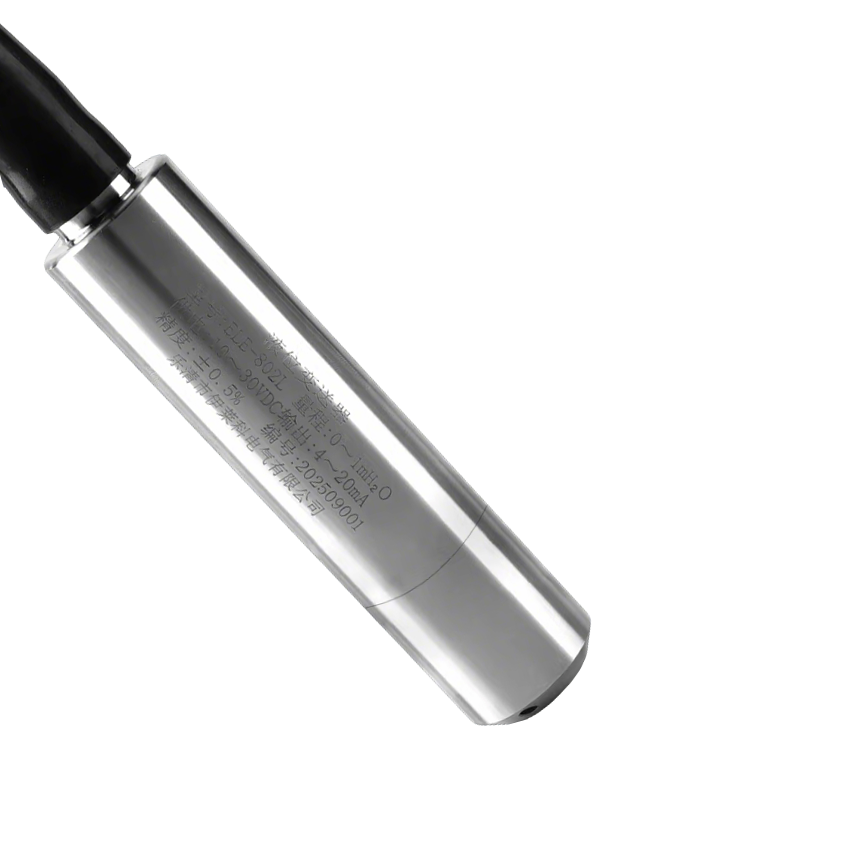

Laser marking, durable and customizable
-
Factory-calibrated with aging test for stable performance
-
Customizable range, cable length, output signal, and accuracy
-
Can be paired with LED level indicator or level control box
Technical Details
Measurement Type
Gauge Pressure
Measurement Range
0.1 – 100 m (customizable)
Installation
Submersible
Measuring Medium
Liquid (non-corrosive to wetted materials)
Accuracy
±0.5% FS (standard), ±0.2% / ±0.1% optional
Output Signal
4–20 mA (default), RS485 Modbus-RTU (optional)
Power Supply
DC 24 V (10–30 VDC)
Overload Capacity
150% of full scale
Protection Rating
IP68
Housing Material
304 Stainless Steel
Diaphragm Material
316L Stainless Steel
Cable Type
Double-shielded purple copper cable
Pressure Port
3 mm inlet, inclined 45°
Long-term Stability
Factory calibrated with aging test
