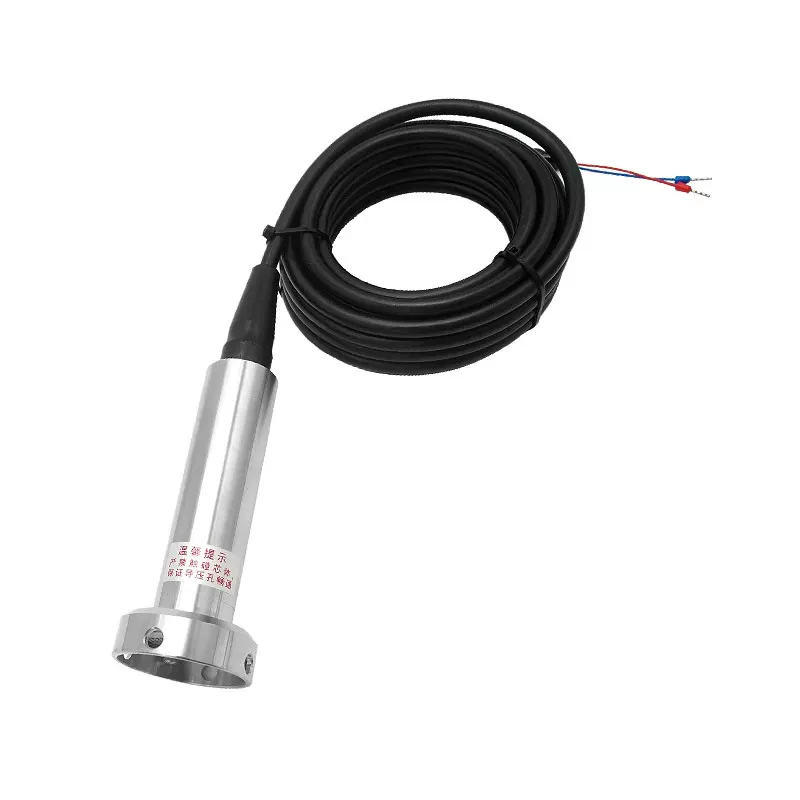

ELE-802E Anti-Clogging Submersible Level Transmitter
Application
-
Sewage and wastewater systems
-
Wells and deep pits
-
Underground water tanks
-
Municipal drainage systems
-
Industrial wastewater treatment
-
Any liquid level measurement with suspended solids or clogging risk
Description
The ELE-802E is a submersible hydrostatic level transmitter optimized for clog-prone media such as sewage and well water. It adopts a 1 mm dense filter hole structure, allowing precise pressure sampling while effectively preventing blockage caused by sludge, sediment, or debris.
The transmitter is equipped with a high-quality measuring core and 316L high-sensitivity diaphragm, providing reliable and accurate pressure-to-level conversion. An intelligent integrated circuit board ensures fast signal sampling, strong anti-interference performance, and long-term stability.
The probe housing is made of 304 stainless steel as standard, offering excellent resistance to corrosion, abrasion, and high pressure. For more demanding environments, 316 stainless steel customization is available. With an IP68 waterproof rating, shielded vented cable, and high-quality waterproof connector, the ELE-802E is suitable for long-term submersion in harsh field conditions.
Features
-
Anti-clogging submersible level transmitter design
-

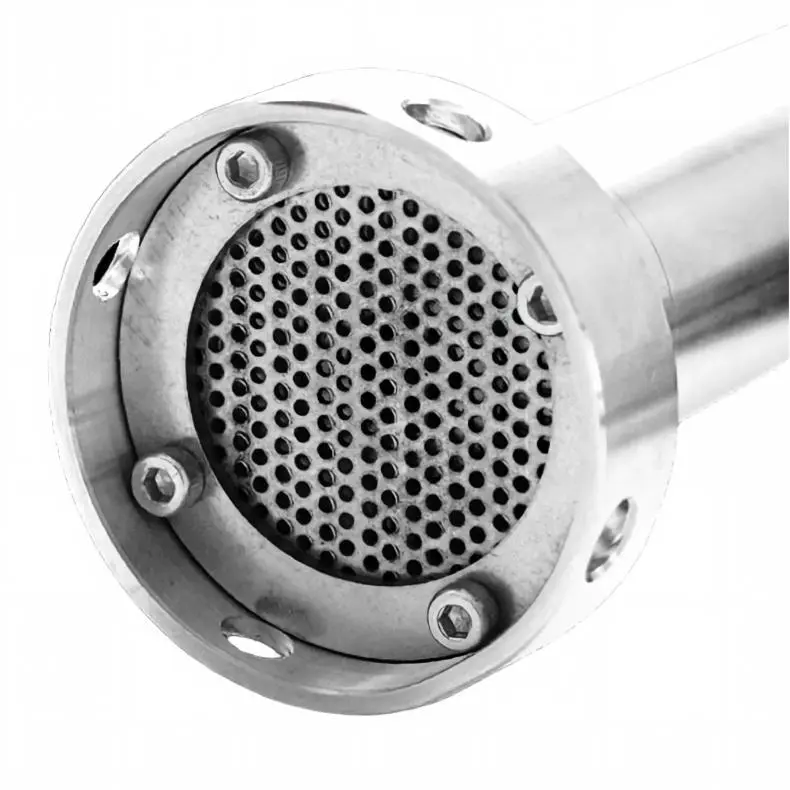

1 mm dense filter holes for precise sampling and clog prevention
-
Designed for sewage, well water, and contaminated liquids
-
High-quality measuring core with fast response
-

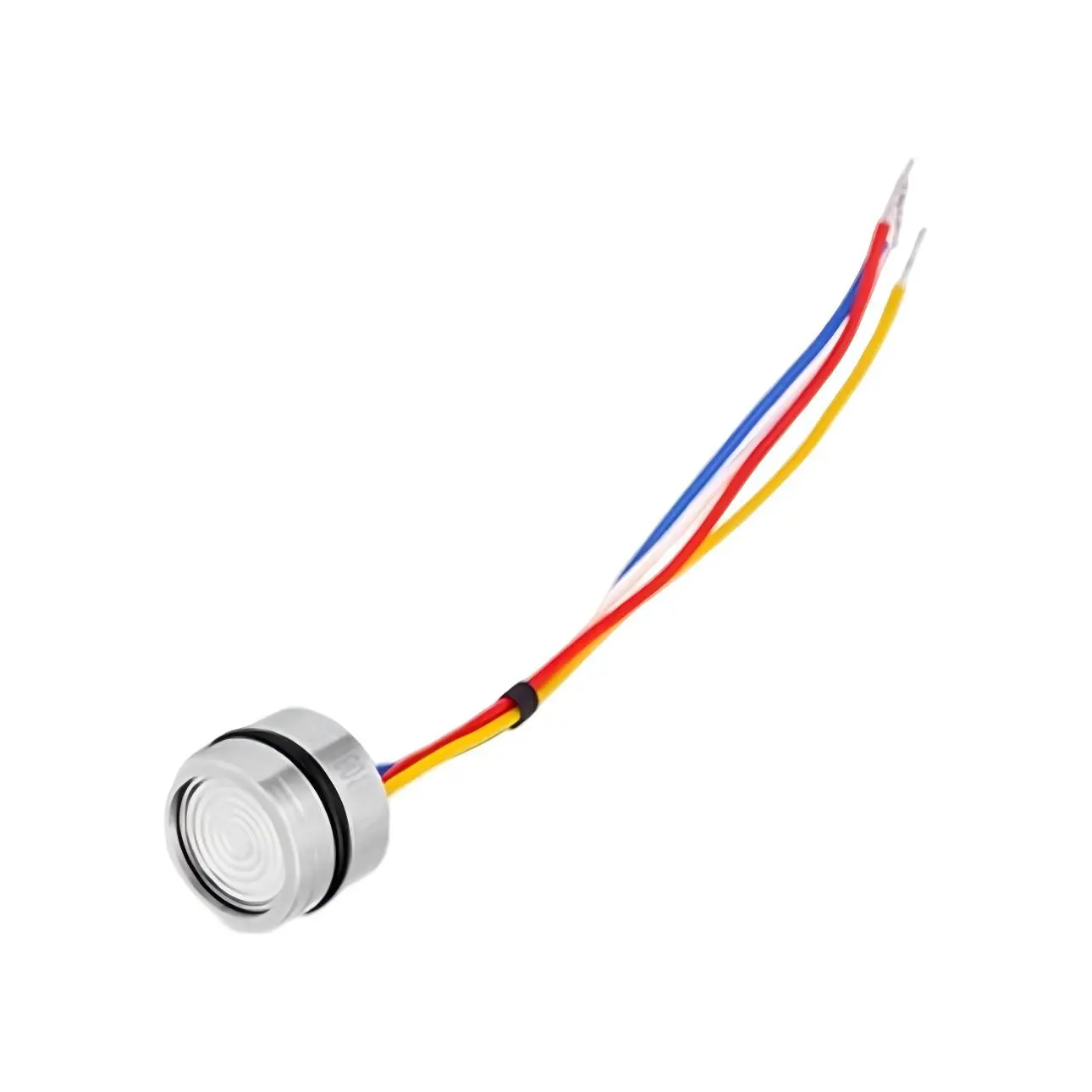

316L stainless steel high-sensitivity diaphragm
-
Multiple accuracy options: ±0.5%, ±0.2%, ±0.1% F.S
-

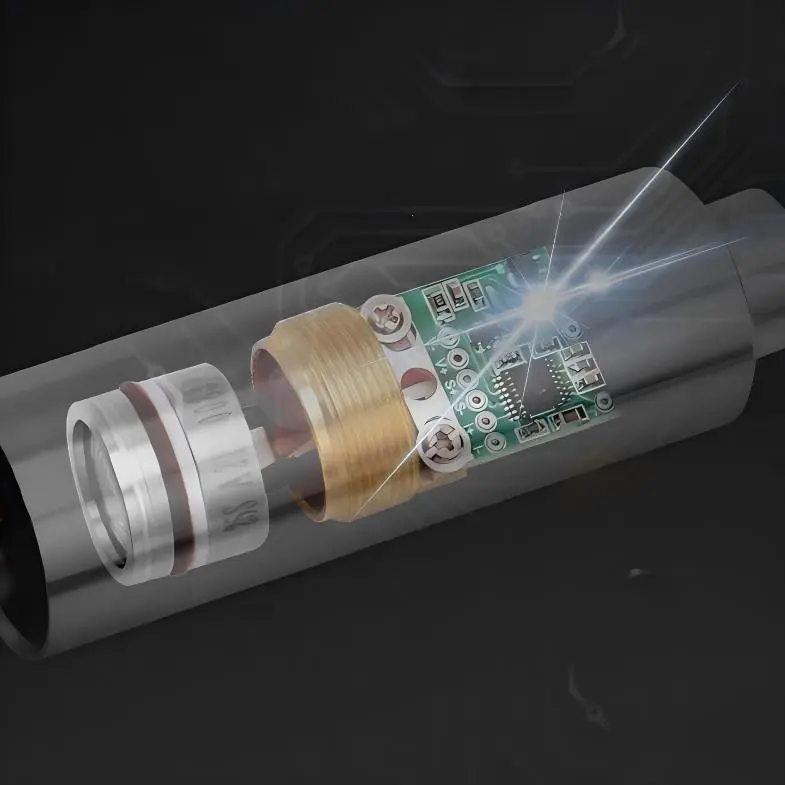

Intelligent integrated circuit board with strong anti-interference capability
-
304 stainless steel probe housing (316 optional)
-
Large measuring range up to 300 m (customizable)
-

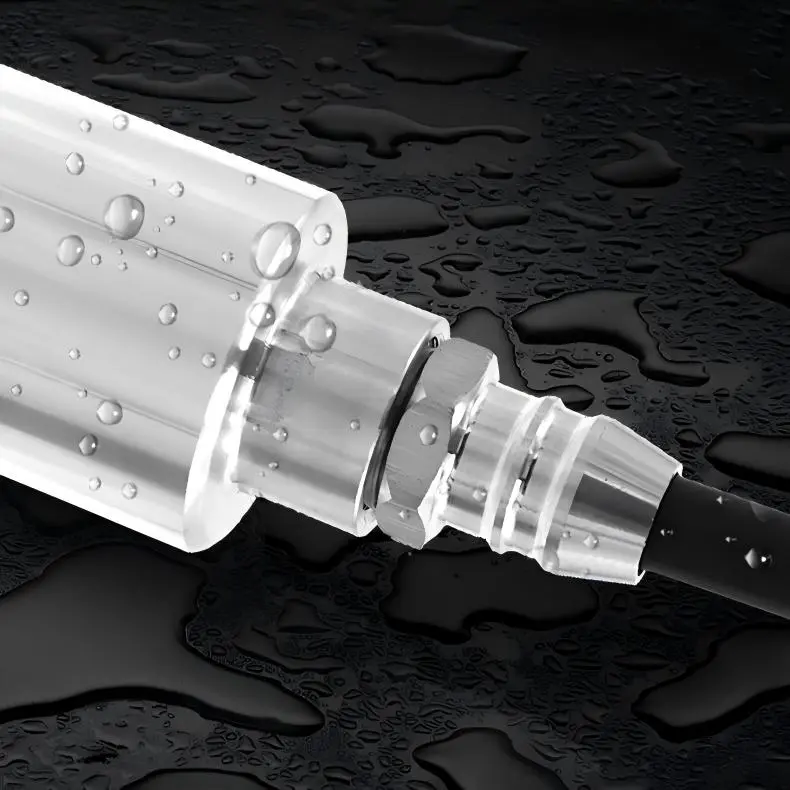

IP68 waterproof protection for long-term immersion
-
Shielded vented cable with purple copper braided shielding
-
Stable performance with reliable after-sales support
Technical Details
Measuring Principle
Hydrostatic (Submersible)
Measuring Range
0.2–200 mH₂O (customizable up to 300 m)
Output Signal
4–20 mA
Accuracy
±0.5% F.S (default), ±0.2%, ±0.1% optional
Power Supply
DC 24 V (10–30 VDC)
Protection Rating
IP68
Medium Temperature
2–50 °C
Overload Capacity
150% F.S
Long-term Stability
±0.1% F.S / year
Temperature Drift
±0.01% F.S / °C
Measuring Medium
Liquids non-corrosive to wetted materials
Probe Material
304 stainless steel (316 optional)
Diaphragm Material
316L stainless steel
Cable Type
Shielded vented cable with purple copper braid
Electrical Connection
European terminal block
Signal Wiring
2-wire current, 3-wire voltage, 4-wire RS485 (optional)
