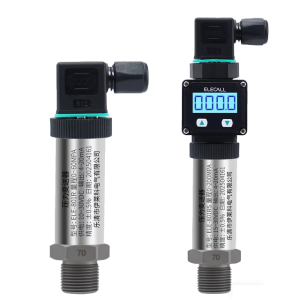

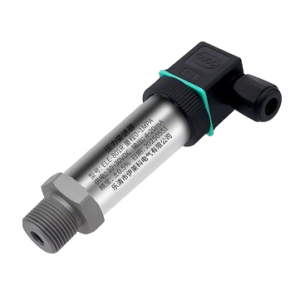

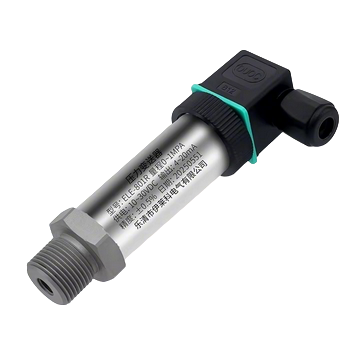

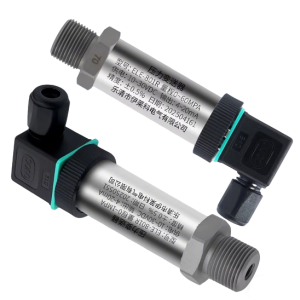

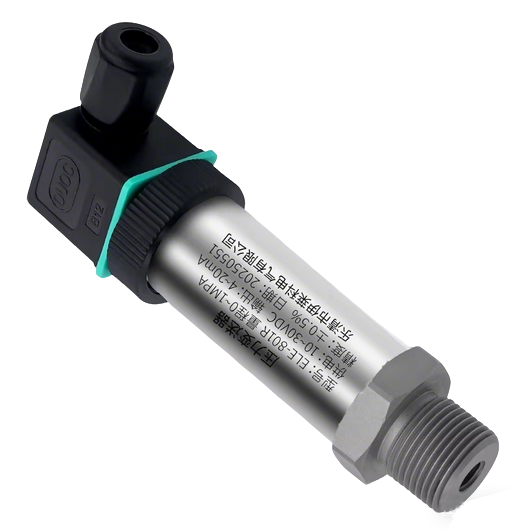

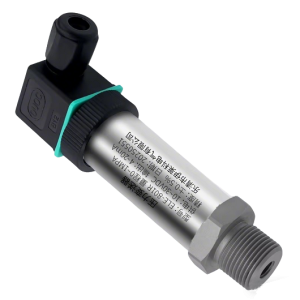

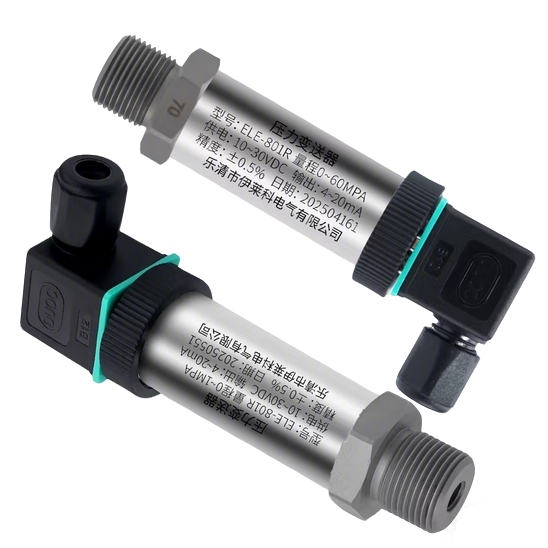

ELE-801R series glass micro-melt pressure transmitter
Glass micro-melt sensing core for superior pressure resistance
High overload capability (2–4 times overpressure without damage)
Seamless stainless steel body, no welding, no leakage risk
High sensitivity output for precise signal transmission
Excellent temperature resistance (-40°C to 125°C)
Multiple output options available (4–20mA, 0–10V, 0–5V)
Customizable thread connections
Application
-
Hydraulic systems
-
Water pressure monitoring
-
Industrial automation equipment
-
Oil and gas systems
-
High-pressure liquid measurement environments
Description
The ELE-801R series glass micro-melt pressure transmitter adopts advanced strain sputtered thin film sensor technology, ensuring high accuracy, excellent stability, and strong resistance to overpressure and impact. With a fully integrated stainless steel structure and no internal sealing components, the product eliminates leakage risks and enhances durability.
Designed for demanding applications, it can operate reliably under extreme temperatures ranging from -40°C to 125°C. Its high sensitivity output allows easy signal processing and integration into various control systems.
Features
-
Glass micro-melt sensing core for superior pressure resistance
-
High overload capability (2–4 times overpressure without damage)
-
Seamless stainless steel body, no welding, no leakage risk
-
High sensitivity output for precise signal transmission
-
Excellent temperature resistance (-40°C to 125°C)
-
Multiple output options available (4–20mA, 0–10V, 0–5V)
-
Customizable thread connections
Technical Details
Model
ELE-801R / ELE-801 / ELE-801S
Pressure Range
-0.1 ~ 300 MPa
Output Signal
4–20 mA / 0–10 V / 0–5 V
Power Supply
10–30 VDC
Process Connection
M20×1.5 (customizable)
Sensor Type
Glass micro-melt, strain sputtered thin film
Material
Stainless steel (integrated structure)
Operating Temperature
-40°C to 125°C
Overload Capacity
2–4 times full scale
Application Media
Liquids (water, oil, hydraulic fluids)
