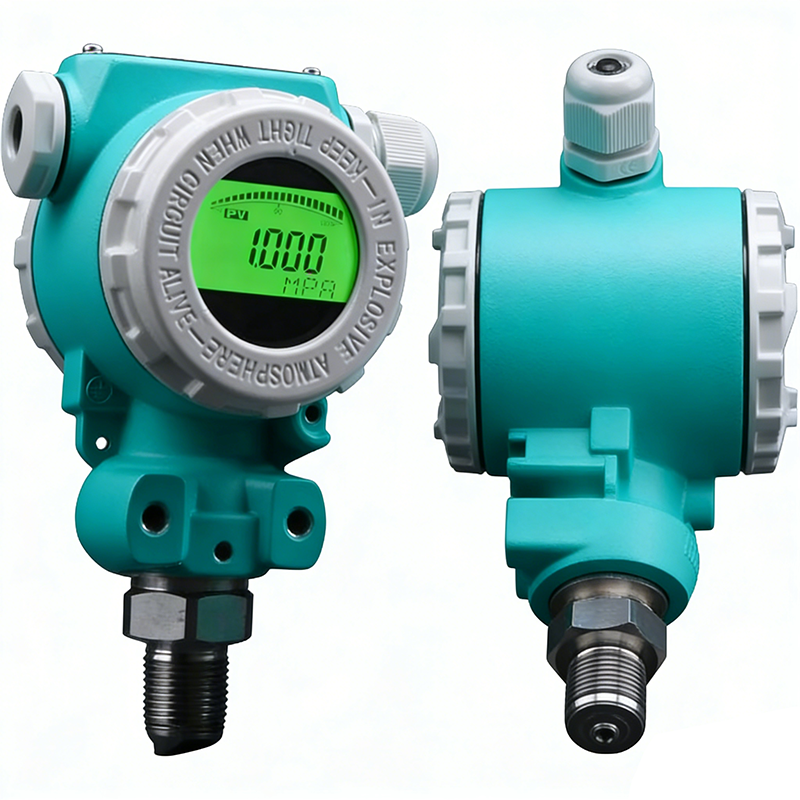

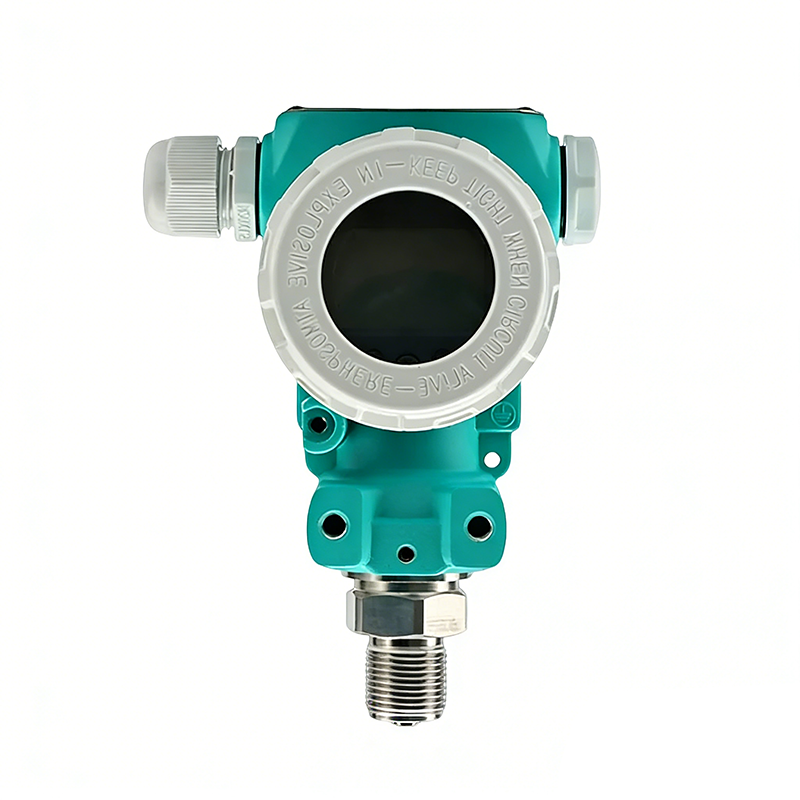

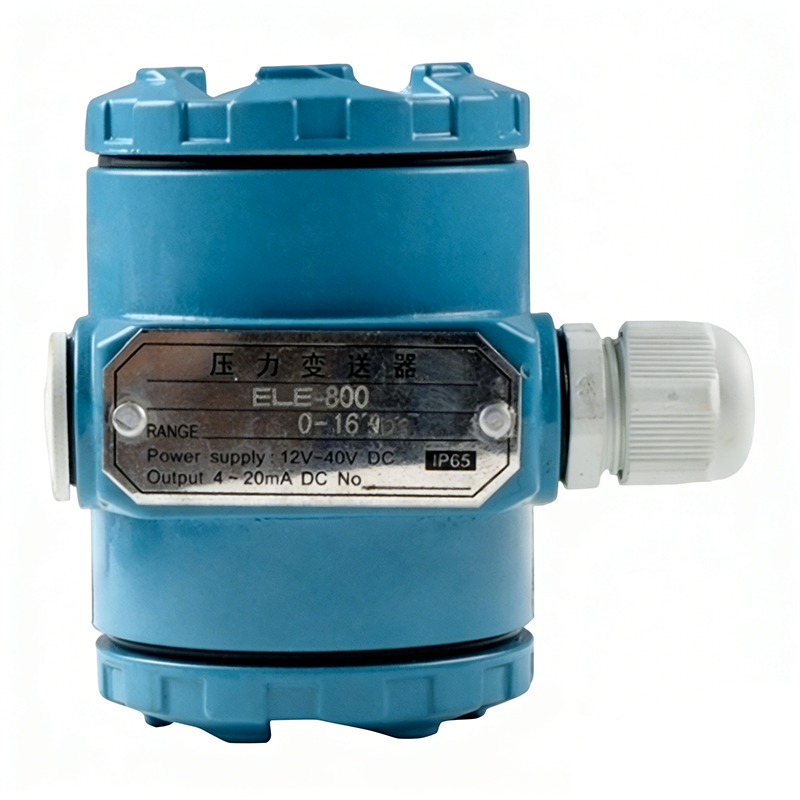

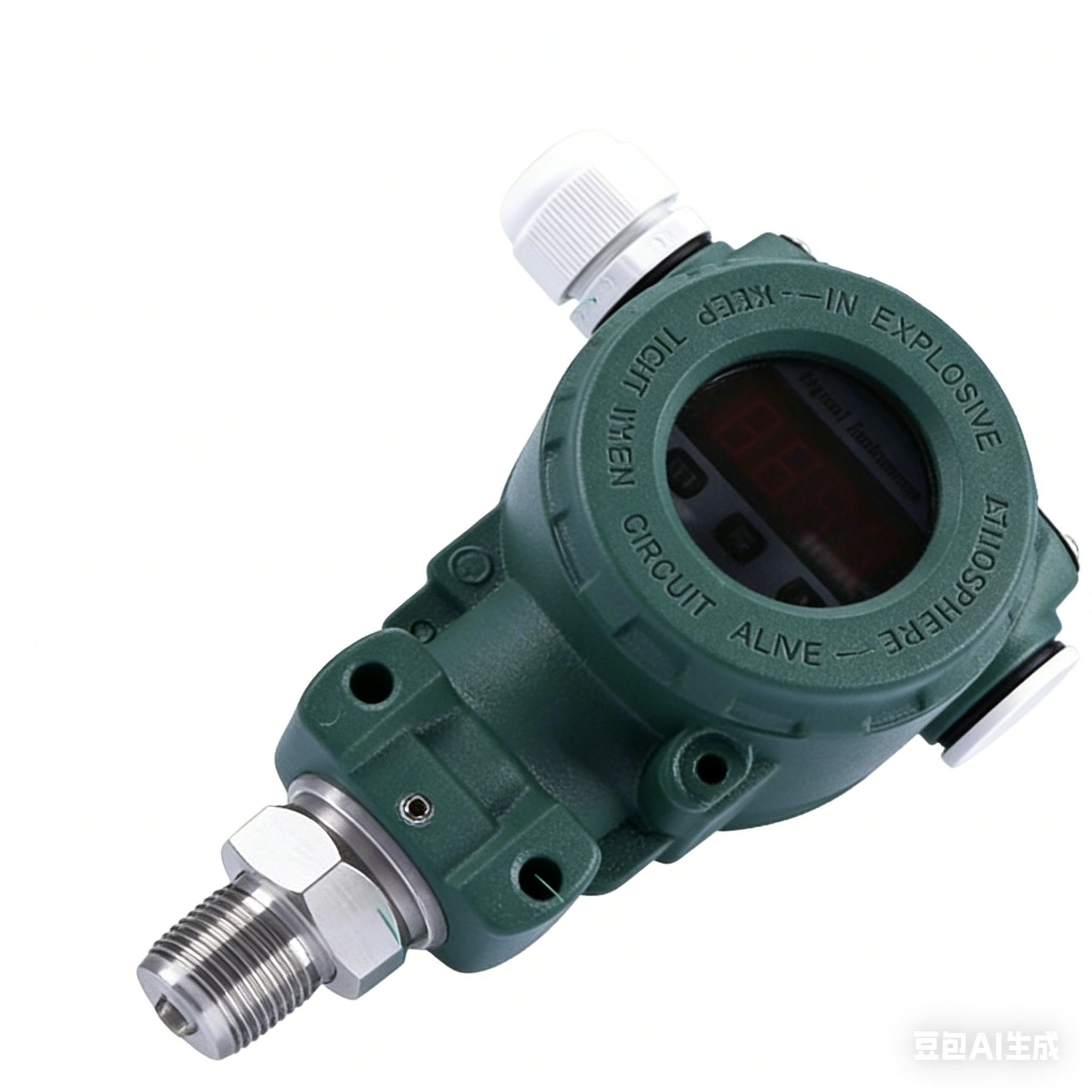

ELE-800 ELE-800S Digital Pressure Transmitter
Pressure Range: 0-1 MPa (customizable range)
Stable, Accurate, Durable
Display Included
304 Stainless Steel Construction
Accuracy: ±0.5% (±0.2% available upon request)
Wide Voltage DC12-30V
Long Life, Lifetime Maintenance
Application
-
Industrial Applications: Suitable for various industries, including chemical, oil, gas, and water treatment, where accurate pressure measurement is crucial.
-
Liquid & Gas Measurement: Ideal for measuring gases and liquids that do not corrode stainless steel.
-
Level Control & Monitoring: Commonly used in level control systems for tanks, boilers, and reservoirs.
Description
The ELE-800/ELE-800S Digital Pressure Transmitter is designed for accurate and stable pressure measurement in industrial applications. It features a high-precision diffused silicon pressure sensor and utilizes 304 stainless steel for durability and corrosion resistance. The transmitter supports wide voltage input, making it suitable for various environments. With built-in automatic temperature compensation and linear calibration, it provides reliable and stable signal output. The high-definition digital display allows for easy pressure monitoring and control.
Features
-
Digital Display: Clear pressure readings with easy-to-read digital numbers.
-
High Precision: ±0.5% accuracy, with options for ±0.2% for more precise measurements.
-
Sturdy Construction: 304 stainless steel body and 316L stainless steel pressure diaphragm for enhanced durability and corrosion resistance.
-
Wide Operating Temperature Range: Works effectively from -30°C to 80°C in ambient temperature and -20°C to 75°C for media temperature.
-

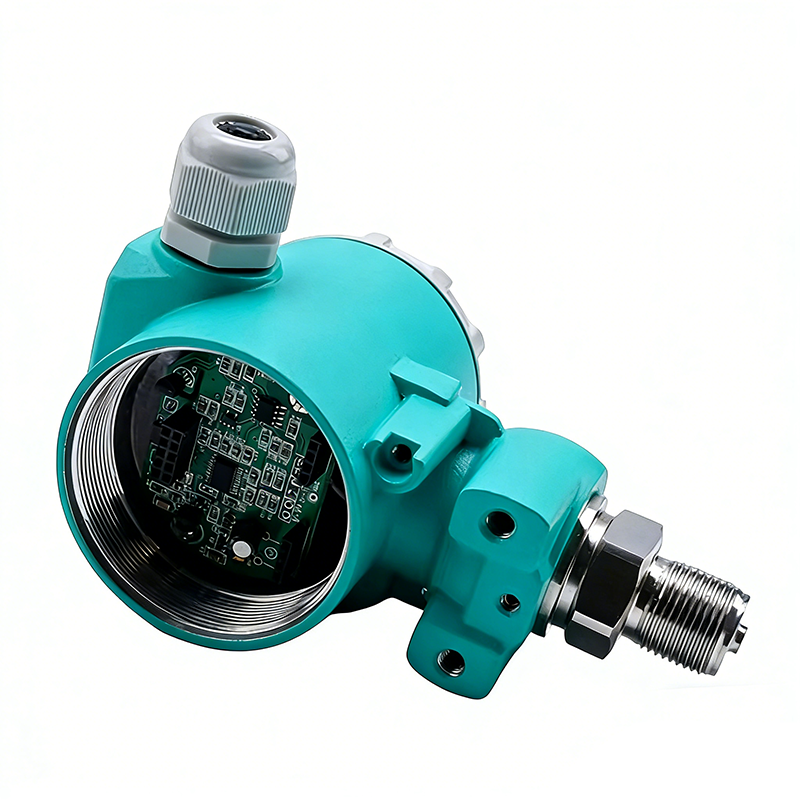

Advanced Signal Processing: Features an intelligent circuit board with automatic compensation and linear calibration, ensuring stable output signals and strong interference isolation.
-
Long-Term Reliability: High overload capacity (3x range) and lifetime maintenance guarantee.
Technical Details
Pressure Type
Gauge pressure (absolute pressure available upon request).
Output Signals
4-20mA (default) 0-5VDC, 0-10VDC MODBUS-RTU (optional, for communication).
Supply Voltage
DC24V
Temperature Drift
0.03% FS/°C
Overload Capacity
3 times the rated range
Enclosure Protection
IP65 (dust and water resistant)
Measuring Medium
Compatible with gases and liquids that are non-corrosive to stainless steel.
Connector Type
304 stainless steel process connection, M20x1.5mm default, other sizes can be customized.
Display
High-precision digital display for clear pressure readings.
Diaphragm Material
316L stainless steel, providing excellent pressure resistance, high accuracy, fast response, and strong durability.

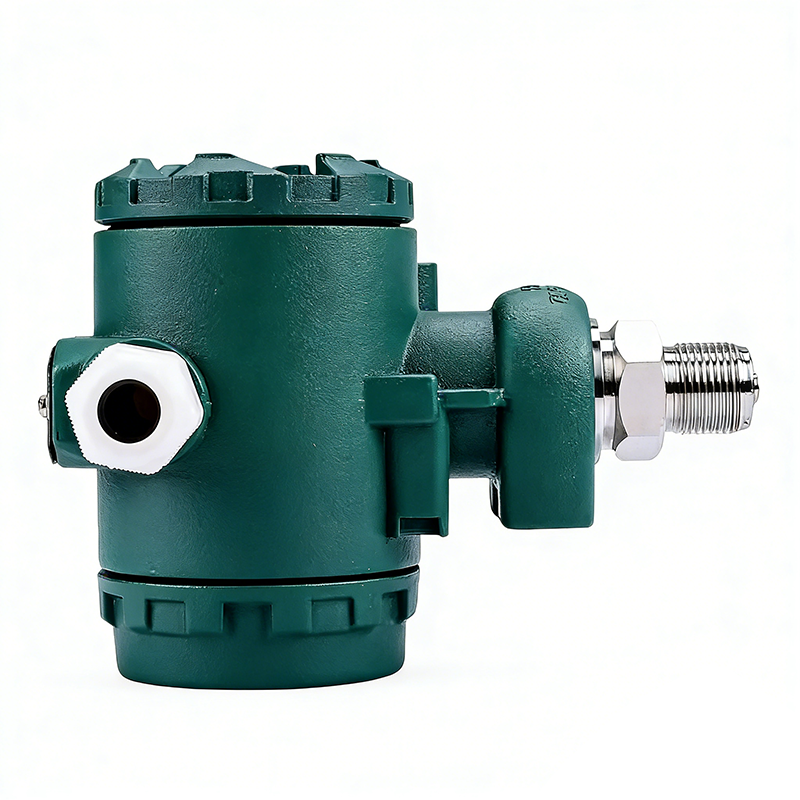

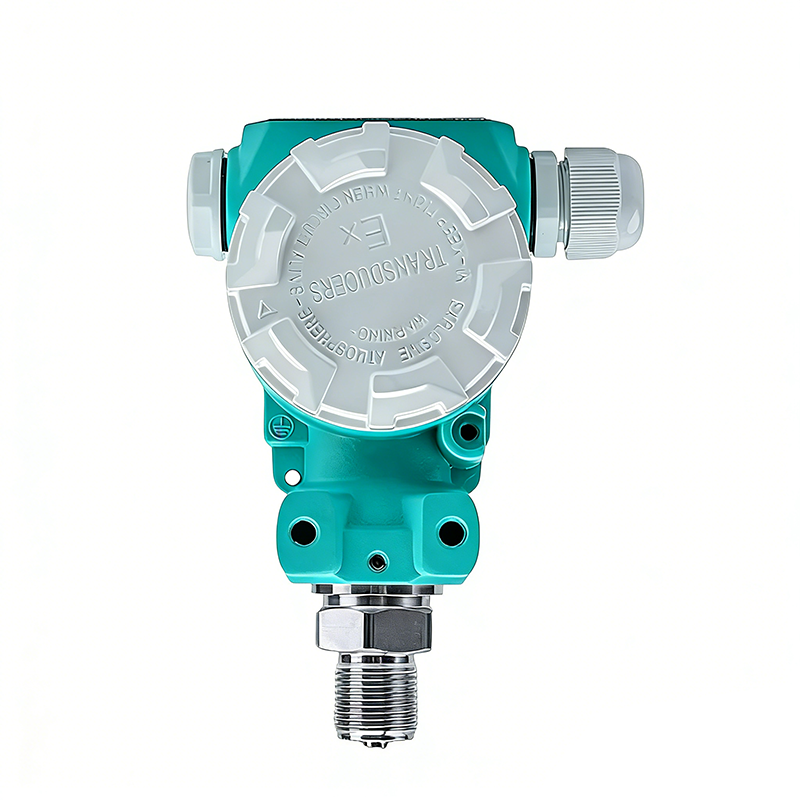

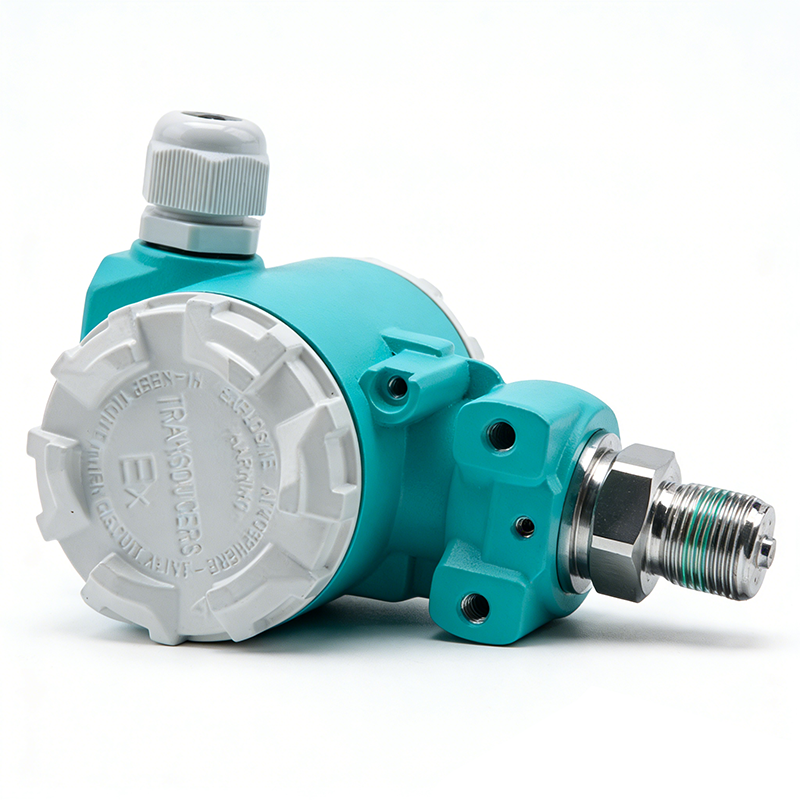

Explosion-proof Junction Box
Made from high-strength aluminum alloy for durability and safety in harsh environments.
Imported Pressure Chip
Offers high accuracy and wide voltage supply.

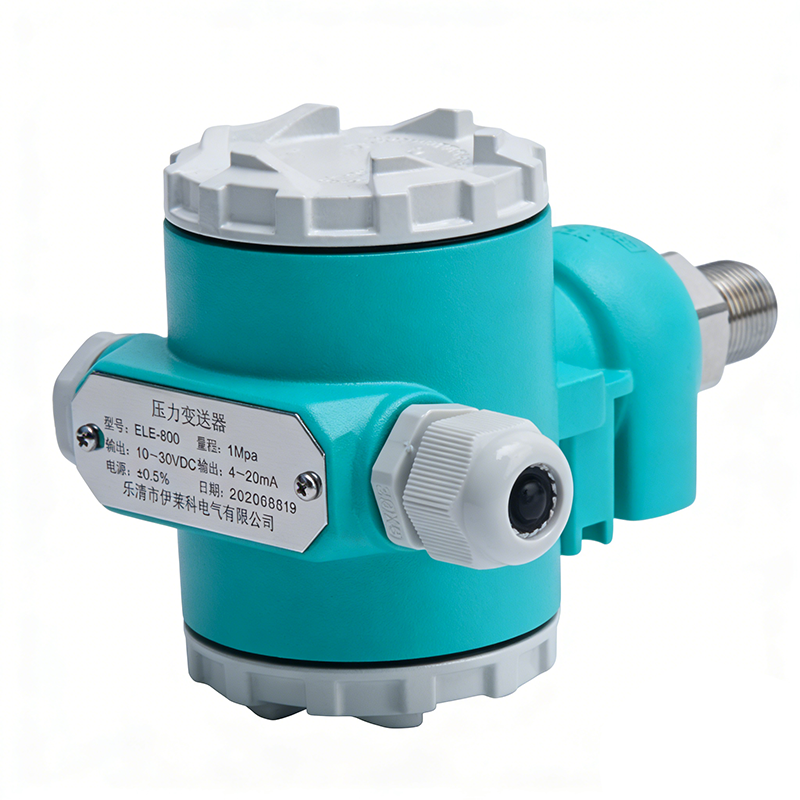

Laser Marking
Clear and durable, ensuring easy identification.
Premium Copper Terminals
For secure and reliable electrical connections.
