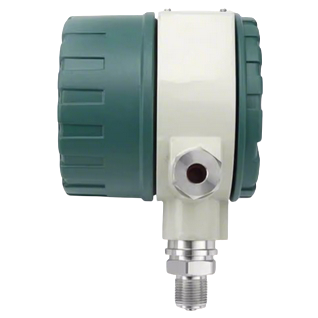

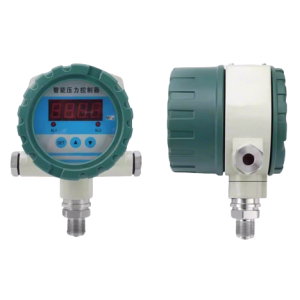

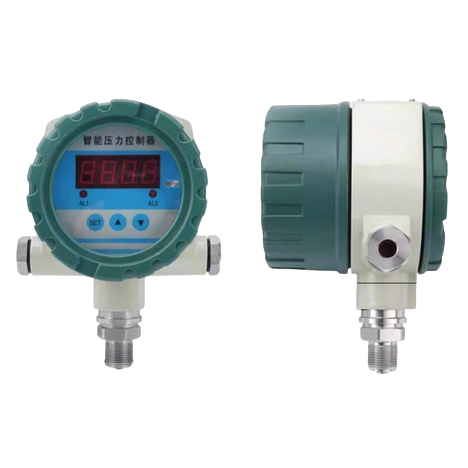

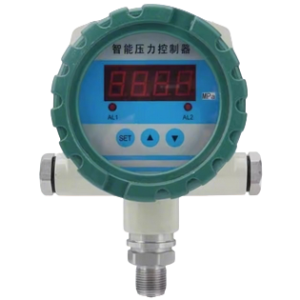

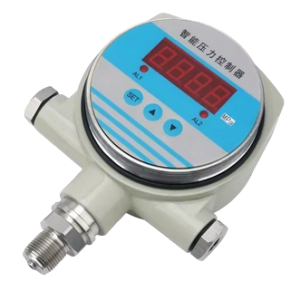

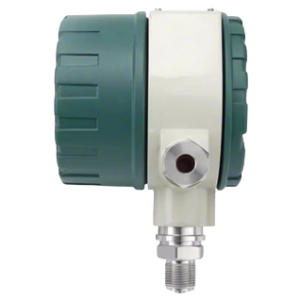

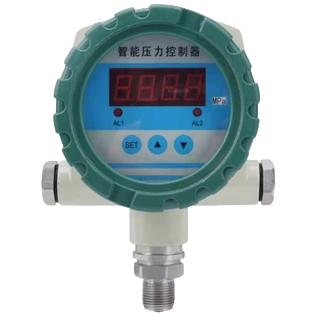

ELE-600 Explosion-Proof Intelligent Pressure Switch Controller
Explosion-proof intelligent pressure controller with digital display
High precision pressure measurement up to ±0.5% FS (optional ±0.2%)
Integrated pressure measurement, control, and signal transmission
Dual relay alarm outputs with 4–20mA signal output
Clear LED digital display for real-time monitoring
CT6 explosion-proof rating for hazardous environments
Compatible with water, air, oil, and hydraulic pressure systems
Application
The ELE-600 Explosion-Proof Intelligent Pressure Controller is widely used in industrial automation systems where pressure monitoring and control are required, including:
-
Natural gas systems
-
Chemical plants
-
Water treatment systems
-
Metallurgy industry
-
Industrial automation equipment
-
Hydraulic and pneumatic control systems
Description
The ELE-600 Intelligent Explosion-Proof Pressure Controller is a multifunctional industrial instrument that integrates pressure measurement, control, and signal transmission in a single compact device.
Using advanced microprocessor technology, the controller provides intelligent alarm control and precise signal output configuration. It features high-precision diffusion silicon sensing technology, ensuring accurate and stable pressure measurement.
The controller supports simultaneous 4–20mA signal output and dual relay alarm outputs, allowing it to function effectively in automated control systems.
Equipped with a clear LED digital display, the device provides intuitive and real-time pressure readings. The 304 stainless steel structure ensures excellent corrosion resistance and durability, making it suitable for demanding industrial environments.
With its CT6 explosion-proof certification, strong anti-interference capability, and high measurement accuracy, the ELE-600 pressure controller is ideal for applications in gas, chemical, and industrial automation industries.
Features
-
Explosion-proof design (CT6 rating) for hazardous environments
-
High precision pressure measurement up to ±0.5% FS
-
Integrated measurement, control, and transmission functions
-
LED digital display for clear real-time pressure readings
-
Simultaneous 4–20mA output and dual relay alarm output
-
304 stainless steel structure for corrosion resistance
-
Strong anti-interference performance for stable operation
-
Wide measuring range up to 100 MPa
-
Compact and lightweight design for easy installation
Technical Details
Accuracy
±0.5% FS (Optional ±0.2%)
Measuring Range
±200~800 Pa / -100~900 kPa / 1 MPa – 100 MPa
Pressure Type
Gauge Pressure / Absolute Pressure Optional
Display
LED 4-digit digital display
Output Signal
4–20mA + Dual Relay Output
Overload Capacity
1.5 × Full Scale (customizable)
Process Connection
M20×1.5, G1/4, G3/8, G1/2, NPT1/4, NPT3/8, NPT1/2
Electrical Connection
M20×1.5
Power Supply
24V DC or 220V AC (optional)
Operating Temperature
0 – 60°C
Explosion-Proof Rating
Exd II C T6 Gb
Housing Material
304 Stainless Steel
Measuring Medium
Liquids or gases compatible with 304 stainless steel
