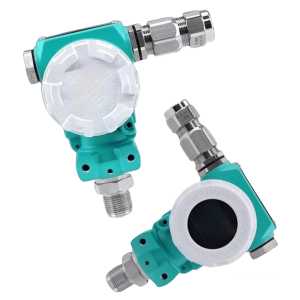

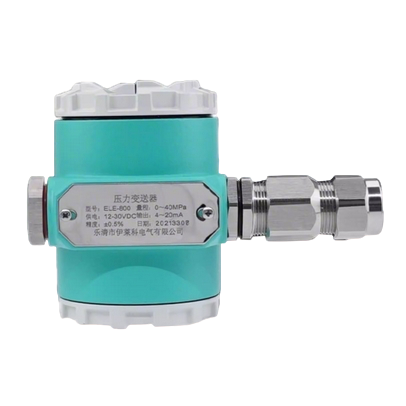

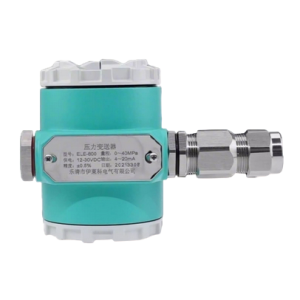

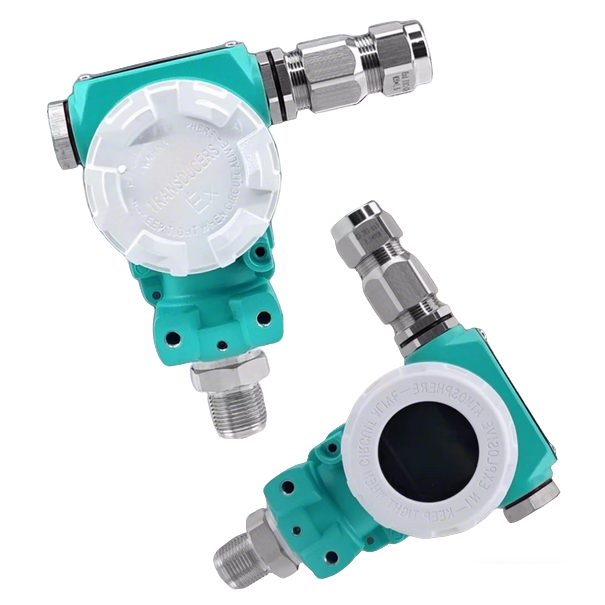

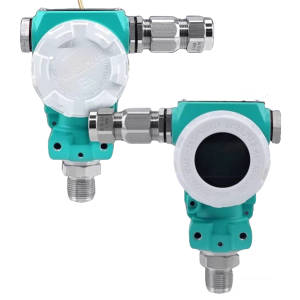

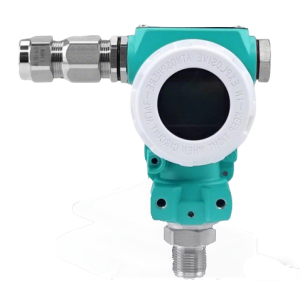

ELE-2088 Explosion-Proof Pressure Transmitter
Explosion-proof pressure transmitter with intelligent LCD display
Imported diffusion silicon sensor for stable measurement
High accuracy up to ±0.5% (optional ±0.2%)
Strong anti-interference performance with fast response
Durable explosion-proof housing with IP65 protection rating
Supports multiple output signals including 4–20mA, 0–10V, and RS485
Suitable for gas, vacuum, and industrial pressure measurement
Application
The ELE-2088 Explosion-Proof Pressure Transmitter is widely used in hazardous and demanding industrial environments, including:
-
Aerospace industry
-
Petroleum and oil processing
-
Chemical industry
-
Environmental protection systems
-
Heating systems
-
Gas pressure monitoring
-
Industrial automation control
Description
The ELE-2088 Explosion-Proof Pressure Transmitter is designed for accurate and reliable pressure measurement in hazardous environments. It features a high-strength explosion-proof housing combined with a precision diffusion silicon sensing chip, ensuring stable performance and high measurement accuracy.

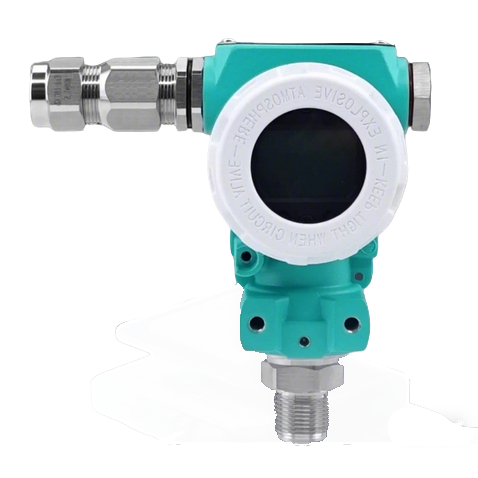

Equipped with a clear LCD display protected by tempered glass, the transmitter allows users to easily monitor pressure values while maintaining excellent protection against harsh environments.

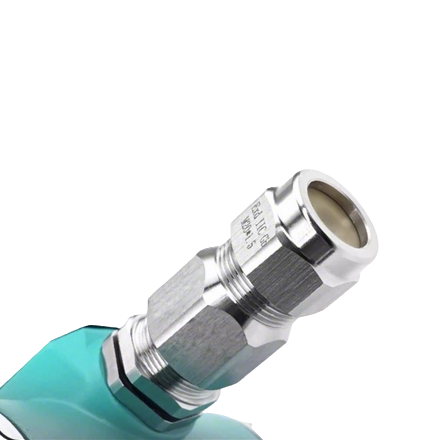

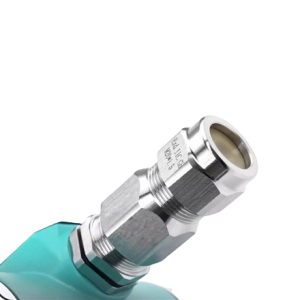

The device adopts premium sealing rings and stainless steel explosion-proof cable glands, ensuring strong sealing performance and eliminating leakage risks. Its spray-coated housing improves durability and wear resistance, making it suitable for long-term industrial applications.
With strong anti-interference capability, fast response speed, and high overload resistance, the ELE-2088 transmitter is ideal for pressure monitoring in petroleum, chemical processing, and other demanding industries.
Features
-
Explosion-proof design suitable for hazardous industrial environments
-
LCD digital display with reinforced tempered glass protection
-
Imported diffusion silicon sensor chip for stable and precise measurement
-
High accuracy up to ±0.5% FS (optional ±0.2%)
-

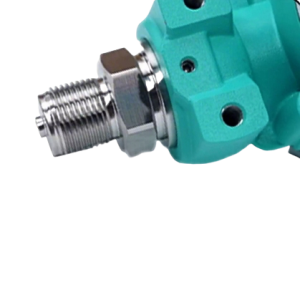

304 stainless steel threaded connection for corrosion resistance
-
Strong anti-interference ability ensuring stable signal output
-
IP65 protection rating for dust and water resistance
-
150% overload capacity for reliable operation under pressure spikes
-
Fast response time (0.1s) for real-time pressure monitoring
-
Multiple output signal options for different industrial systems
Technical Details
Accuracy
±0.5% FS (Default), ±0.2% Optional
Working Temperature
0 – 60°C
Overload Capacity
150% Full Scale
Explosion-Proof Rating
Ex db IIC T6 Gb
Protection Level
IP65
Sensor Type
Imported Diffusion Silicon
Response Time
0.1 s
Output Signal
4–20mA (2-wire, default) 0–5V / 0–10V / 0.5–4.5V (3-wire) RS485 Communication (4-wire, Modbus-RTU)
Power Supply
10–30V DC (4–20mA) 12–30V DC (Voltage Output)
Thread Connection
M20×1.5 (Default), G1/2, G1/4 Optional
Measuring Medium
Gas, Liquid, or Vacuum Pressure
Accessories
