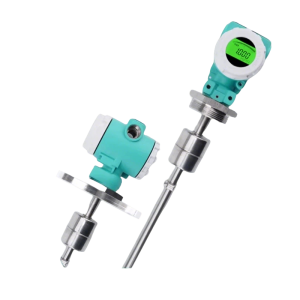

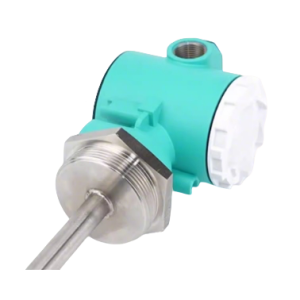

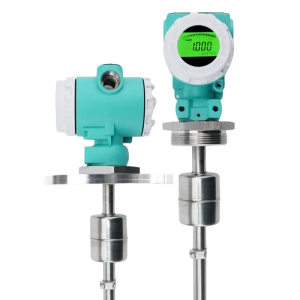

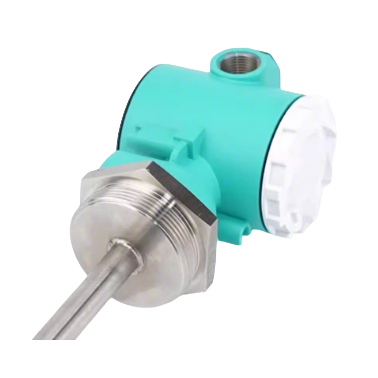

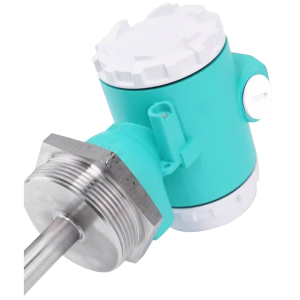

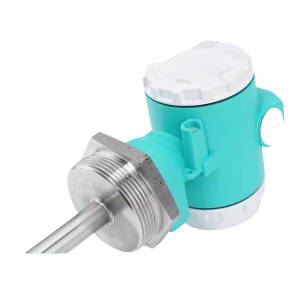

EFLT-2 RS485Digital Float Level Transmitter 4-20mA
Application
-
Wastewater & water treatment plants
-
Clean water processing systems
-
Shipbuilding & marine equipment
-
Generator & power equipment
-
Petroleum & chemical industries
-
Food processing industry
-
Electronics & communication facilities
-
Medical industry
-
Level monitoring, alarm, and control systems
Description
The EFLT-2 is a digital display float level transmitter designed for stable and long-term liquid level measurement in demanding industrial environments. It integrates imported electronic components with precision float technology to ensure accurate level detection and reliable signal transmission.
The transmitter features a high-temperature quenched and polished housing, offering excellent wear resistance and corrosion resistance to ensure smooth operation without jamming over extended periods. Precision one-piece welding using imported equipment prevents water or air leakage, and every unit undergoes strict pressure testing before shipment.
With a clear LCD digital display, the EFLT-2 provides easy on-site reading even under harsh working conditions. It supports level display, alarm, and control functions, making it suitable for automation systems requiring both local indication and remote signal output.
Features
-
Clear digital display for real-time level indication
-
Imported electronic components for high accuracy and fast response
-
Strong anti-interference capability
-

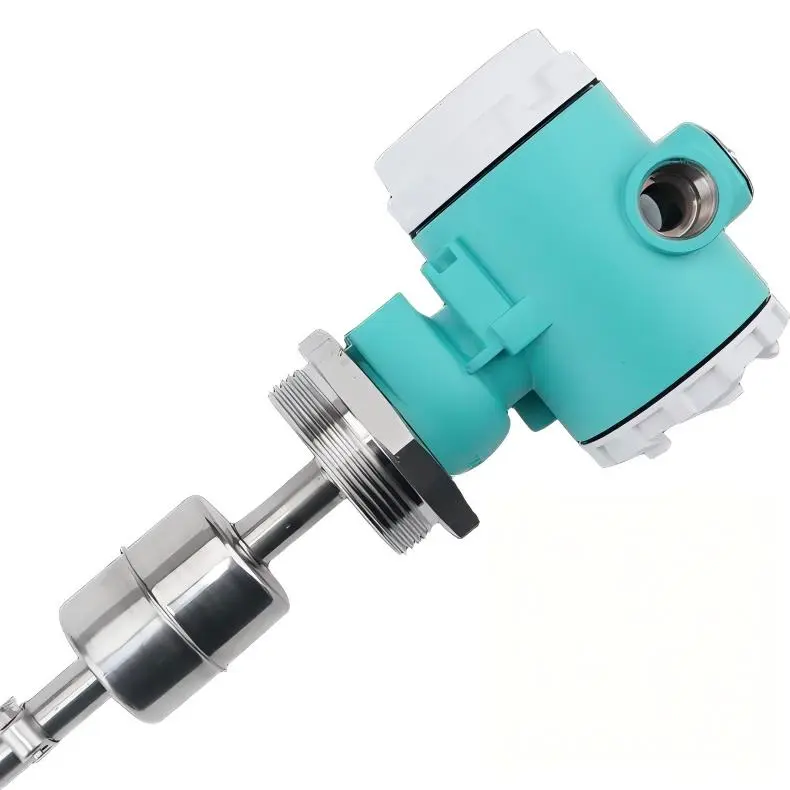

High-temperature quenched and multi-polished housing
-
Wear-resistant and corrosion-resistant design
-

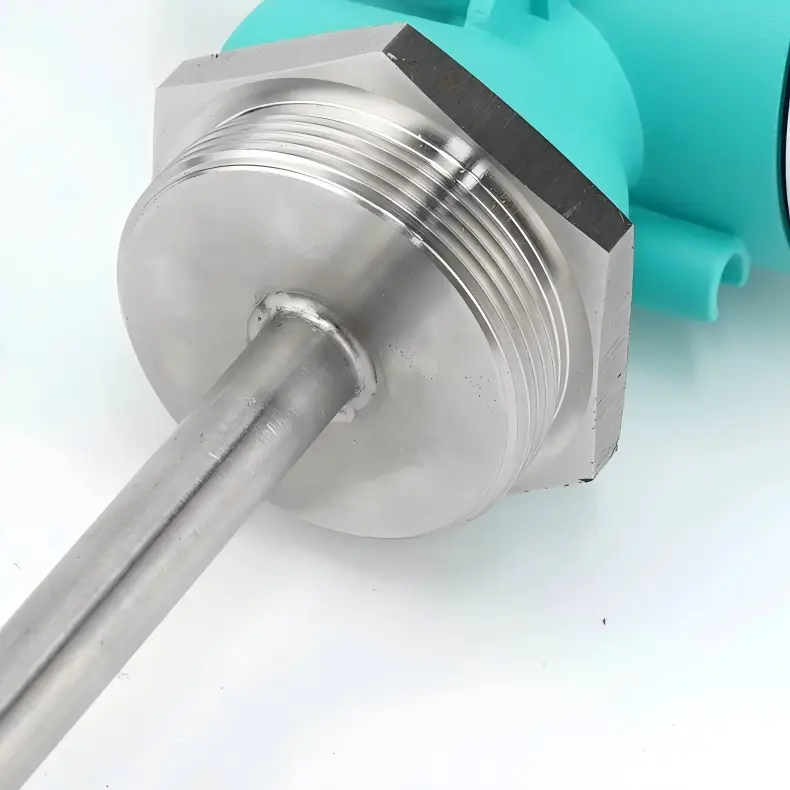

Precision welded, one-piece structure with leak-free performance
-

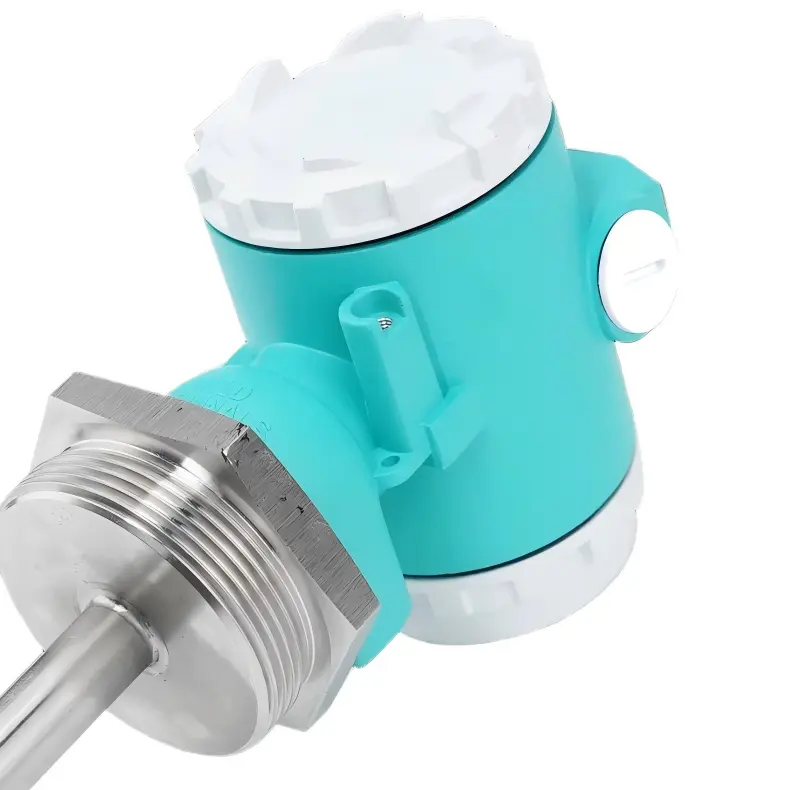

Sealed electrical interface with ABS engineering plastic housing
-

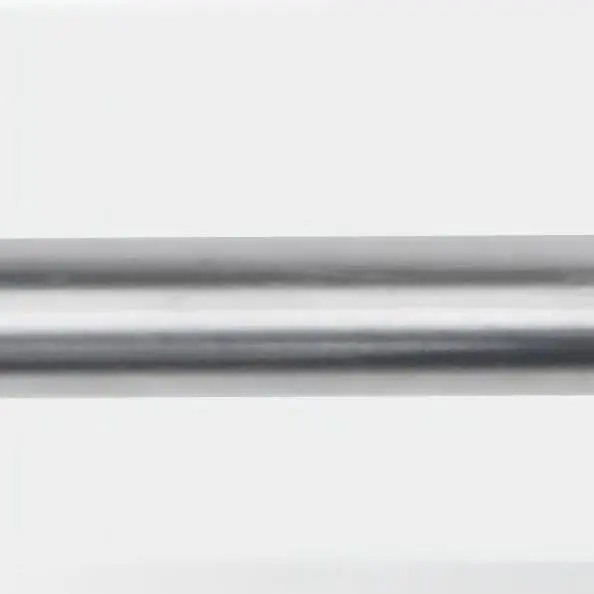

304 stainless steel guide rod, durable and corrosion resistant
-
Supports level display, alarm, and control functions
-
Multiple output signals available: analog and digital
-
Easy installation and reliable long-term operation
-
Factory tested and quality-controlled before delivery
Technical Details
Measuring Principle
Float type
Default Float Density
≥ 0.8
Measuring Accuracy
±2 cm (±1 cm optional)
Rated Pressure
≤ 1 MPa
Power Supply
15–30 VDC
Output Signal
4–20 mA (default), RS485, 1–5 V, 2–10 V
Protection Rating
IP65
Display
Digital LCD
Housing Material
Aluminum alloy (painted junction box)
Wetted Parts Material
SUS304 / SUS316
Guide Rod Diameter
Φ14 mm
Electrical Interface
G2
Connection Type
Flange / Thread (customizable)
Installation Type
Insertion type
Operating Environment
Industrial / harsh field conditions
