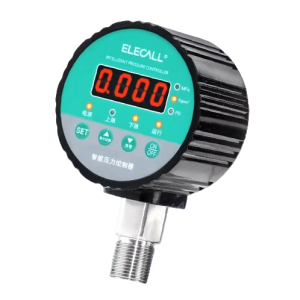

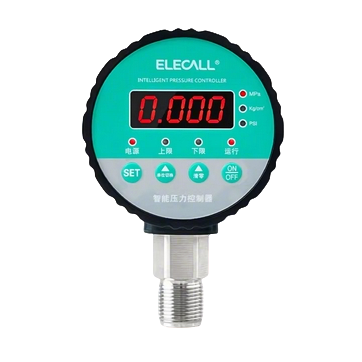

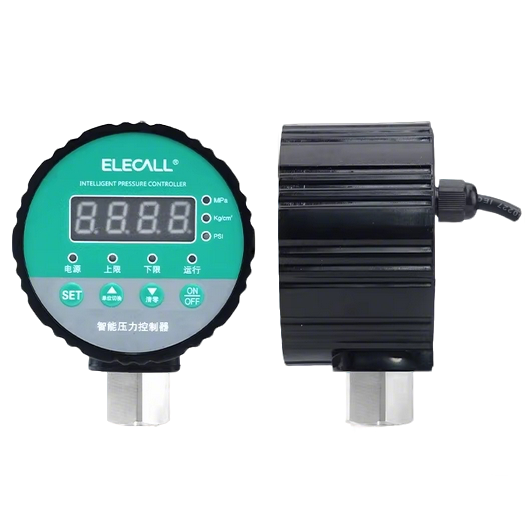

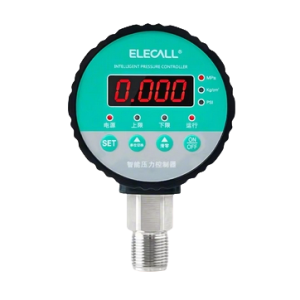

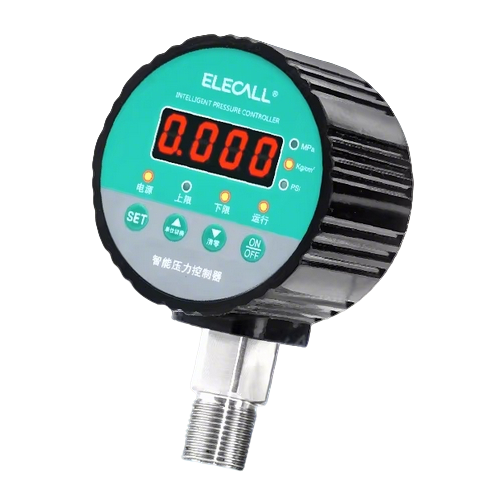

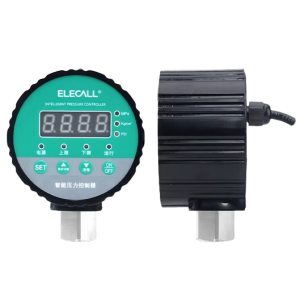

ECY-810 Digital Intelligent Pressure Controller
ECY810 digital intelligent pressure controller for automatic pressure control
Upper and lower limit control for precise regulation
Built-in alarm function for safety monitoring
Multiple protection features for reliable operation
Suitable for water, air, oil, and hydraulic systems
Application
Suitable for a wide range of industrial and commercial scenarios:
-
Water supply systems
-
Hydraulic systems
-
Oil & gas systems
-
Pipeline engineering
-
Water conservancy projects
-
Food processing industry
Applicable media:
-
Water
-
Air
-
Oil
-
Liquid
Description
The ECY810 Digital Pressure Controller is an all-in-one solution integrating pressure measurement, display, and automatic control. It allows users to freely adjust pressure settings and control equipment operation through upper and lower pressure limits.
With a built-in high-precision chip (Class 1 accuracy), the controller ensures stable and reliable performance. It is equipped with multiple intelligent protection functions, including water shortage protection and pressure detection protection, effectively preventing equipment damage such as dry running.
The device also features delay control to avoid frequent motor starts, parameter protection to prevent accidental changes, and memory retention after power failure. Its simple 3-step setup makes it easy to operate without complicated configuration.
Features
-
Free pressure adjustment
-
Upper & lower limit control (auto start/stop)
-
Dual-direction pressure control
-
High accuracy (Class 1)
-
Water shortage protection (anti dry-run)
-
Pressure detection protection (no pressure change alarm)
-
Parameter lock protection
-
Power-off memory function
-
Delay control to prevent frequent motor cycling
-
One-button zero reset (hold 5 seconds)
-
Multi-unit switching: MPa / PSI / kg/cm²
-
Integrated measurement, display, and control
-
Alarm indication (error code display “E--F”)
-
Easy 3-step setup
Technical Details
Model
EYS-80
Accuracy
±0.1% (optional ±0.2% / ±0.4%)
Pressure Type
Gauge pressure (absolute pressure customizable)
Overload Capacity
≤ 40 MPa: 150% 40 MPa: 120%
Power Supply
2 × AAA batteries
Display
LCD with backlight
Weight
Approx. 468.2 g
Material (Case)
304 Stainless Steel
Material (Connection)
304 Stainless Steel
Thread Connection
M20 × 1.5 (customizable)
Measuring Medium
Water, oil, gas, and other non-corrosive media
Operating Temperature
-20°C to 70°C
Humidity
0–95% RH
Temperature Drift
±0.01% FS/°C
Stability
±0.1% FS/year
Peak Value Record
Yes (Max/Min)
Range
Multiple ranges available, customizable
Accessories
