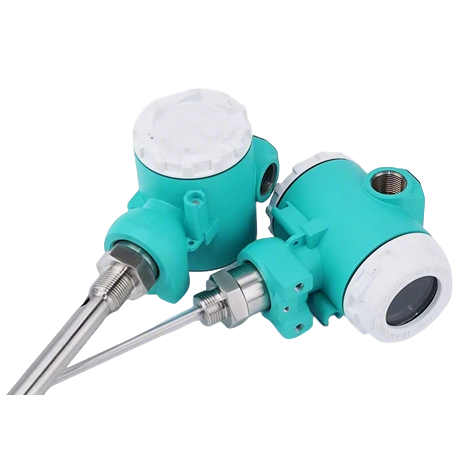

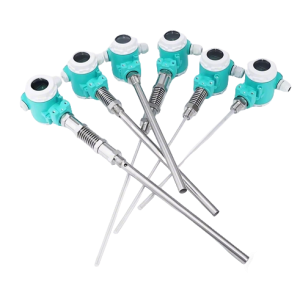

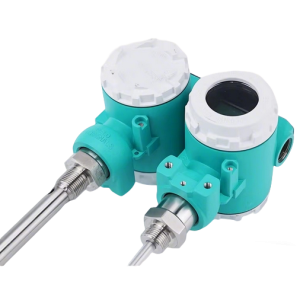

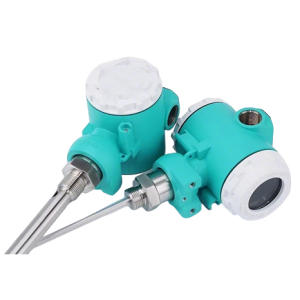

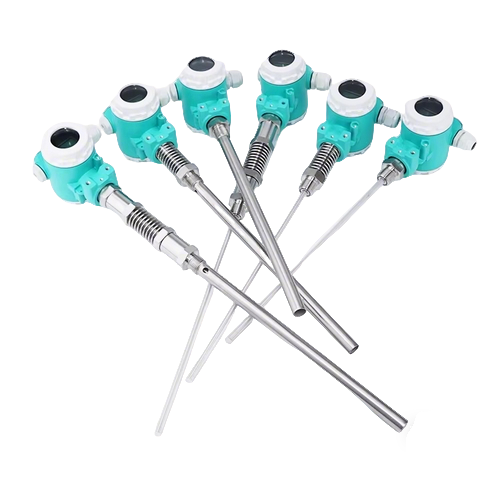

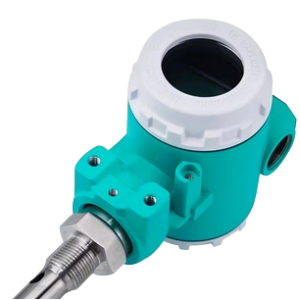

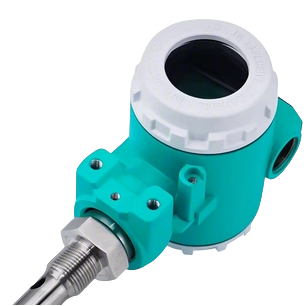

ECLM Capacitive Level Transmitter
Capacitive level transmitter with rod-type insertion design
Suitable for measuring liquid level, material level, and particle level
Stable performance with strong media compatibility
High-precision measurement with sensitive response

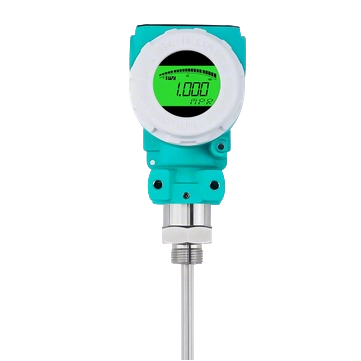

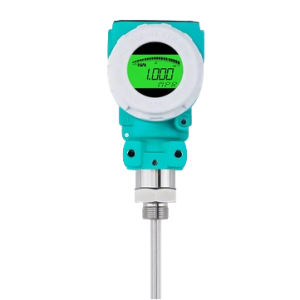

Optional LCD digital display for real-time monitoring
Multiple installation options: flange, clamp, or threaded connection
Explosion-proof design suitable for hazardous environments
Supports multiple output signals including 4–20mA, HART, and RS485
Application
The ECLM Capacitive Level Transmitter is widely used for level measurement in various industrial environments, including:
-
Water supply and water treatment plants
-
Hydropower systems
-
Petroleum industry
-
Chemical processing industry
-
Industrial material storage tanks
-
Powder, grain, and particle level monitoring
Description
The ECLM Capacitive Level Transmitter is designed for reliable level measurement of liquids, oils, solids, powders, and granular materials. It adopts advanced capacitive sensing technology to ensure stable performance and accurate measurement in various industrial environments.
Equipped with a high-quality sensing chip, the transmitter provides fast response and high measurement accuracy. The optional LCD digital display allows users to monitor measurement data clearly and conveniently.
To adapt to different installation conditions, the transmitter supports multiple mounting methods, including flange connection, clamp connection, and threaded installation. The insertion depth can also be customized according to specific application requirements.
With its high temperature resistance, explosion-proof design, and durable stainless steel construction, the ECLM transmitter is suitable for harsh industrial environments such as water treatment plants, petroleum processing, and chemical industries.
Features
The ECLM Capacitive Level Transmitter is designed for reliable level measurement of liquids, oils, solids, powders, and granular materials. It adopts advanced capacitive sensing technology to ensure stable performance and accurate measurement in various industrial environments.
Equipped with a high-quality sensing chip, the transmitter provides fast response and high measurement accuracy. The optional LCD digital display allows users to monitor measurement data clearly and conveniently.
To adapt to different installation conditions, the transmitter supports multiple mounting methods, including flange connection, clamp connection, and threaded installation. The insertion depth can also be customized according to specific application requirements.
With its high temperature resistance, explosion-proof design, and durable stainless steel construction, the ECLM transmitter is suitable for harsh industrial environments such as water treatment plants, petroleum processing, and chemical industries.
Technical Details
Product Type
Capacitive Level Transmitter
Detection Range
0.1 – 10 m
Capacitance Measurement Range
10 pF – 5000 pF
Accuracy
0.2% / 0.5% / 1% FS
Pressure Range
-0.1 MPa – 16 MPa
Probe Temperature Resistance
-50°C – 260°C (optional)
Ambient Temperature
-40°C – 80°C
Power Supply
15 – 36 VDC
Temperature Drift
≤0.01% FS / °C
Long-term Stability
≤0.1% FS / year
Protection Rating
IP66
Explosion-proof Rating
Ex ib IIC T6
Output Signal
4–20mA / 4–20mA + HART / RS485
Material
316 Stainless Steel / 1Cr18Ni9Ti / PTFE
Installation Options
Flange / Clamp / Threaded
