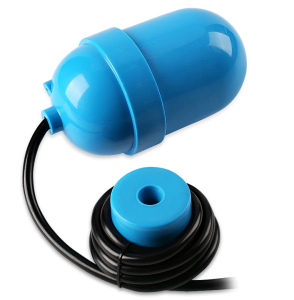

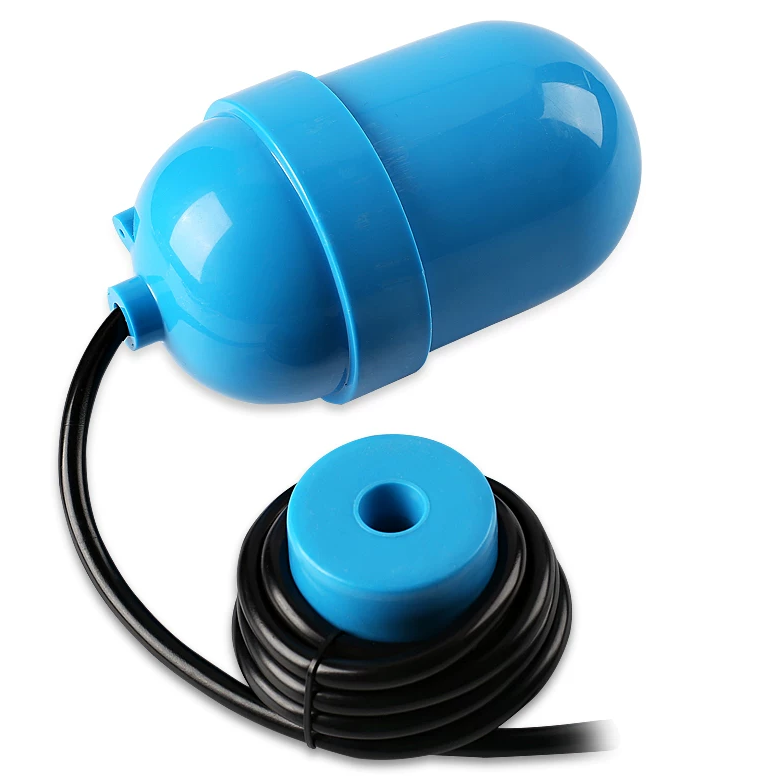

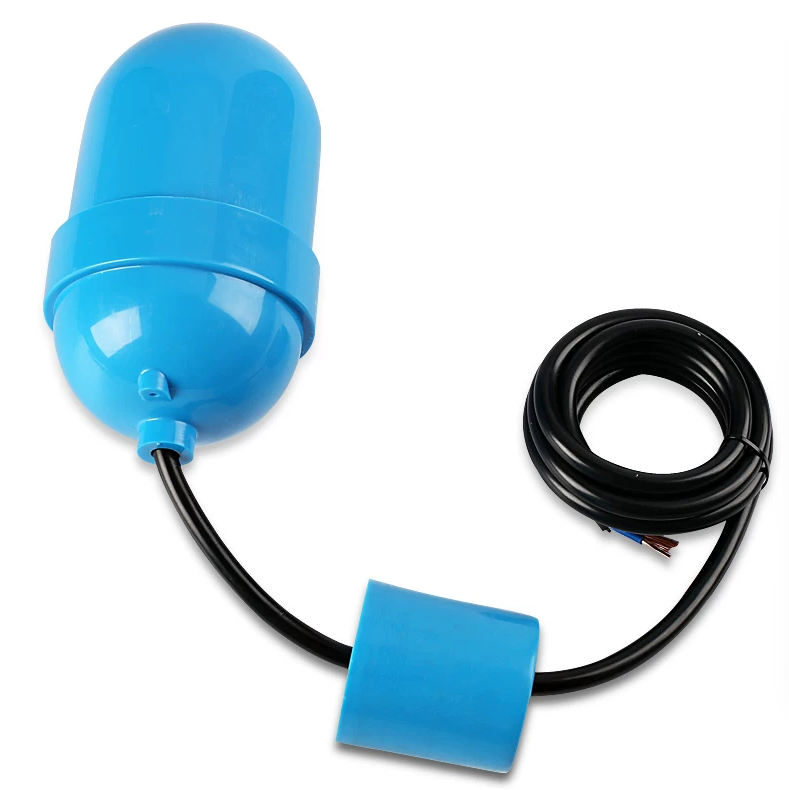

Cable Float Switch EFQS-4 Series
EFQS-4 Series cable float switch designed for reliable liquid level control
Reinforced cable for enhanced durability and long-term use
Dual-shell float structure ensures stable buoyancy
Suitable for water, oil, and mildly corrosive liquids
Designed for safe and continuous operation over time
Application
-
Domestic water tanks and wells
-
Industrial and factory water reservoirs
-
Sewage tanks and drainage systems
-
Oil tanks
-
Weak acid and weak alkali containers
-
Pools, barrels, tanks, slots, and pits
-
Agricultural irrigation systems
-
Pump protection and level control systems
Supports multi-float switch configurations for:
-
Dry-run pump protection
-
Dual-pump or multi-pump control systems
-
Water tower, filtration pool, and river/well coordinated control
Description
The EFQS-4 Series Cable Float Switch is designed to automatically control liquid levels in tanks, wells, and reservoirs. It features a double-shell float design to ensure stable buoyancy and reliable switching.

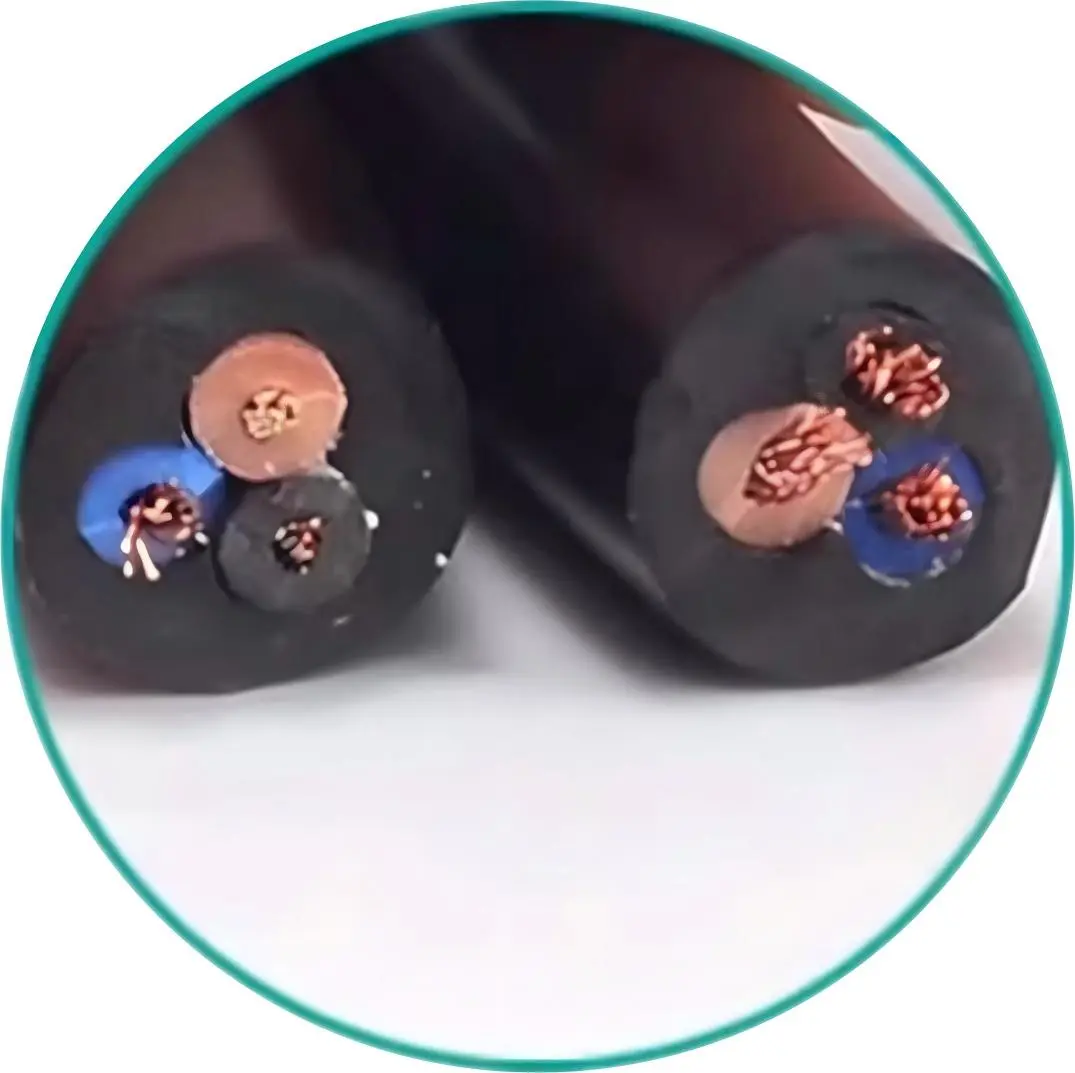

The cable uses 0.85 mm² thickened conductors, significantly stronger than standard 0.4 mm² cables, allowing higher load capacity and improved electrical safety.
The switch is easy to install, maintenance-free, and resistant to sewage and contaminated liquids. By connecting multiple float switches in series, users can effectively protect pumps from dry running and achieve multi-point level control.
Features
-
Dual-Shell Float Design – Ensures stable buoyancy and reliable operation
-
Thickened Cable (0.85 mm²) – Higher power capacity and enhanced safety
-
High Load Capability – Suitable for resistive loads
-
Customizable Cable Length – 1–40 m available, special lengths on request
-
Sewage Resistant – Suitable for polluted and industrial liquids
-
Simple Installation – Easy setup and operation
-
Maintenance-Free – Long service life with minimal upkeep
-

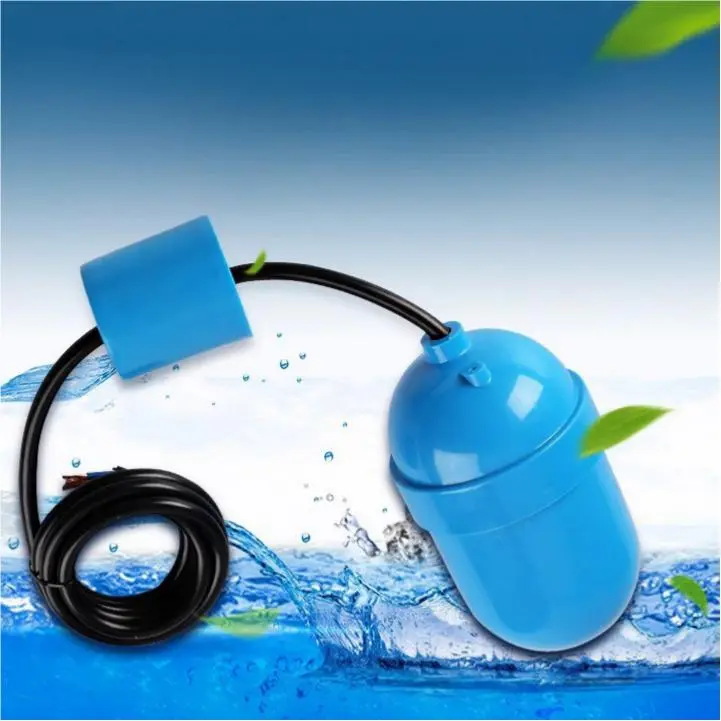

IP65 Protection Rating – Dustproof and water-resistant
-
Long Mechanical Life – Over 10,000 operating cycles
Technical Details
Rated Current (Resistive Load)
4A / 220V
Rated Insulation Voltage (Ui)
250V
Thermal Current (Ith)
10A
Operating Temperature
0°C ≤ Water Temp ≤ 65°C
Control Range
> 0.4 m
Cable Cross Section
0.85 mm²
Cable Length
1–40 m (Customizable)
Protection Rating
IP65
Mechanical Life
> 10,000 cycles
Short-Circuit Protection Fuse
RLI-10A
Accessories
Similar Products
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.
Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
