Adjustable Stainless Steel Float Switch(Double Ball)
Double ball adjustable stainless steel float switch
304/316 stainless steel, corrosion-resistant
Dual-float adjustable level control
Teflon wire for high durability
Threaded connector for easy installation
Strong sealing and stable performance
Application
- Water tanks and storage towers
- Household water towers and water heaters
- Breeding ponds and drainage pools
- Water purifiers and drinking machines
- Solar water systems and air conditioners
- Coffee machines and humidifiers
- Industrial water towers and liquid control systems
- Automotive equipment and agricultural devices
- Medical equipment and aerospace applications
Description
The double ball adjustable stainless steel float switch is designed for more precise liquid level monitoring with dual-float control. Made of high-quality 304/316 stainless steel, it provides excellent corrosion resistance, high-temperature resistance, and long service life. The adjustable clamp allows flexible positioning between the float balls for upper and lower level detection. Equipped with Teflon wire, threaded connector, and waterproof joint, it ensures strong sealing, high durability, and stable performance in demanding industrial and household environments.
Features
- 304/316 stainless steel body for durability and corrosion resistance
- Double float design for precise upper and lower level control

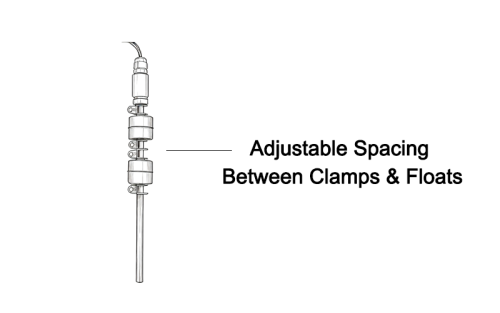

- Adjustable clamp allows free distance adjustment
- Teflon wire provides high durability and heat resistance
- Waterproof connector with strong sealing and dustproof protection
- Threaded joint design for easy and secure installation
- High impact resistance and long service life
- Suitable for high-temperature environments
- Rust-proof, pollution-free, and environmentally friendly
- Stable reed switch performance for accurate switching
Technical Details
Product Type:
Float Level Switch
Product Model:
ES20010-2 ES30010-2 ES40010-2 ES50010-2 ES60010-2 ES70010-2 ES80010-2 ES90010-2 ES100010-2 ES120010-2 ES150010-2 ES160010-2
Material:
304/316 Stainless Steel

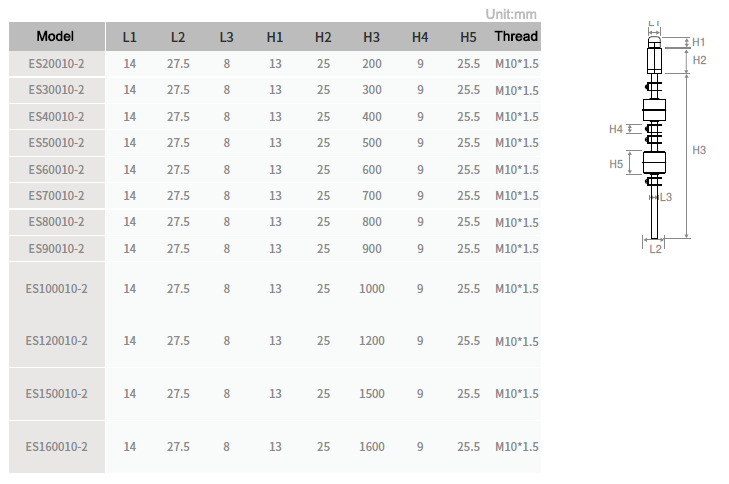

Size:
See attached drawing
Type:
Double Ball Adjustable Float Level Switch
Operating Temperature:
-30°C to +120°C
Max Contact Rating:
10VA (1A1) / 50VA (2A1)
Max Switching Voltage:
100V AC/DC (1A1) / 220V AC/DC (2A1)
Max Switching Current:
0.5A (1A1) / 1.5A (2A1)
Max Breakdown Voltage:
110V AC/DC (1A1) / 300V AC/DC (2A1)
Max Contact Resistance:
100mΩ (1A1 / 2A1)
Cable Type:
Teflon Wire
Accessories
What is an adjustable float level switch used for?
This float switch is used for liquid level detection and automatic control in tanks, containers, and industrial systems. It can control: Pumps Alarms Solenoid valves Liquid level monitoring systems Adjustable models allow users to manually set the switching position, making them more flexible than fixed models.
What is the key advantage of an adjustable float switch?
The main advantage is adjustable switching position. Users can change: Trigger position Control height This makes it ideal for: Different tank sizes Custom liquid level requirements Flexible installation conditions
What material is the float switch made of?
The float and rod are made of SU304 stainless steel, offering: Corrosion resistance High temperature resistance Strong mechanical strength Long service life For more demanding environments, 316 stainless steel customization is available.
Is it normally open (NO) or normally closed (NC)?
It supports both Normally Open (NO) and Normally Closed (NC), depending on the float orientation. The switching logic can be changed by reversing the float by 180°. Lower-Open Type (Default) ① When the liquid level rises, the float moves away from the reed switch position, and the switch turns OFF. ② When the liquid level falls, the float returns to the reed switch position, and the switch turns ON. Upper-Open Type ① When the liquid level rises, the float returns to the reed switch position, and the switch turns ON. ② When the liquid level falls, the float moves away from the reed switch position, and the switch turns OFF. Note The factory default is usually the lower-open type, but users can adjust it according to control requirements.
Can it directly control pumps or solenoid valves?
No. Because the internal reed switch carries only a small current, it must be used with: Relay Contactor Otherwise, the contacts may burn.
Can the float position be adjusted freely?
Adjustable model: YES (within range) Unlike fixed models, this product allows users to adjust the float position along the rod. However: Adjustment range is limited Internal reed switch position is fixed
What liquids is it suitable for?
Suitable for: Water Light oil Industrial liquids Not recommended for: Heavy sludge High debris liquids
Can it be customized?
Yes. Available customization: Rod length Thread size Cable length Float quantity Material (304 / 316)
What should buyers confirm before purchasing?
Buyers should confirm: Liquid type Temperature Pressure Installation method Thread size Rod length Cable length NO / NC Quantity Custom requirements
Why choose a double-ball adjustable model?
Choose double-ball if: Larger level differential needed Pump start/stop control More stable switching Enough installation space
Can float spacing be adjusted?
Yes (depending on structure). Adjustable models allow partial customization of float spacing. For precise requirements, customization is recommended.
Similar Products
The EDPS series differential pressure switch is a special type of control switch. It is a kind of switch that controls closing or opening based on the pressure difference between mutual components and relies on electrical signals for information transmission.
Floats are available in 1–4 pieces (optional,or more), and the rod length can be customized.

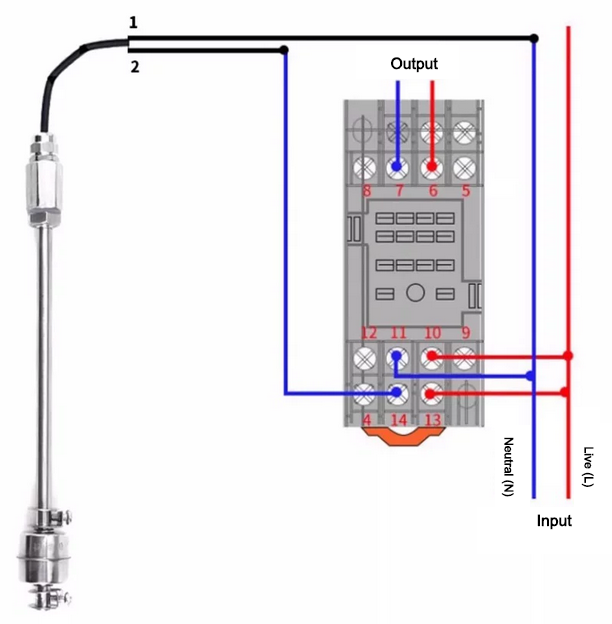

Notes:Float switches cannot directly control solenoid valves, high-power relays, AC contactors, etc. A small relay HH45P is required for transition.
